CAN Bus Diagnostics Table

CAN BUS DIAGNOSTICS TABLE
This diagnosis applies only to the CAN bus lines. If a different system is defective, proceed to the applicable diagnosis section for each system. Observe the diagnosis procedure below only when the CAN bus line is defective.

CAUTION: During diagnosis, a DTC code associated with another system may be set when the ignition switch is turned on with connector(s) disconnected. After completing the repair, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

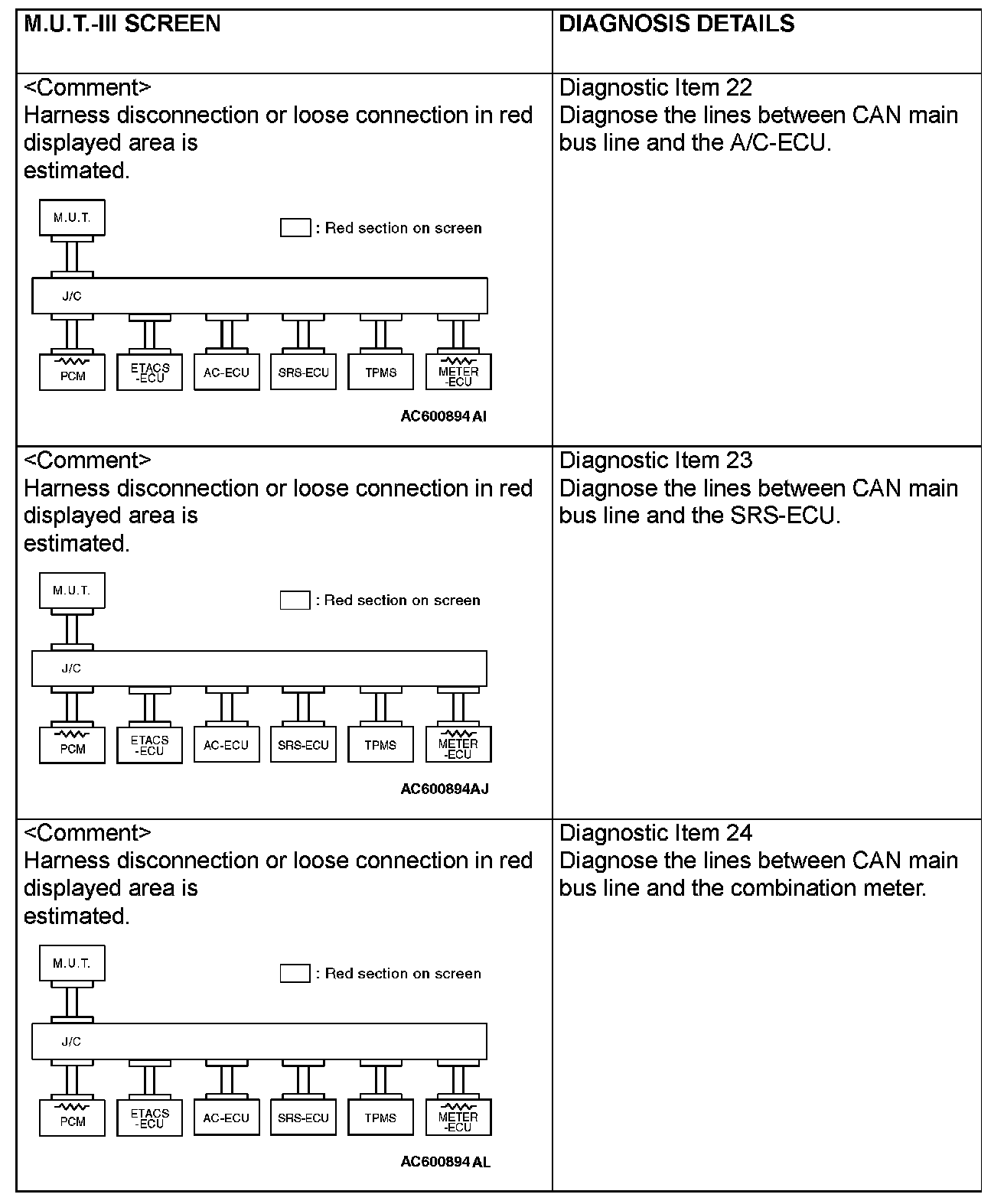

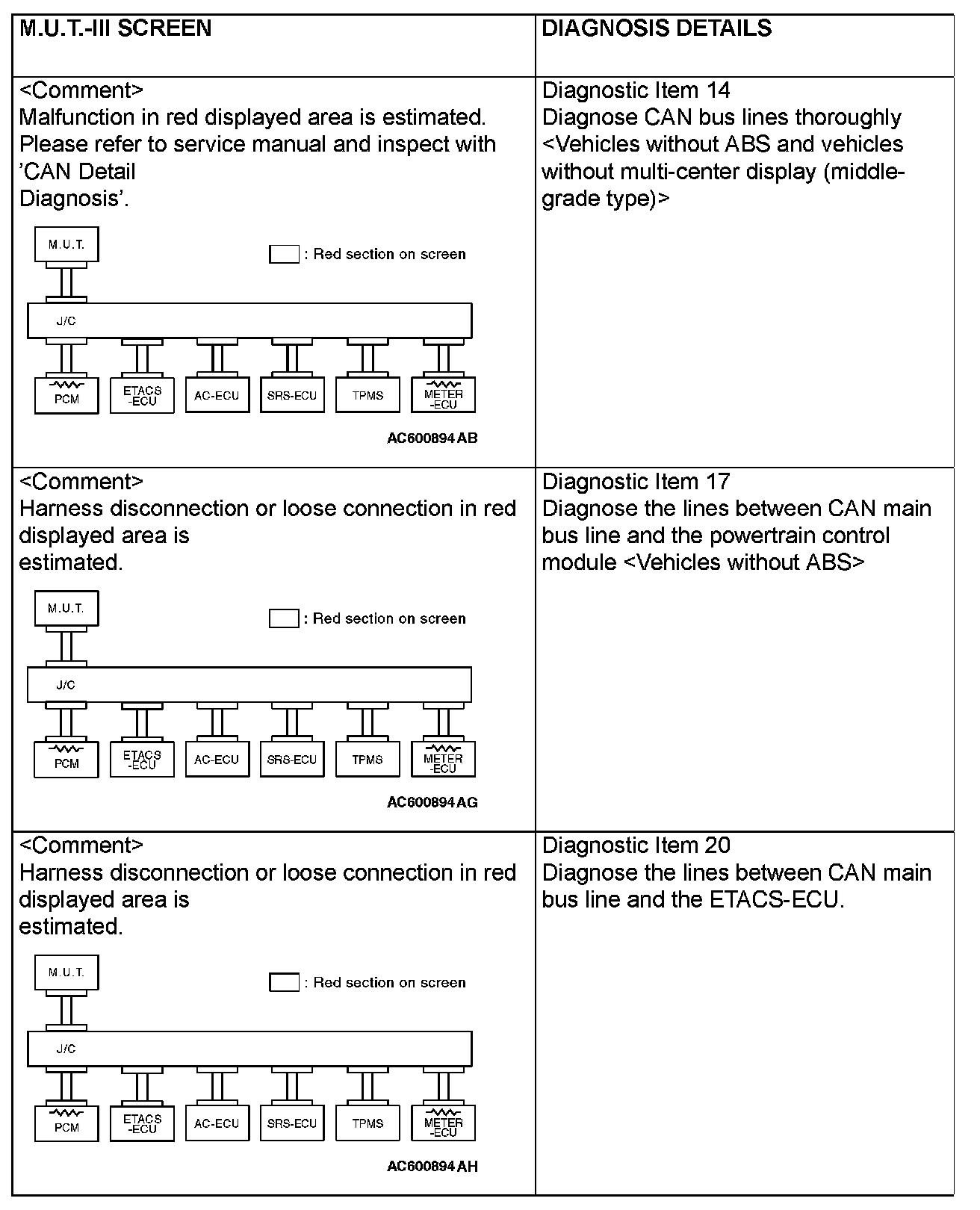

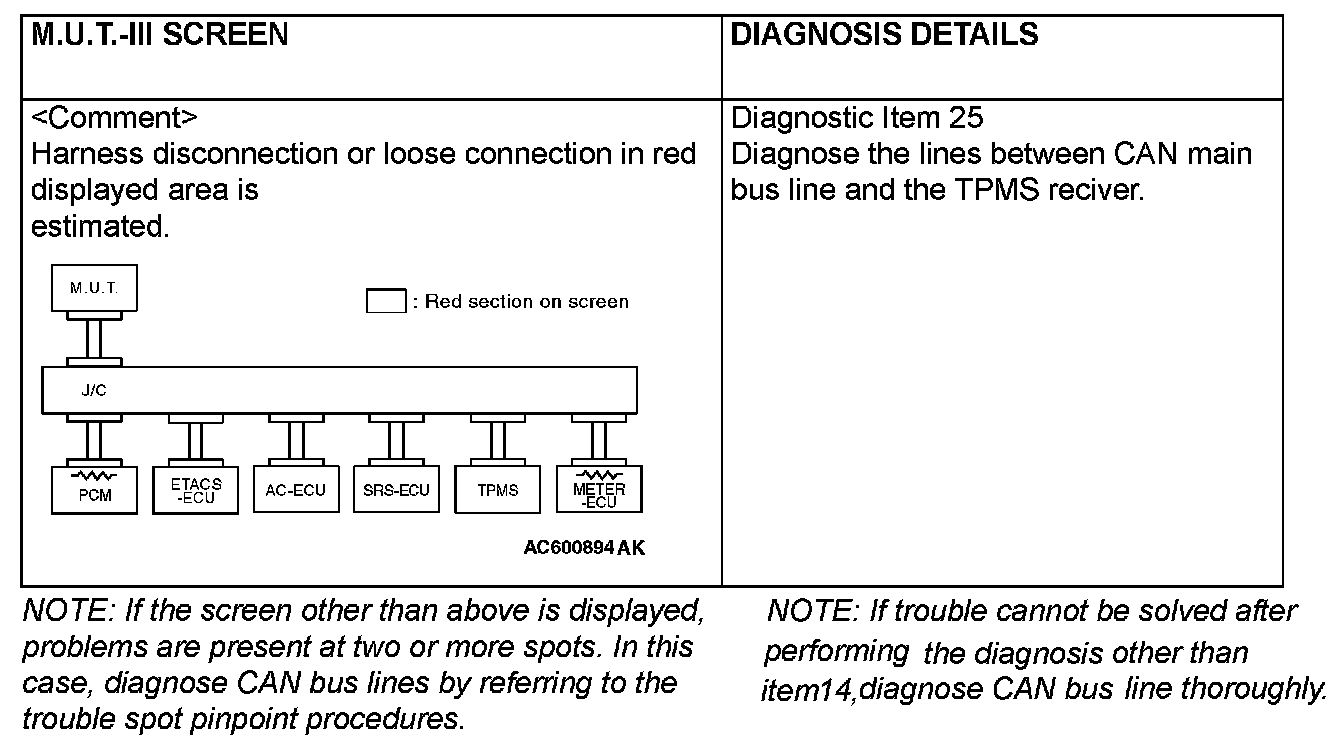

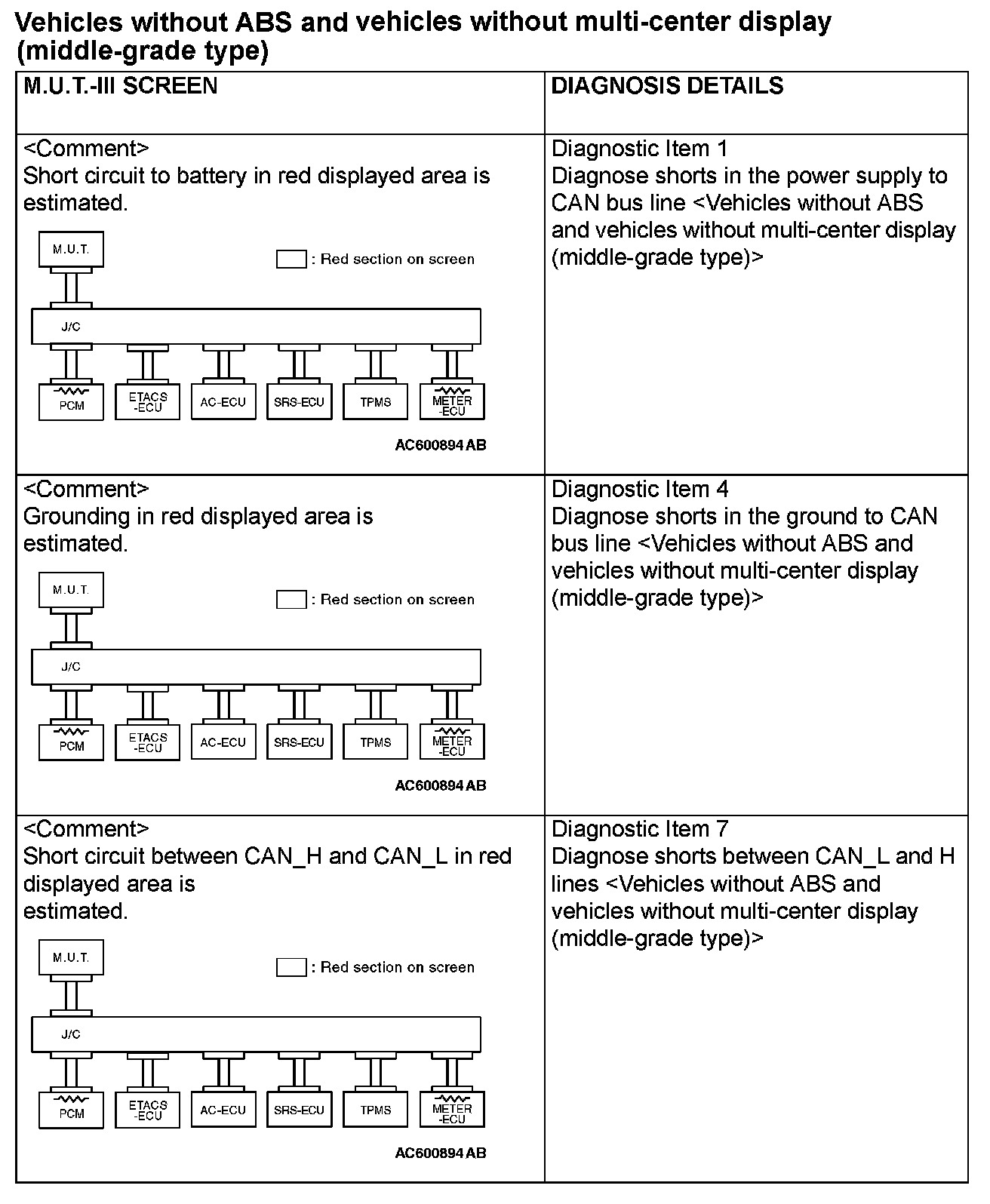

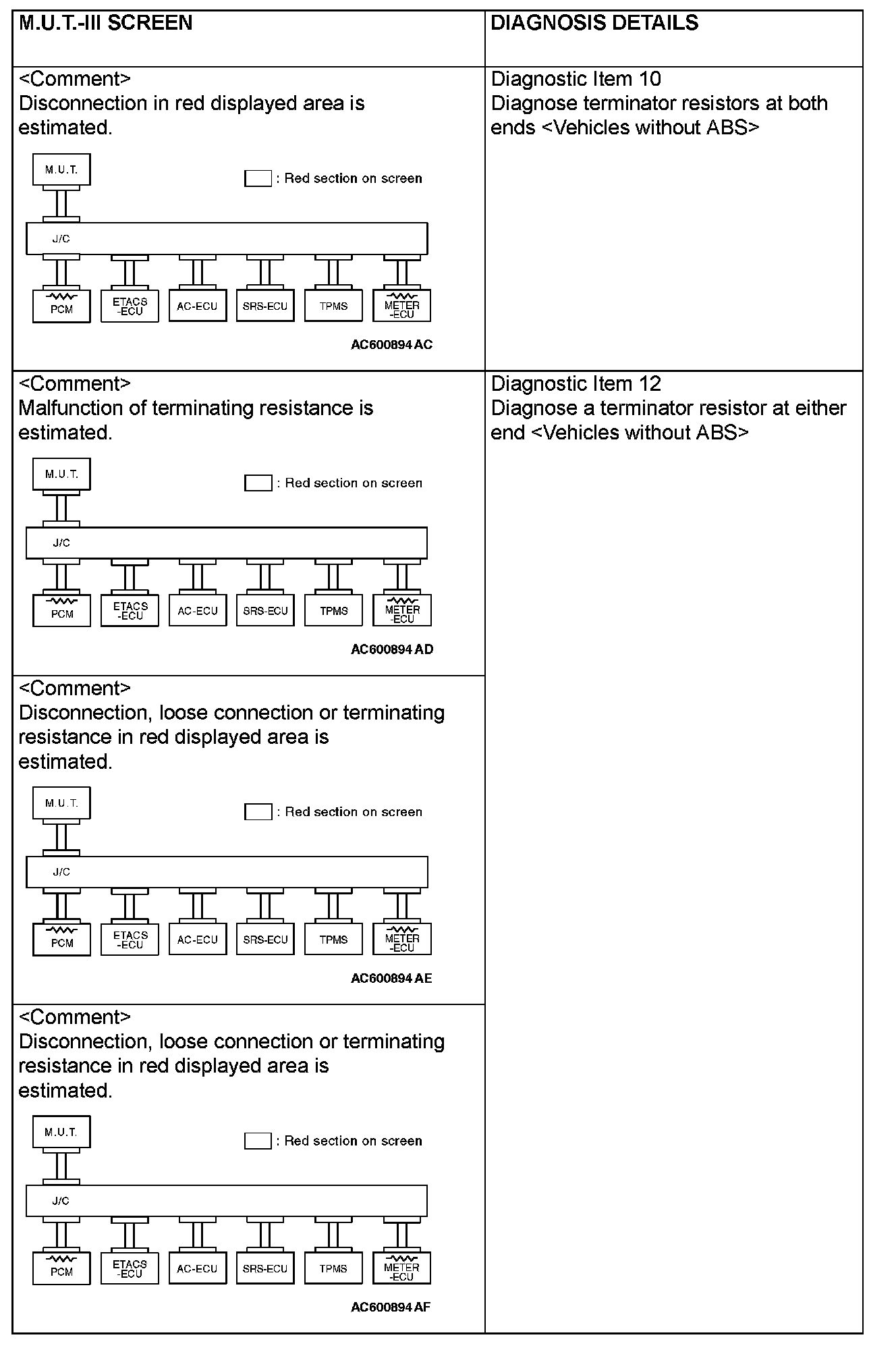

Vehicles without ABS and vehicles without multi-center display (middle-grade type)

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

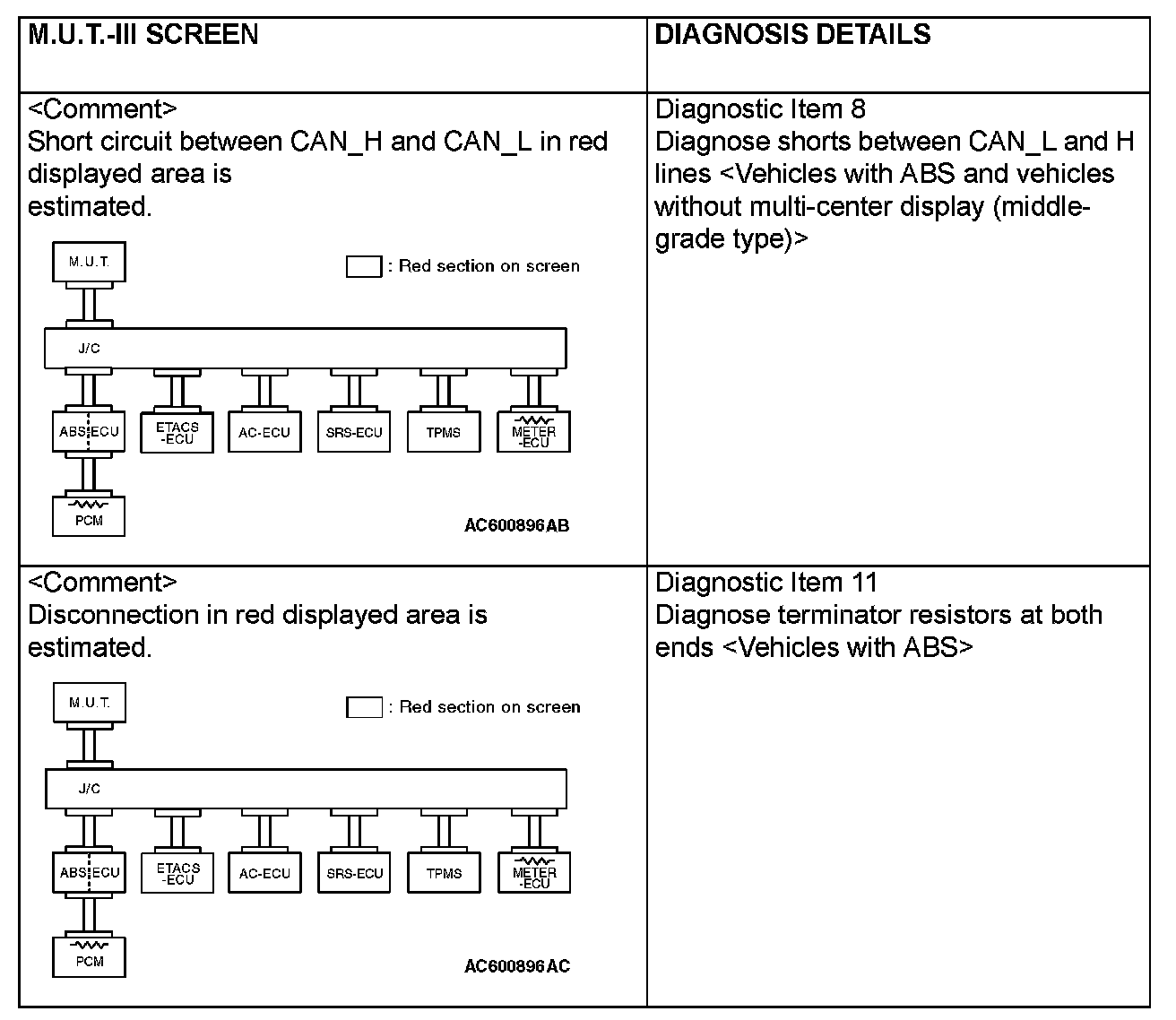

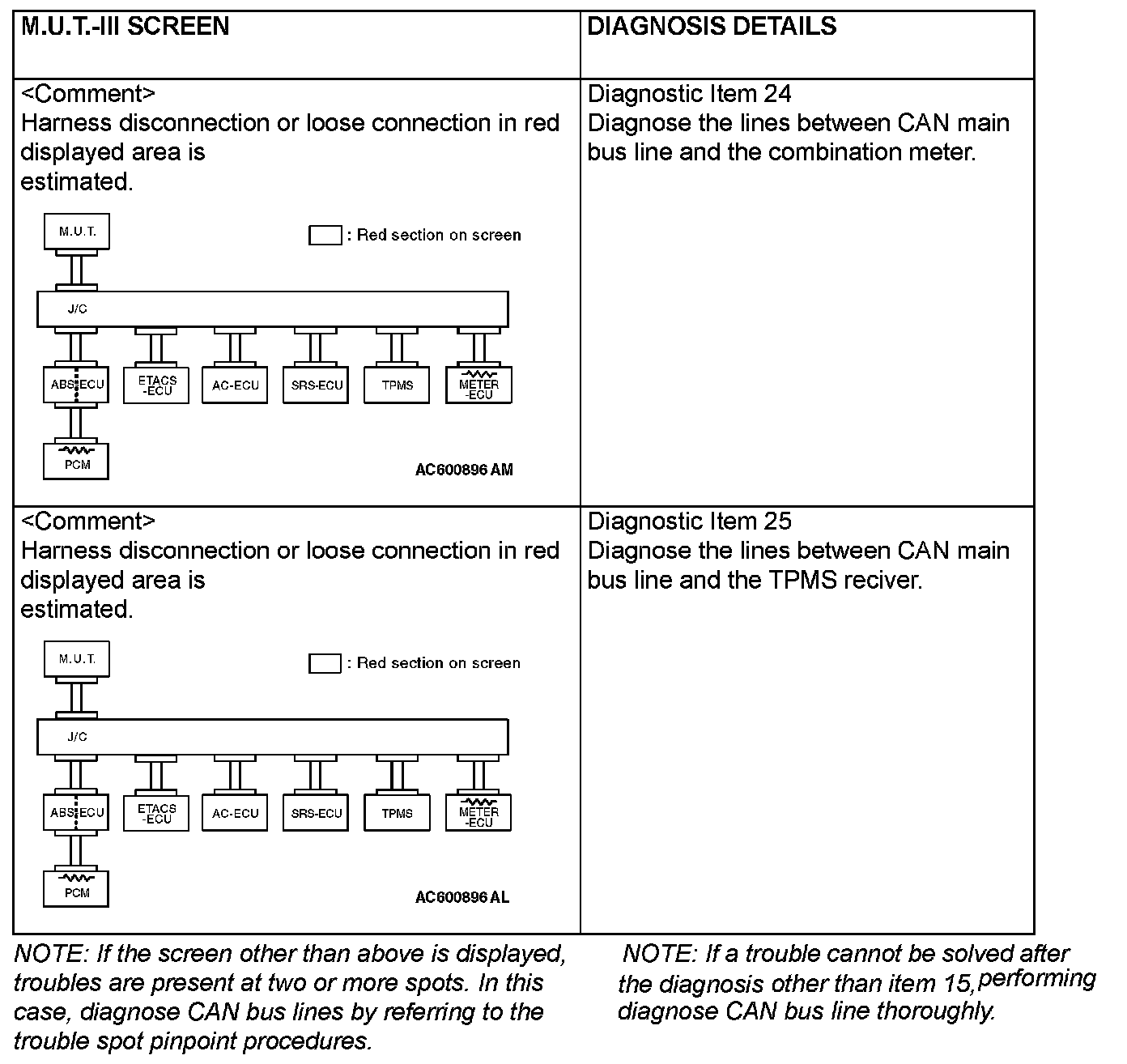

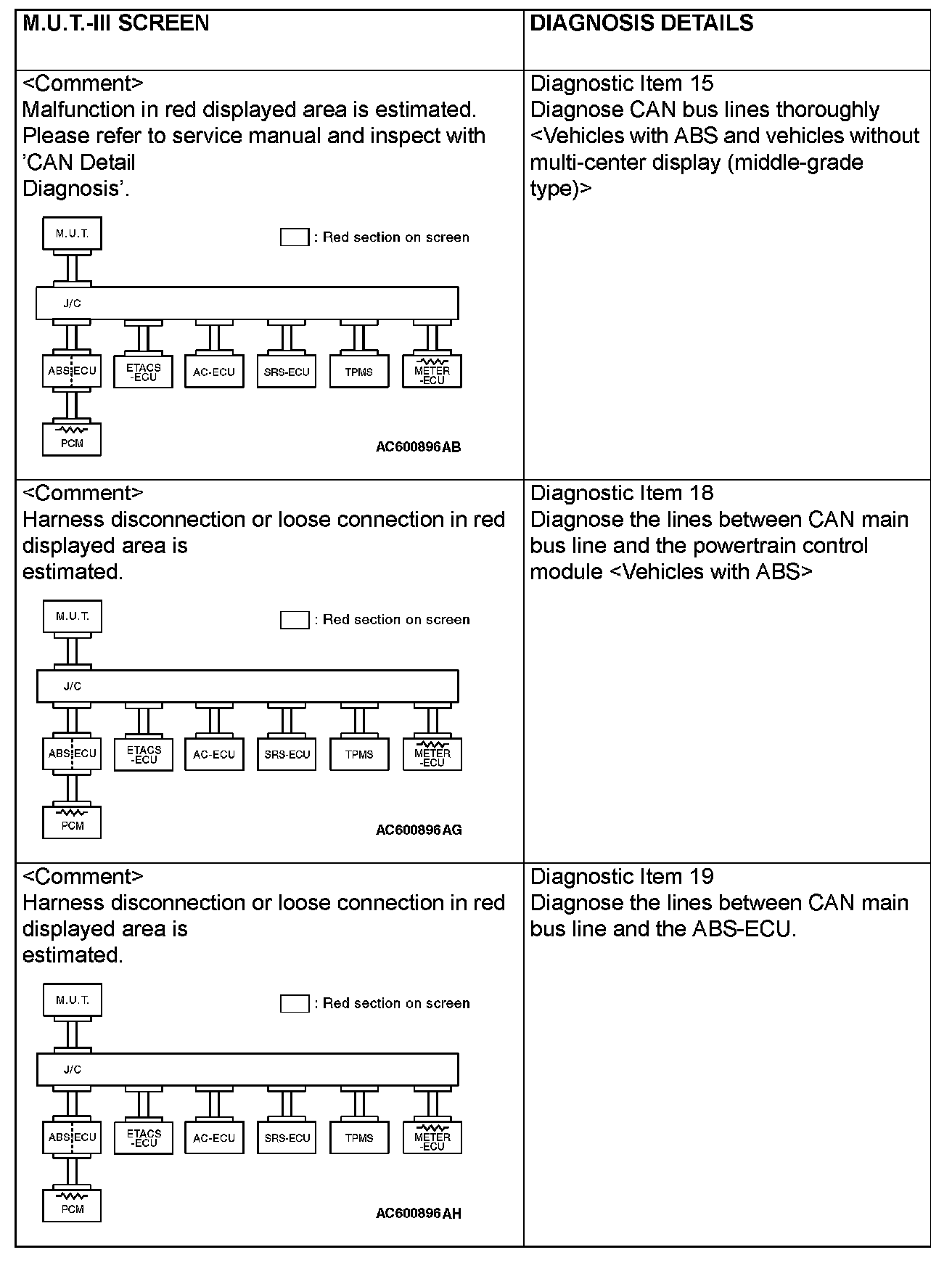

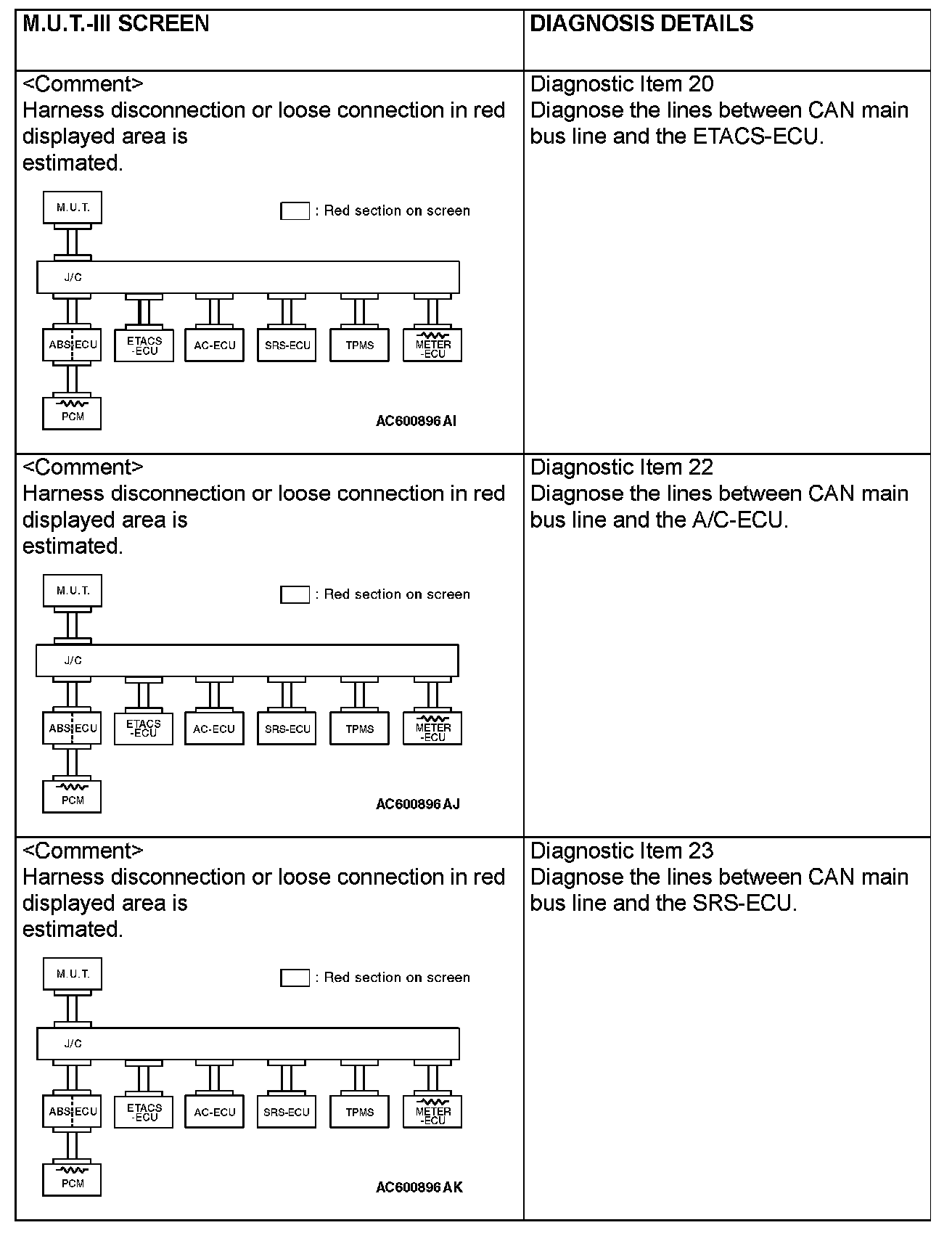

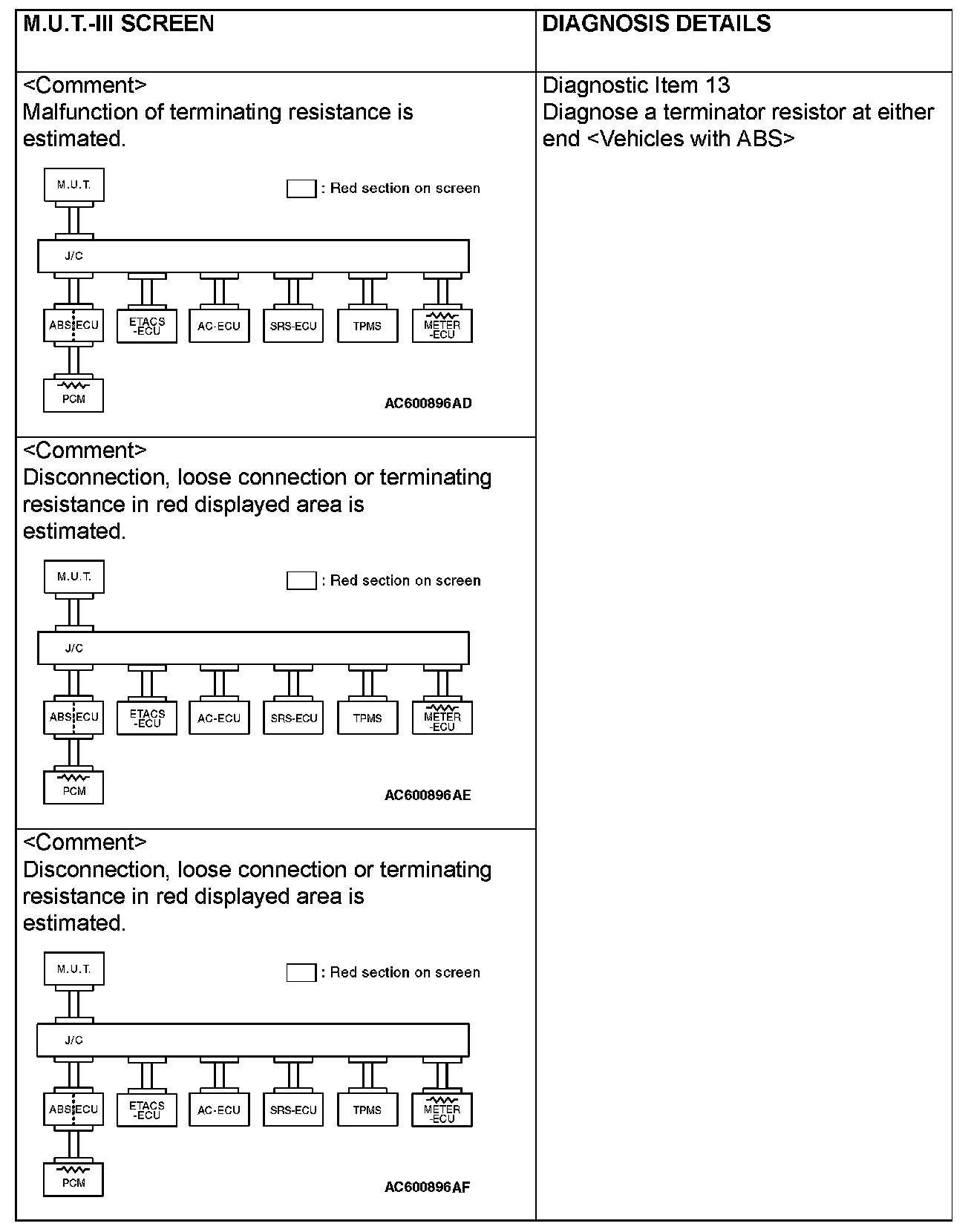

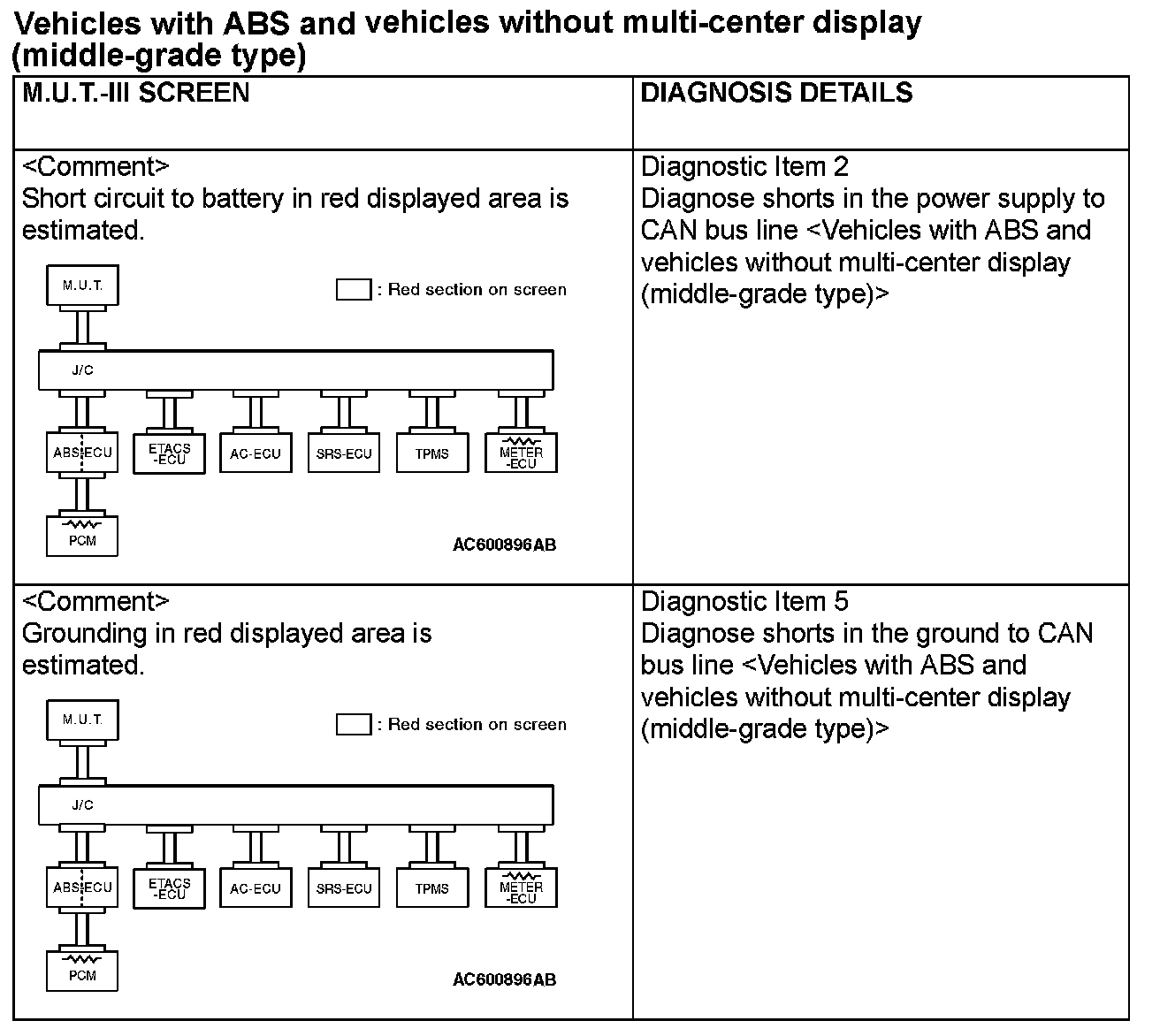

Vehicles with ABS and vehicles without multi-center display (middle-grade type)

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

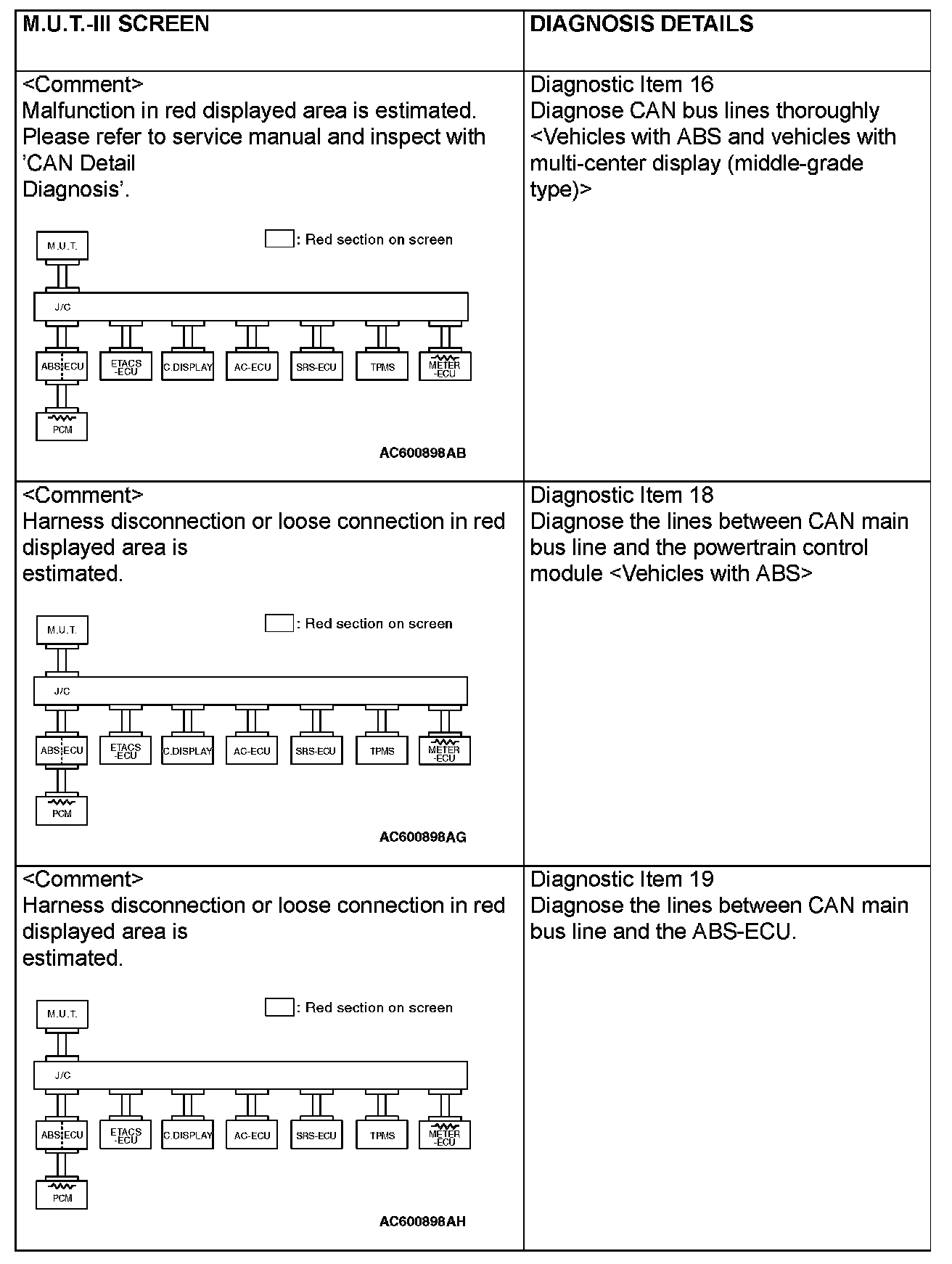

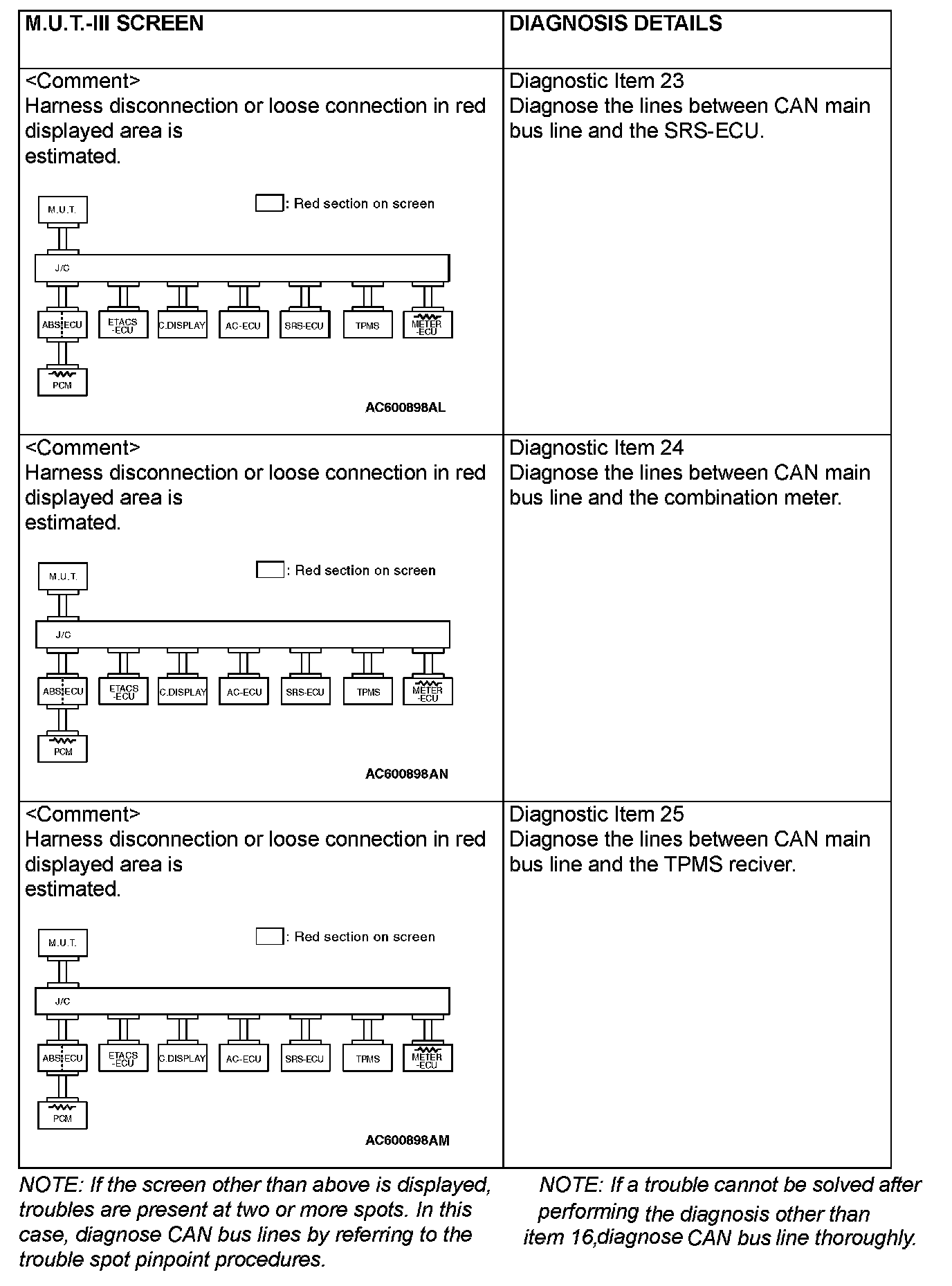

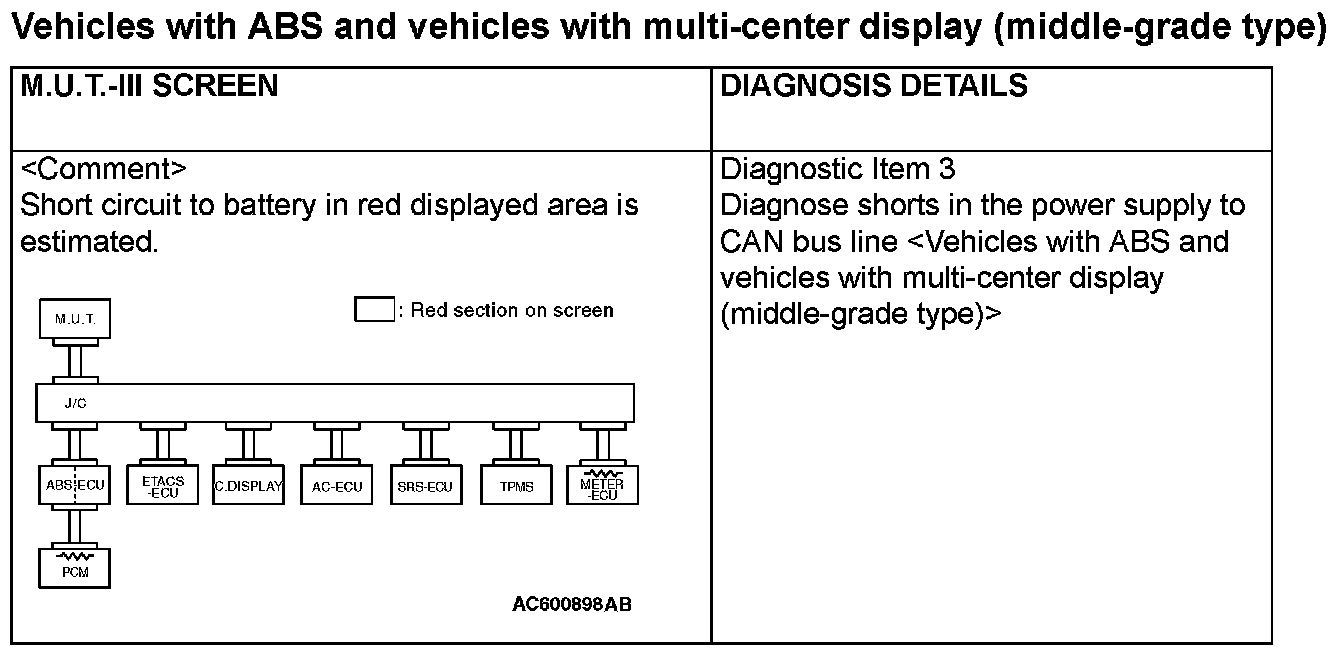

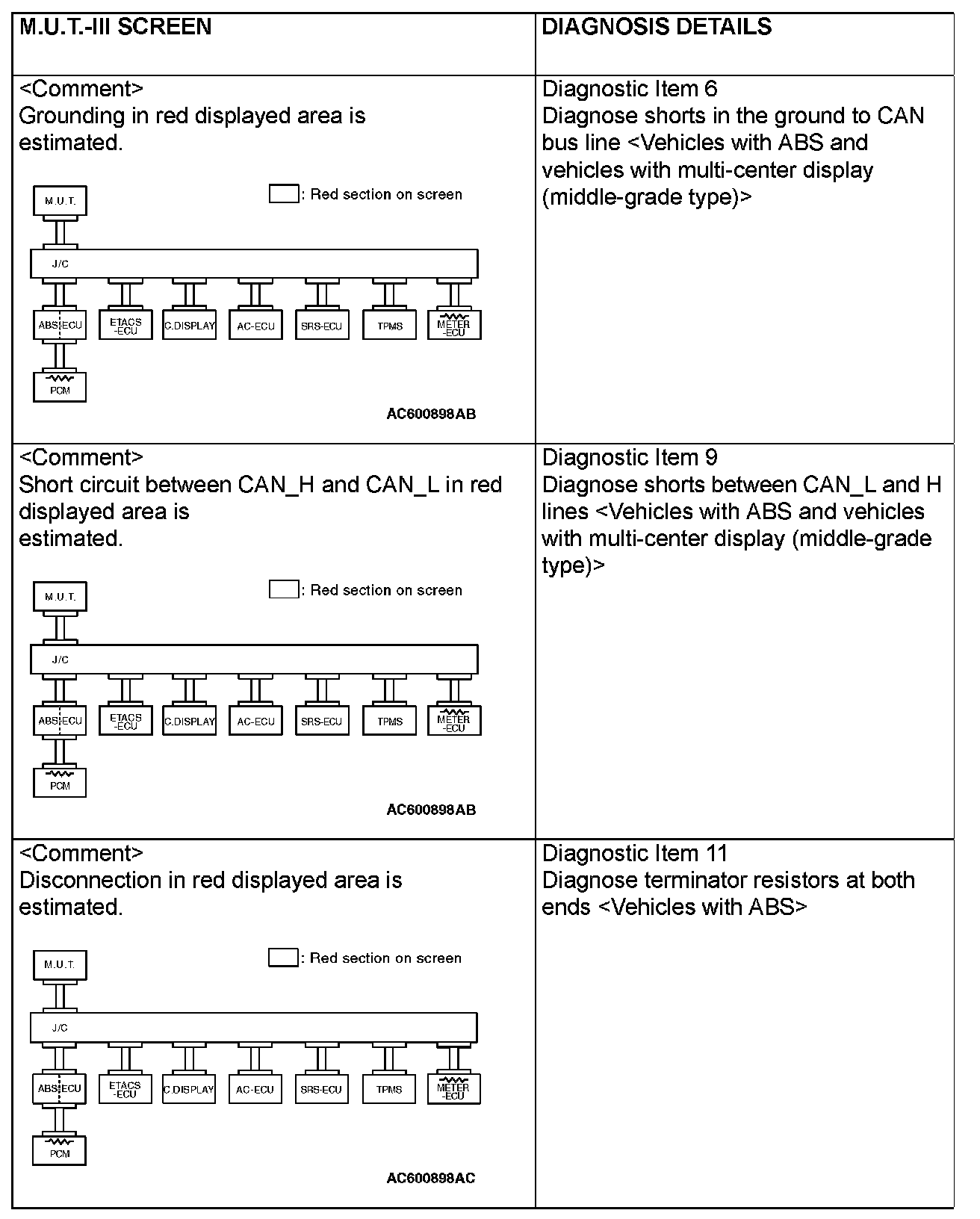

Vehicles with ABS and vehicles with multi-center display (middle-grade type)
