Diagnostic Item 13
DIAGNOSTIC ITEM 13: Diagnose a terminator resistor at either endCAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

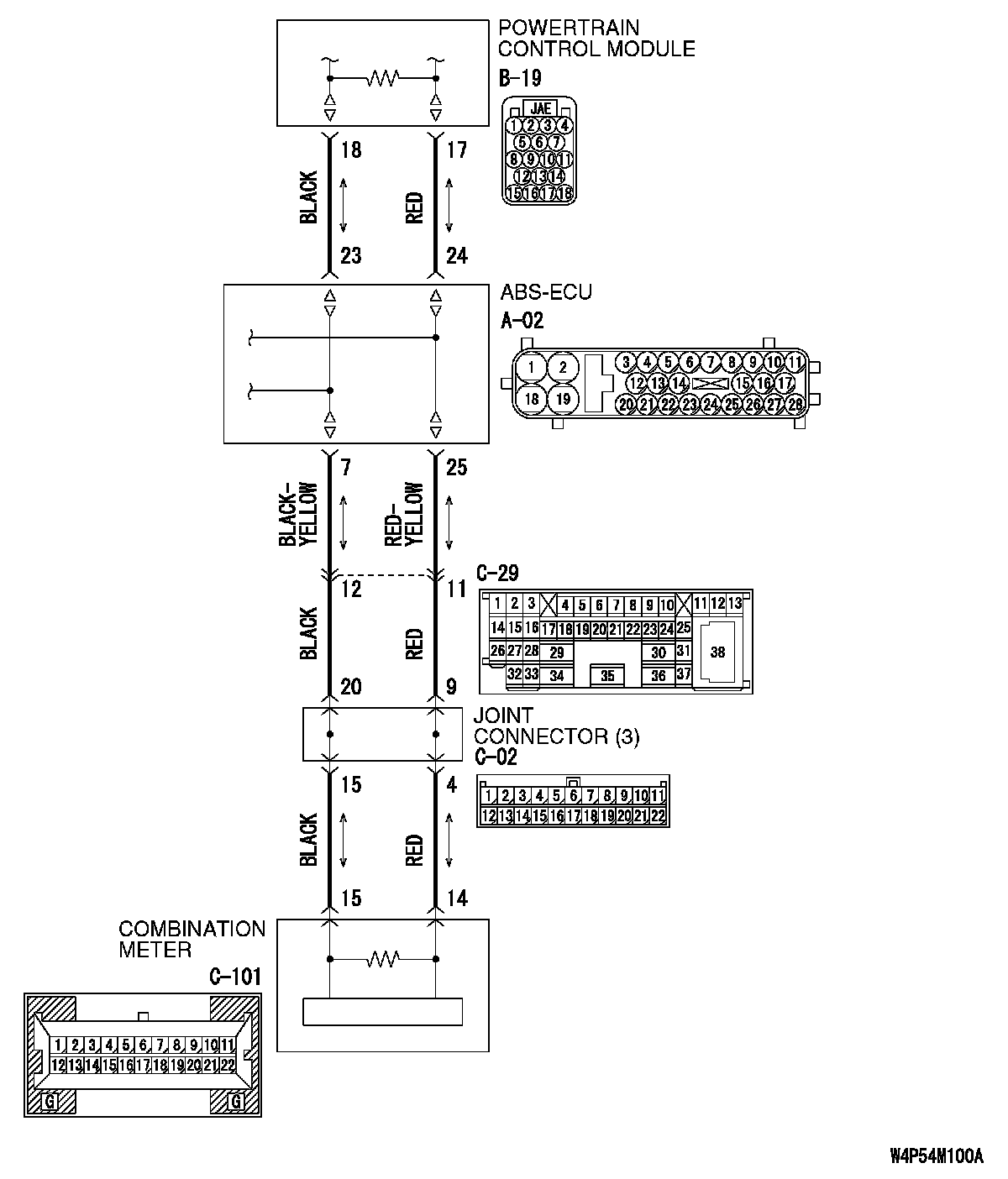

Part 1:
Part 2:
TROUBLE JUDGMENT
A terminator resistor at either end (including the CAN bus lines) may be damaged, when the resistance between the CAN bus lines (CAN_L and H lines) is 120 ± 20 ohms.
COMMENTS ON TROUBLE SYMPTOM
The CAN bus line harness wires or connectors may be damaged or the combination meter or the powertrain control module may be defective.
TROUBLESHOOTING HINTS
- The wiring harness or connectors may have loose, corroded, or damage terminals, or terminals pushed back in the connector
- The combination meter may be defective
- The ABS-ECU may be defective
- The powertrain control module may be defective
DIAGNOSIS
Required Special Tools:
- MB991223: Harness Set
- MB991970: ABS Check Harness

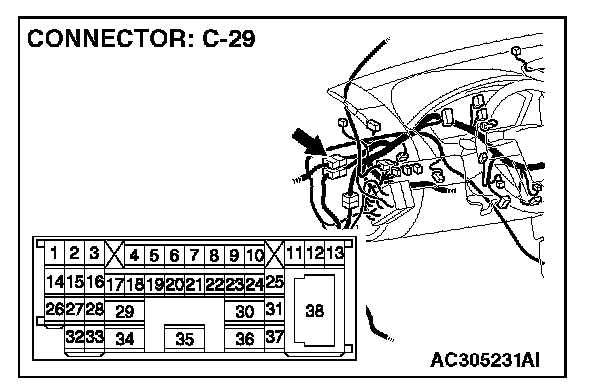

STEP 1. Check intermediate connector C-29 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector.
Q: Is intermediate connector C-29 in good condition?
YES: Go to Step 2.
NO: Repair the damaged parts.

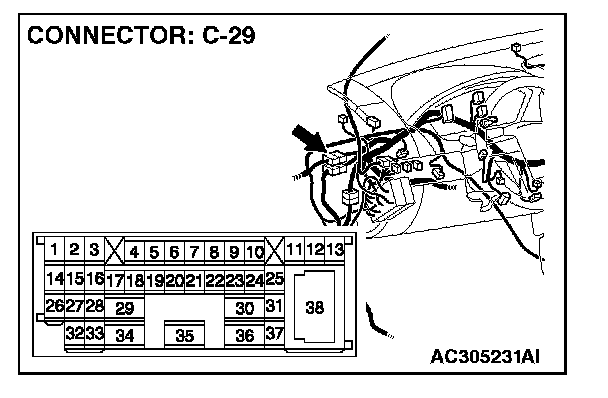

STEP 2. Check the front wiring harness side CAN bus lines (communication line including the powertrain control module). Measure the resistance at intermediate connector C-29.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.

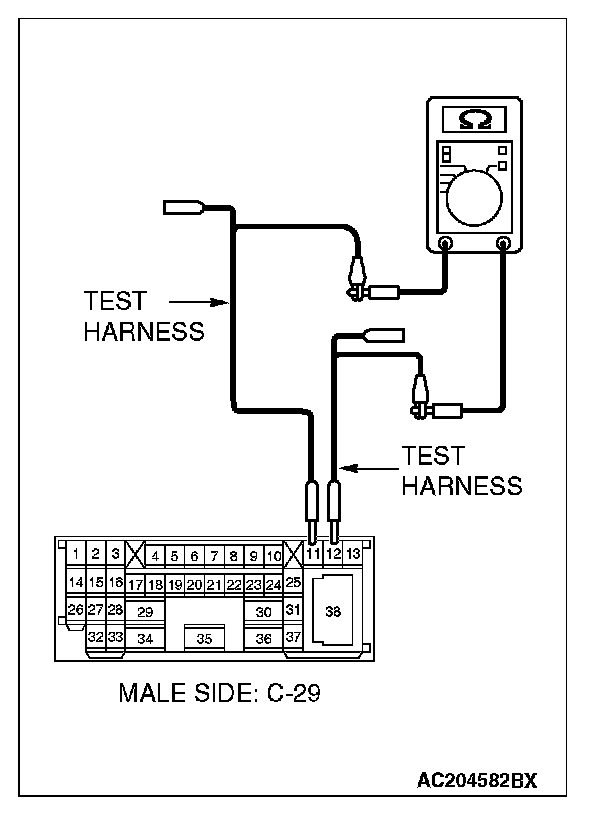

1. Disconnect intermediate connector C-29, and measure the resistance at the male side (at front wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.
4. Measure the resistance between intermediate connector terminals 11 and 12.
OK: 120 ± 20 ohms
Q: Does the resistance measure 120 ± 20 ohms?
YES: If the resistance measures 120 ± 20 ohms, go to Step 3.
NO: If the resistance does not measure 120 ± 20 ohms, go to Step 7.

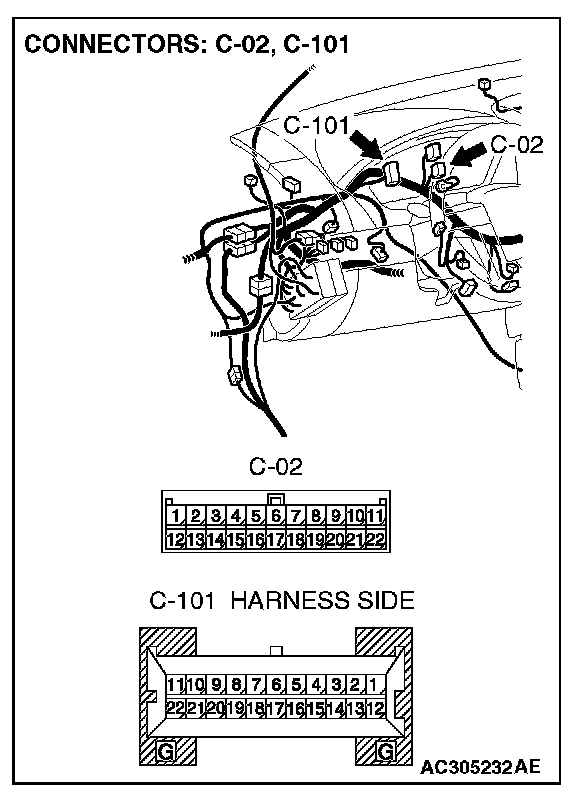

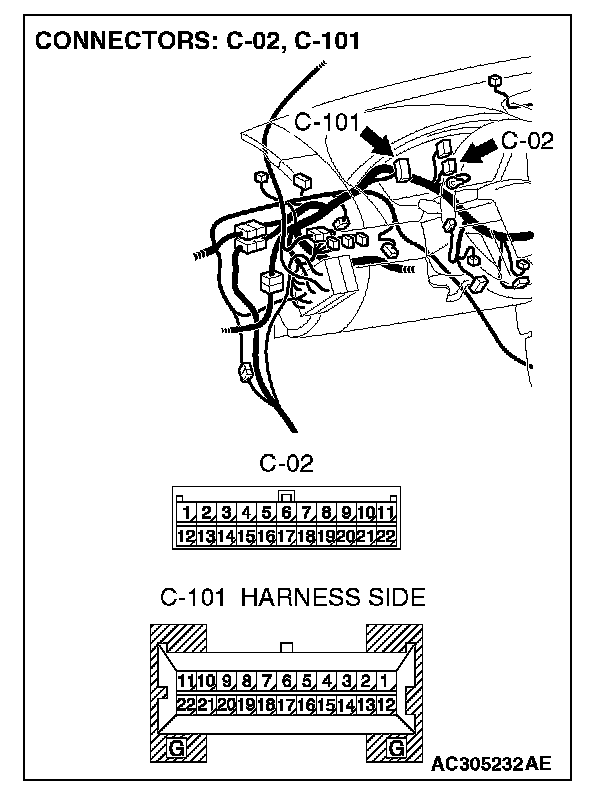

STEP 3. Check joint connector (3) C-02 and combination meter connector C-101 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector.

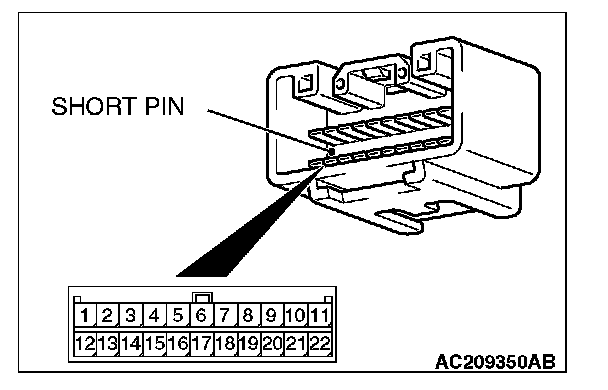

Check the joint connector at the wiring harness side for loose, corroded or damaged terminals, or terminals pushed back in the connector, and also check the short pin behind the connector for corrosion, deformation and delamination.
Q: Are joint connector (3) C-02 and combination meter connector C-101 in good condition?
YES: Go to Step 4.
NO: Repair the damaged parts. Replace the joint connector as necessary.

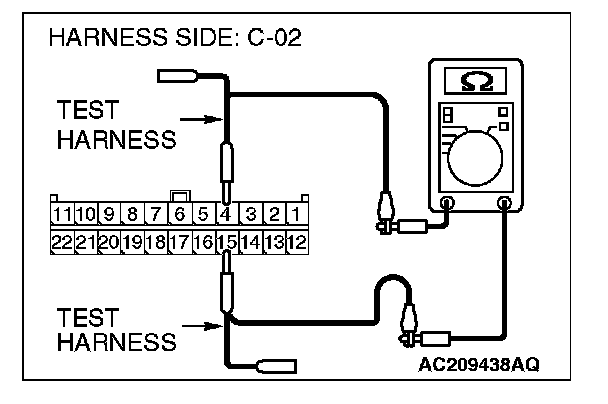

STEP 4. Check the CAN bus lines (communication line including the combination meter) between joint connector (3) and the combination meter. Measure the resistance at joint connector (3) C-02.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.

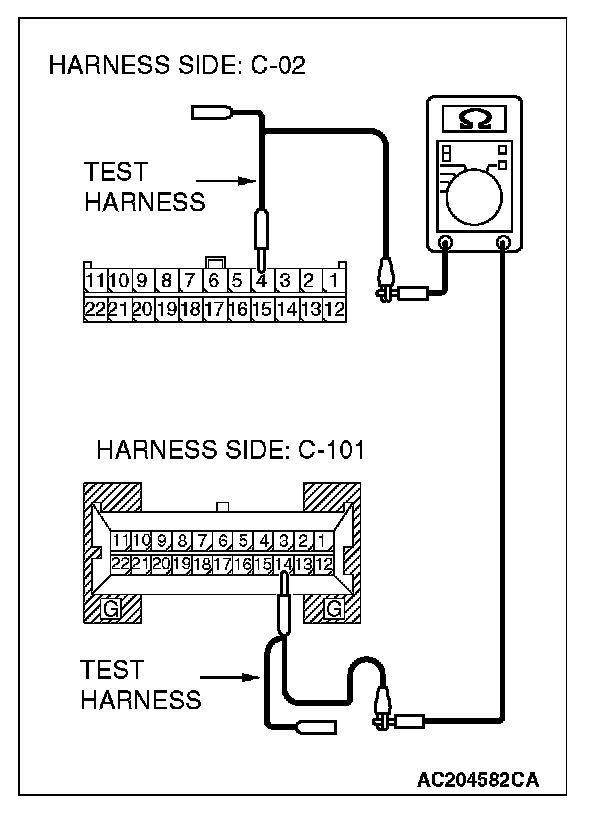

1. Disconnect joint connector (3) C-02, and measure the resistance at the wiring harness side of joint connector (3) C-02.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (3) terminals 4 and 15.
OK: 120 ± 20 ohms
Q: Does the resistance measure 120 ± 20 ohms?
YES: If the resistance measures 120 ± 20 ohms, diagnose CAN bus lines thoroughly by referring to DIAGNOSTIC ITEM 15
NO: If the resistance does not measure 120 ± 20 ohms, go to Step 5.

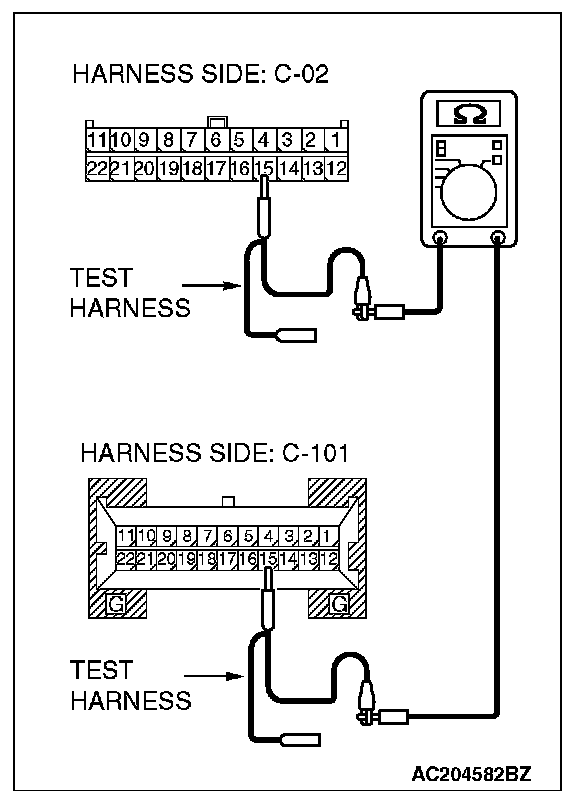

STEP 5. Check the CAN bus lines (communication line only) between joint connector (3) and the combination meter. Measure the resistance at joint connector (3) C-02 and combination meter connector C-101.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.
1. Disconnect joint connector (3) C-02 and combination meter connector C-101, and measure the resistance between each wiring harness side connector.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (3) terminal 15 and combination meter connector terminal 15.
OK: 2 ohms or less
5. Measure the resistance between joint connector (3) terminal 4 and combination meter connector terminal 14.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, go to Step 6.
NO: If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 ohms, repair the wiring harness between joint connector (3) and the combination meter connector.

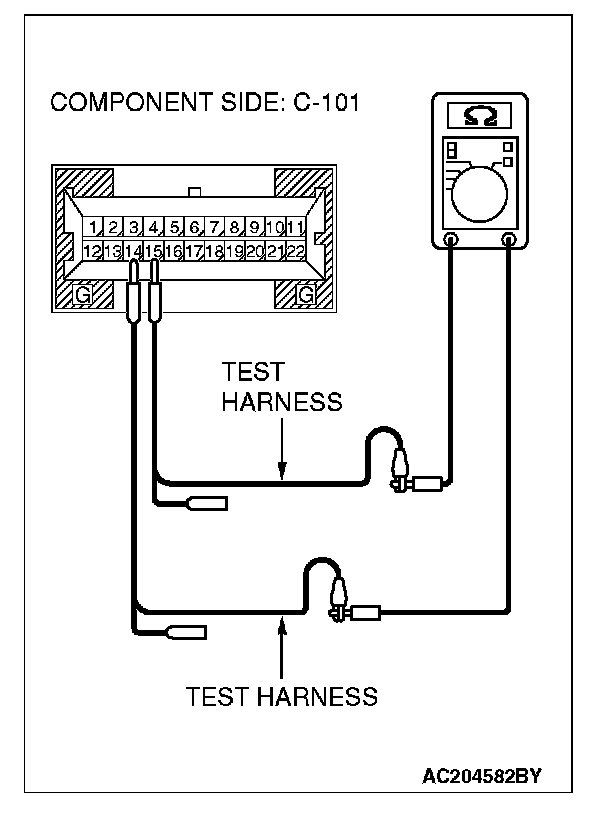

STEP 6. Check the terminator resistor inside the combination meter. Measure the resistance at combination meter connector C-101.
CAUTION: A digital multimeter should be used.

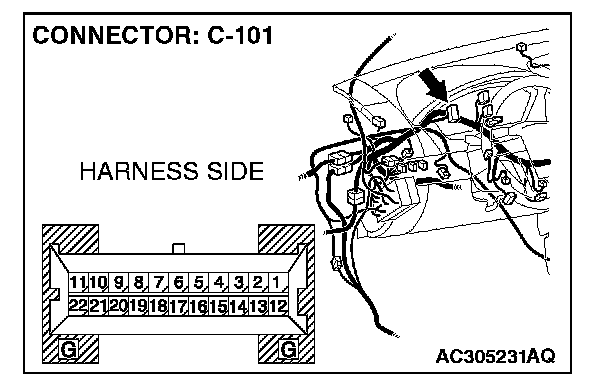

1. Disconnect combination meter C-101, and measure the resistance at the component side of combination meter connector C-101.
2. Measure the resistance between combination meter connector terminals 14 and 15.
OK: 120 ± 20 ohms
Q: Does the resistance measure 120 ± 20 ohms?
YES: If the resistance measures 120 ± 20 ohms, diagnose CAN bus lines thoroughly by referring to DIAGNOSTIC ITEM 15
NO: If the resistance does not measure 120 ± 20, replace the combination meter.

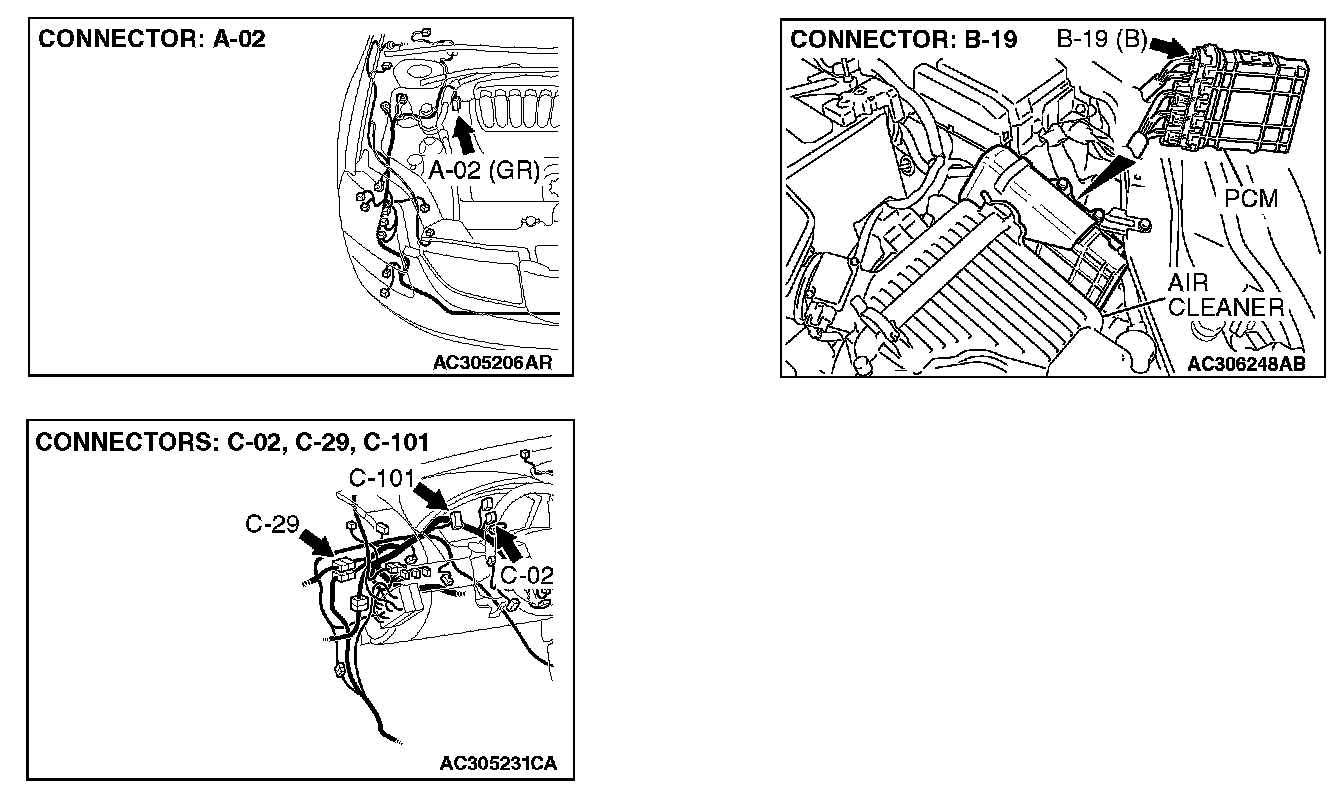

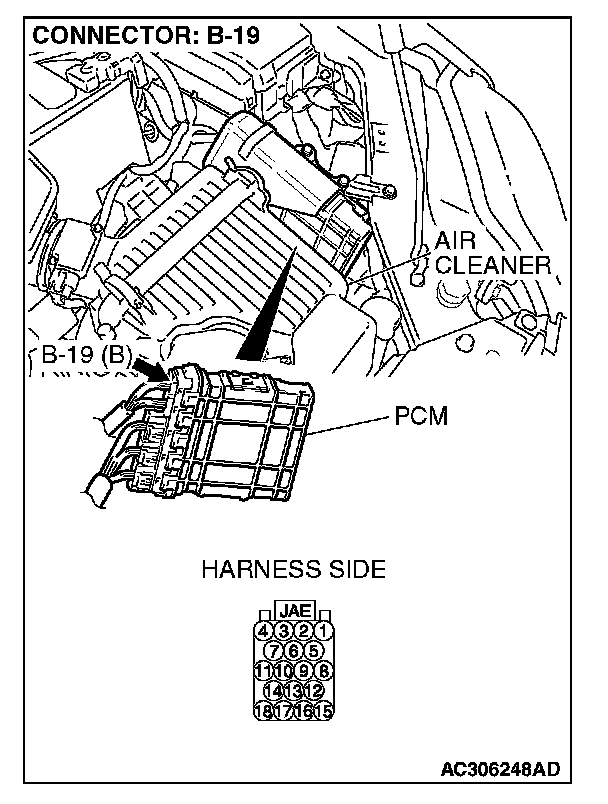

STEP 7. Check powertrain control module connector B-19 and ABS-ECU connector A-02 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector.
Q: Are powertrain control module connector B-19 and ABS-ECU connector A-02 in good condition?
YES: Go to Step 8.
NO: Repair the damaged parts.

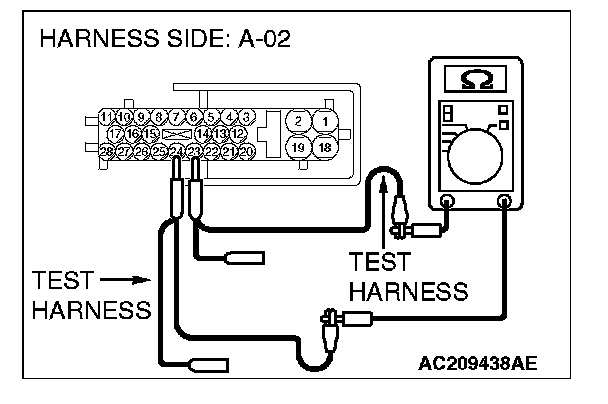

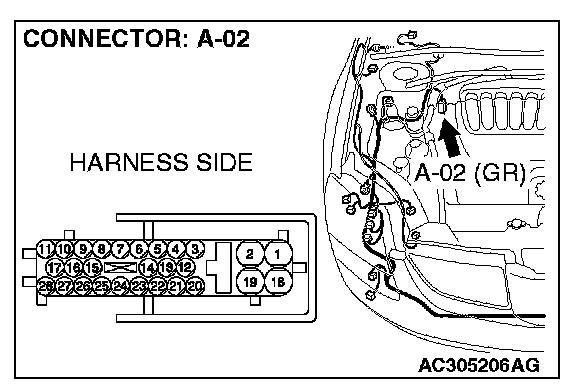

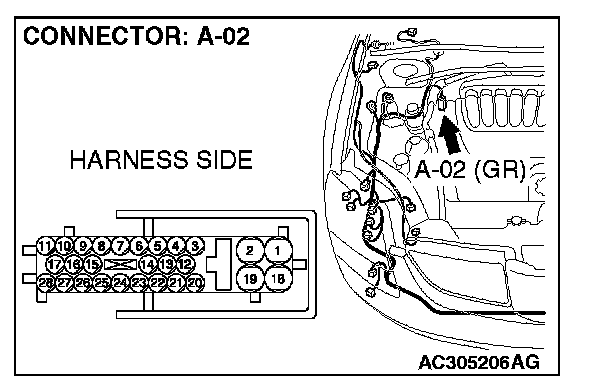

STEP 8. Check the CAN bus lines between the ABS-ECU and the powertrain control module (communication line including the powertrain control module). Measure the resistance at ABS-ECU connector A-02.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.

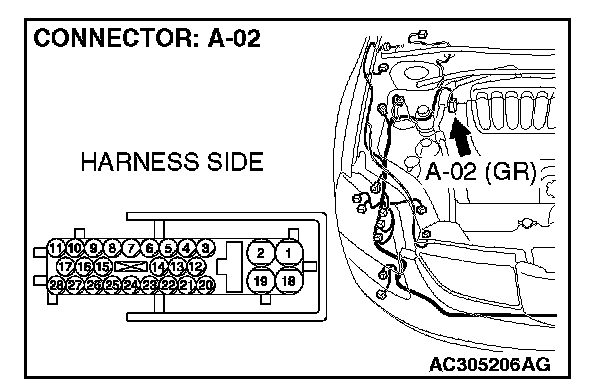

1. Disconnect ABS-ECU connector A-02, and measure the resistance at the wiring harness side of ABS-ECU connector A-02.
2. Turn the ignition switch to the "LOCK" (OFF) position. position
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.
4. Measure the resistance between ABS-ECU connector terminals 23 and 24.
OK: 120 ± 20 ohms
Q: Does the resistance measure 120 ± 20 ohms?
YES: If the resistance measures 120 ± 20 ohms, diagnose CAN bus lines thoroughly by referring to DIAGNOSTIC ITEM 15
NO: If the resistance does not measure 120 ± 20 ohms, go to Step 9.

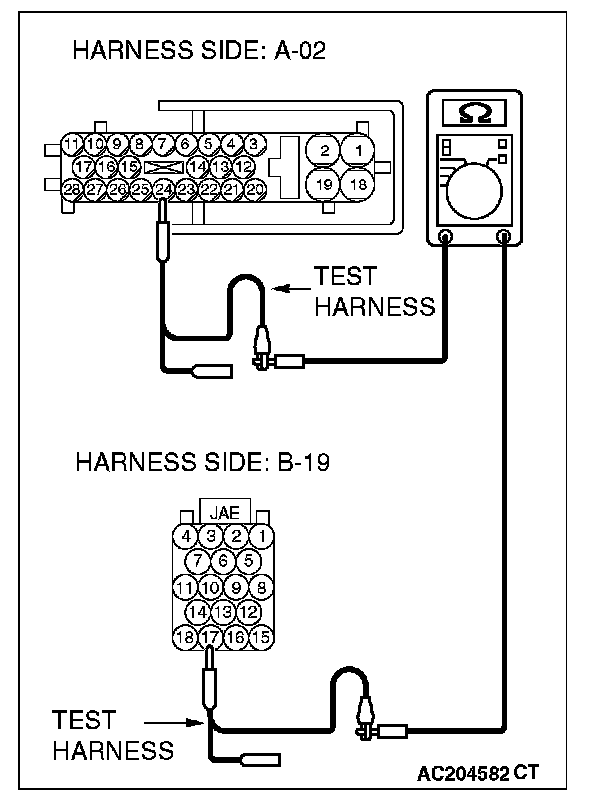

STEP 9. Check the CAN bus lines (communication line only) between ABS-ECU and the powertrain control module. Measure the resistance between ABS-ECU connector A-02 and powertrain control module connector B-19.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.
1. Disconnect ABS-ECU connector A-02 and powertrain control module connector B-19, and measure the resistance between each wiring harness side connector.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.
4. Measure the resistance between ABS-ECU connector terminal 23 and powertrain control module connector terminal 18.
OK: 2 ohms or less
5. Measure the resistance between joint connector (3) terminal 24 and powertrain control module connector terminal 17.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, go to Step 10.
NO: If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 ohms, repair the wiring harness between joint connector (3) and the powertrain control module connector.
STEP 10. Check the terminator resistor inside the powertrain control module. Measure the resistance at powertrain control module connector B-19.
CAUTION: A digital multimeter should be used.
1. Disconnect powertrain control module connector B-19, and measure the resistance at the component side of powertrain control module connector B-19.
2. Measure the resistance between powertrain control module connector terminals 17 and 18.
OK: 120 ± 20 ohms
Q: Does the resistance measure 120 ± 20 ohms?
YES: If the resistance measures 120 ± 20 ohms, go to Step 11.
NO: If the resistance does not measure 120 ± 20, replace the powertrain control module.

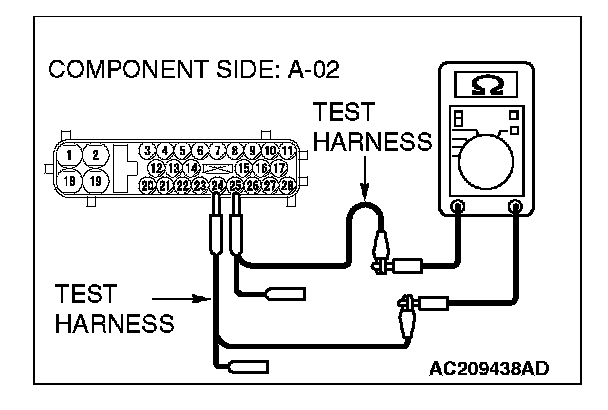

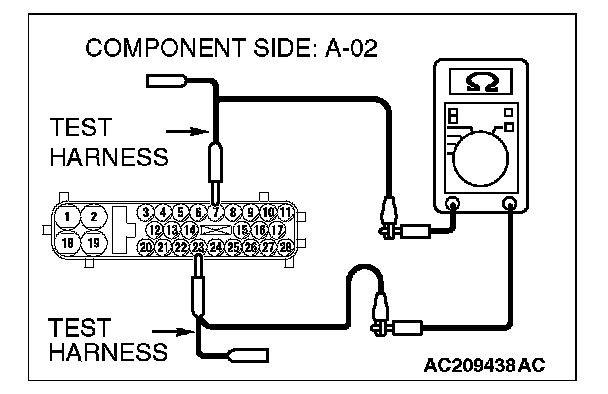

STEP 11. Check the CAN bus lines inside the ABS-ECU. Measure the resistance at ABS-ECU connector A-02.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.
1. Disconnect ABS-ECU connector A-02, and measure the resistance at the component side of ABS-ECU connector A-02.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.
4. Measure the resistance between ABS-ECU connector terminals 7 and 23.
OK: 2 ohms or less
5. Measure the resistance between ABS-ECU connector terminals 24 and 25.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure.
Q: Do all the resistances measure 2 ohms or less?
YES: If the voltage measures 2 V or less, diagnose CAN bus lines thoroughly by referring to DIAGNOSTIC ITEM 15
NO: Replace the ABS-ECU.
