Diagnostic Item 10
DIAGNOSTIC ITEM 10: Diagnose terminator resistors at both endsCAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.
TROUBLE JUDGMENT

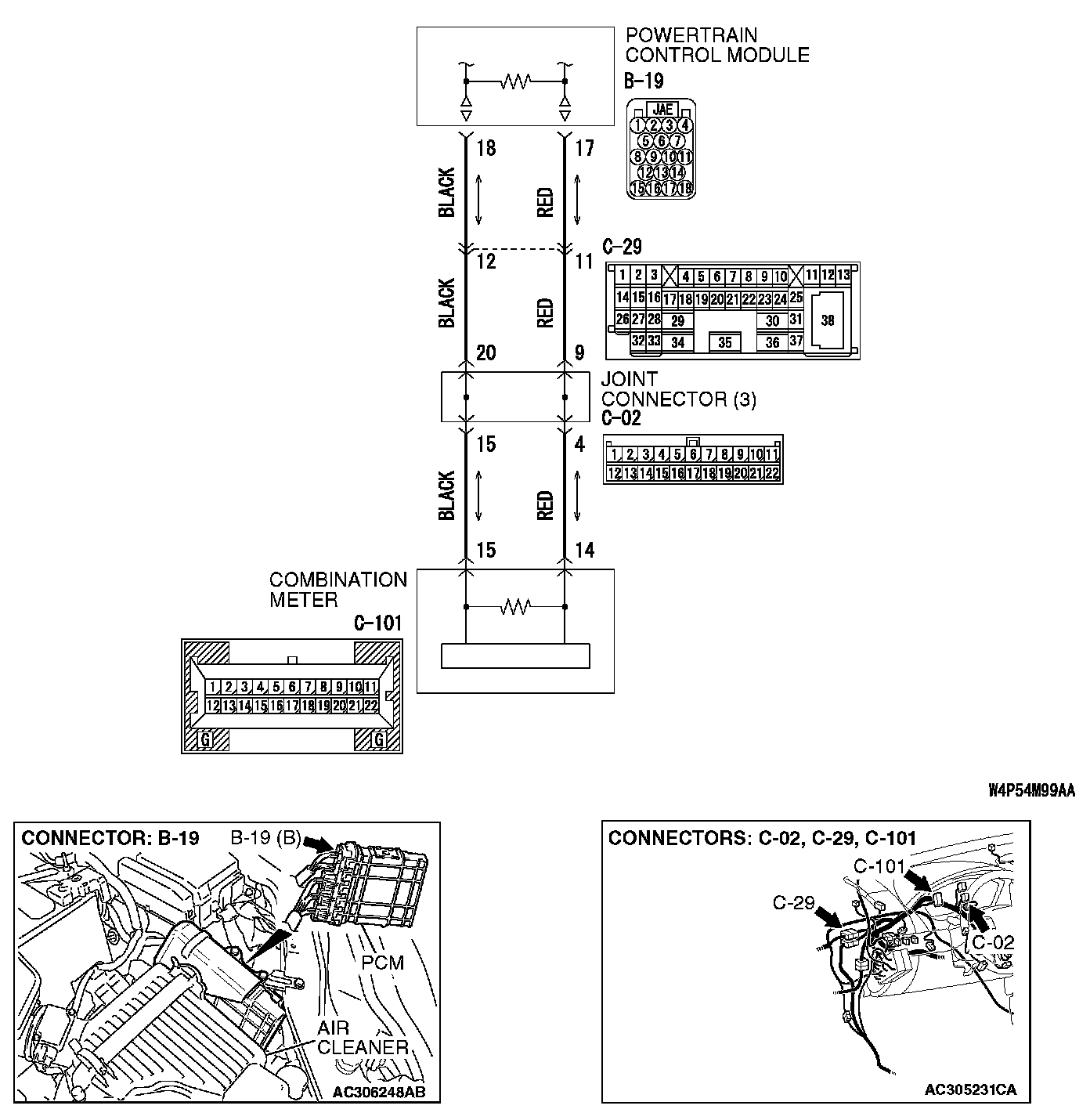

The terminator resistors at both ends of CAN bus lines may be damaged, when the resistance between the CAN bus lines (CAN_L and H lines) is more than 2 ohms.
COMMENTS ON TROUBLE SYMPTOM
The CAN bus line harness wires or connectors may be damaged (open circuit may be present on CAN_L or CAN_H line between the data link connector and CAN main bus lines, or CAN main bus lines may be open at both sides), or the combination meter and the powertrain control module may be defective.
TROUBLESHOOTING HINTS
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector
- The combination meter may be defective
- The powertrain control module may be defective
DIAGNOSIS
Required Special Tool:
- MB991223: Harness Set

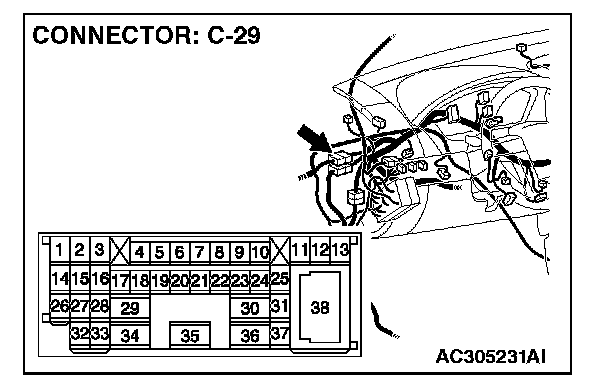

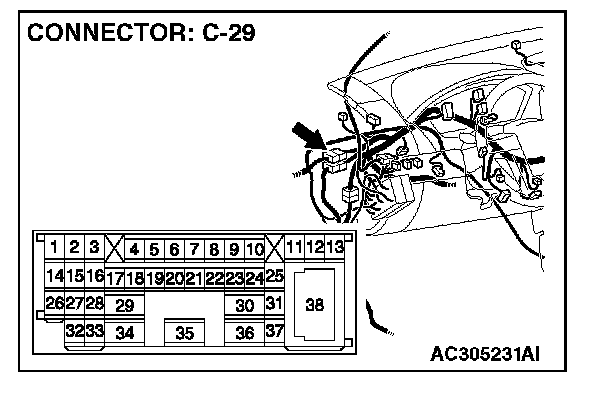

STEP 1. Check intermediate connector C-29 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector.
Q: Is intermediate connector C-29 in good condition?
YES: Go to Step 2.
NO: Repair the damaged parts.

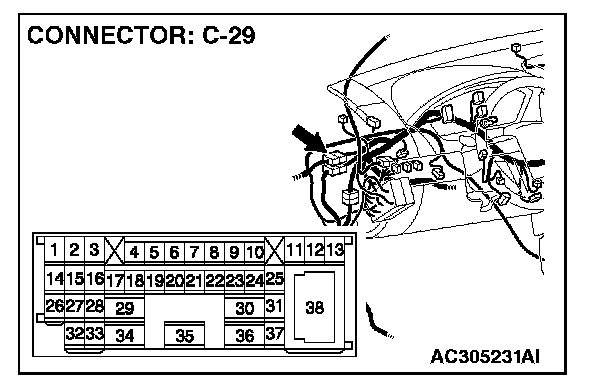

STEP 2. Check the instrument panel wiring harness side CAN bus lines (communication line including the combination meter). Measure the resistance at intermediate connector C-29.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.

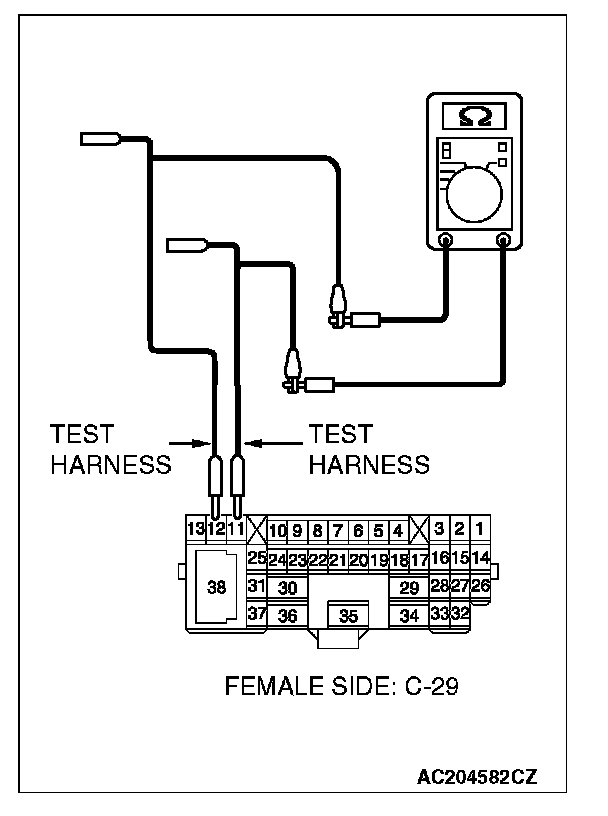

1. Disconnect intermediate connector C-29, and measure the resistance at its female side connector (instrument panel wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.
4. Measure the resistance between intermediate connector terminals 11 and 12.
OK: 120 ± 20 ohms
Q: Does the resistance measure 120 ± 20 ohms?
YES: If the resistance measures 120 ± 20 ohms, go to Step 8.
NO: If the resistance does not measure 120 ± 20 ohms, go to Step 3.

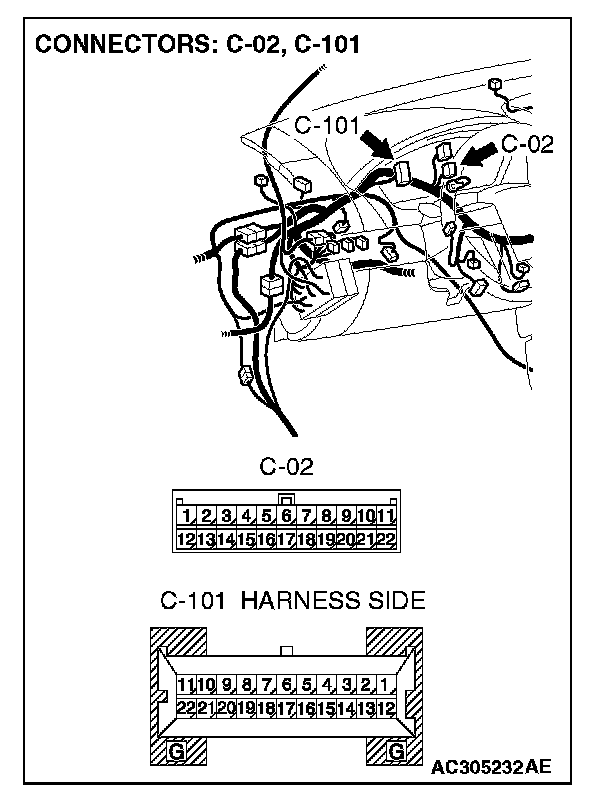

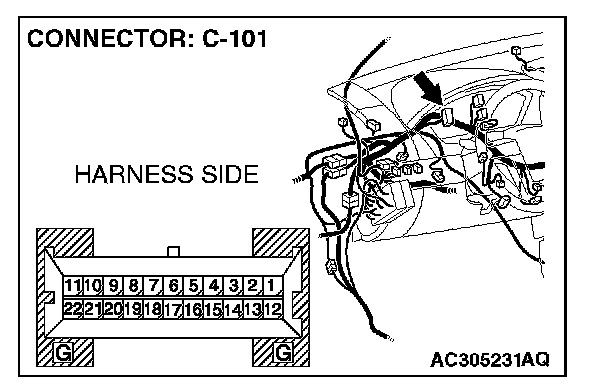

STEP 3. Check joint connector (3) C-02 and combination meter connector C-101 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector.

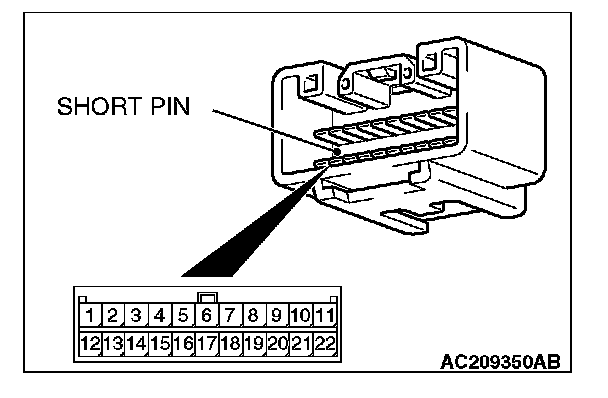

Check the joint connector at the wiring harness side for loose, corroded or damaged terminals, or terminals pushed back in the connector, and also check the short pin behind the connector for corrosion, deformation and delamination.
Q: Are joint connector (3) C-02 and combination meter connector C-101 in good condition?
YES: Go to Step 4.
NO: Repair the damaged parts. Replace the joint connector as necessary. Then go to Step 2.

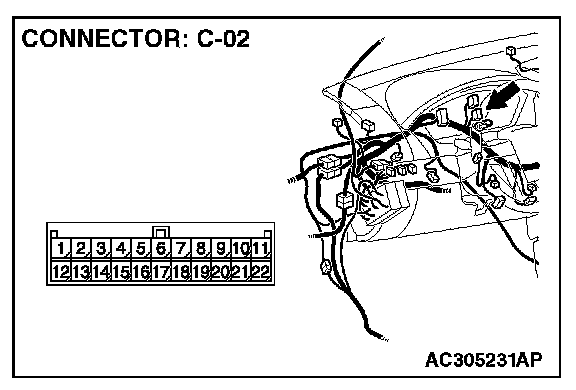

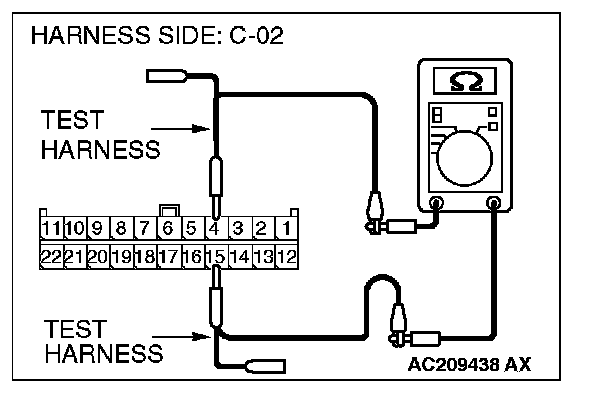

STEP 4. Check the CAN bus lines (communication line including the combination meter) between joint connector (3) and the combination meter. Measure the resistance at joint connector (3) C-02.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.
1. Disconnect joint connector (3) C-02, and measure the resistance at the wiring harness side of joint connector (3) C-02.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.
4. Measure the resistance between joint connector (3) terminals 4 and 15.
OK: 120 ± 20 ohms
Q: Does the resistance measure 120 ± 20 ohms?
YES: If the resistance measures 120 ± 20 ohms, go to Step 7.
NO: If the resistance does not measure 120 ± 20 ohms, go to Step 5.

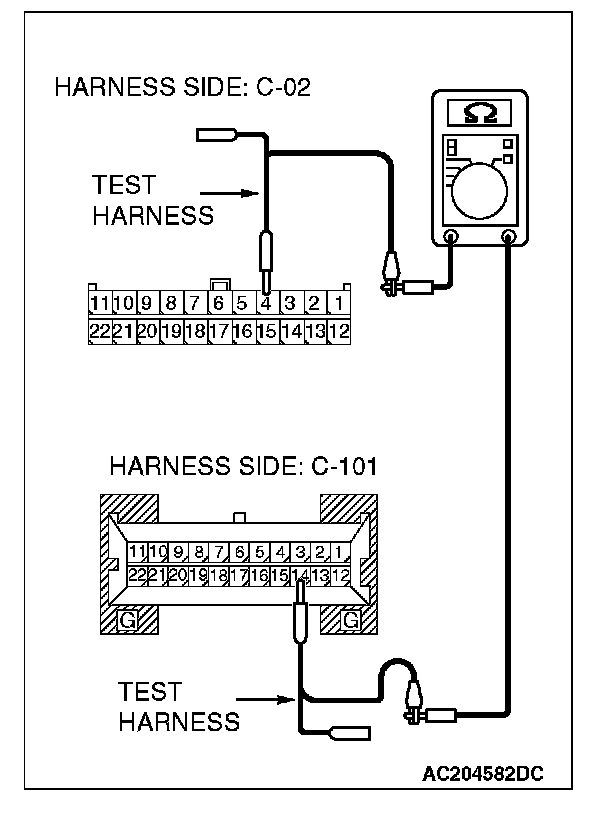

STEP 5. Check the CAN bus lines (communication line only) between joint connector (3) and the combination meter. Measure the resistance at joint connector (3) C-02 and combination meter connector C-101.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.
1. Disconnect joint connector (3) C-02 and combination meter connector C-101, and measure the resistance between each wiring harness side connector.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.

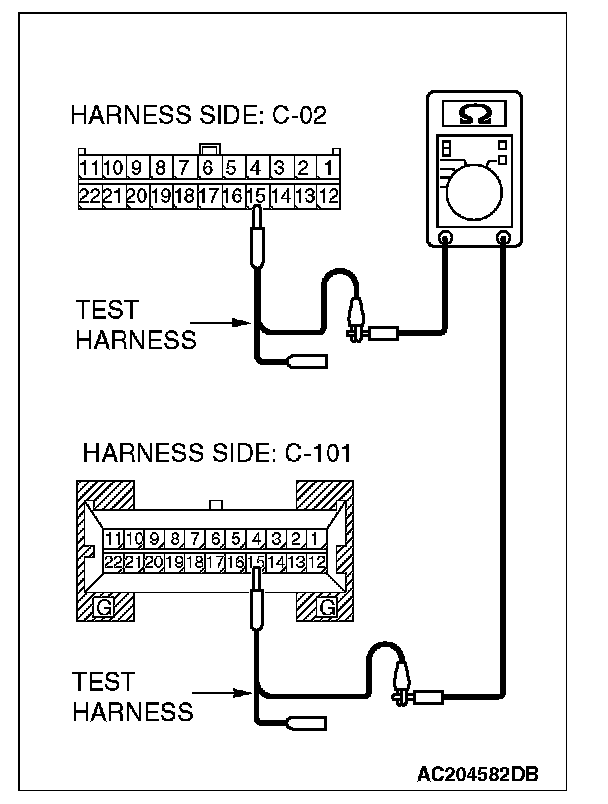

4. Measure the resistance between joint connector (3) terminal 15 and combination meter connector terminal 15.
OK: 2 ohms or less
5. Measure the resistance between joint connector (3) terminal 4 and combination meter connector terminal 14.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, go to Step 6.
NO: If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 ohms, repair the wiring harness between joint connector (3) and the combination meter connector, and then go to Step 2.

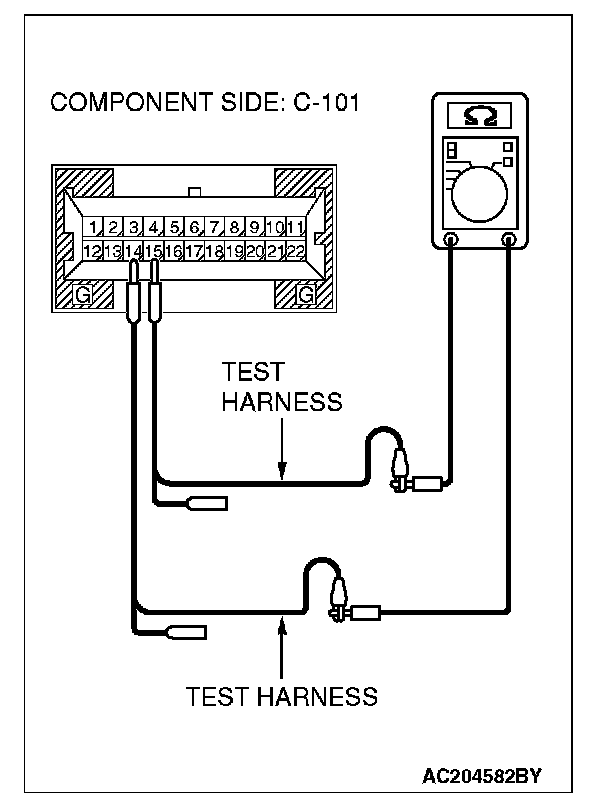

STEP 6. Check the terminator resistor inside the combination meter. Measure the resistance at combination meter connector C-101.
CAUTION: A digital multimeter should be used.
1. Disconnect combination meter C-101, and measure the resistance at the component side of combination meter connector C-101.
2. Measure the resistance between combination meter connector terminals 14 and 15.
OK: 120 ± 20 ohms
Q: Does the resistance measure 120 ± 20 ohms?
YES: If the resistance measures 120 ± 20 ohms, go to Step 2.
NO: If the resistance does not measure 120 ± 20 ohms, replace the combination meter, and then go to Step 2.

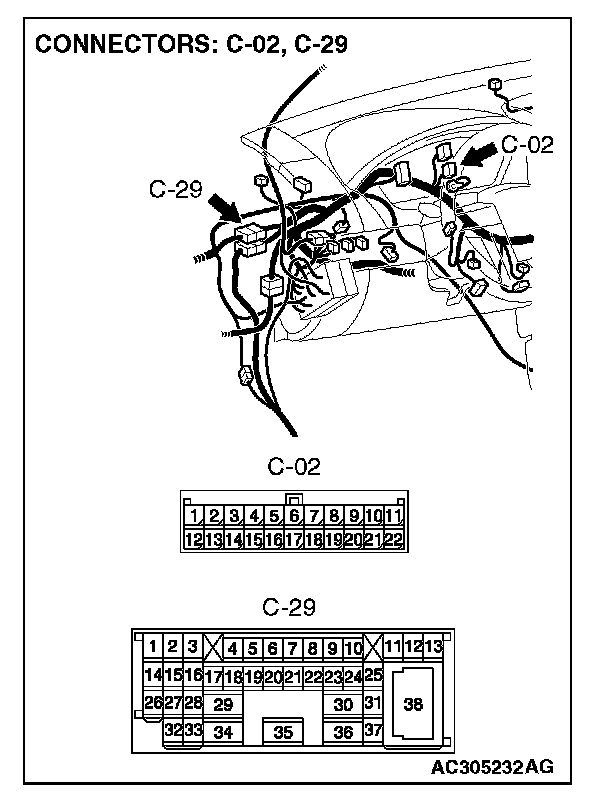

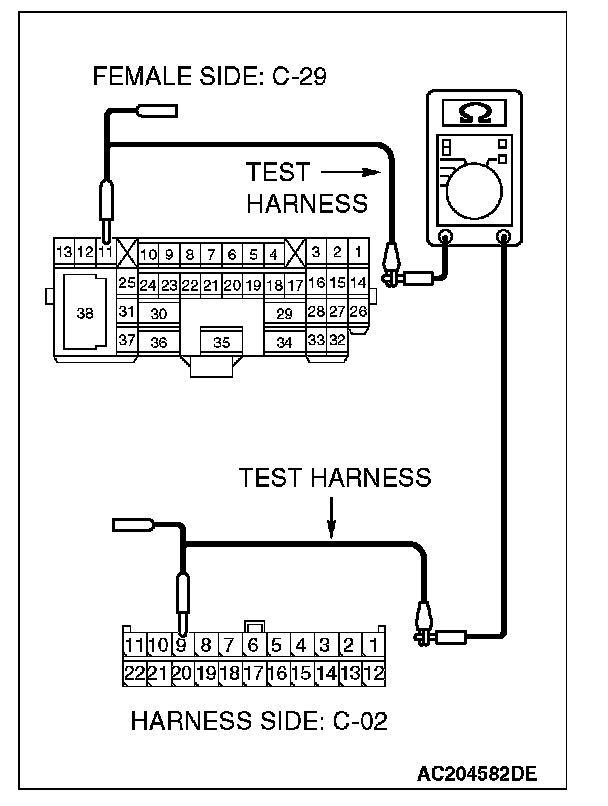

STEP 7. Check the CAN bus lines (communication line only) between intermediate connector C-29 and joint connector (3). Measure the resistance at intermediate connector C-29 and joint connector (3) C-02.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.
1. Disconnect joint connector (3) C-02 and intermediate connector C-29, and measure the resistance between the wiring harness side connector of joint connector (3) C-02 and the female side connector of intermediate connector C-29 (instrument panel wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.

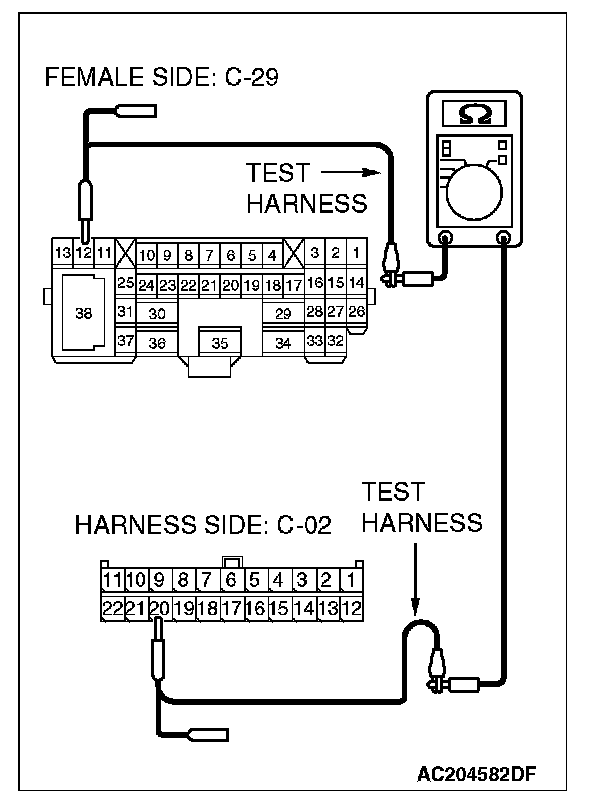

4. Measure the resistance between intermediate connector terminal 12 and joint connector (3) terminal 20.
OK: 2 ohms or less
5. Measure the resistance between intermediate connector terminal 11 and joint connector (3) terminal 9.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, go to Step 2.
NO: If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 ohms, repair the wiring harness between joint connector (3) and the intermediate connector, and then go to Step 2.

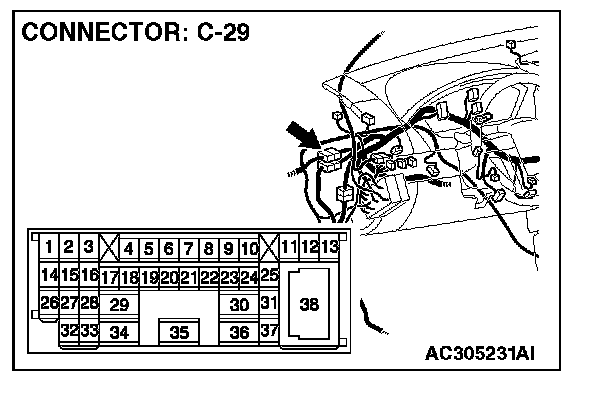

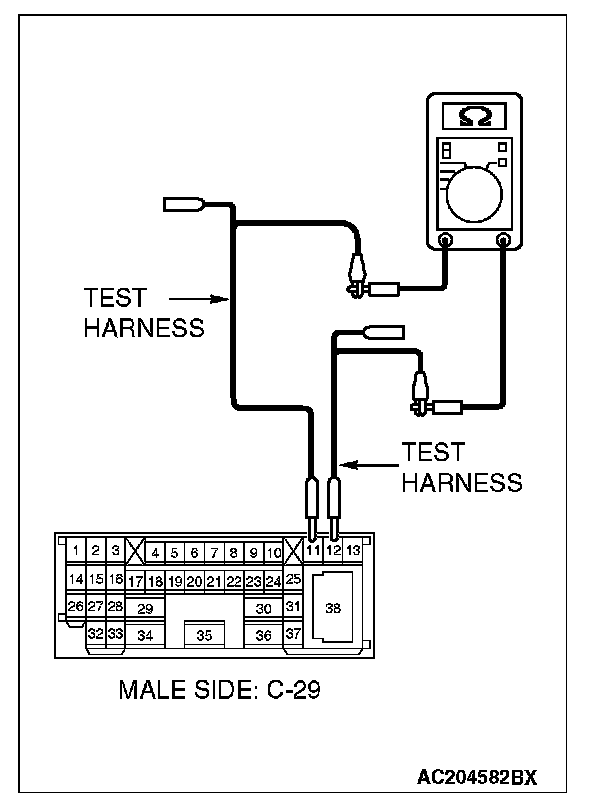

STEP 8. Check the front wiring harness side CAN bus lines (communication line including the powertrain control module). Measure the resistance at intermediate connector C-29.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.
1. Disconnect intermediate connector C-29, and measure the resistance at the male side (at front wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.
4. Measure the resistance between intermediate connector terminals 11 and 12.
OK: 120 ± 20 ohms
Q: Does the resistance measure 120 ± 20 ohms?
YES: If the resistance measures 120 ± 20 ohms, go to Step 12.
NO: If the resistance does not measure 120 ± 20 ohms, go to Step 9.

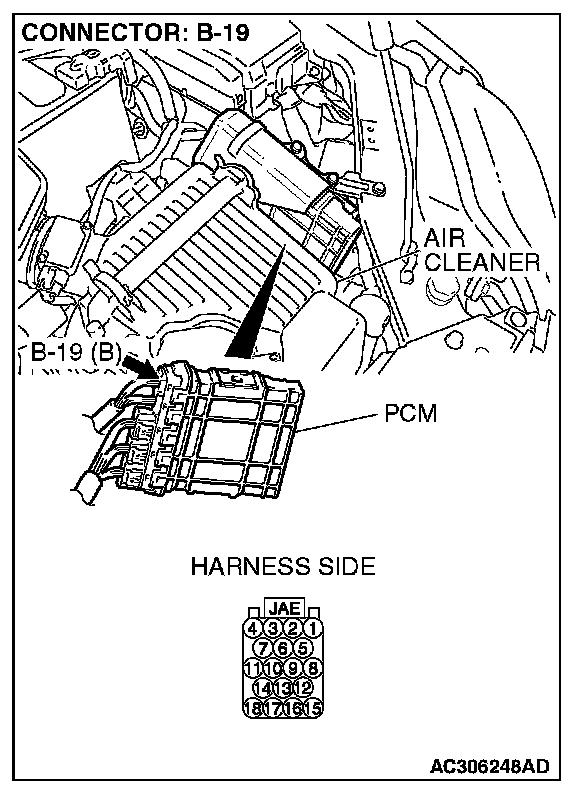

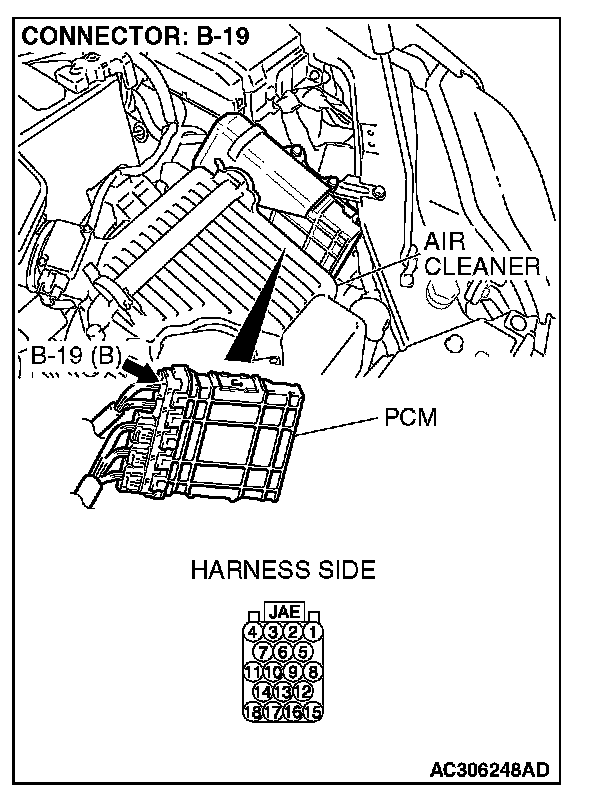

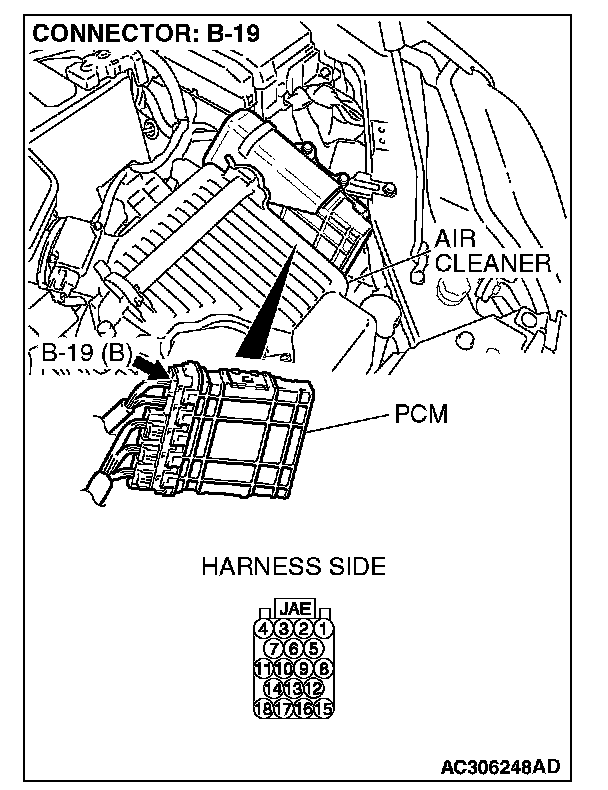

STEP 9. Check powertrain control module connector B-19 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector.
Q: Is powertrain control module connector B-19 in good condition?
YES: Go to Step 10.
NO: Repair the damaged parts, and then go to Step 8.

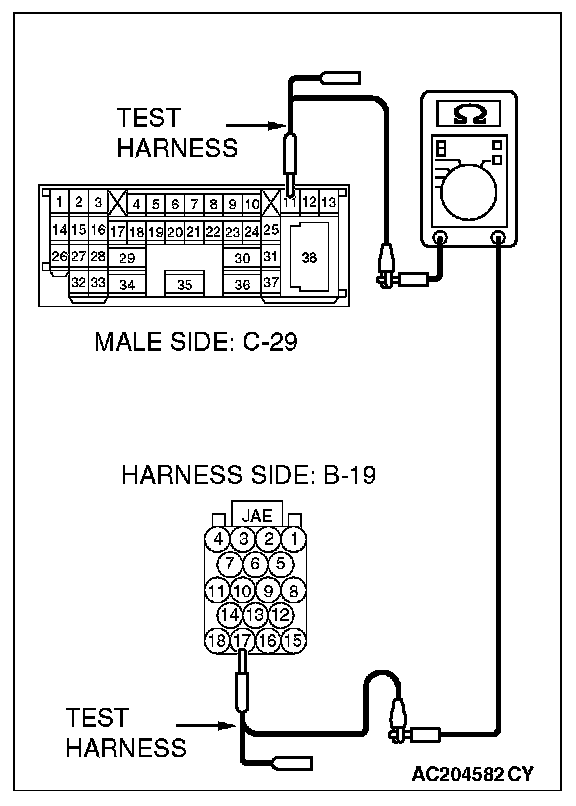

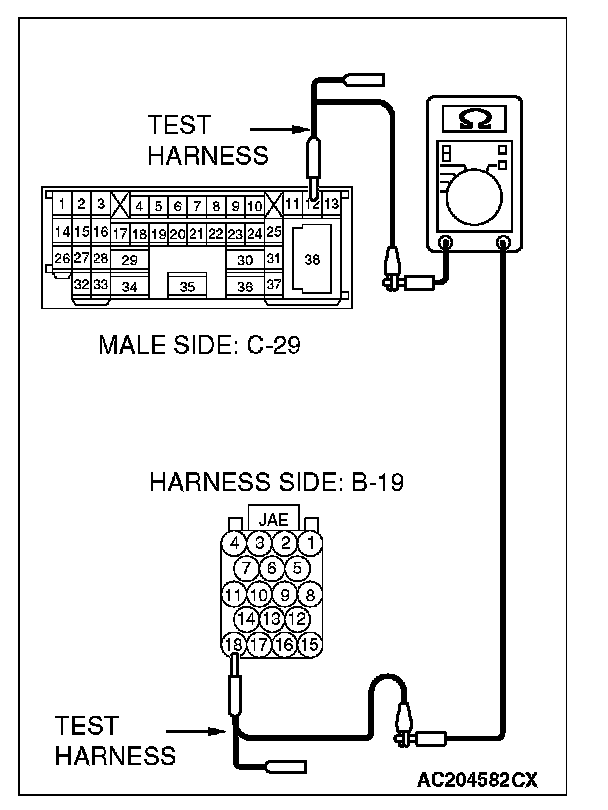

STEP 10. Check the CAN bus lines (communication line only) between intermediate connector C-29 and the powertrain control module. Measure the resistance at intermediate connector C-29 and powertrain control module connector B-19.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.
1. Disconnect intermediate connector C-29 and powertrain control module connector B-19, and measure the resistance between the wiring harness side connector of powertrain control module connector B-19 and the male side connector of intermediate connector C-29 (at front wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.
4. Measure the resistance between intermediate connector terminal 11 and powertrain control module connector terminal 17.
OK: 2 ohms or less
5. Measure the resistance between intermediate connector terminal 12 and powertrain control module connector terminal 18.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure.
Q: Do all the resistances measure 2 ohms or less?
YES: If all the resistances measure 2 ohms or less, go to Step 11.
NO: If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 ohms, repair the wiring harness between intermediate connector C-29 and the powertrain control module connector, and then go to Step 8.

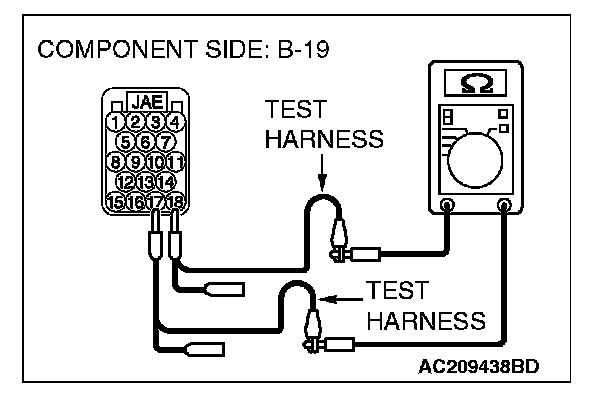

STEP 11. Check the terminator resistor inside the powertrain control module. Measure the resistance at powertrain control module connector B-19.
CAUTION: A digital multimeter should be used.
1. Disconnect powertrain control module connector B-19, and measure the resistance at the component side of powertrain control module connector B-19.
2. Measure the resistance between powertrain control module connector terminals 17 and 18.
OK: 120 ± 20 ohms
Q: Does the resistance measure 120 ± 20 ohms?
YES: If the resistance measures 120 ± 20 ohms, go to Step 8.
NO: If the resistance does not measure 120 ± 20 ohms, replace the powertrain control module, and then go to Step 8.

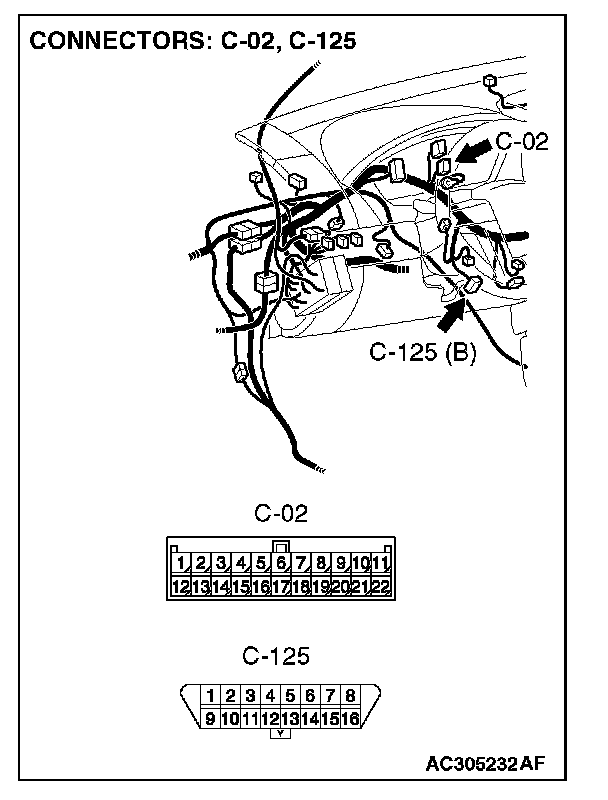

STEP 12. Check the CAN bus lines (communication line only) between joint connector (3) and the data link connector. Measure the resistance at joint connector (3) C-02 and data link connector C-125.
CAUTION: A digital multimeter should be used.
CAUTION: The test wiring harness should be used.
1. Disconnect joint connector (3) C-02, and measure the resistance between the wiring harness side connector of joint connector (3) C-02 and wiring harness side connector of data link connector C-125.
2. Turn the ignition switch to the "LOCK" (OFF) position.
CAUTION: Disconnect the negative battery terminal.
3. Disconnect the negative battery terminal.

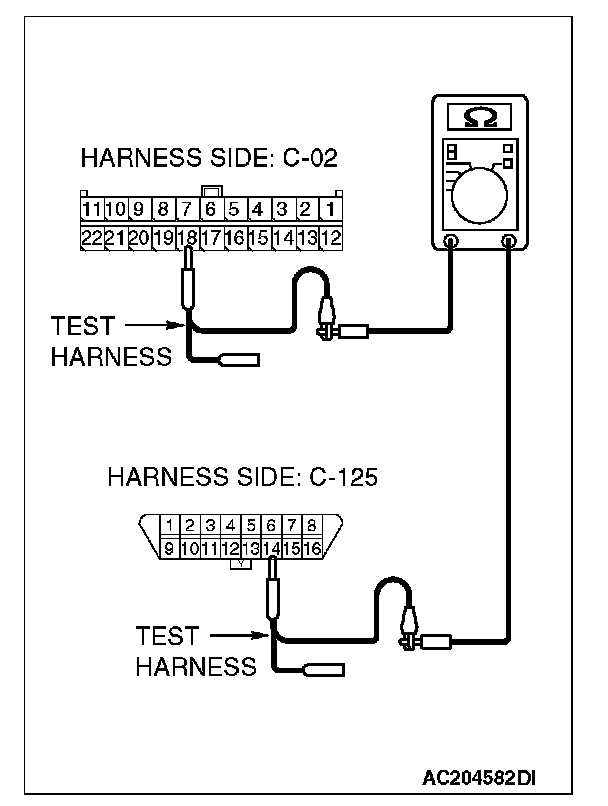

4. Measure the resistance between joint connector (3) terminal 18 and data link connector terminal 14.
OK: 2 ohms or less

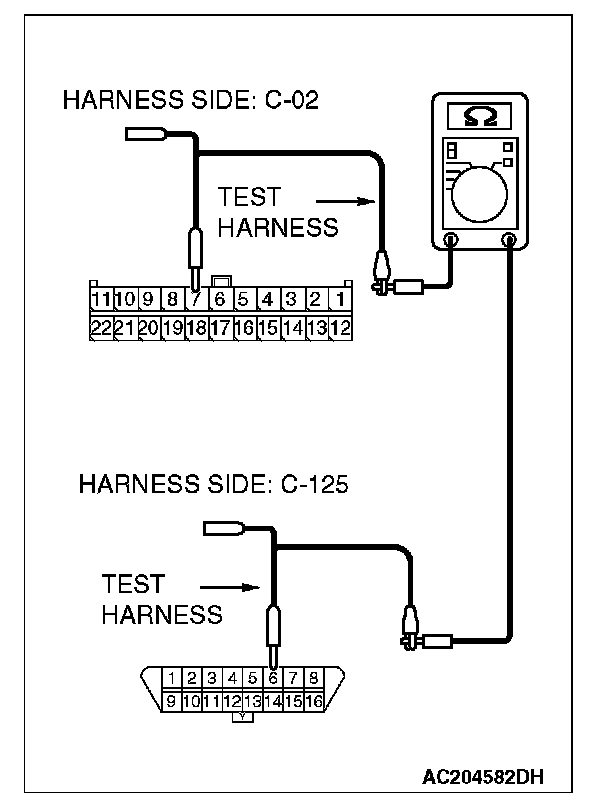

5. Measure the resistance between joint connector (3) terminal 7 and data link connector terminal 6.
OK: 2 ohms or less
CAUTION: Strictly observe the specified wiring harness repair procedure.
Q: Do all the resistances measure 2 ohms or less?
YES
YES
