Home >> Mitsubishi >> 2007 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Hazard Warning Switch >> Service and Repair

Hazard Warning Switch: Service and Repair

HAZARD WARNING LIGHT SWITCH

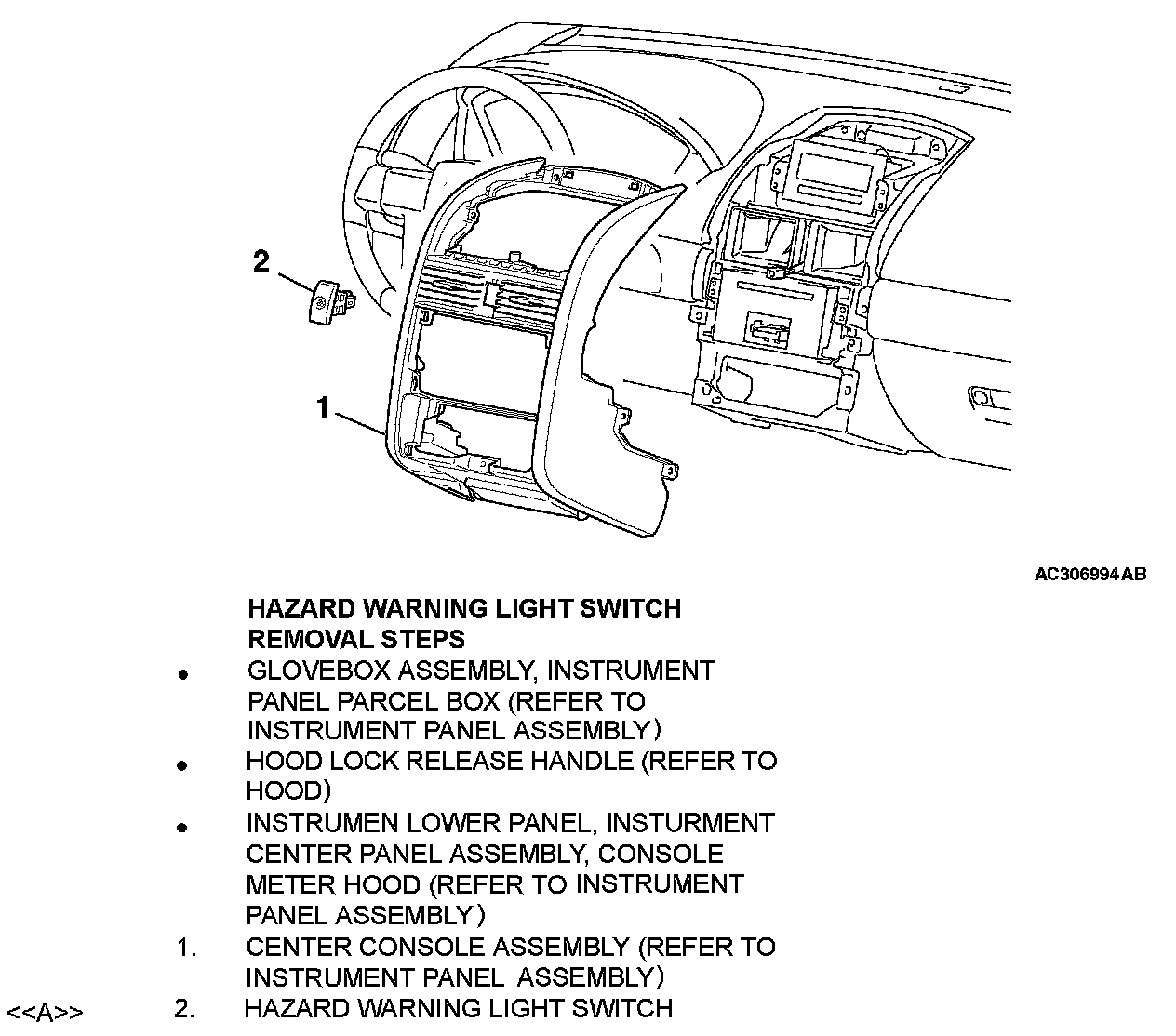

Removal Steps 1-2:




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




<> HAZARD WARNING LIGHT SWITCH REMOVAL

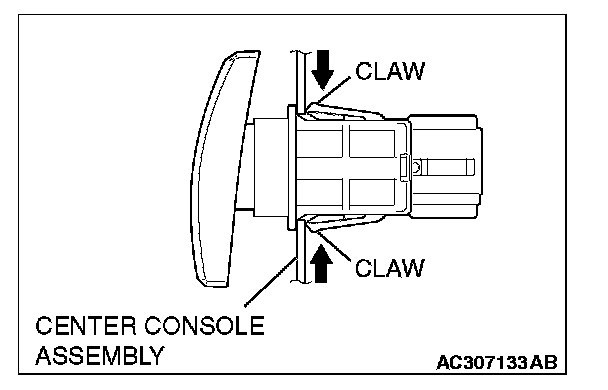

Remove the hazard warning light by pushing the claw toward the arrow in the illustration.
