Combination Meter Terminal Check

COMBINATION METER TERMINAL CHECK

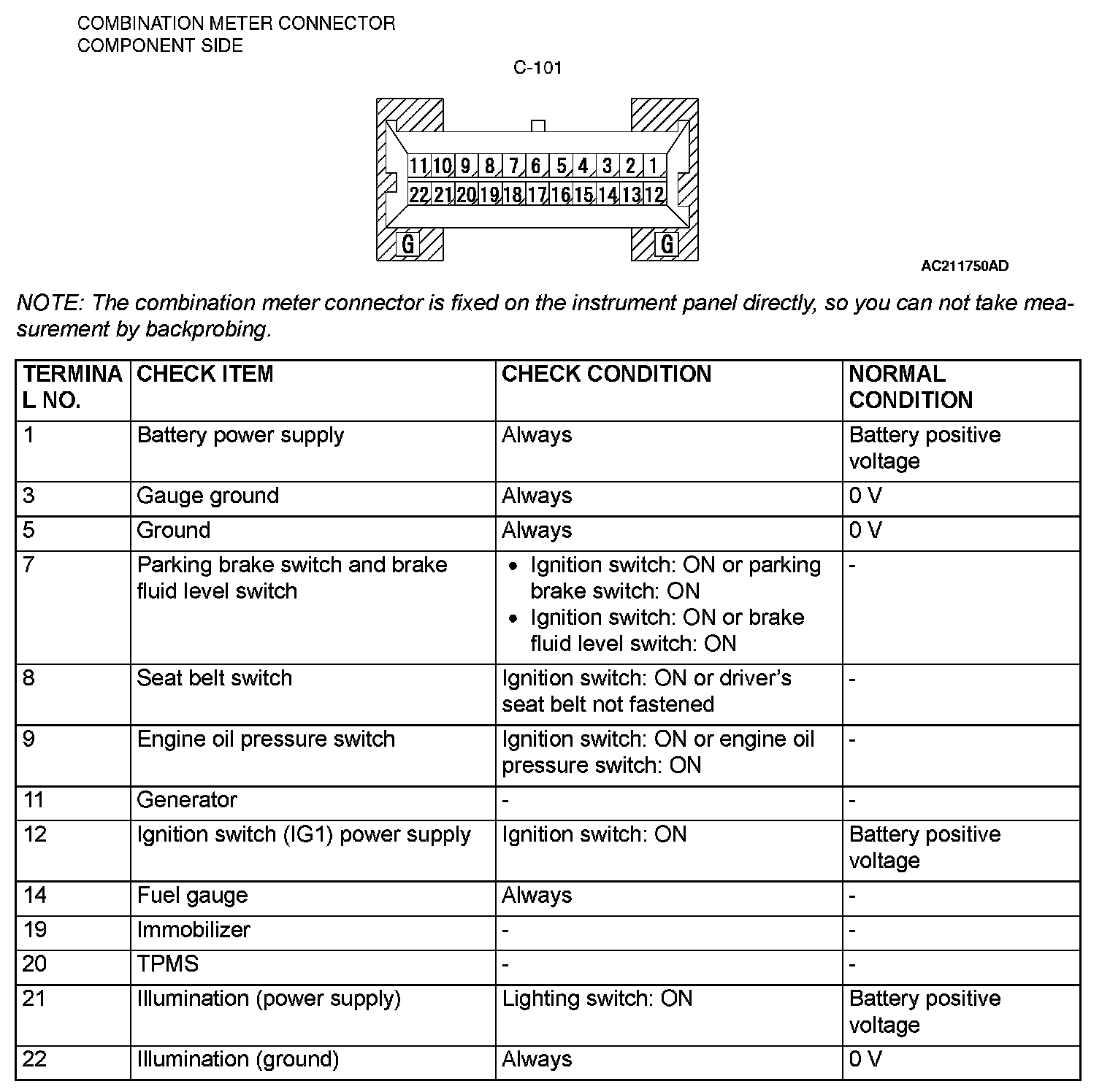

Combination Meter Terminal Check:

Measure the voltage between terminals using a voltmeter.

CAUTION: Never take a measurement at terminals 14 and 15. If you do this, the CAN bus lines will be impaired.
