Check At A/C-ECU Terminal [Middle Type]

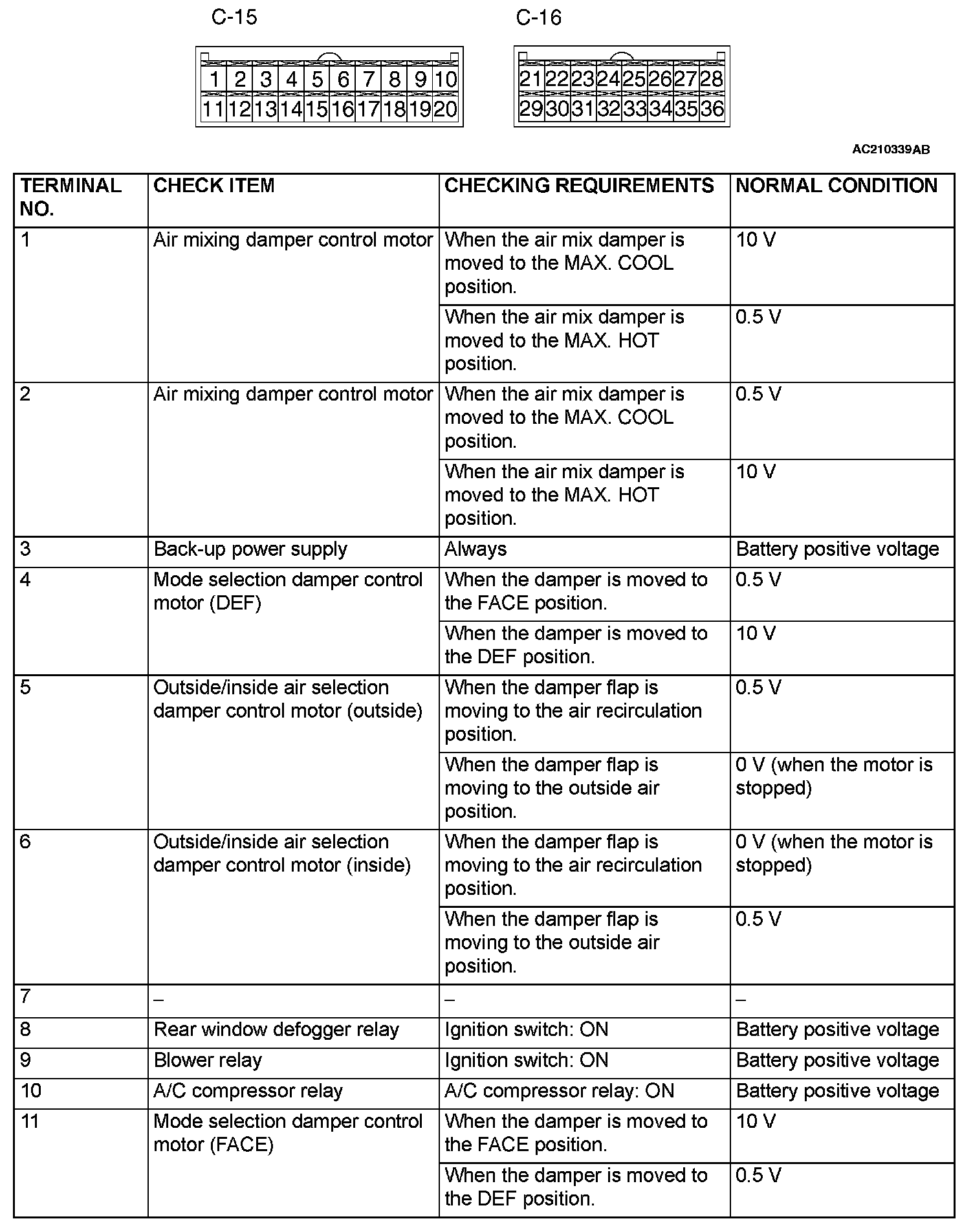

Check At A/C-ECU Terminal <Middle Type> Part 1:

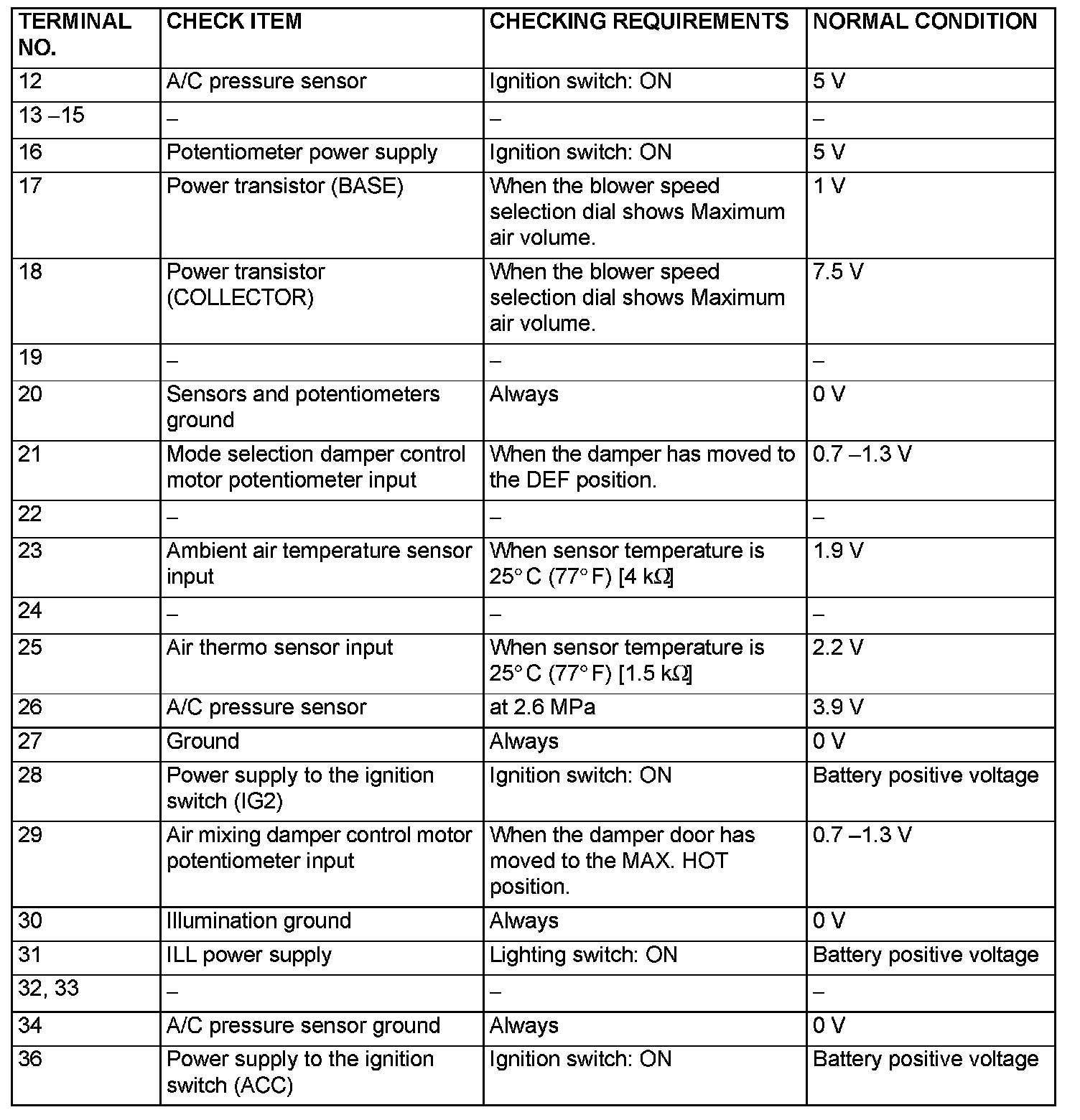

Check At A/C-ECU Terminal <Middle Type> Part 2:
