Check At A/C-ECU Terminal [Low Type]

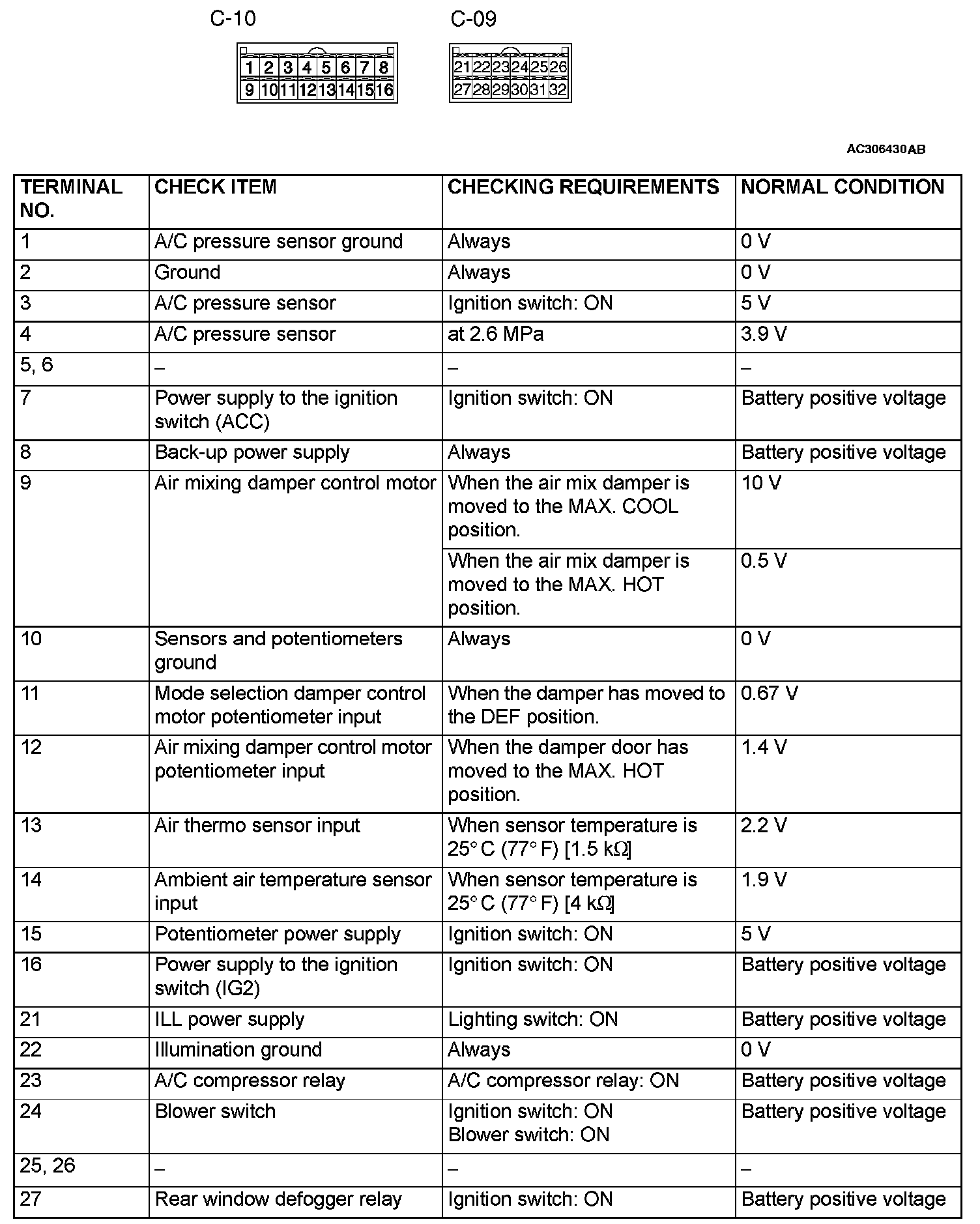

Check At A/C-ECU Terminal <Low Type> Part 1:

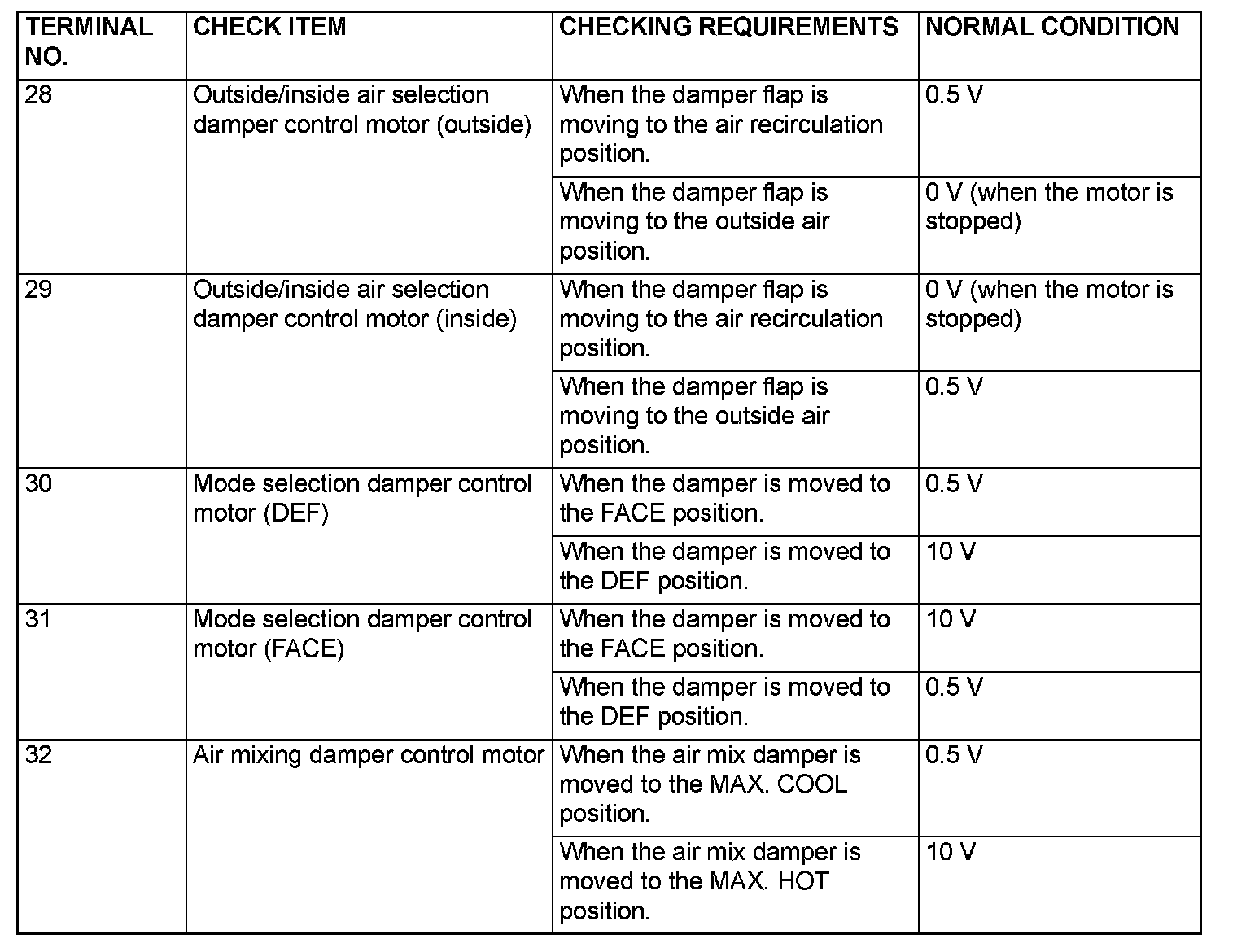

Check At A/C-ECU Terminal<Low Type> Part 2:
