Exhaust Pipe: Service and Repair

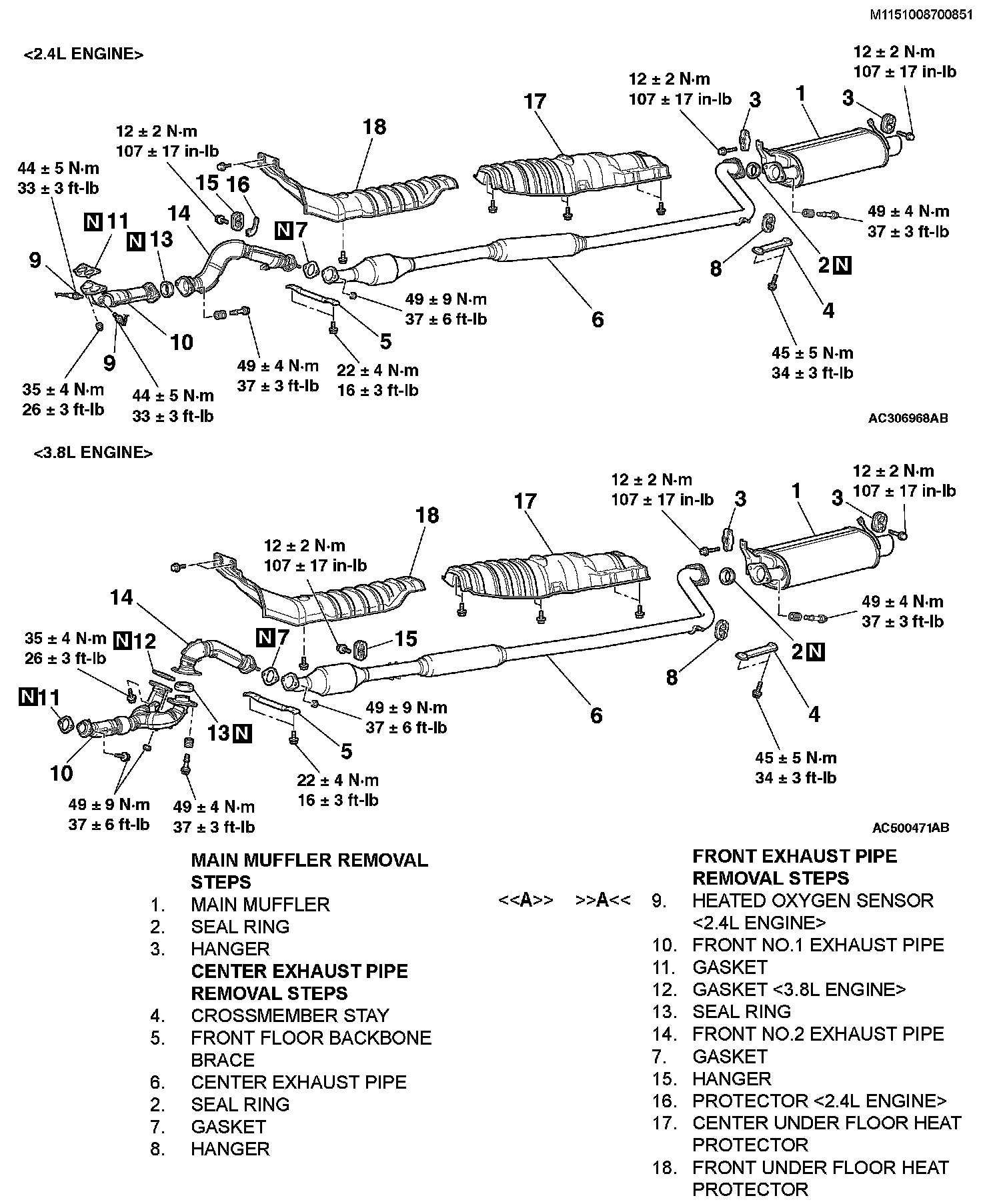

EXHAUST PIPE AND MAIN MUFFLER

Removal Steps 1 - 18:

REMOVAL AND INSTALLATION

Required Special Tool:
- MB991953: Oxygen Sensor Wrench

REMOVAL SERVICE POINT

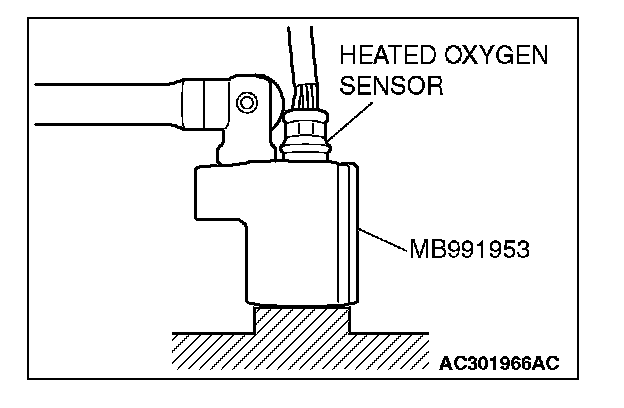

[[A]] HEATED OXYGEN SENSOR REMOVAL.
Use special tool MB991953 to remove the heated oxygen sensor.

INSTALLATION SERVICE POINT

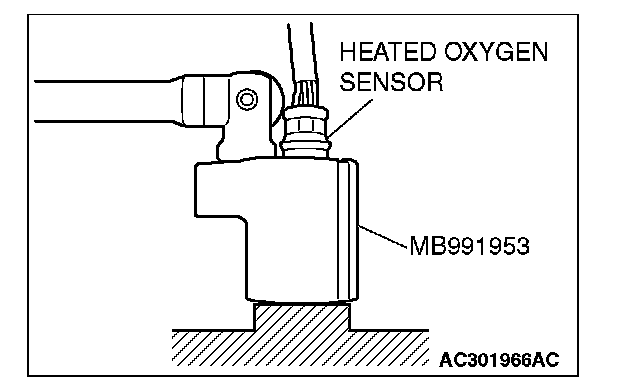

]]A[[ HEATED OXYGEN SENSOR INSTALLATION.
Use special tool MB991953 to install the heated oxygen sensor.
