Generator and Ignition System

GENERATOR AND IGNITION SYSTEM
REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT
[[A]] SPARK PLUG REMOVAL

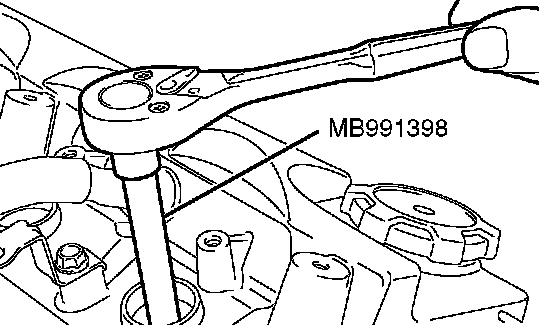

Using special tool MB991398, remove the spark plug.

[[B]] CAMSHAFT POSITION SENSING CYLINDER REMOVAL

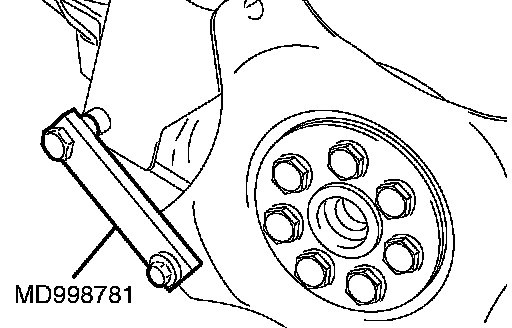

1. Using special tool MD998781, hold the drive plate.
2. Remove the camshaft position sensing cylinder.

INSTALLATION SERVICE POINT
]]A[[ CAMSHAFT POSITION SENSING CYLINDER INSTALLATION

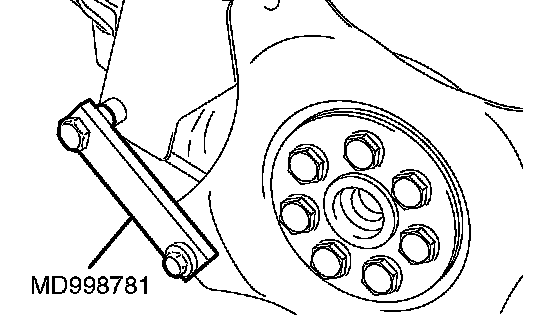

1. Using special tool MD998781, hold the drive plate.
2. Tighten the camshaft position sensing cylinder to the specified torque.
Tightening torque: 22 ± 4 Nm (17 ± 2 ft. lbs.)

]]B[[ CAMSHAFT POSITION SENSOR SUPPORT INSTALLATION

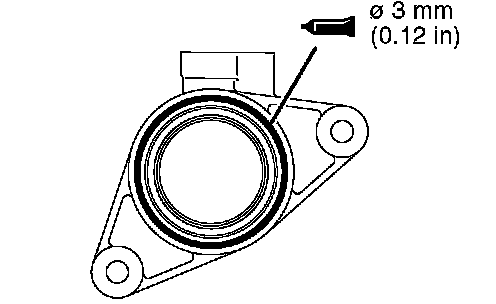

Apply a 3 mm (0.12 in.) bead of sealant (MITSUBISHI Genuine Part number MD970389) in the groove as shown.

]]C[[ SPARK PLUG INSTALLATION

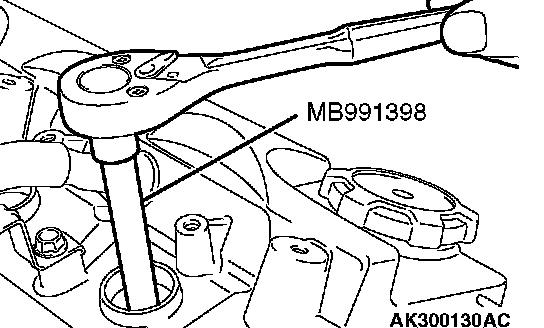

Using special tool MB991398, tighten the spark plug to the specified torque.
Tightening torque: 25 ± 5 Nm (19 ± 2 ft. lbs.)
