Exhaust Manifold

EXHAUST MANIFOLD
REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

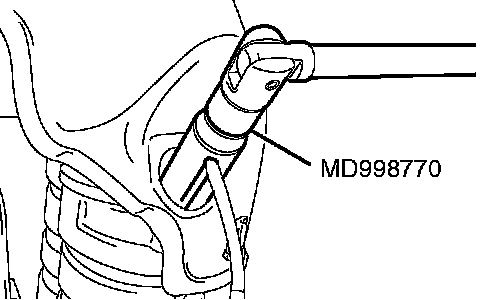

[[A]] OXYGEN SENSOR REMOVE





Using special tool MD998770, remove the oxygen sensor.

INSTALLATION SERVICE POINT

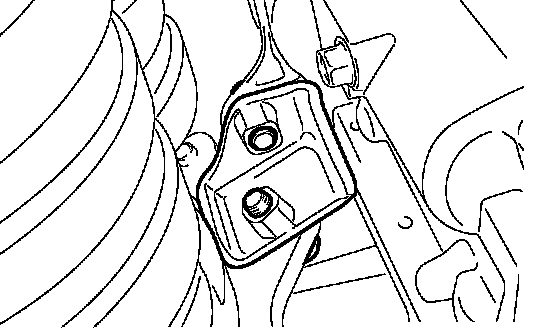

]]A[[ EXHAUST MANIFOLD BRACKET "B" INSTALLATION





Check to ensure that the exhaust manifold bracket "B" is in close contact with the exhaust manifold and the cylinder block before tightening the respective mounting bolts to the specified torque.
Tightening torque:
34 ± 5 Nm (26 ± 2 ft. lbs.)
36 ± 5 Nm (27 ± 3 ft. lbs.)

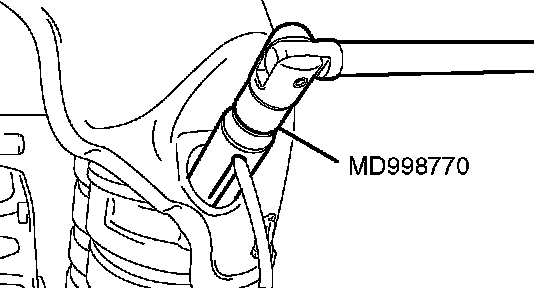

]]B[[ OXYGEN SENSOR INSTALLATION

Using special tool MD998770, install the oxygen sensor.
