Auto-Cruise Control System Component Check

AUTO-CRUISE CONTROL SYSTEM COMPONENT CHECK

AUTO-CRUISE CONTROL SWITCH CHECK
1. Remove the auto-cruise control switch.

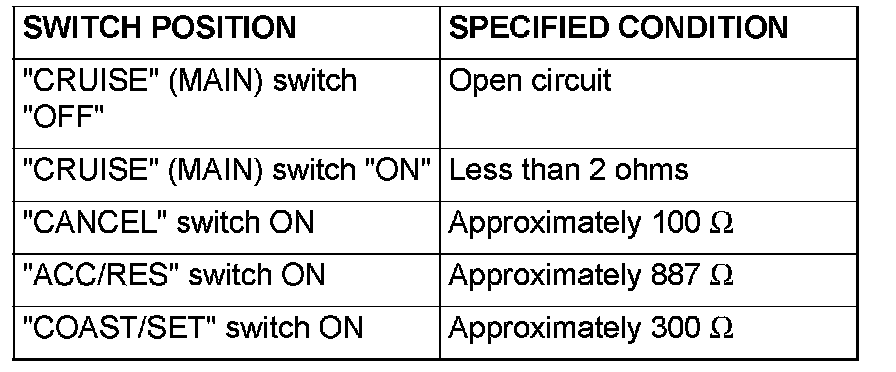

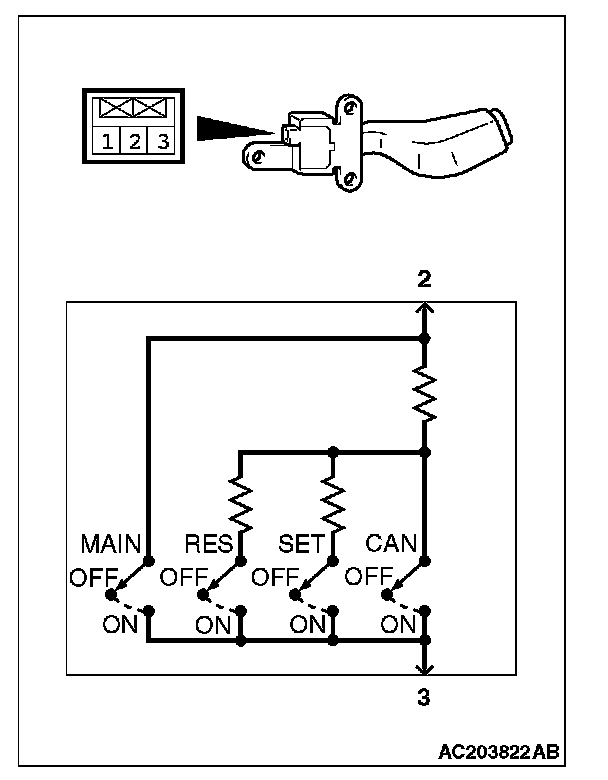

2. Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If measure values measured at the time correspond to those in the table below, the resistance values are correct.
