Resistance and Continuity Between Harness-Side Connector Terminals

RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS

Required Special Tool:
MB991970: ABS Check Harness





1. Turn the ignition switch to the "LOCK" (OFF) position and disconnect the ABS-ECU connectors before checking resistance and continuity.

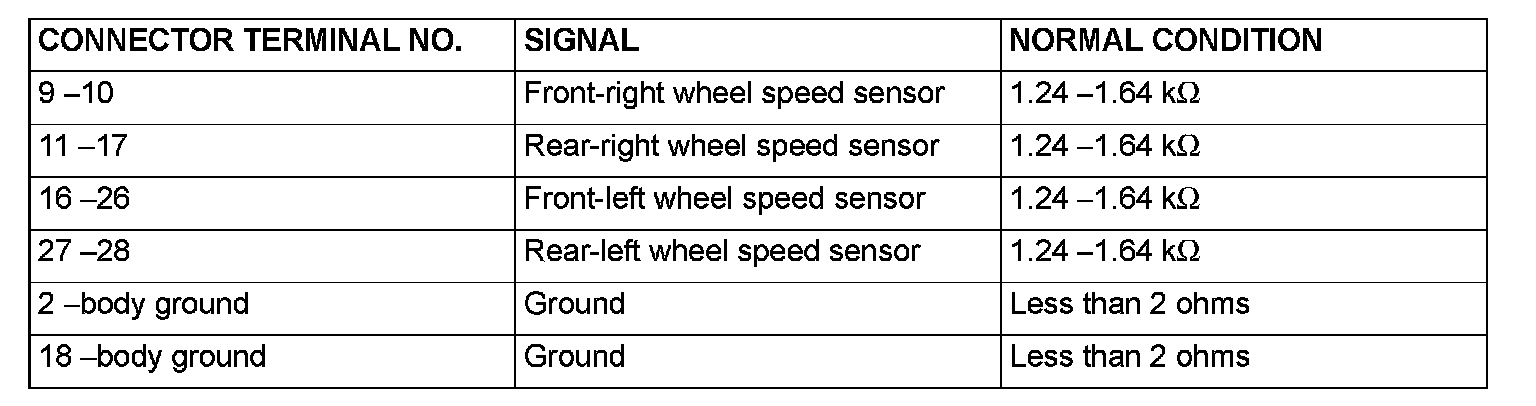

2. Check the resistance and continuity between the terminals indicated in the table below.

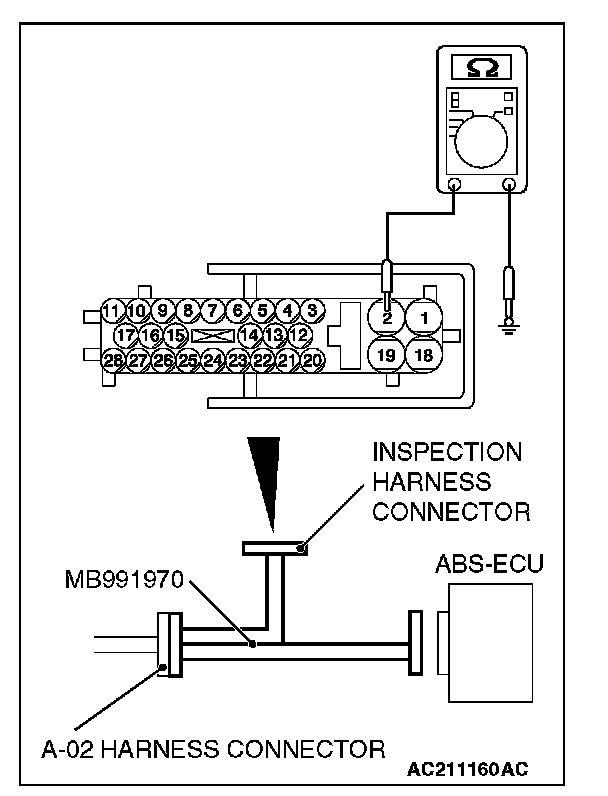

3. The terminal layout is shown in the illustration.

RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS:
