Rear Seat Assembly

INSTALLATION SERVICE POINTS

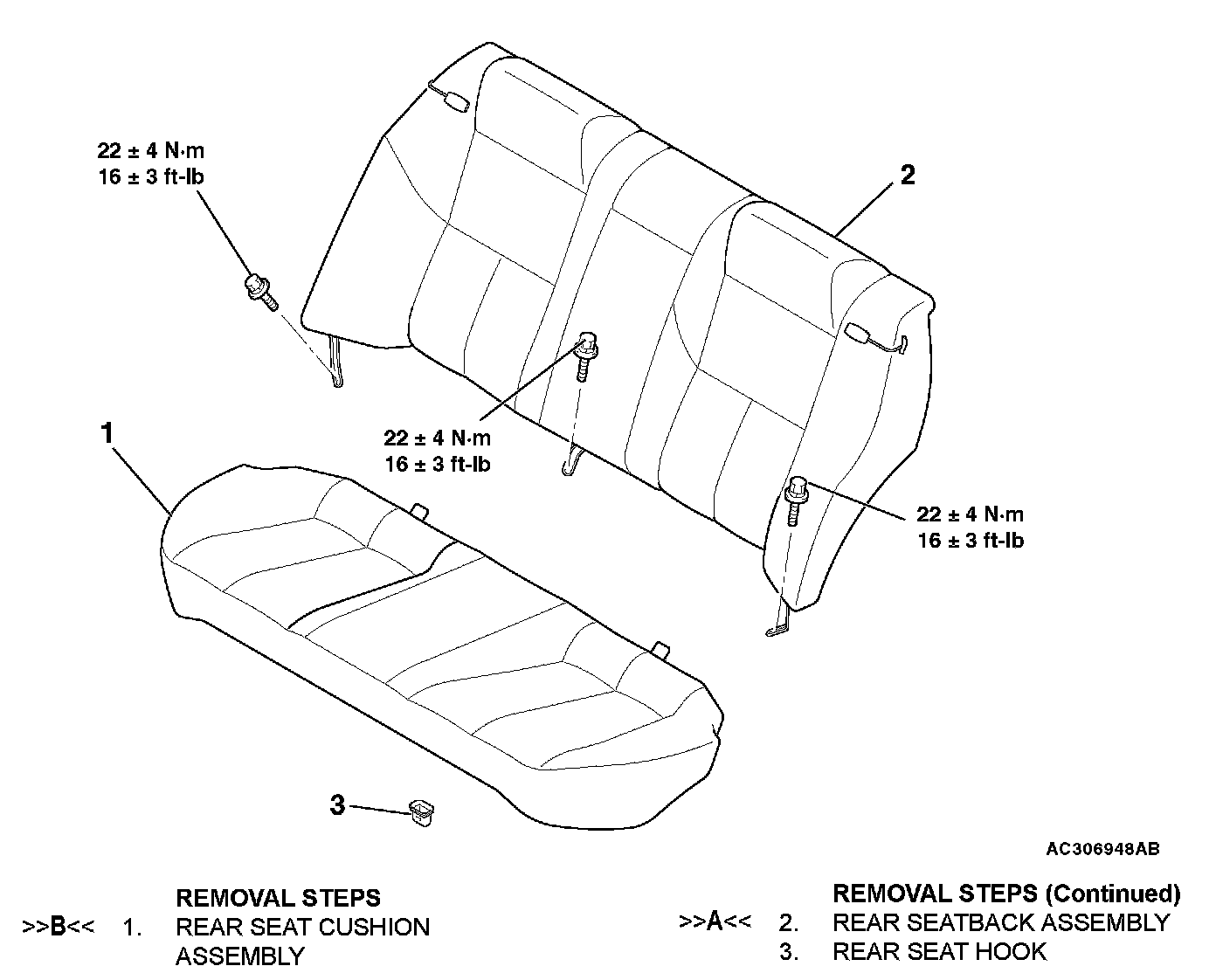

REMOVAL AND INSTALLATION

Removal Steps 1-3:

INSTALLATION SERVICE POINTS

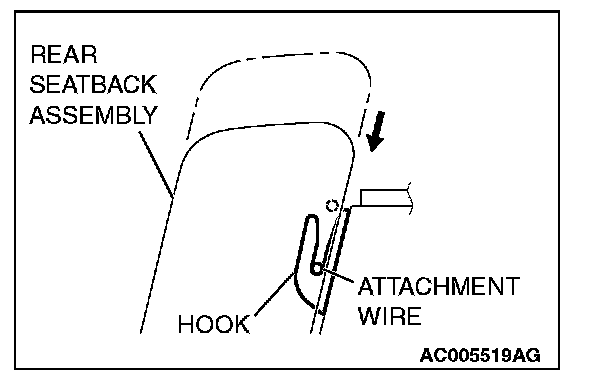

]]A[[ INSTALLATION OF REAR SEATBACK ASSEMBLY






Press the rear seatback assembly in the direction shown in the illustration and fit the attachment wire into the hook securely to install the rear seatback assembly.

]]B[[ INSTALLATION OF REAR SEAT CUSHION ASSEMBLY

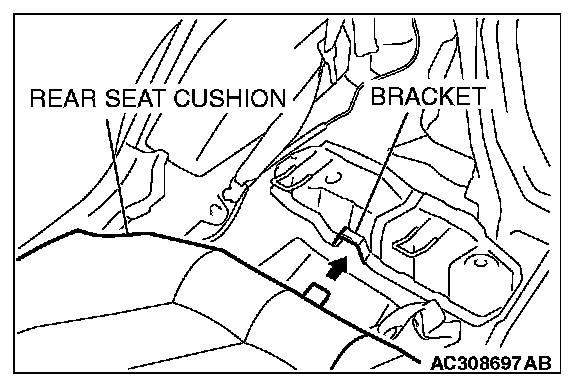

1. Fit the rear seat cushion into the bracket securely.

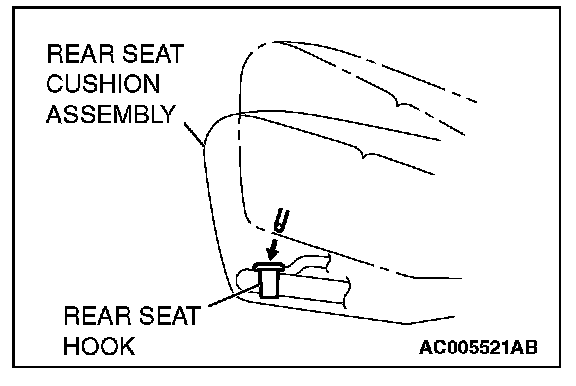

2. Fit the rear seat cushion into the rear seat hook securely.
