REAR DOOR LOCK ACTUATOR CHECK

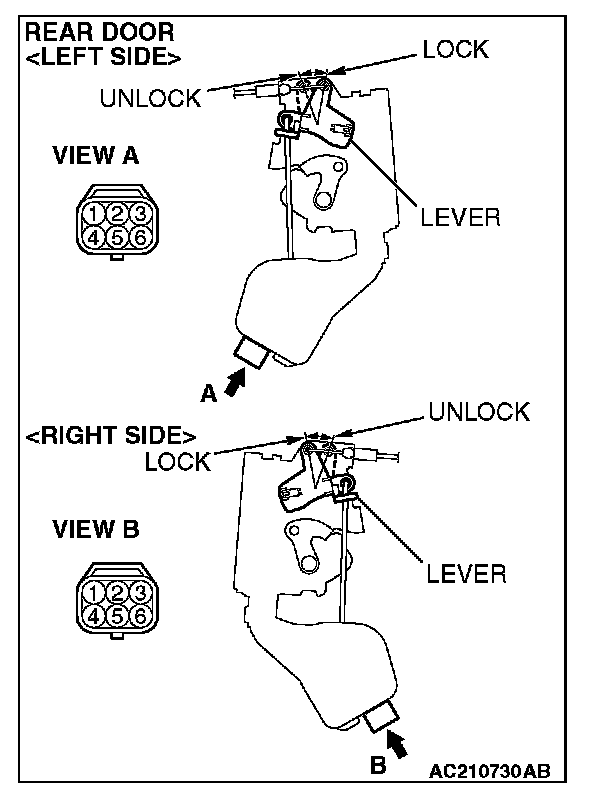

The illustration shows when the door lock actuator is viewed from outside the door.
