Engine Roll Stopper and Center Member

ENGINE ROLL STOPPER AND CENTERMEMBER

REMOVAL AND INSTALLATION

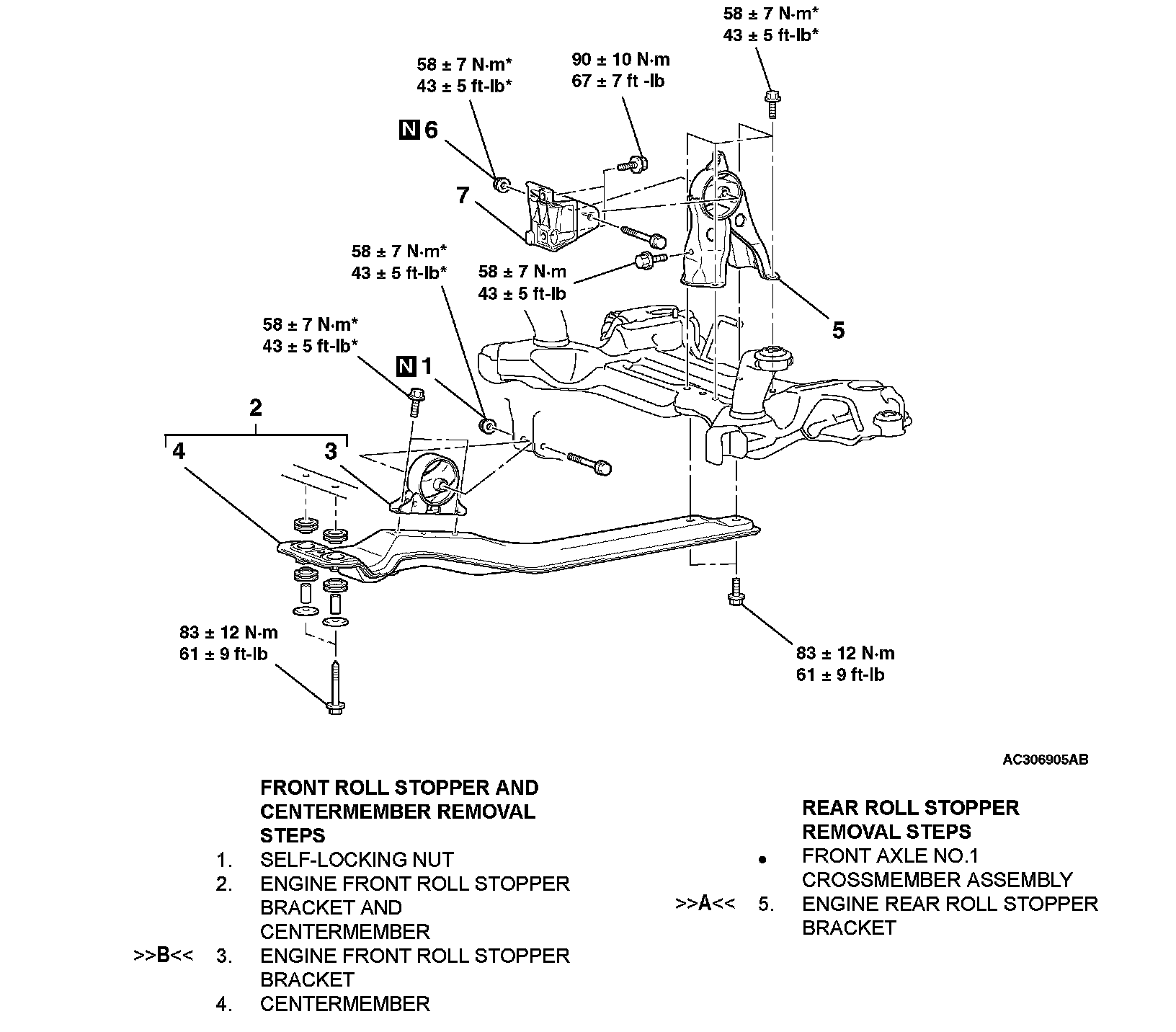

[2.4L ENGINE]

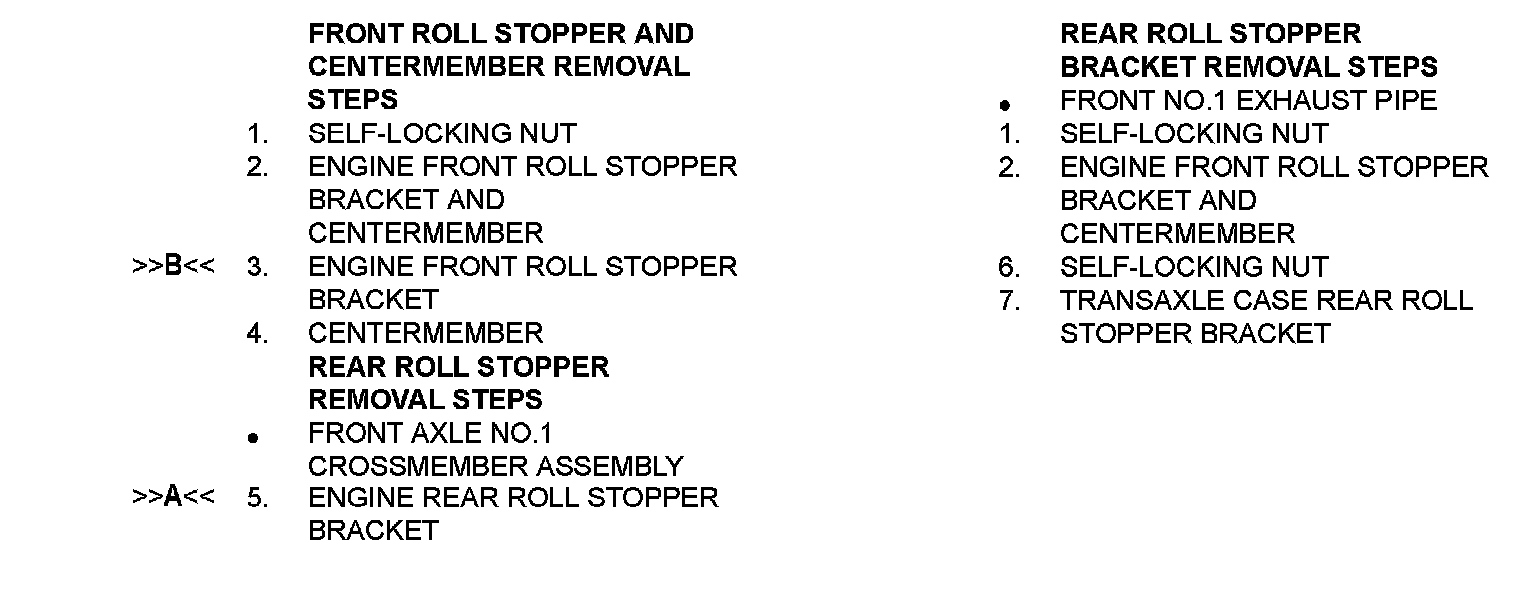

CAUTION:* Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

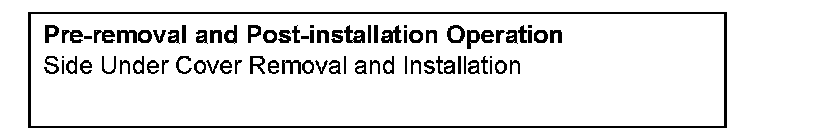

Pre-removal and Post-installation Operation:

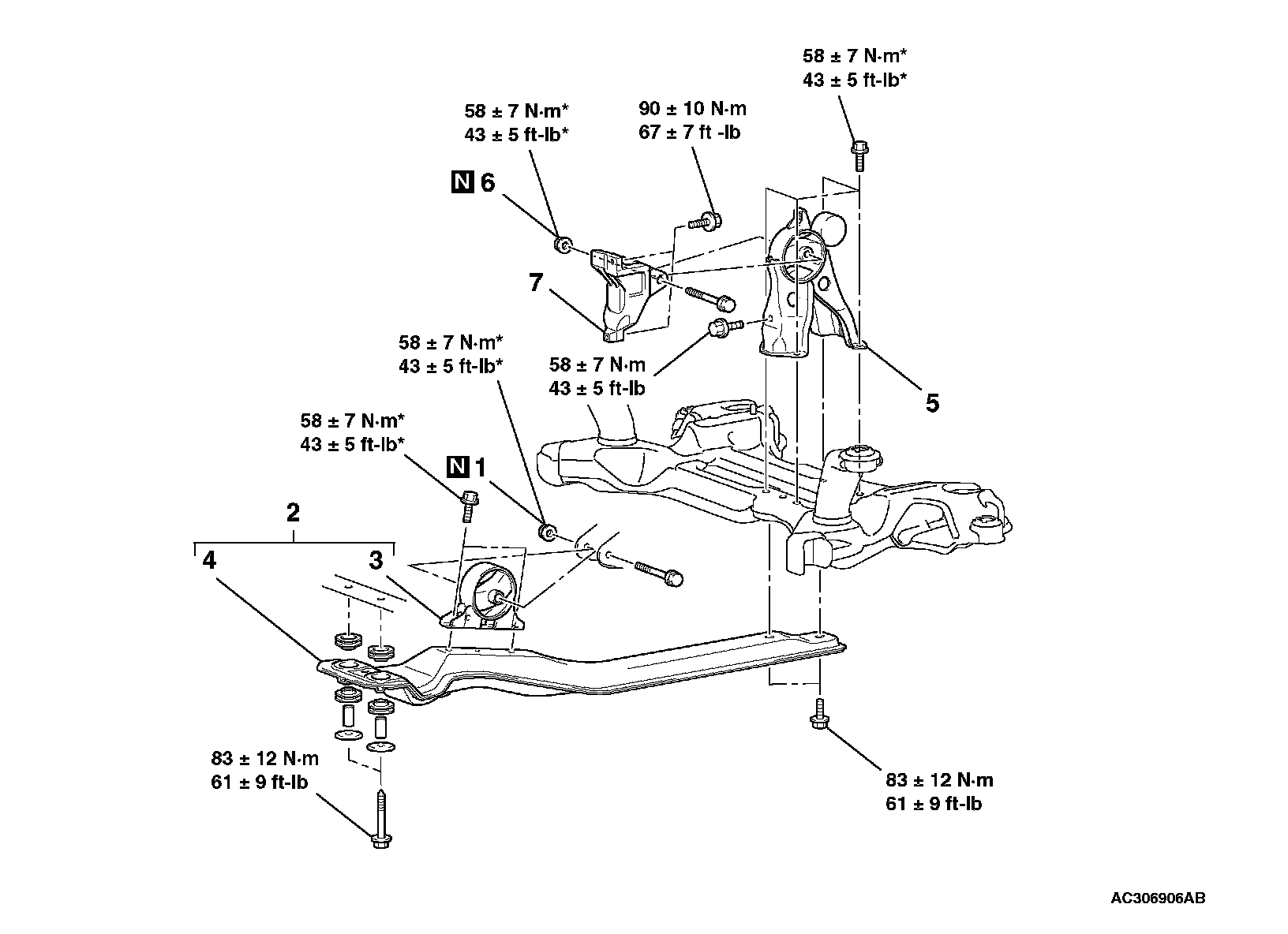

[3.8L ENGINE]

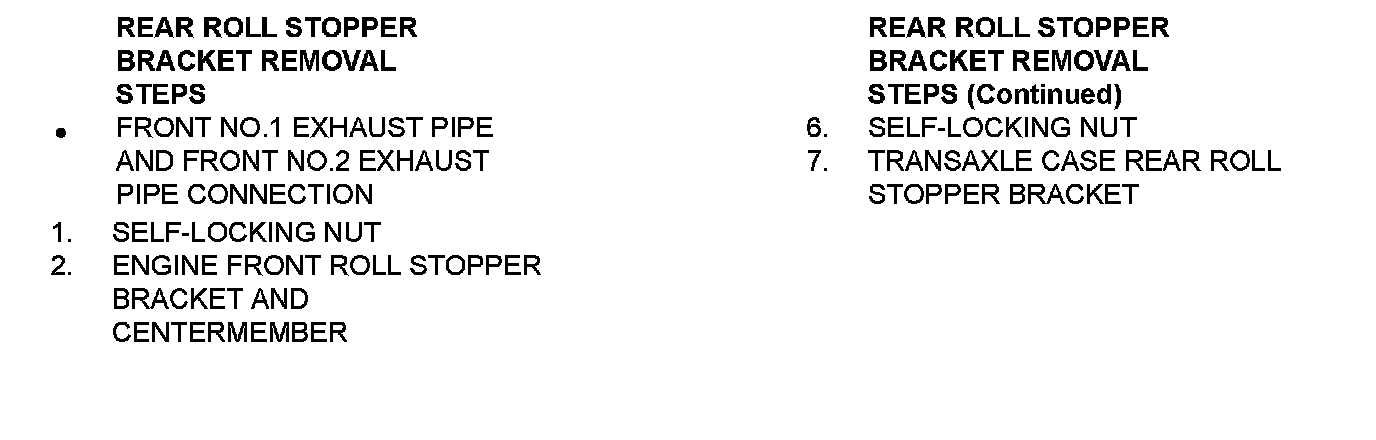

CAUTION:* Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

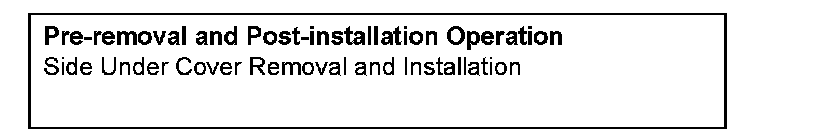

Pre-removal and Post-installation Operation:

INSTALLATION SERVICE POINTS

]]A[[ ENGINE REAR ROLL STOPPER BRACKET INSTALLATION

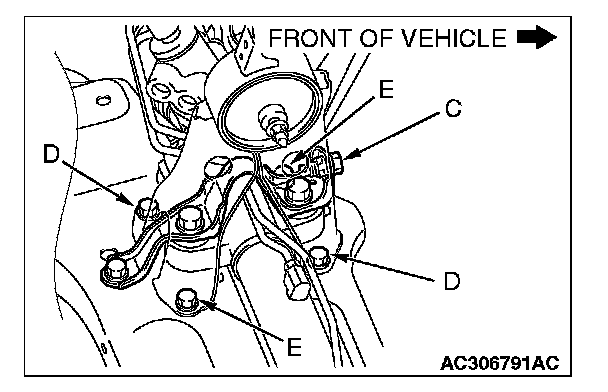

Tighten the bolts in the following sequence:
1. Tighten bolts E finger tight.
2. Tighten bolt C and then tighten bolts D.
3. Tighten bolts E.

]]B[[ ENGINE FRONT ROLL STOPPER BRACKET INSTALLATION

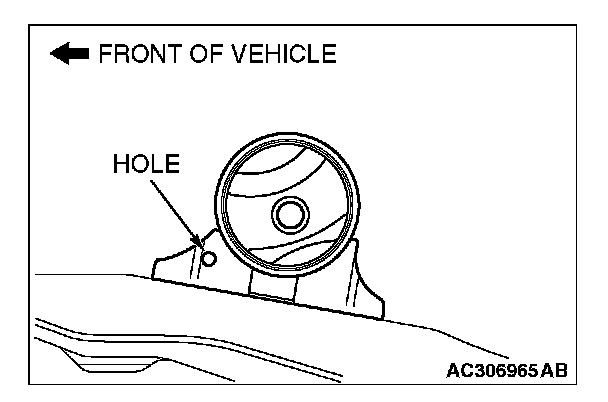

Install the engine front roll stopper bracket so that its hole points towards the front side of the vehicle.
