Front Door Latch: Service and Repair

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION






CAUTION:

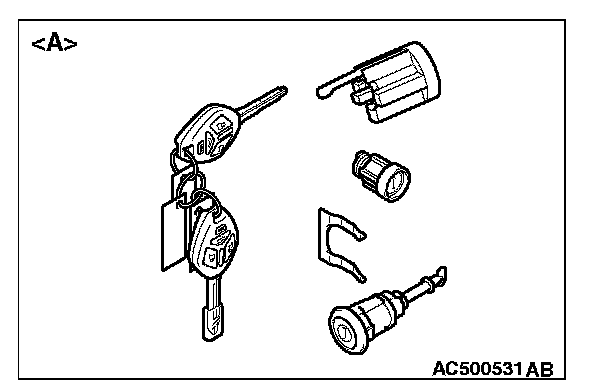

- When the door lock key cylinder is replaced by key set of illustration [A], register the encrypted code with the bar code on the ignition key in the key set. Refer to chassis electrical, Encrypted Code Registration Criteria Table.

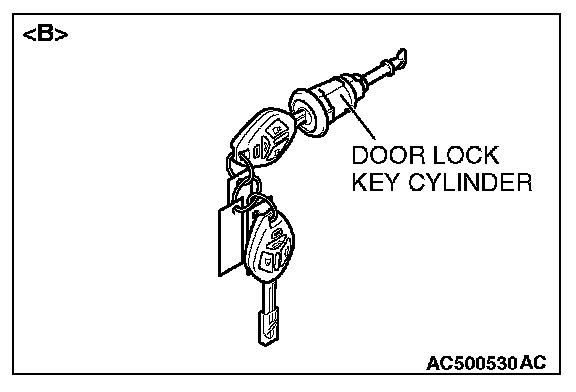

- When replacing by the door lock key cylinder of illustration [B], do not register the encrypted code with the bar code on the ignition key supplied simultaneously.

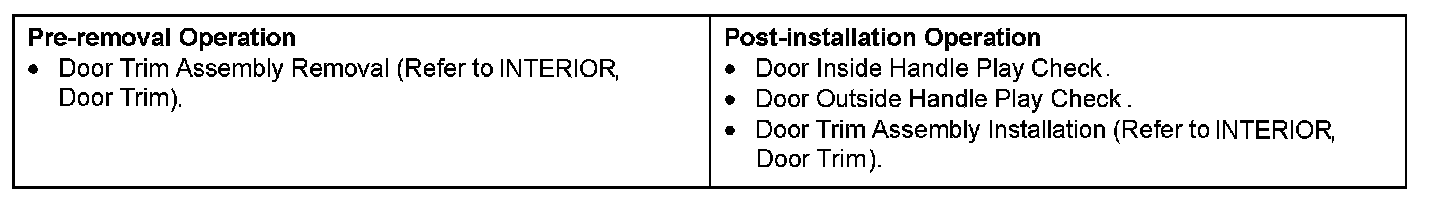

Pre-removal & Post Installation Operation:

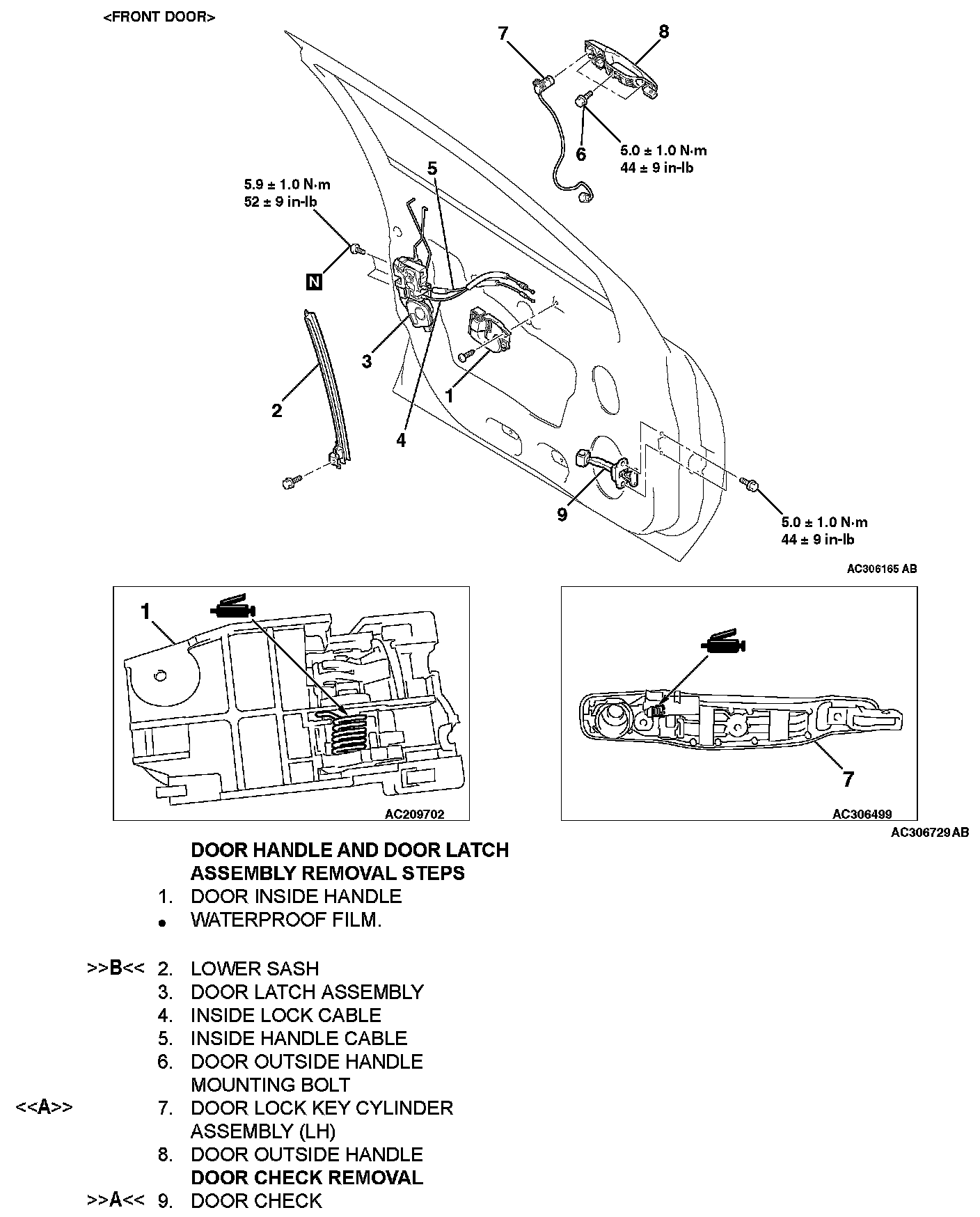

Removal Steps 1-9:

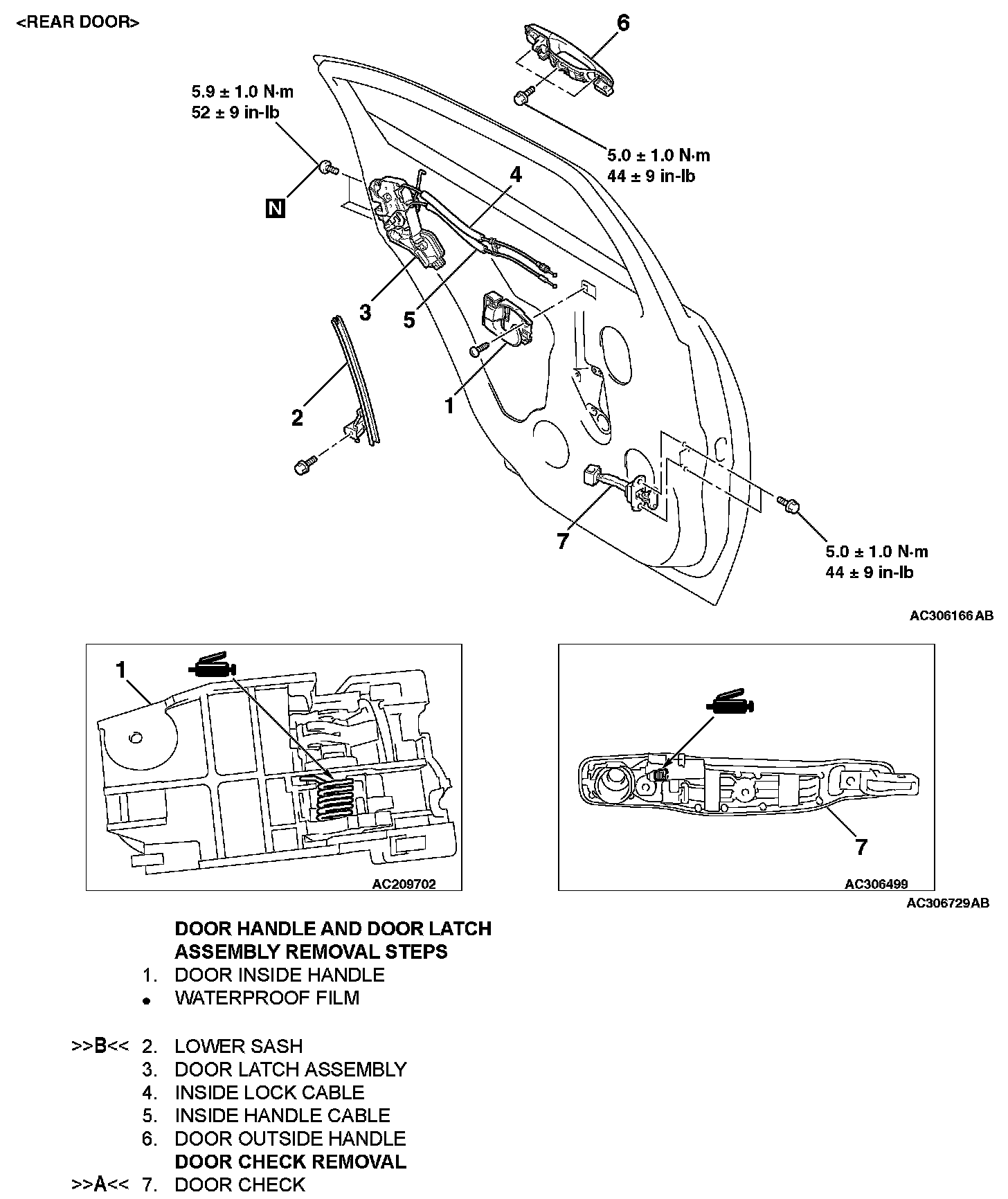

Removal Steps 1-7:

Required Special Tool:
- MB991223: Harness Set

REMOVAL SERVICE POINT

[[A]] DOOR LOCK KEY CYLINDER ASSEMBLY REMOVAL

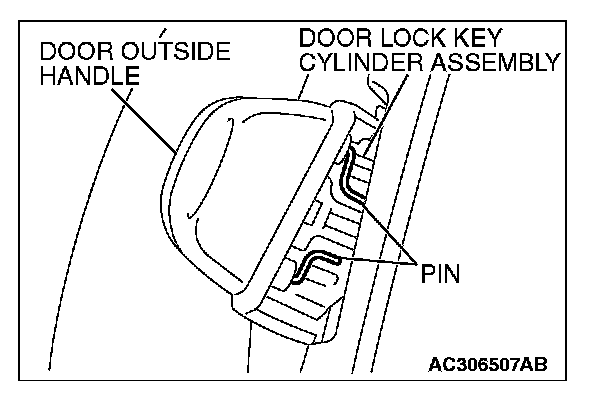

1. Create clearance between the door panel and the door outside handle to access the pin.
2. Open the pin and remove the door lock key cylinder assembly.

INSTALLATION SERVICE POINTS

]]A[[ DOOR CHECK INSTALLATION

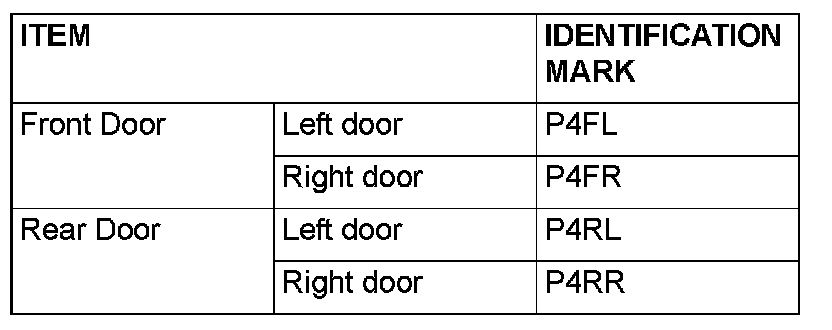

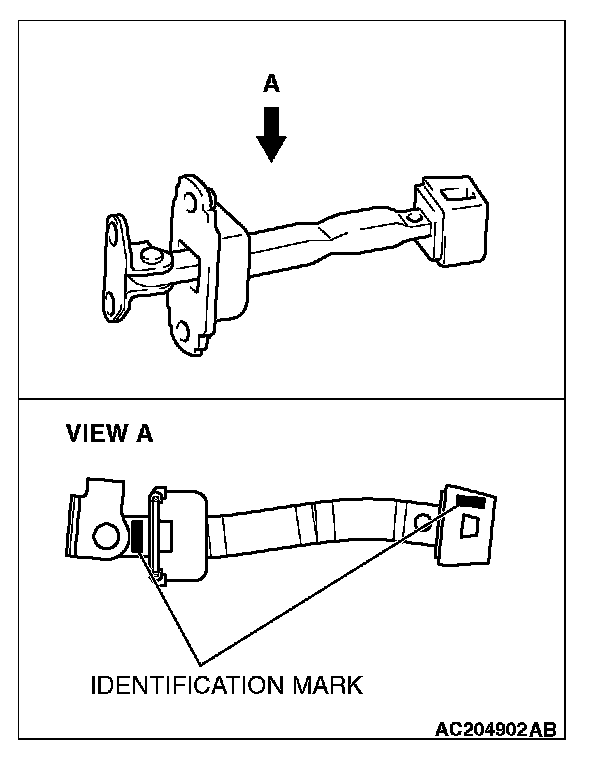

Install the door check so that the identification mark faces upwards.






]]B[[ LOWER SASH INSTALLATION

Securely insert the lower sash into the window rear sash.
