Function Diagnosis

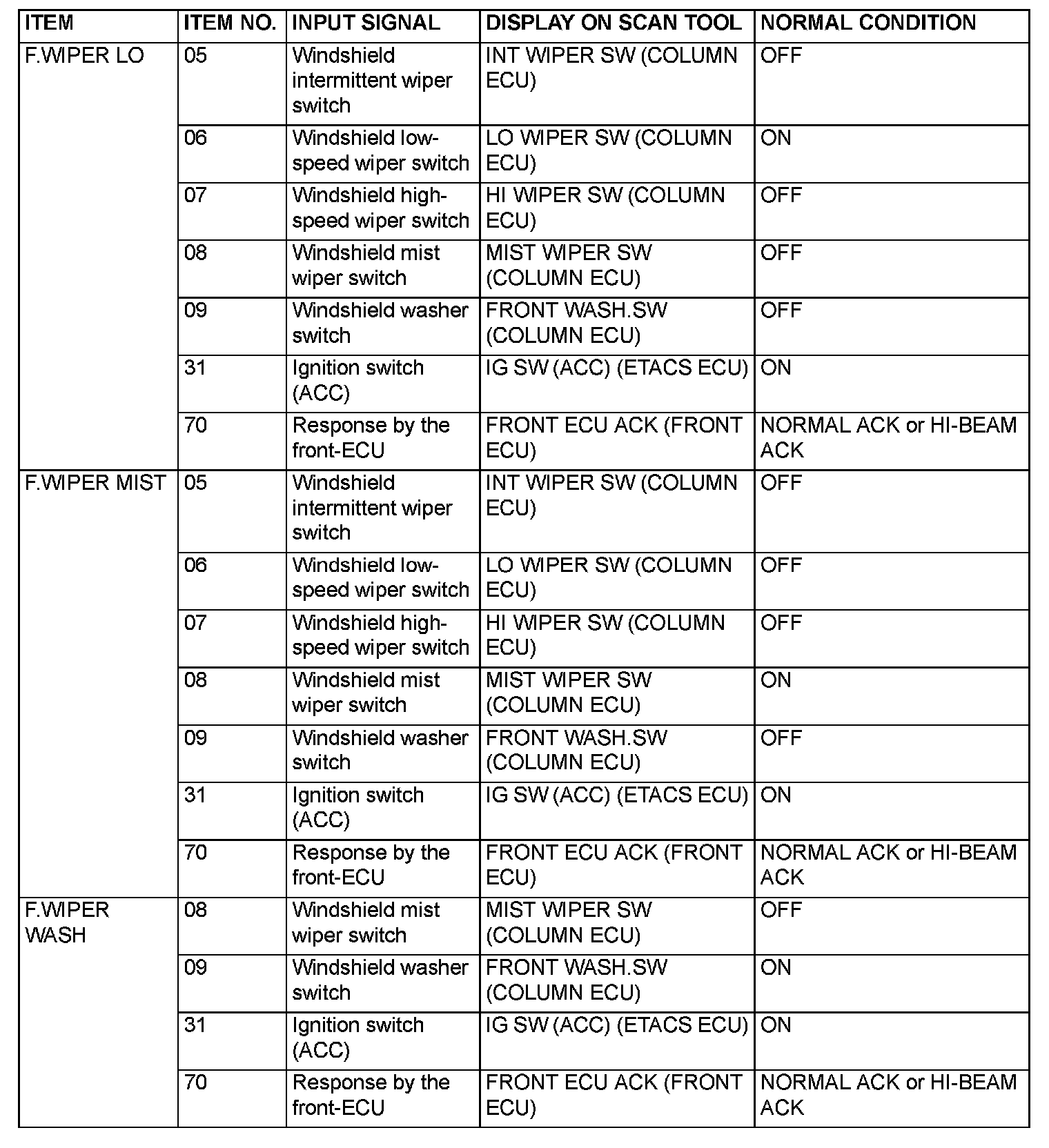

Wiper Part 1:

Wiper Part 2:

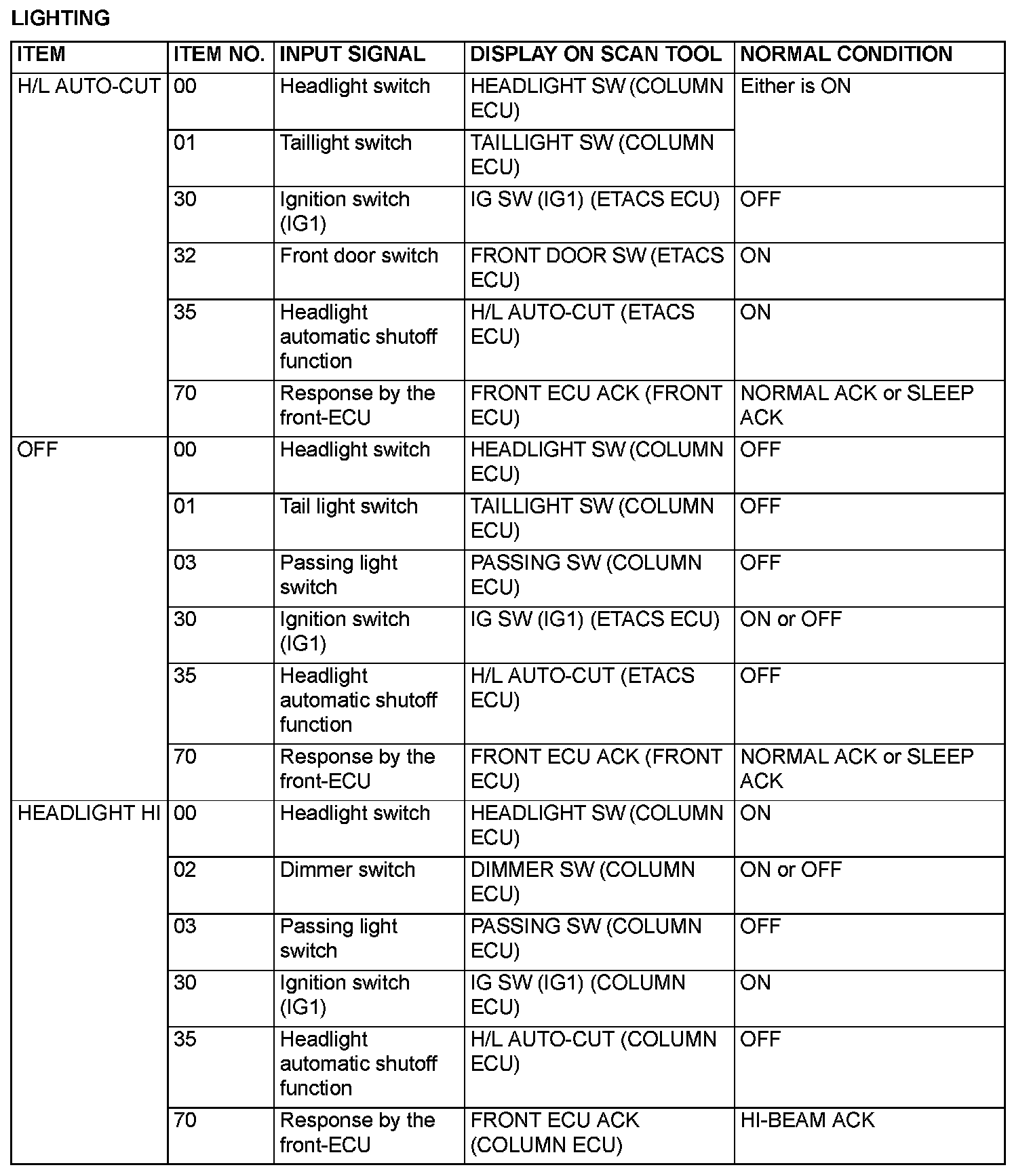

Lighting Part 1:

Lighting Part 2:

Turn Signal:

Buzzer:

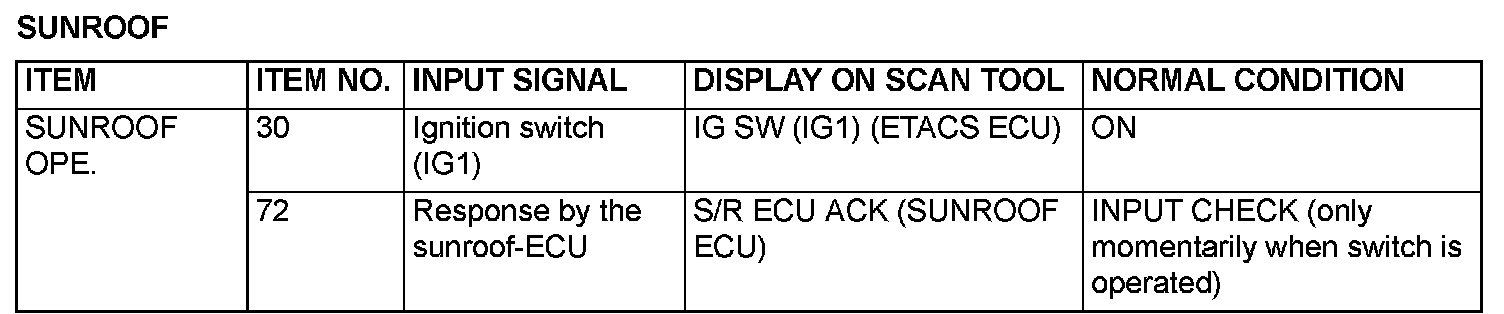

Sunroof:

[FUNCTION DIAGNOSIS]
The table shows the service data and their normal condition, which are displayed during the "Function Diag." The column "Normal condition" shows values that are shown when each operation is made.
