Antitheft and Alarm Systems

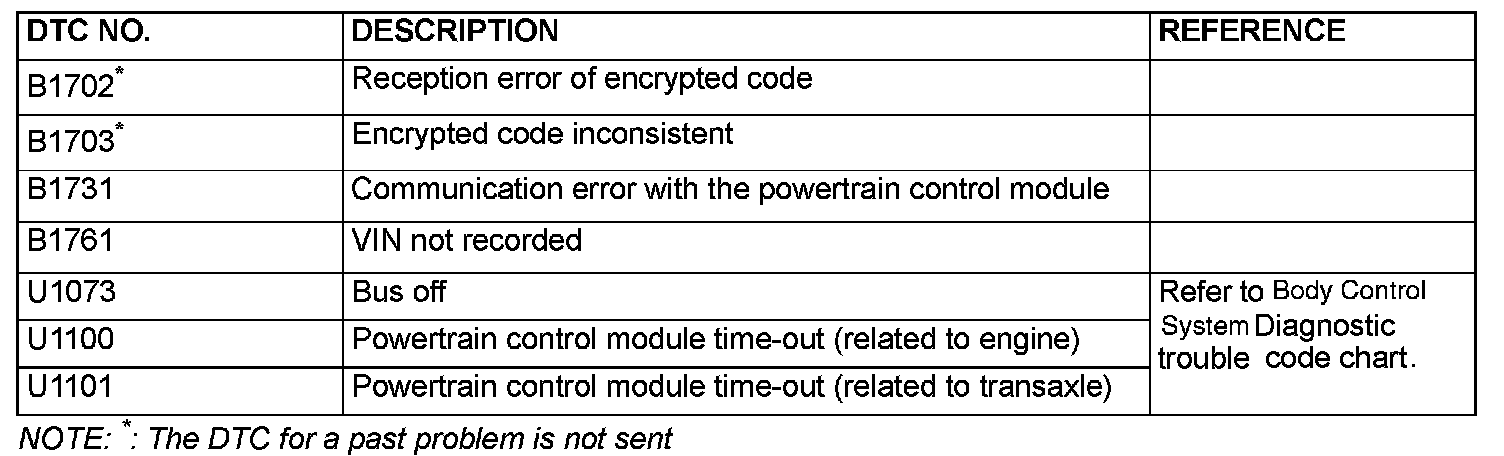

DIAGNOSTIC TROUBLE CODE CHART

CAUTION: During diagnosis, a DTC code associated with another system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC(s). If DTC(s) are set, erase them all.

B1702 - U1101:

Use the given chart to develop proper diagnostic strategy.
