C1397

C1397 Transmission Range Switch Failure

CAUTION:
- If DTC C1397 is set in the ABS/TCL-ECU, always diagnose the CAN main bus line.If there is any fault in the CAN bus lines, an incorrect DTC may be set.
- Whenever the ABS/TCL-ECU is replaced, ensure that the communication circuit is normal.
- The A/T system-related DTC may be set when DTC C1397 is set. (For details refer to Inter - system Affiliated DTC Reference Table). Diagnose the A/T system first when the A/T system-related DTC is set.

DTC SET CONDITIONS
This DTC is set when the transmission range switch fail request is sent from PCM.

TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CODE TO BE SET ARE:)
- Malfunction of the A/T system.
- Malfunction of the ABS/TCL-ECU.

DIAGNOSIS

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic trouble code.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

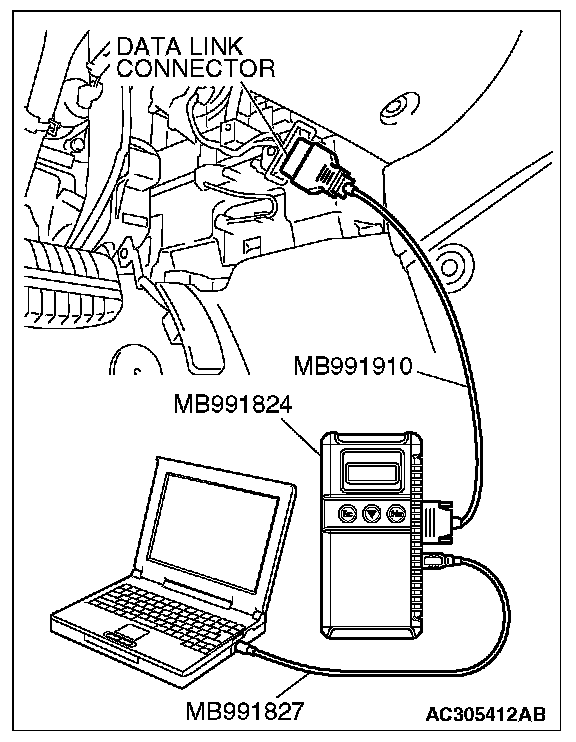

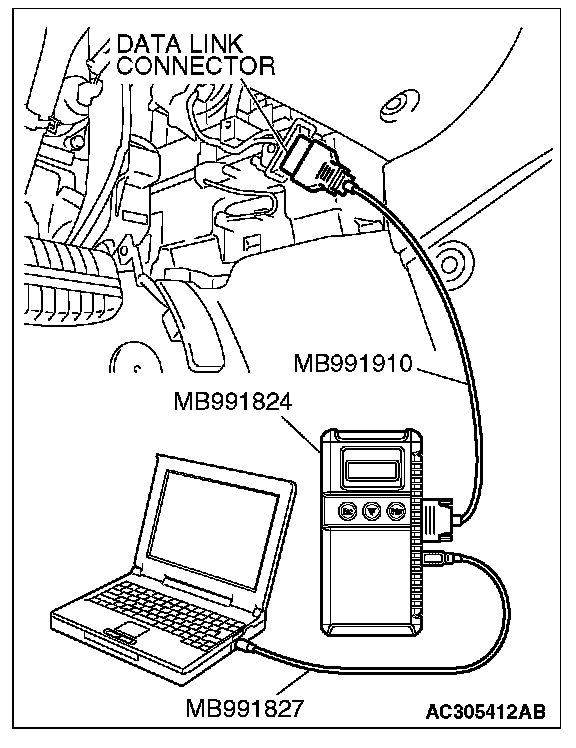

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Check for A/T system diagnostic trouble code. (Refer to A/T Diagnosis - Diagnostic Function - How to Read and Erase Diagnostic Trouble Code).
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.

Q: Is any DTC set?

YES: Repair the automatic transaxle control system. (Refer to A/T Diagnosis - Diagnostic Trouble Code Chart). Then go to Step 3.

NO: Go to Step 2.

STEP 2. Using scan tool MB991958, read the diagnostic trouble code.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Use scan tool MB991958 to read the TCL diagnostic trouble codes.
4. Turn the ignition switch to the "LOCK" (OFF) position.
5. Disconnect scan tool MB991958.

Q: Is DTC C1397 set?

YES: Replace the hydraulic unit (integrated with ABS/TCL-ECU). (Refer to Hydraulic Unit). Then go to Step 3.

NO: It can be assumed that this malfunction is intermittent.

STEP 3. Using scan tool MB991958, read the diagnostic trouble code.

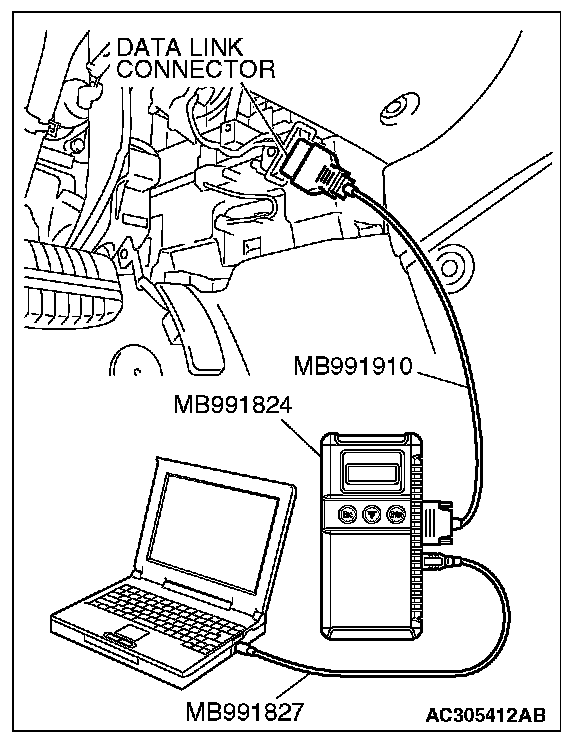

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
