Clutch - Clutch Disc Installation

No: TT-129-21A-001

DATE: August, 2006

MODEL: See Below

SUBJECT
CLUTCH DISC INSTALLATION

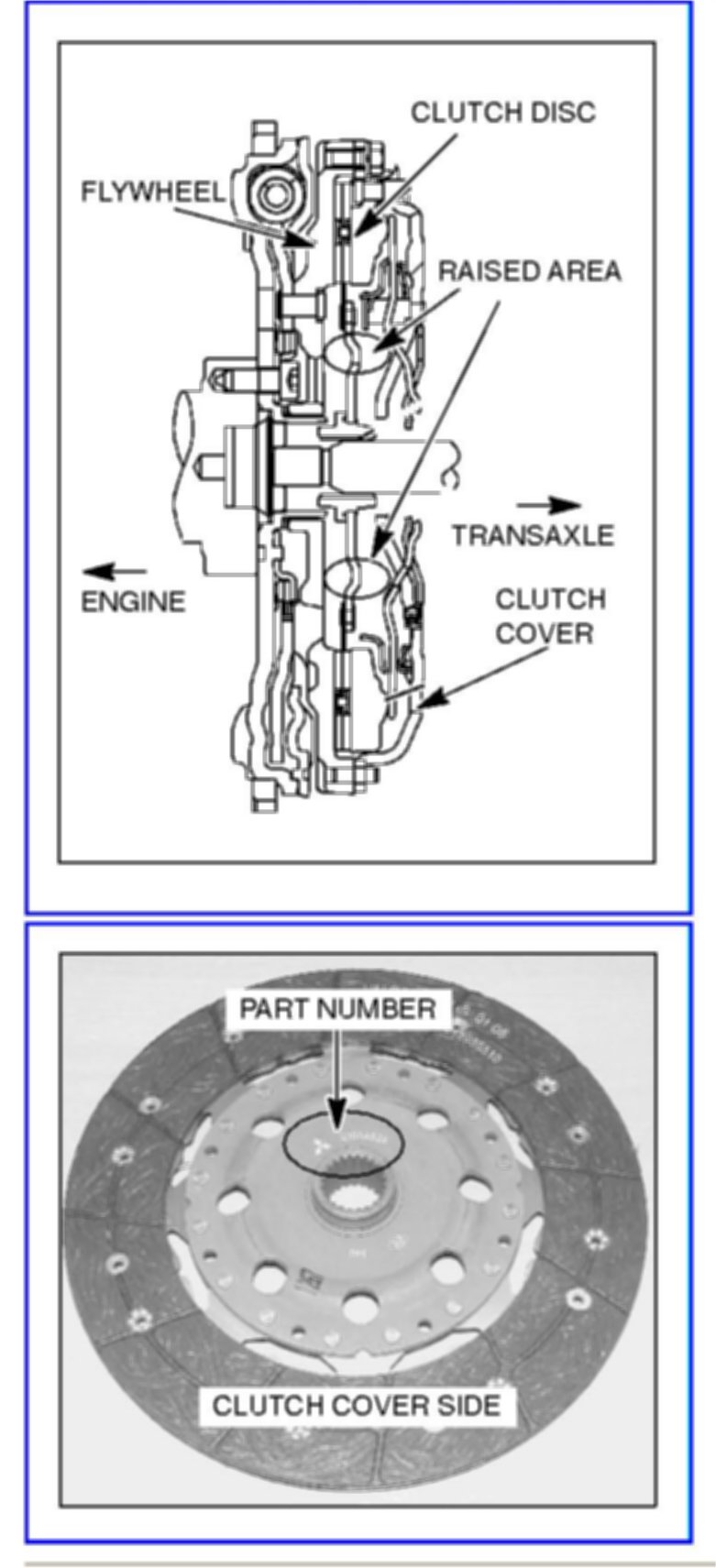

Clutch Disc Installation - 2006-on Eclipse and 2007-on Eclipse Spyder 3.8L V6. When installing a clutch disc on the affected vehicles, be sure to install it with the raised side of the disc hub toward the clutch cover.
