System Specifications

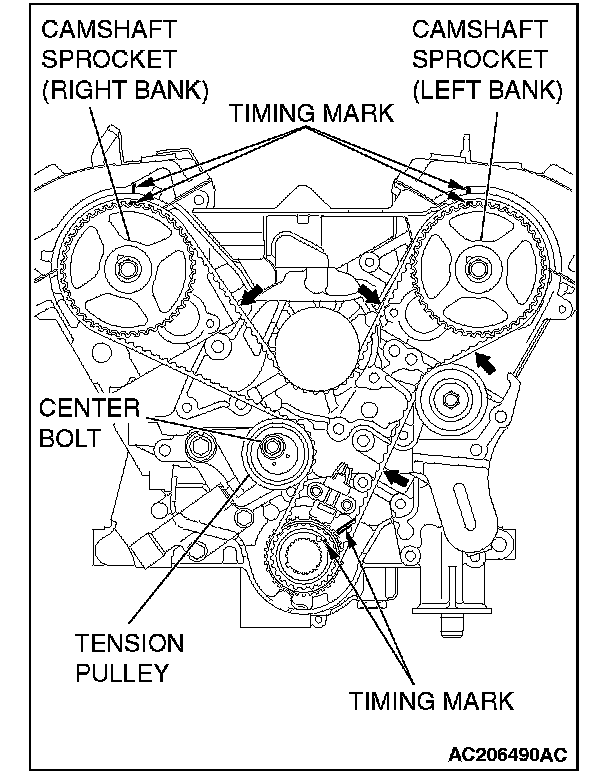

Timing belt tension torque
Tightening torque: 48 ±6 Nm (36 ±4 ft-lb)

Timing belt rear center cover bolt
M6 11 ±1 Nm (98 ±8 in-lb)
M8 14 ±1 Nm (120 ±13 in-lb)

Auto-tensioner bolt 23 ±3 Nm (17 ±2 ft-lb)

Timing belt front cover bolt
M6 11 ± 1 Nm (98 ±8 in-lb)

Timing belt front cover bolt
M8, M10 14 ±1 Nm (122 ±9 in-lb)

Timing belt rear cover bolt
M6 11 ± 1 Nm (98 ±8 in-lb)

Timing belt rear cover bolt
M8 14 ±1 Nm (122 ±9 in-lb)

Timing belt lower cover bolt (bolt, flange)
M6 11 ±1 m (98 ±8 in-lb)

Timing belt lower cover bolt (bolt, washer assembled)
M10 14 ±1 Nm (120 ±13 in-lb)

Timing belt upper cover bolt (bolt, flange)
M6 11 ±1 m (98 ±8 in-lb)
M8 14 ±1 m (120 ±13 in-lb)

Crankshaft pulley center bolt 185 Nm (136 ft-lb)
