Home >> Mitsubishi >> 2007 >> Eclipse V6-3.8L (6G75) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Overhaul >> Service Specifications

Service Specifications

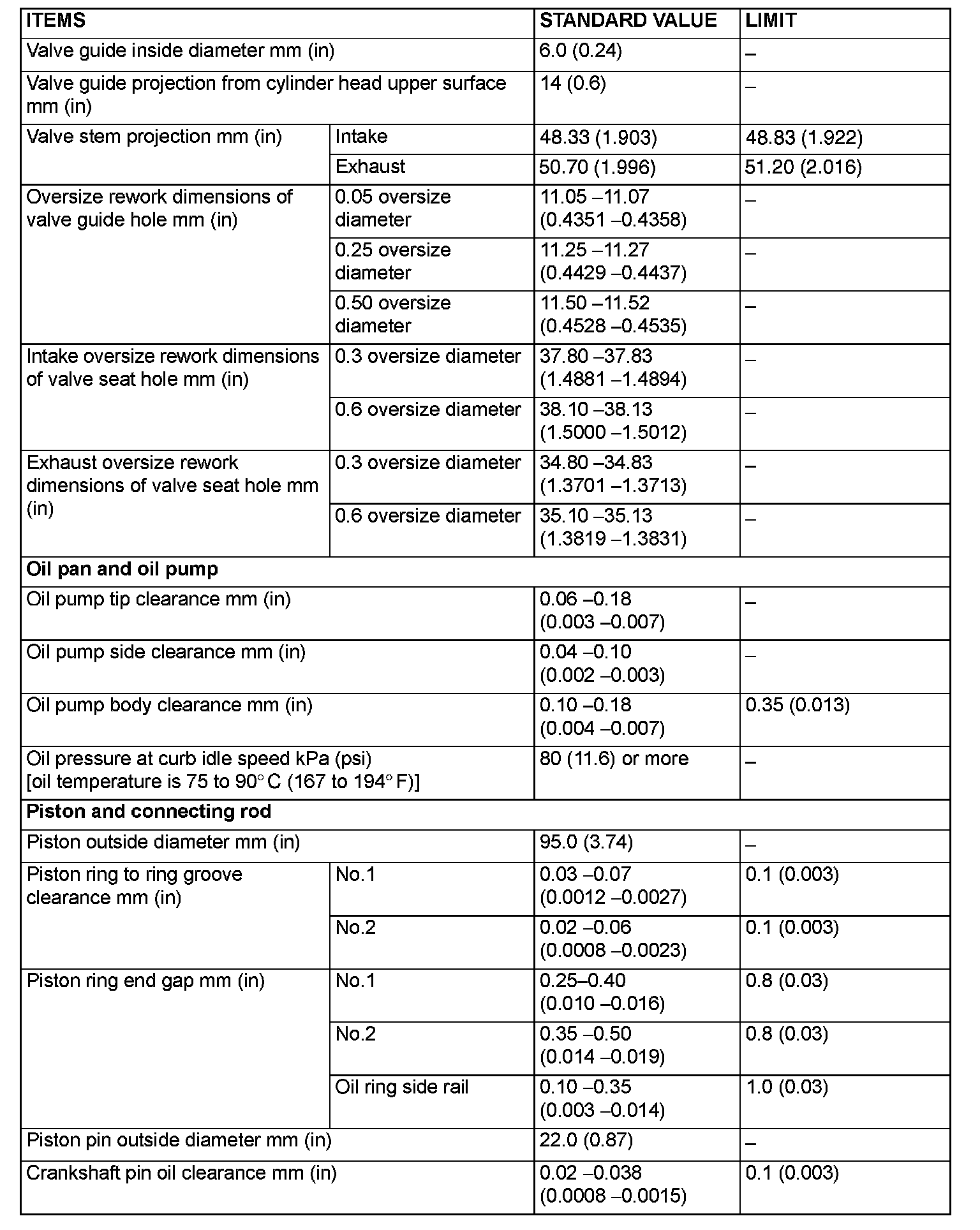

SERVICE SPECIFICATIONS:

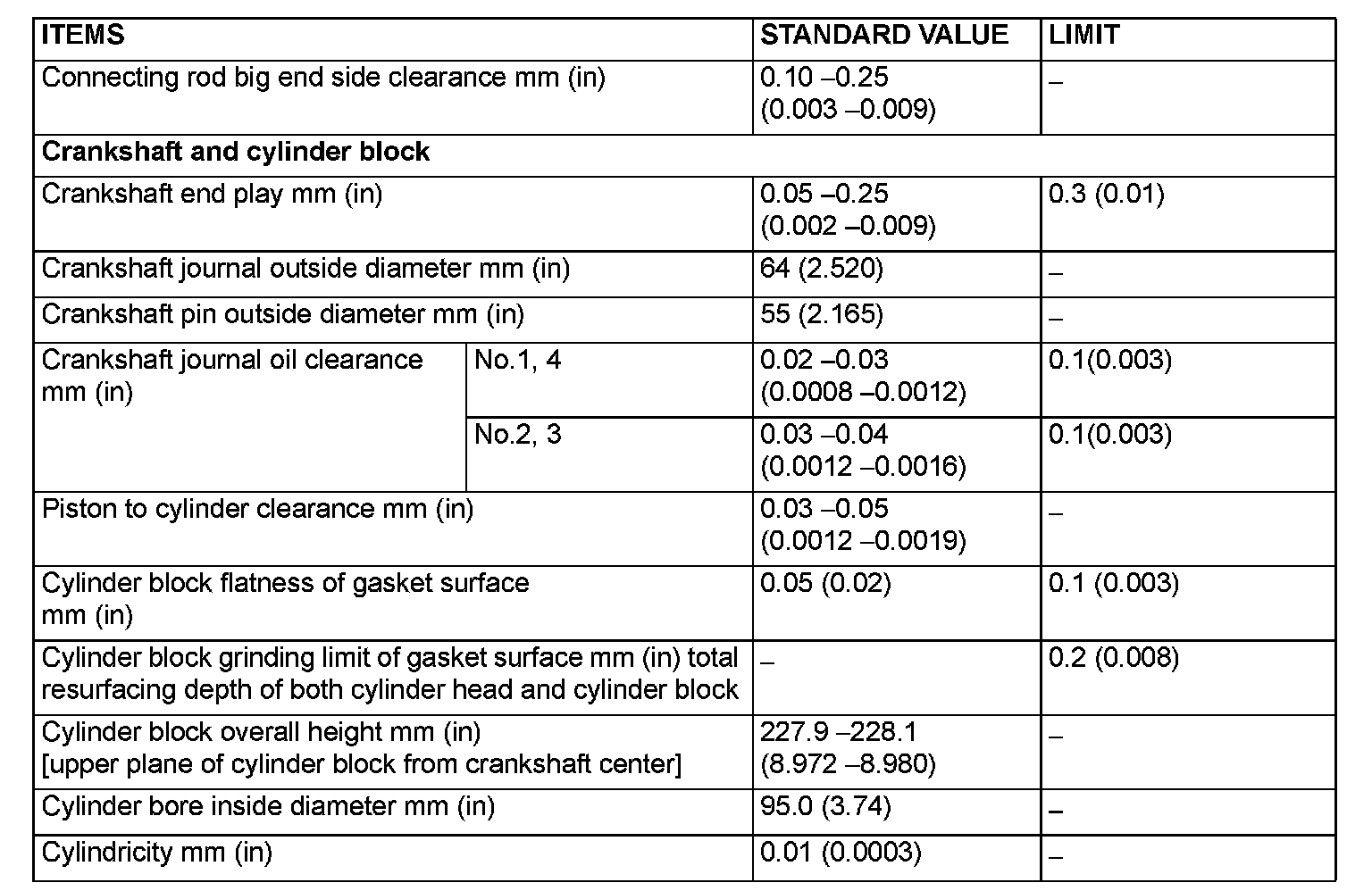

SERVICE SPECIFICATIONS (Updated Per TSB# 06-11-006):

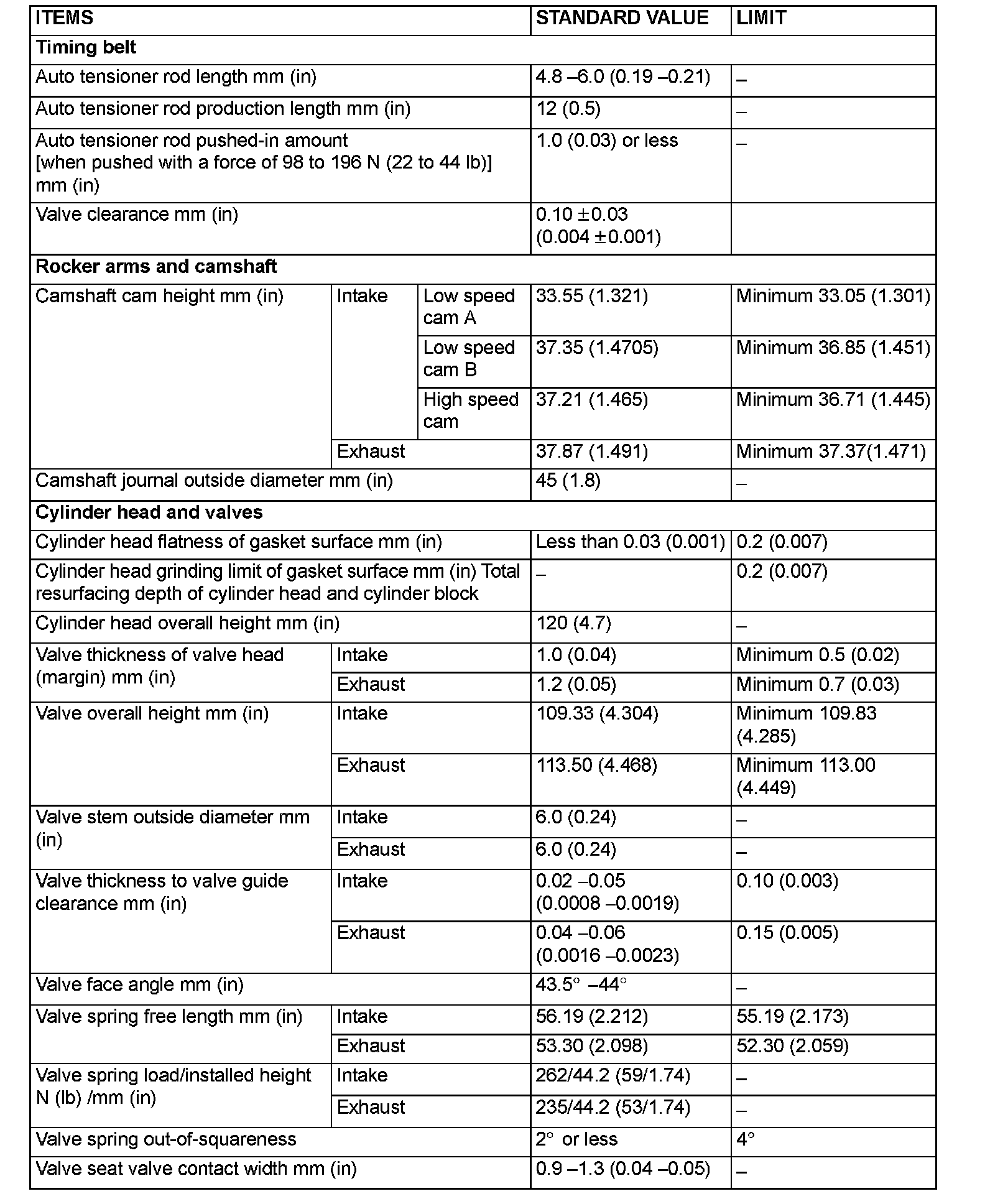

SERVICE SPECIFICATIONS:
