System Specifications

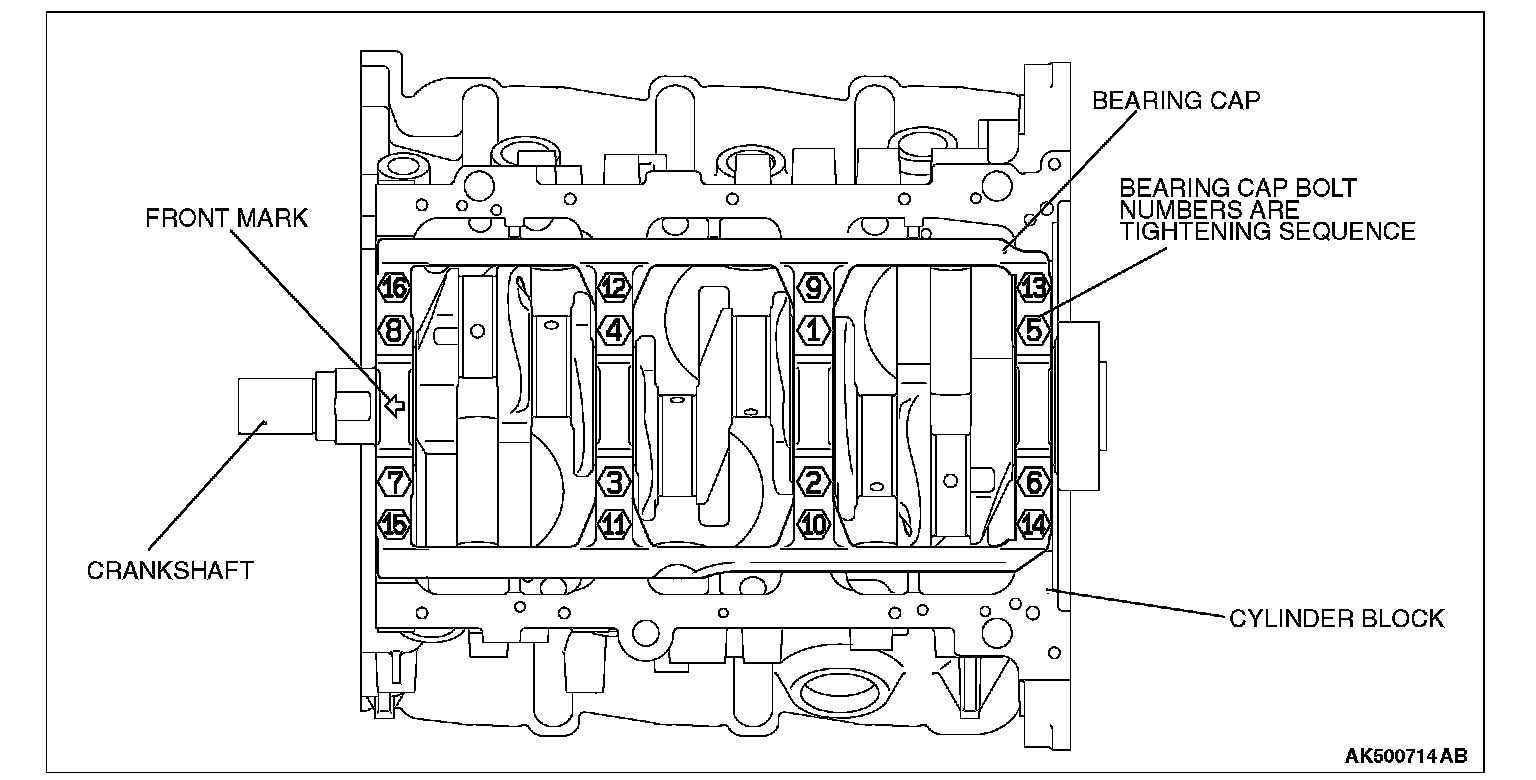

Install the crankshaft bearing cap carefully and tighten the bolts to the specified torque.
Tightening torque: 74 ± 4 Nm (54 ± 3 ft-lb)

Crankshaft pulley center bolt 185 Nm (136 ft-lb)
Cylinder bore mm (in) 95.0 (3.74)
Piston and connecting rod
Piston outside diameter mm (in)
Standard Value: 95.0 (3.74)
Piston ring to ring groove clearance mm (in) No.1
Standard Value: 0.03 - 0.07
Standard Value: (0.0012 - 0.0027)
Limit: 0.1 (0.003)
Piston ring to ring groove clearance mm (in) No.2
Standard Value: 0.02 - 0.06
Standard Value: (0.0008 - 0.0023)
Limit: 0.1 (0.003)
Piston ring end gap mm (in) No.1
Standard Value: 0.25- 0.40
Standard Value: (0.010 - 0.016)
Limit: 0.8 (0.03)
Piston ring end gap mm (in) No.2
Standard Value: 0.35 - 0.50
Standard Value: (0.014 - 0.019)
Limit: 0.8 (0.03)
Piston ring end gap mm (in) Oil ring side rail
Standard Value: 0.10 - 0.35
Standard Value: (0.003 - 0.014)
Limit: 1.0 (0.03)
Piston pin outside diameter mm (in)
Standard Value: 22.0 (0.87)
Crankshaft pin oil clearance mm (in)
Standard Value: 0.02 - 0.038
Standard Value: (0.0008 - 0.0015)
Limit: 0.1 (0.003)
Connecting rod big end side clearance mm (in)
Standard Value: 0.10 - 0.25
Standard Value: (0.003 - 0.009)
Crankshaft and cylinder block
Crankshaft end play mm (in)
Standard Value: 0.05 - 0.25
Standard Value: (0.002 - 0.009)
Limit: 0.3 (0.01)
Crankshaft journal outside diameter mm (in)
Standard Value: 64 (2.520)
Crankshaft pin outside diameter mm (in)
Standard Value: 55 (2.165)
Crankshaft journal oil clearance mm (in) No.1, 4
Standard Value: 0.02 - 0.03
Standard Value: (0.0008 - 0.0012)
Limit: 0.1(0.003)
Crankshaft journal oil clearance mm (in) No.2, 3
Standard Value: 0.03 - 0.04
Standard Value: (0.0012 - 0.0016)
Limit: 0.1(0.003)
Piston to cylinder clearance mm (in)
Standard Value: 0.03 - 0.05
Standard Value: (0.0012 - 0.0019)
Cylinder block flatness of gasket surface
mm (in)
Standard Value: 0.05 (0.02)
Limit: 0.1 (0.003)
Cylinder block grinding limit of gasket surface mm (in) total resurfacing depth of both cylinder head and cylinder block
Limit: 0.2 (0.008)
Cylinder block overall height mm (in)
[upper plane of cylinder block from crankshaft center]
Standard Value: 227.9 - 228.1
Standard Value: (8.972 - 8.980)
Cylinder bore inside diameter mm (in)
Standard Value: 95.0 (3.74)
Cylindricity mm (in)
Standard Value: 0.01 (0.0003)

Connecting Rod big end side clearance.
Standard value: 0.10 - 0.25 mm (0.004 - 0.009 inch)
Limit: 0.4 mm (0.02 inch)
Connecting rod cap nut 27 ± 2 Nm (20 ± 1 ft-lb) + 90° to 94°
