Ignition Switch

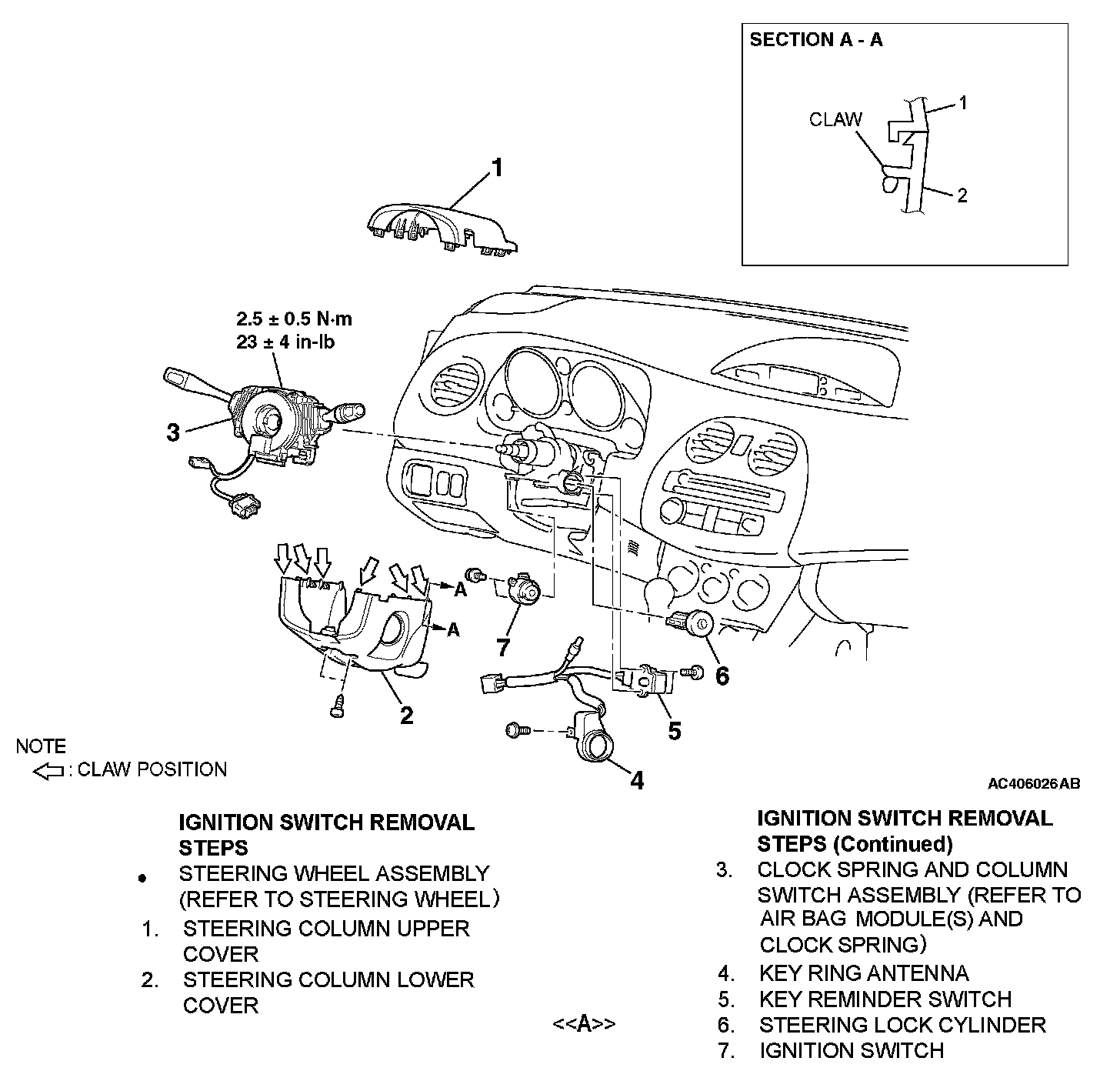

IGNITION SWITCHRemoval Steps 1-7:
REMOVAL AND INSTALLATION
WARNING:
- Before removing the steering wheel, air bag module assembly and clock spring refer to SWS - Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the steering wheel, do not let it bump against the air bag module.
CAUTION: When the steering lock cylinder is replaced, register the encrypted code.
REMOVAL SERVICE POINTS

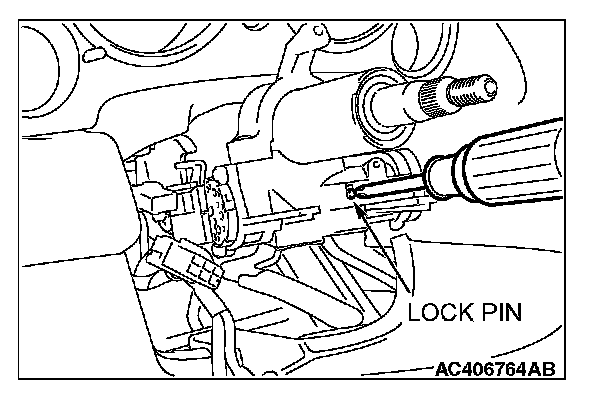

<> STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a small Phillips head screwdriver, pull the steering lock cylinder toward you.
