Home >> Mitsubishi >> 2007 >> Eclipse V6-3.8L (6G75) >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

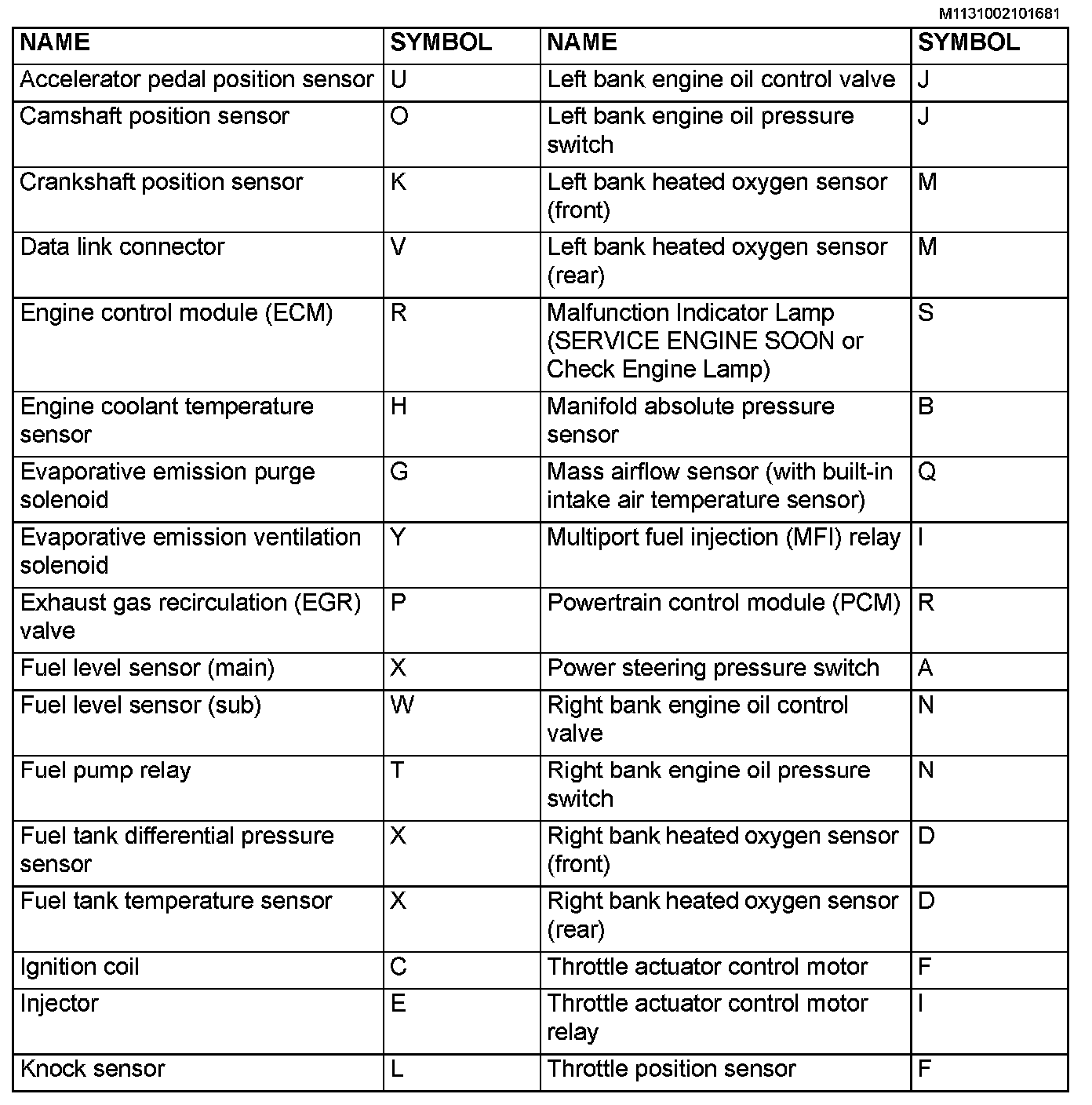

Component Location:

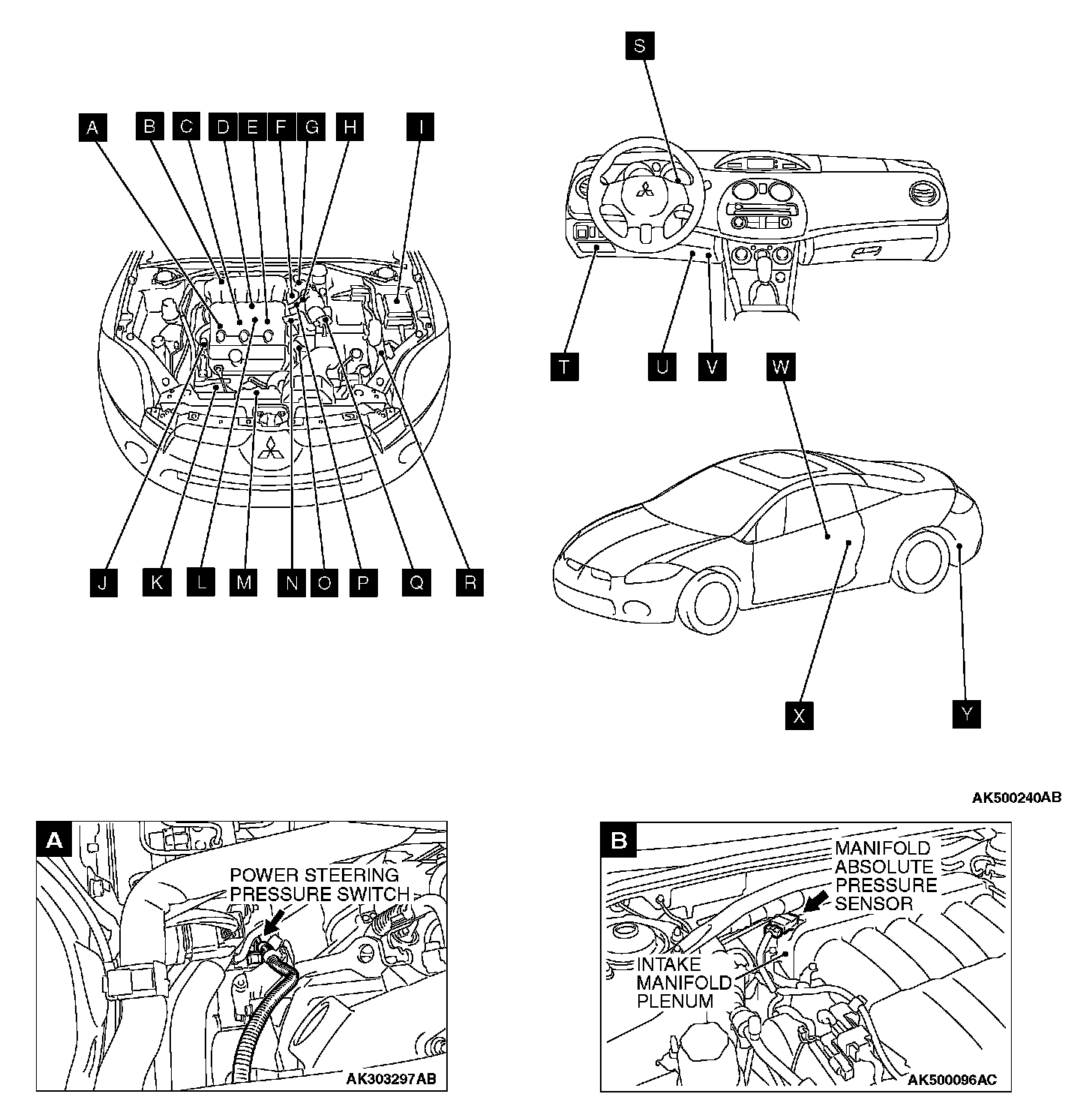

Overall View:

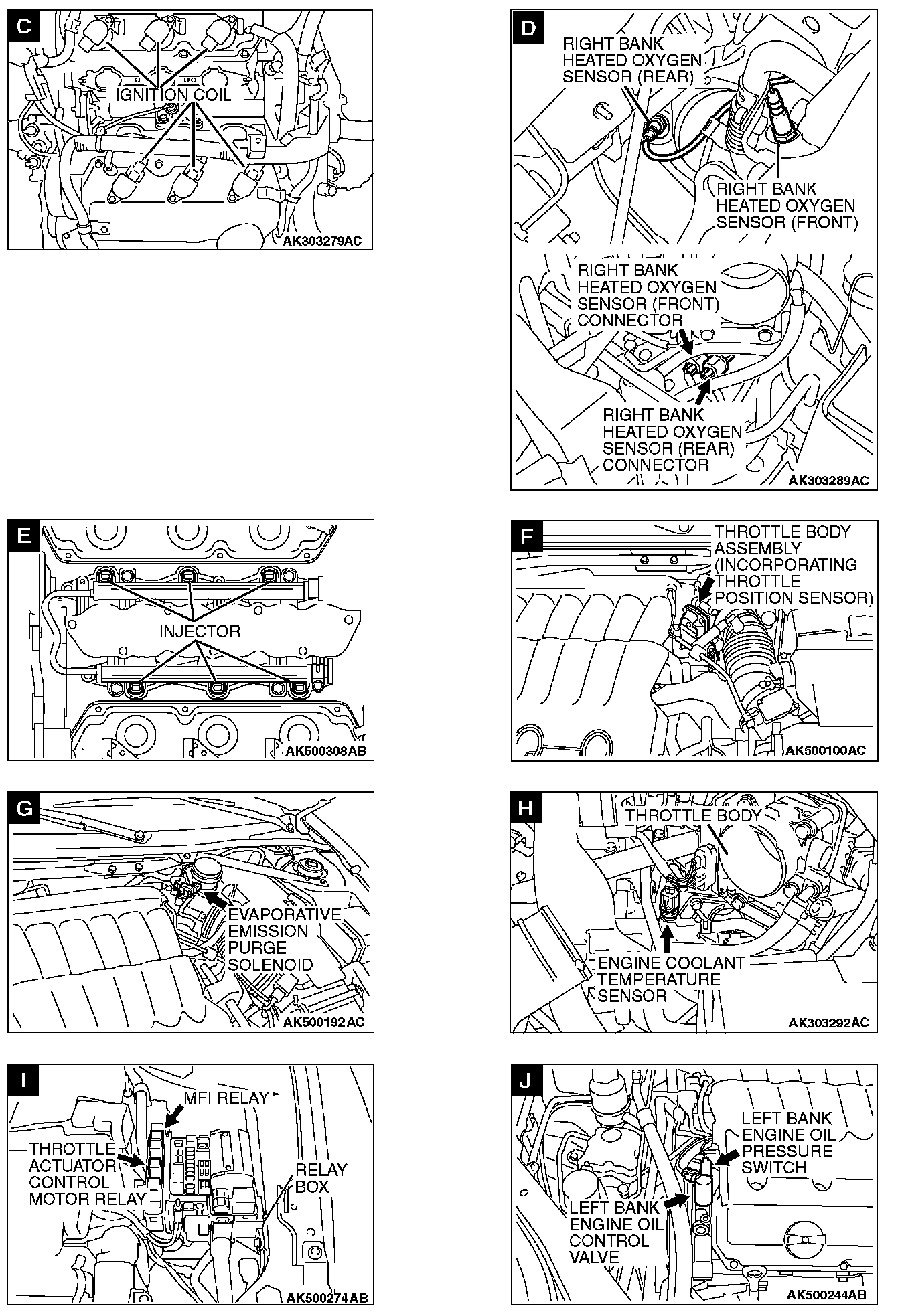

View C-J:

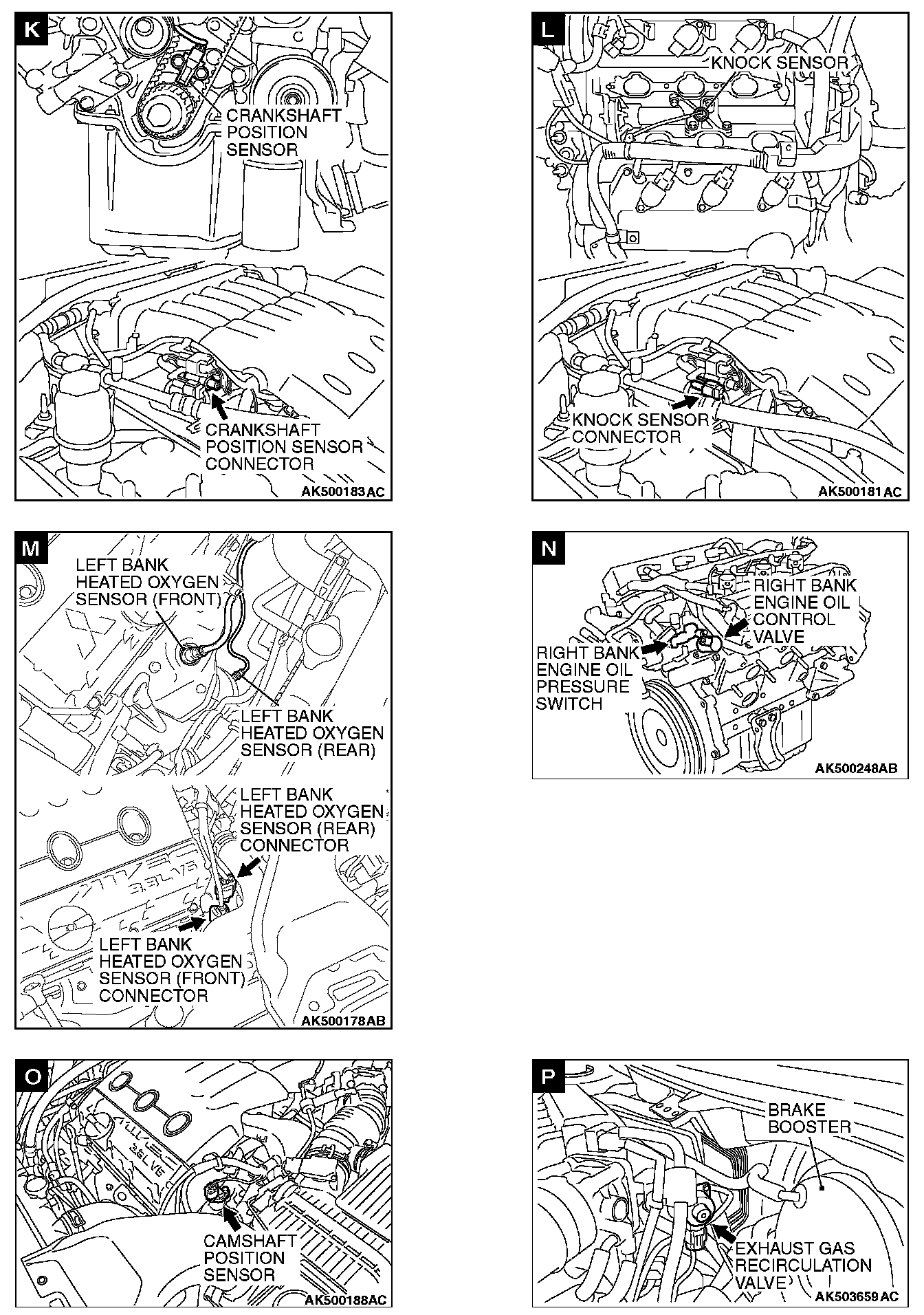

View K-P:

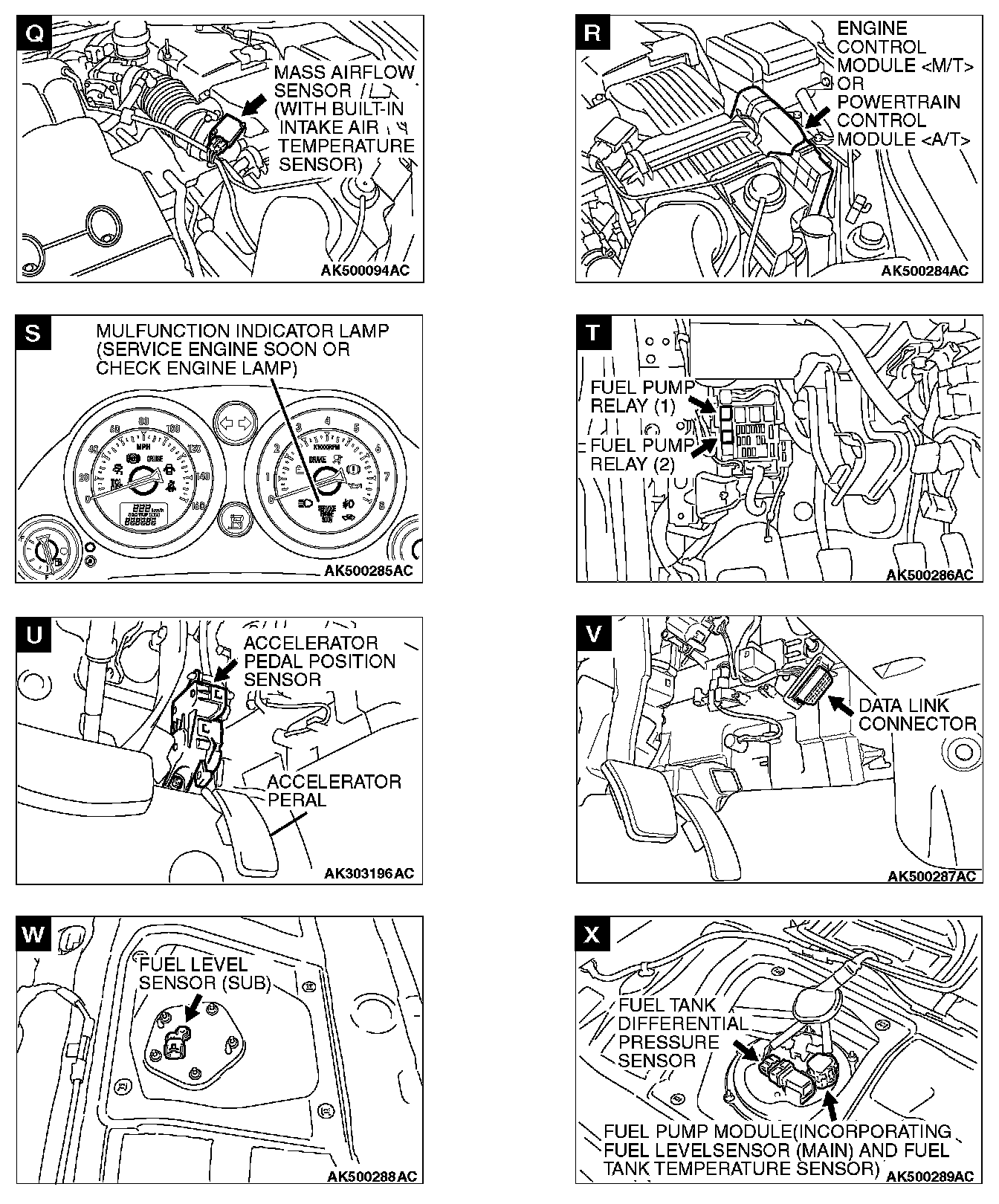

View Q-X:

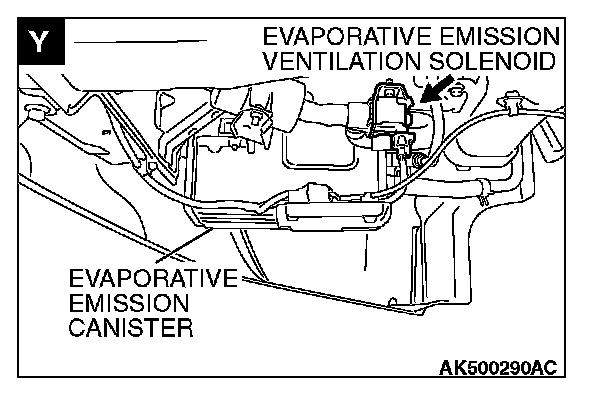

View Y:
