Component Tests and General Diagnostics

INJECTOR CHECK


1. Disconnect the intermediate connector B-32.

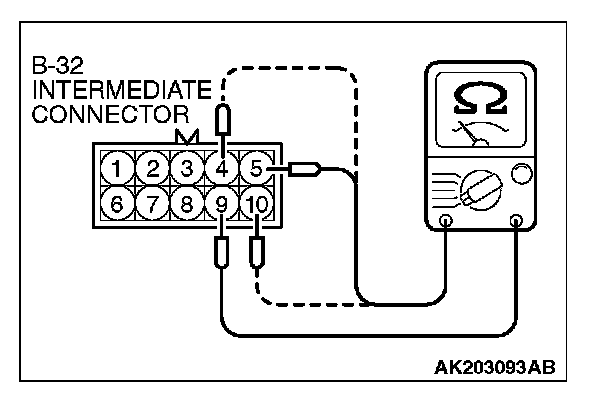

2. Measure the resistance between the injector intermediate connector terminals.
3. Connect the injector intermediate connector.






1. Disconnect the injector connector.

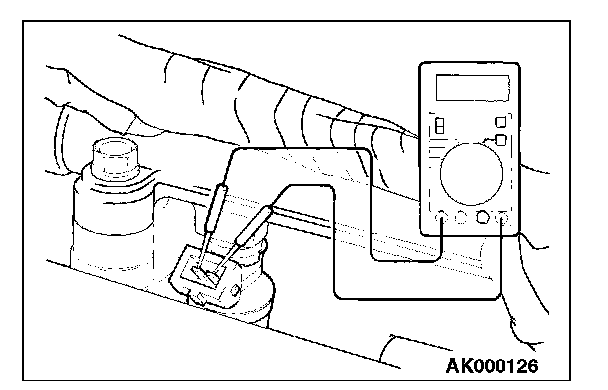

2. Measure the resistance between injector side connector terminals 1 and 2.

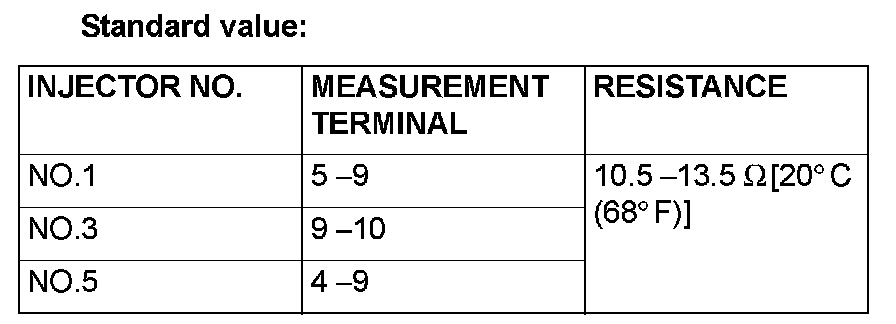

Standard value: 10.5 - 13.5 Ohms [at 20 °C (68 °F)]

3. Connect the injector connector.
