Water Pump: Service and Repair
WATER PUMPREMOVAL AND INSTALLATION [3.8L ENGINE]

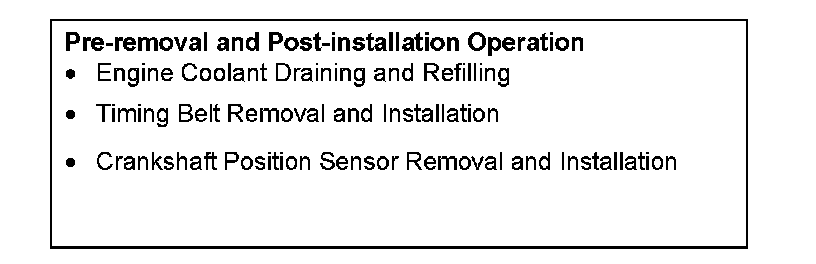

Pre-removal & Post-installation Operation:

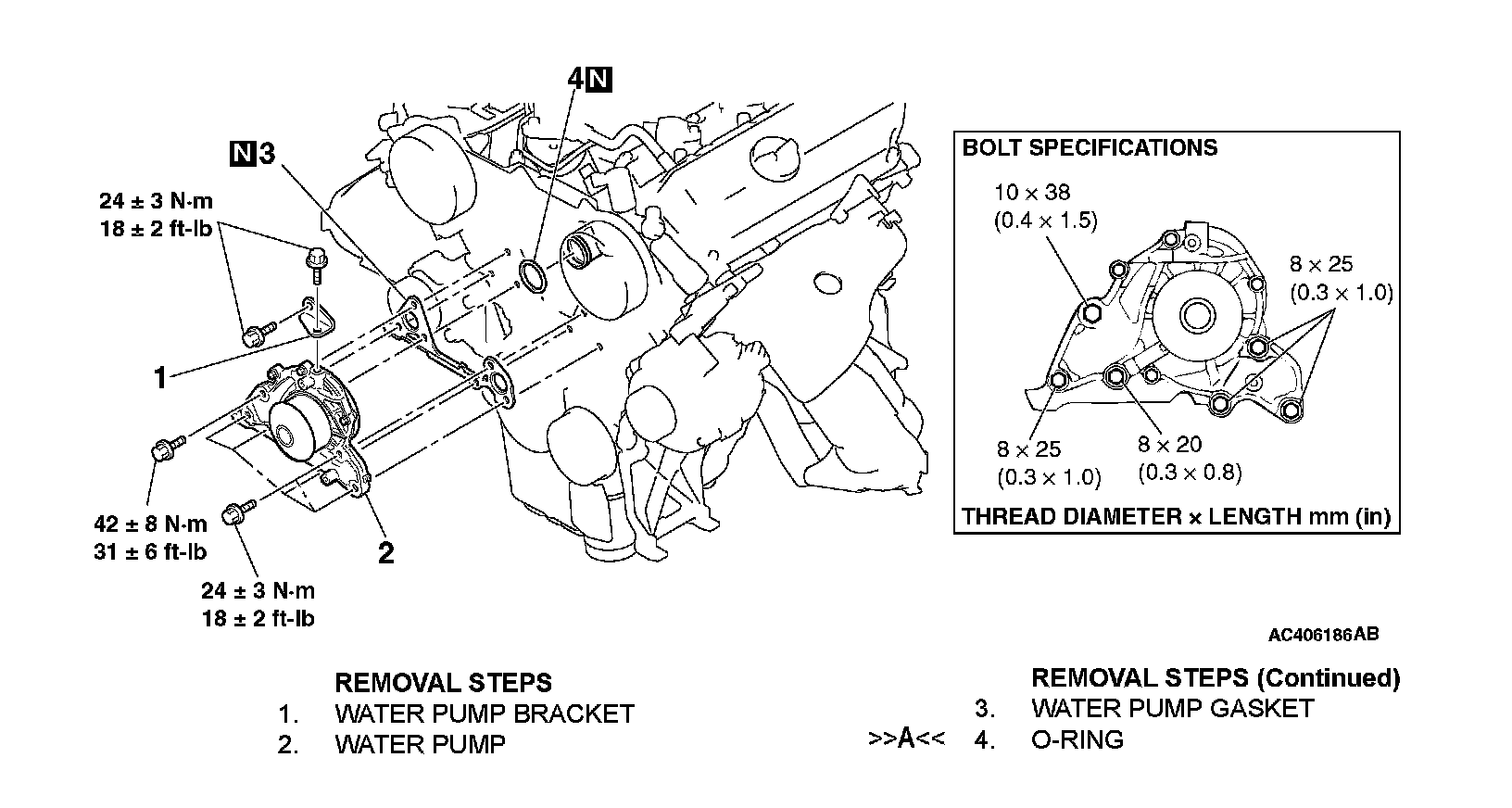

Removal Steps 1-4:
INSTALLATION SERVICE POINT

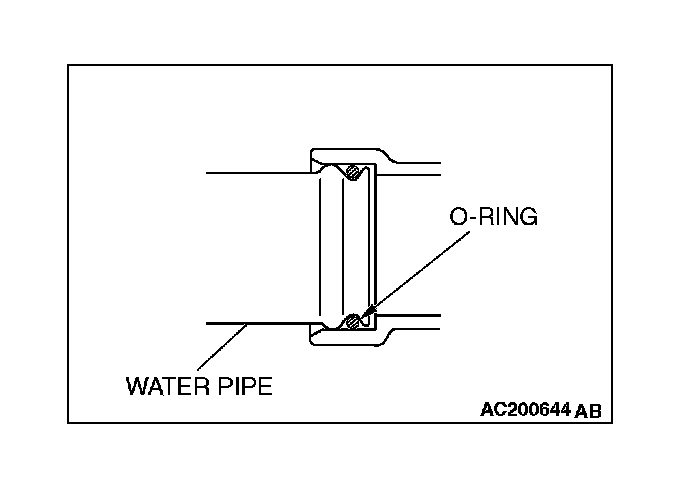

]]A[[ O-RING INSTALLATION
CAUTION: Do not let the O-ring get contaminated with grease or engine oil.
Fit the O-ring into the groove of the water pipe ends, and apply water or coolant to the circumference of the O-ring and the pipe bores to insert the pipe assembly.
