Generator and Ignition System
GENERATOR AND DRIVE BELTREMOVAL AND INSTALLATION

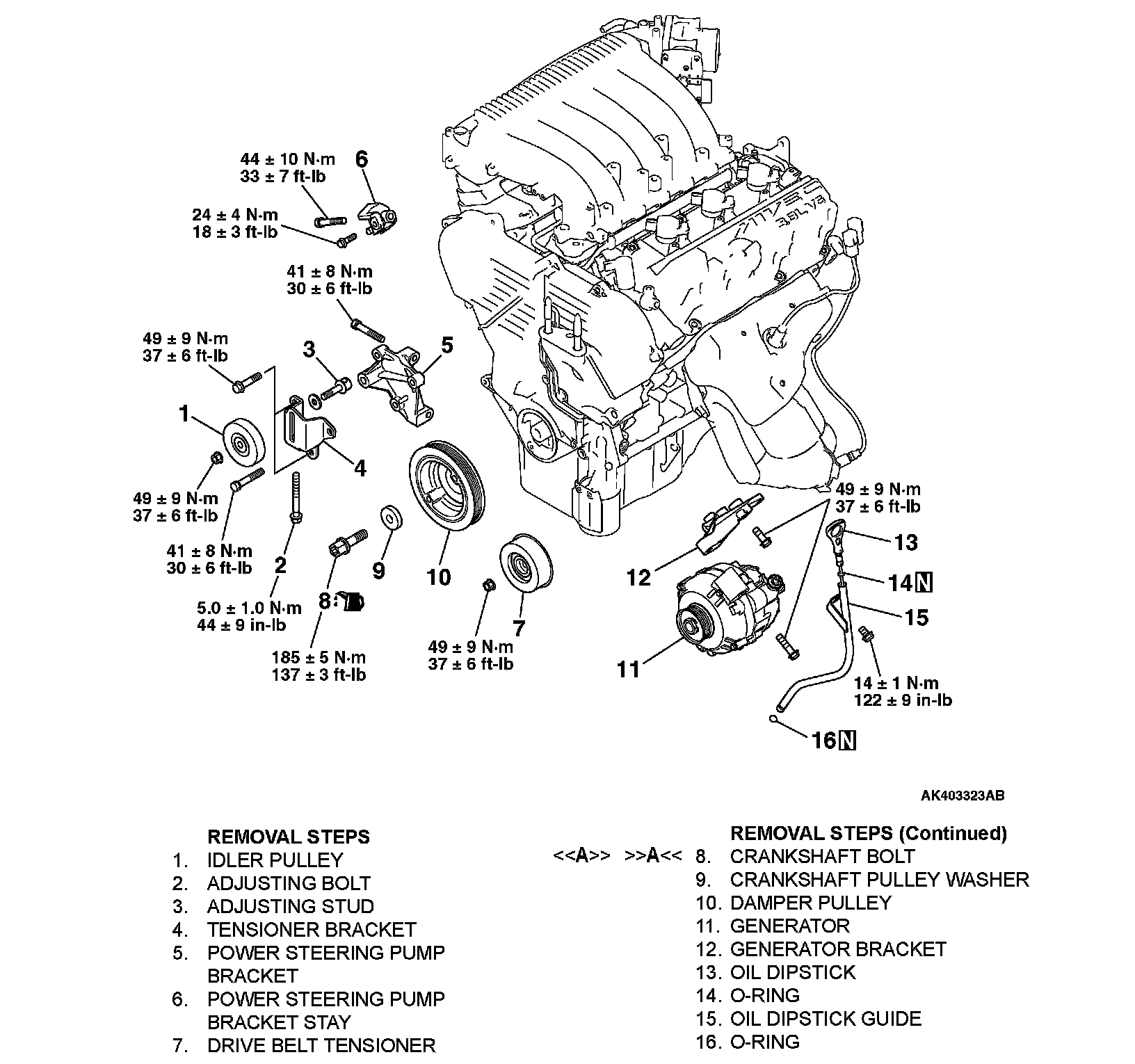

Removal Steps 1-16:
Required Special Tool:
* MD998781: Flywheel Stopper
REMOVAL SERVICE POINT
[[A]] CRANKSHAFT BOLT LOOSENING

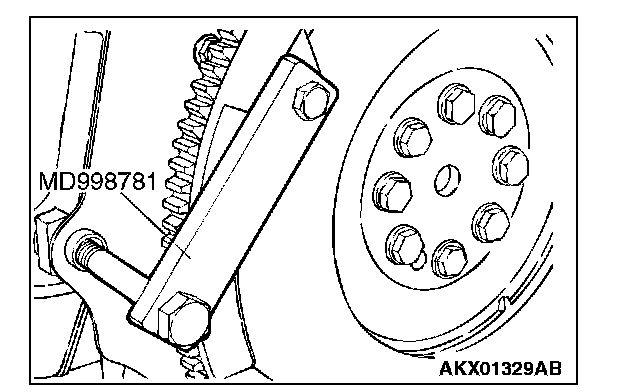

1. Using special tool MD998781, hold the drive plate.
2. Remove the crankshaft bolt.
INSTALLATION SERVICE POINT
]]A[[ CRANKSHAFT BOLT TIGHTENING
1. Using special tool MD998781, hold the drive plate.

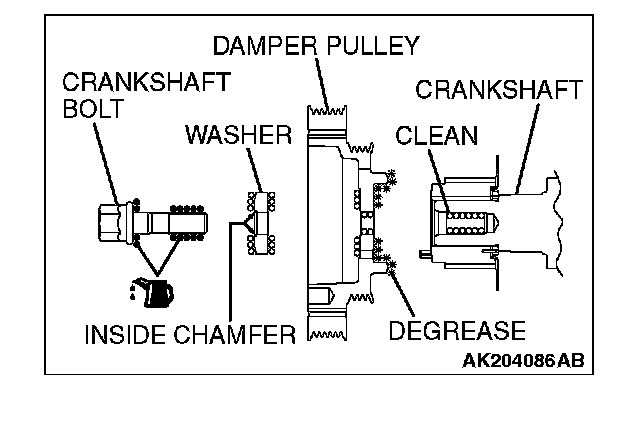

2. Clean the bolt hole in crankshaft bolt, damper pulley seating surface and the washer.
3. Degrease the cleaned seating surface of the damper pulley.
4. Install the damper pulley.
5. Apply a minimum amount of engine oil to the thread and lower flange of the crankshaft bolt.
6. Install the washer to the crankshaft bolt with its inside chamfered side toward the bolt head.
7. Tighten the crankshaft bolt to the specified torque.
Tightening torque: 185 ±5 Nm (137 ±3 ft-lb)
