Engine Oil Control Valve

ENGINE OIL CONTROL VALVE

REMOVAL AND INSTALLATION

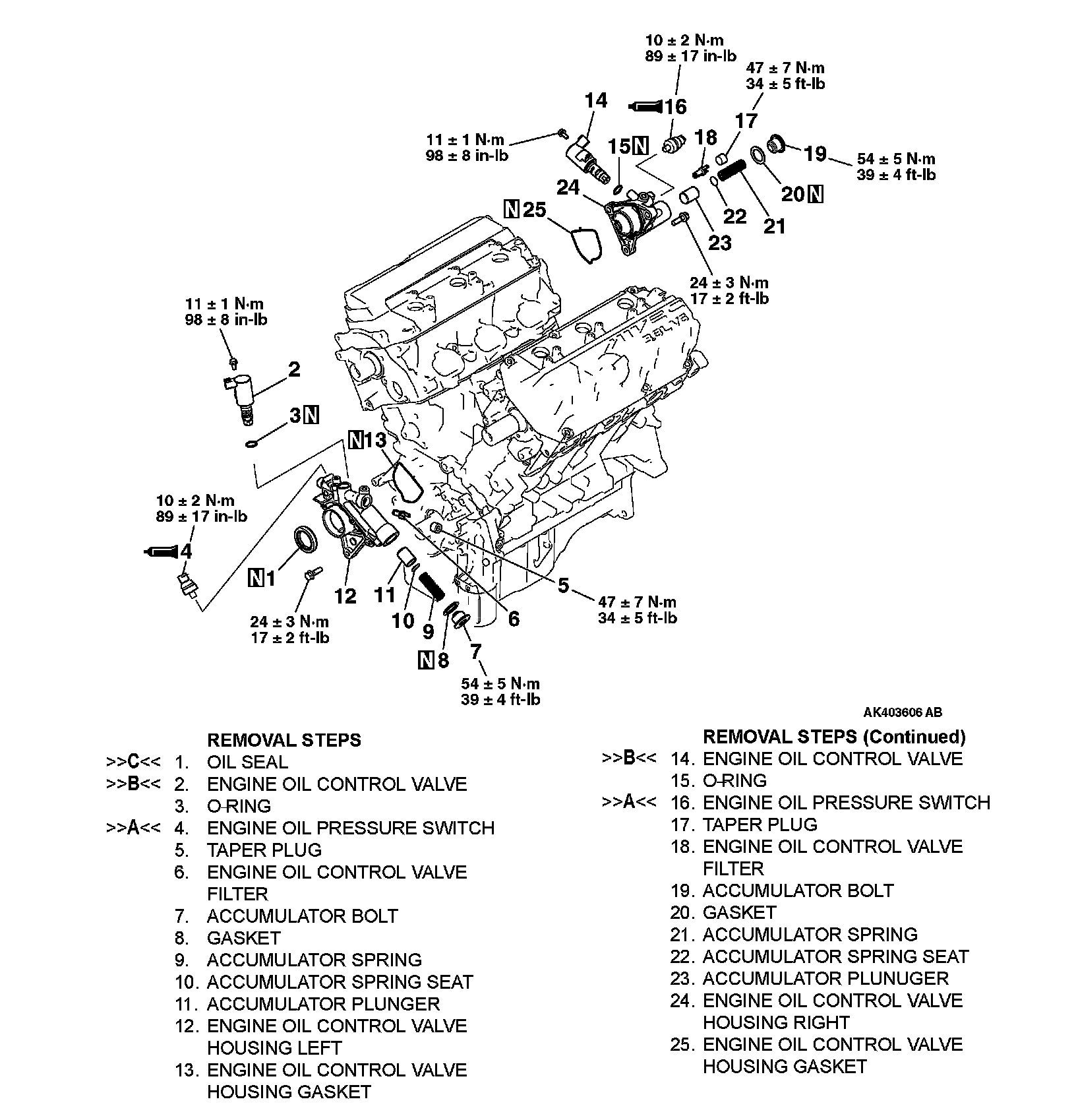

Removal Steps 1-25:

Required Special Tool:
* MD998713: Camshaft Oil Seal Installer

INSTALLATION SERVICE POINTS

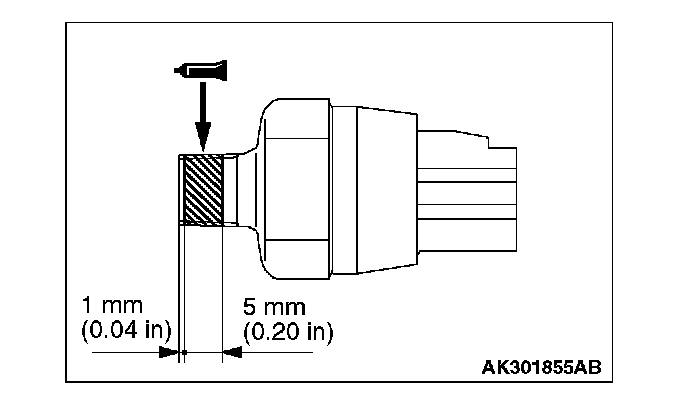

]]A[[ ENGINE OIL PRESSURE SWITCH INSTALLATION





Apply sealant (3M(TM) AAD Part number 8672 or equivalent) to the threads of the engine oil pressure switch.

]]B[[ ENGINE OIL CONTROL VALVE INSTALLATION





CAUTION:
^ Never re-use the O-ring.
^ Before installing O-ring, wind sealing tape around the oil passages cut-out area of engine oil control valve, to prevent damage. If the O-ring is damaged, it can cause an oil leak.

1. Apply a small amount of engine oil to the O-ring and then install it to the engine oil control valve.
2. Install the engine oil control valve to the cylinder head.
3. Tighten the engine oil control valve.
Tightening torque: 11 ±1 Nm (98 ±8 in-lb)

]]C[[ OIL SEAL INSTALLATION





1. Apply engine oil to the lip area of the oil seal and the front end outside diameter of camshaft.
2. Using special tool MD998713, install the camshaft oil seal.
