Cylinder Head Gasket: Service and Repair
CYLINDER HEAD GASKETREMOVAL AND INSTALLATION

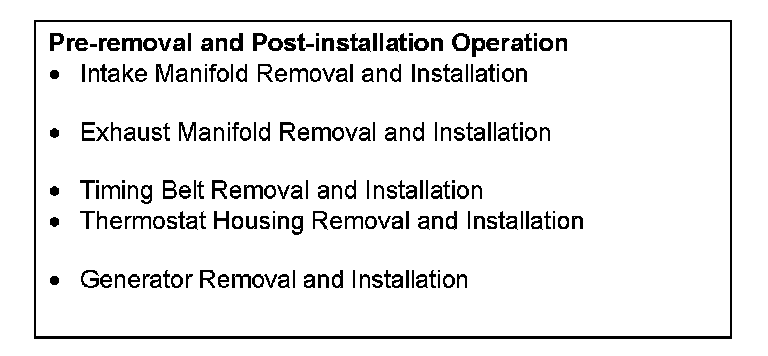

Pre-removal & Post-installation:

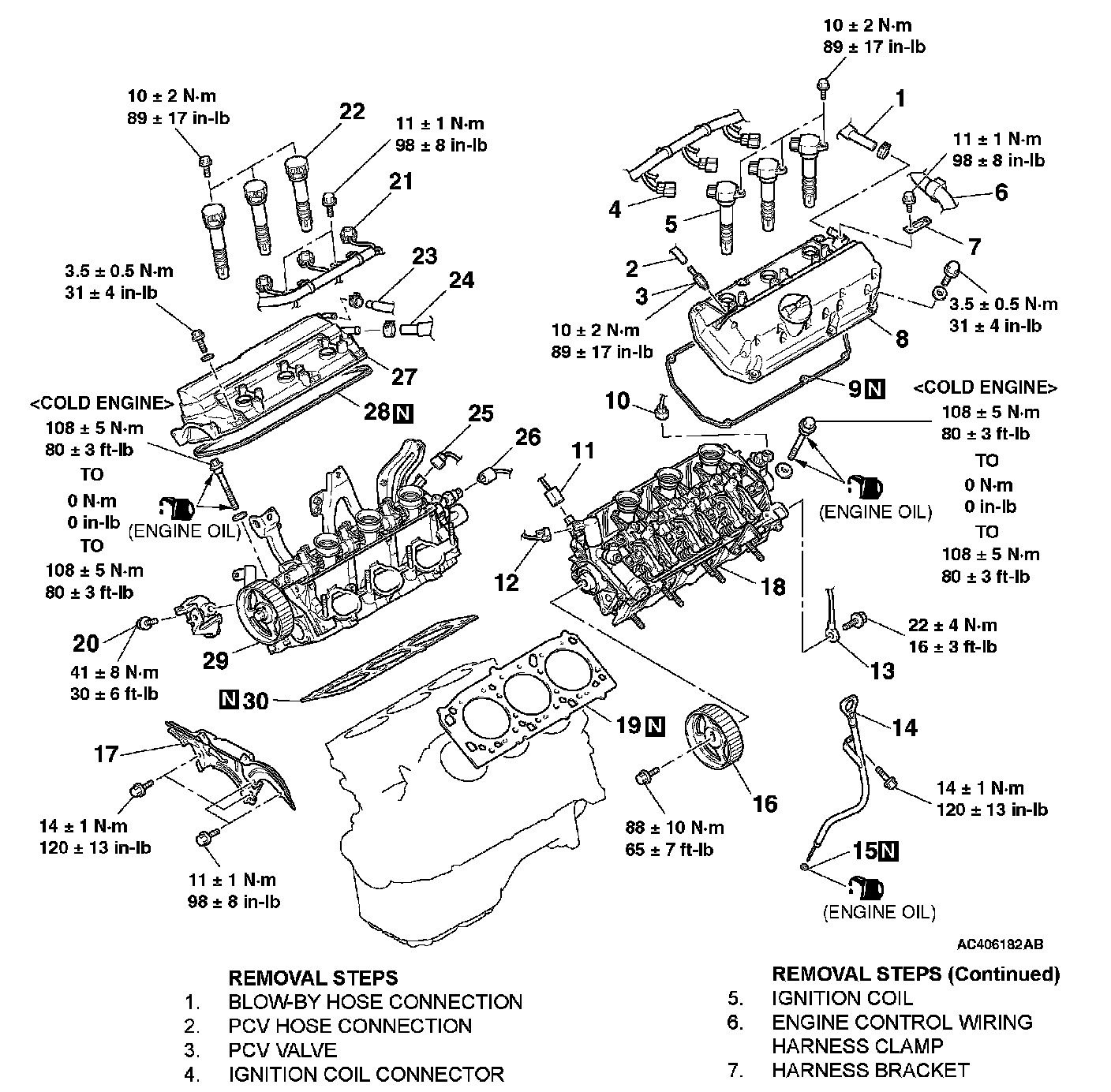

Removal Steps 1-7:

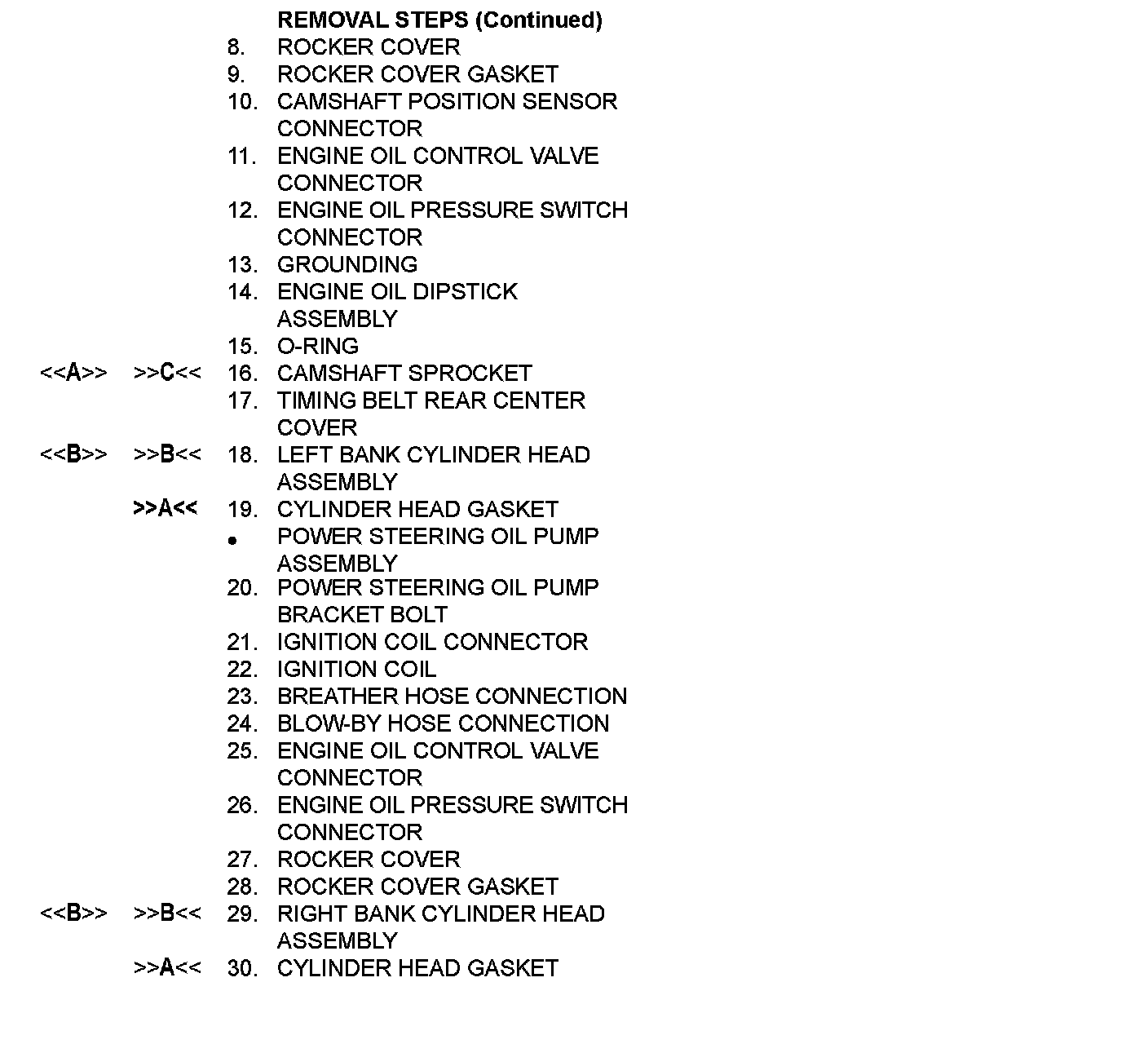

Removal Steps 8-30:
Required Special Tools:
* MB990767: Front Hub and Flange End Yoke Holder
* MD998051: Cylinder Head Bolt Wrench
* MD998715: Crankshaft Pulley Holder Pin
REMOVAL SERVICE POINTS
[[A]] CAMSHAFT SPROCKET REMOVAL

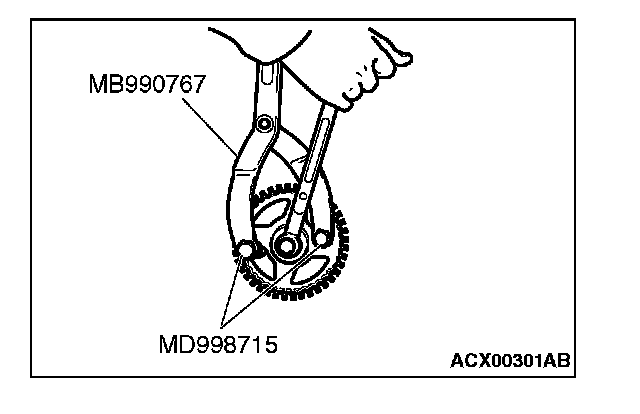

Use special tools MD998715 and MB990767 to remove the camshaft sprocket.
[[B]] CYLINDER HEAD ASSEMBLY REMOVAL

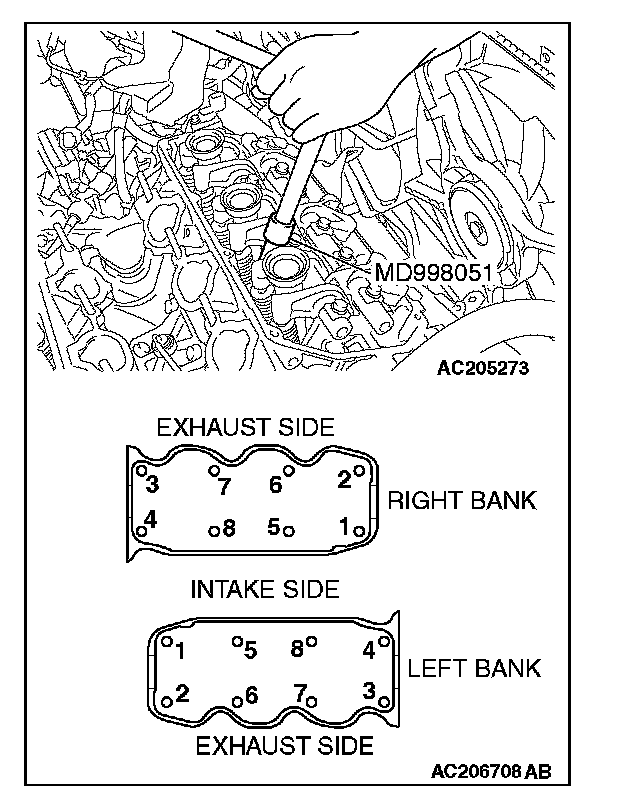

Use special tool MD998051 to loosen each bolt in two or three steps in the order shown in the illustration.
INSTALLATION SERVICE POINTS
]]A[[ CYLINDER HEAD GASKET INSTALLATION
1. Degrease the cylinder head and cylinder block gasket mounting surfaces.

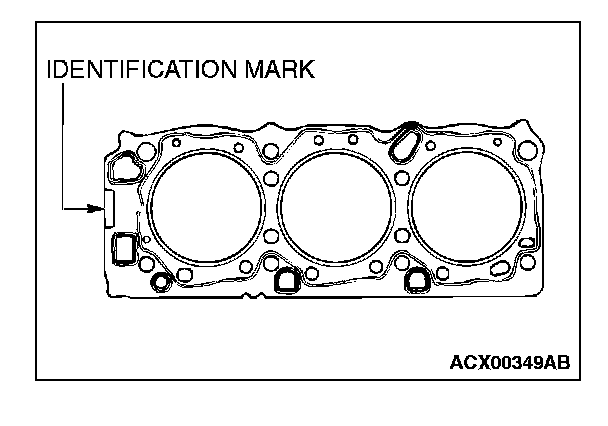

2. Make sure that the gasket has the proper identification mark for the engine.
3. Lay the cylinder head gasket on the cylinder block with the identification mark at the front top.
]]B[[ CYLINDER HEAD ASSEMBLY INSTALLATION
CAUTION: Be careful that no foreign material gets into the cylinder, coolant passages or oil passages. Engine damage may result.
1. Use a scraper to clean the gasket surface of the cylinder head assembly.

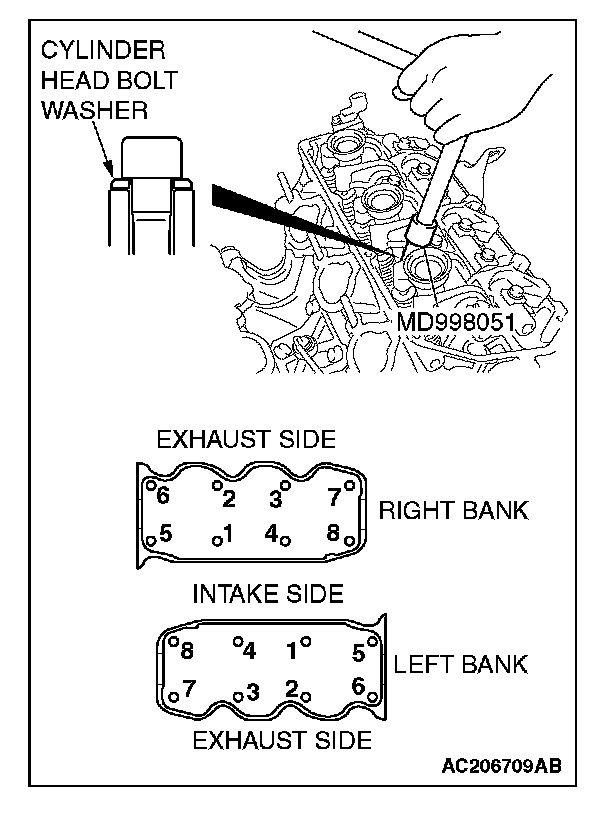

CAUTION: Install the head bolt washers with the beveled side facing upwards as shown in the illustration.
2. Using special tool MD998051 and a torque wrench, tighten the bolts to the specified torque in the order shown in the illustration. (in two or three cycles)
Tightening torque: 108 ±5 Nm (80 ±3 ft-lb) to 0 m (0 in-lb) to 108 ±5 Nm (80 ±3 ft-lb)
]]C[[ CAMSHAFT SPROCKET INSTALLATION

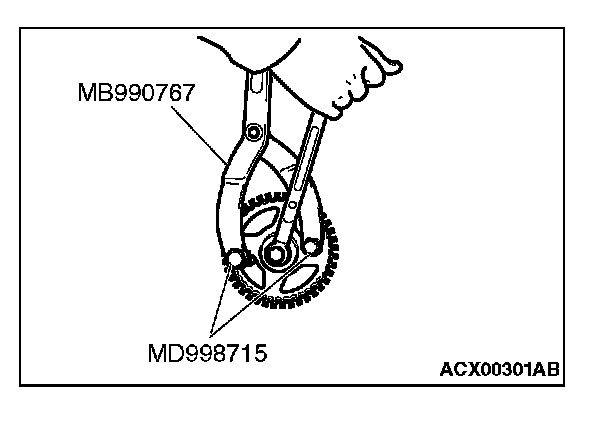

1. Use special tools MD998715 and MB990767 in the same way as during removal to install the camshaft sprocket.
2. Tighten the camshaft sprocket mounting bolt to the specified torque.
Tightening torque: 88 ±10 m (65 ±7 ft-lb)
