Intake Manifold Plenum

INTAKE MANIFOLD PLENUM

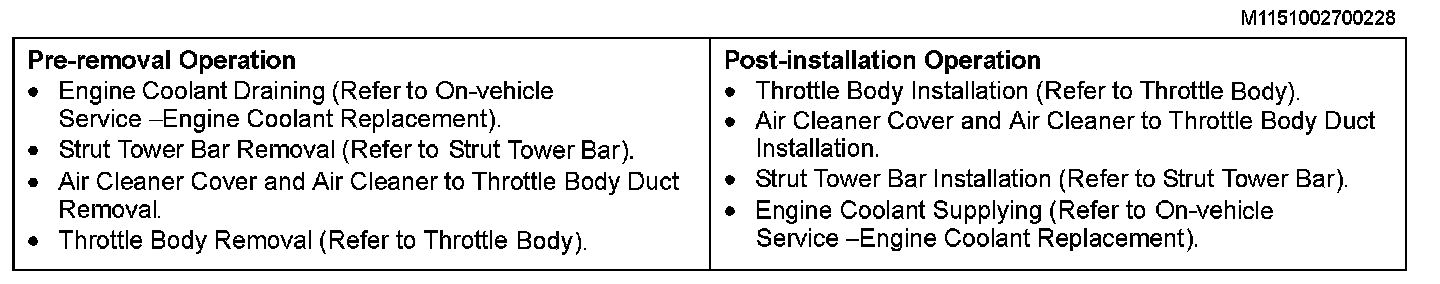

Pre-removal Operation And Post-installation Operation:

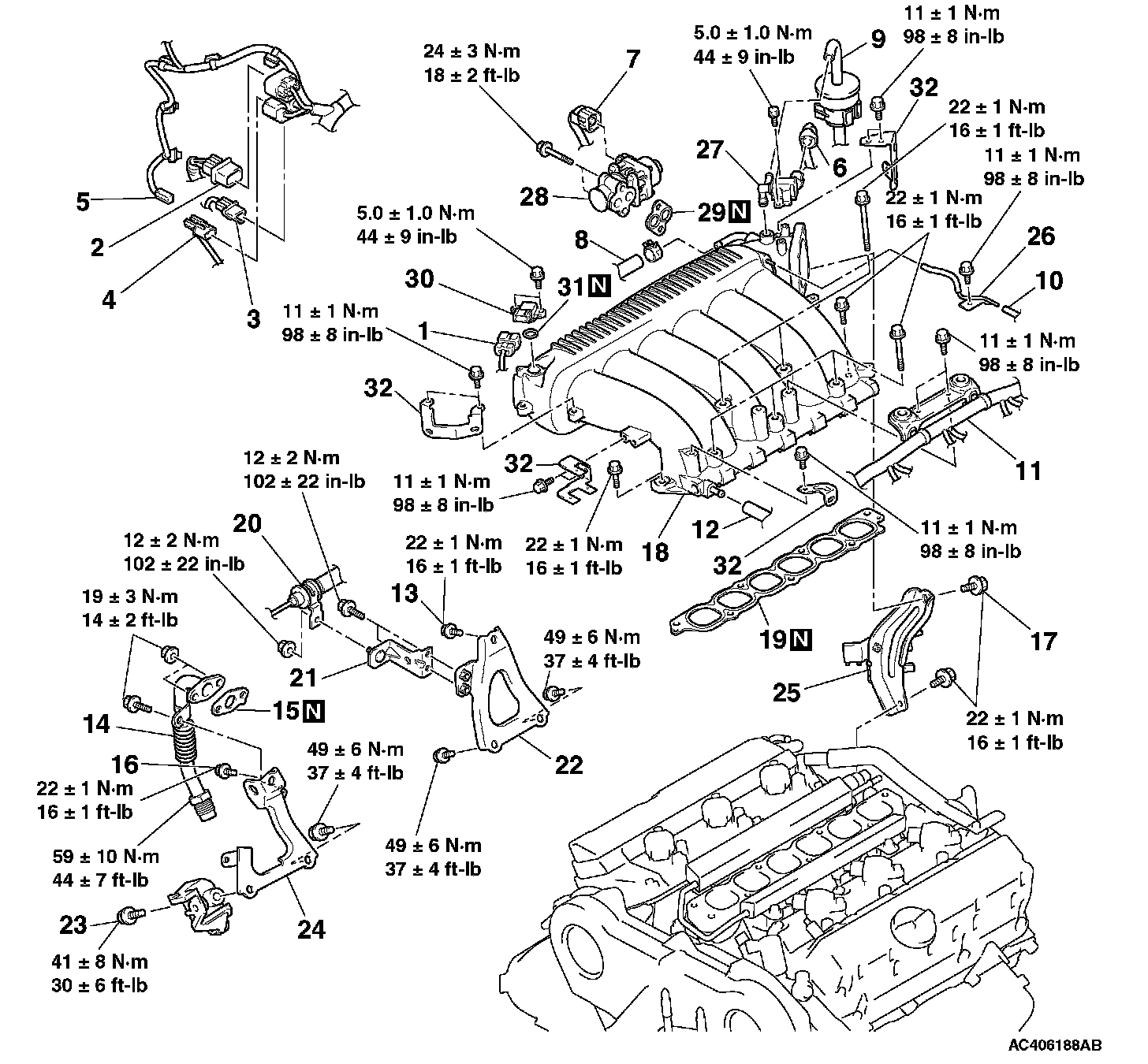

Removal Steps 1 - 32 Part 1:

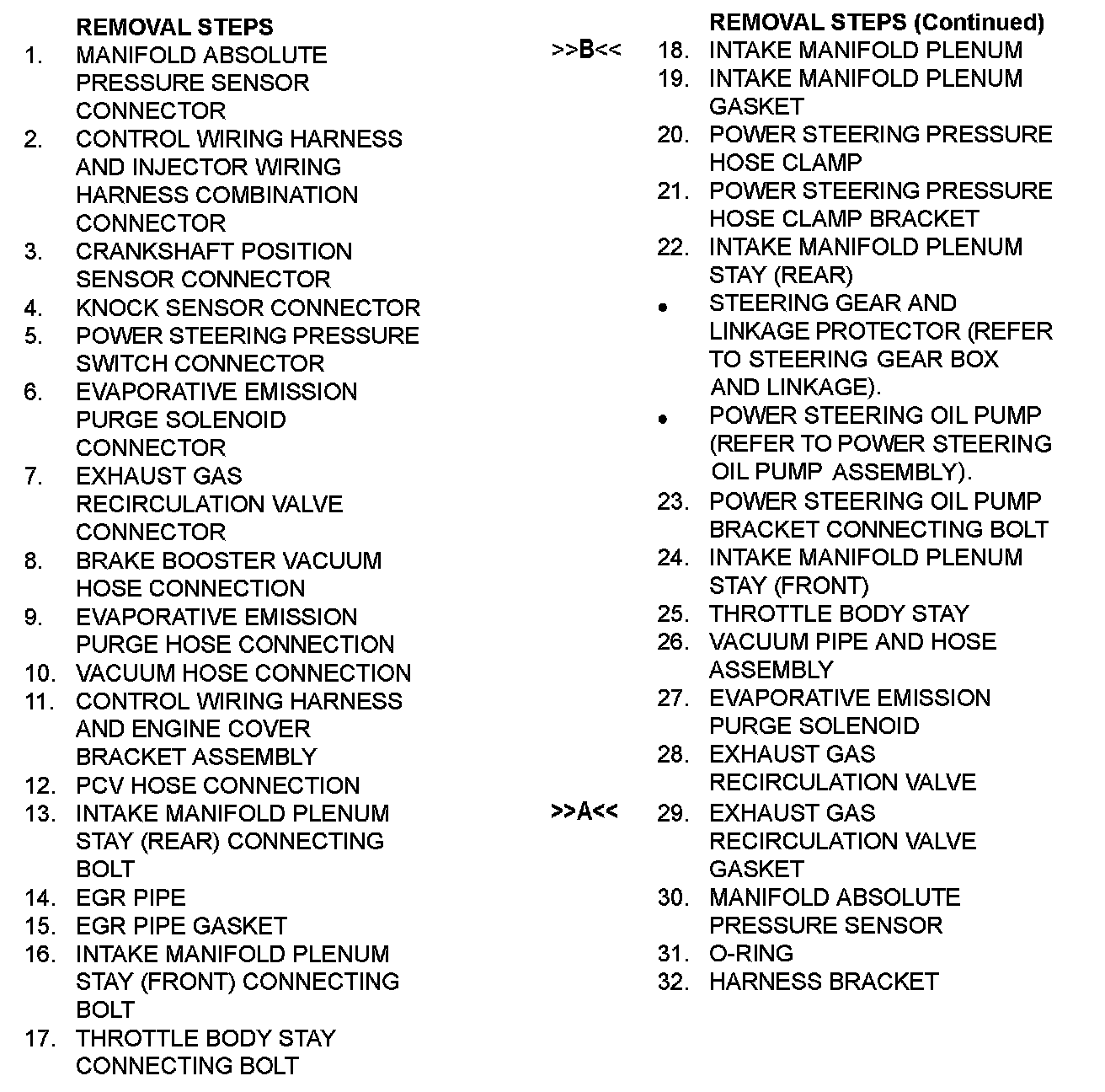

Removal Steps 1 - 32 Part 2:

Required Special Tool:
- MD998412: Guide

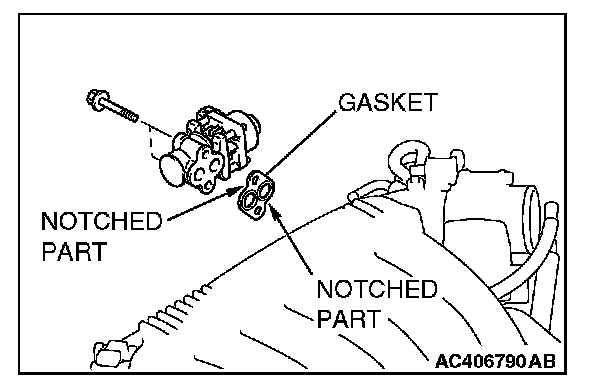

]]A[[ EXHAUST GAS RECIRCULATION VALVE GASKET INSTALLATION




Install the exhaust gas recirculation valve gasket as shown in the illustration.

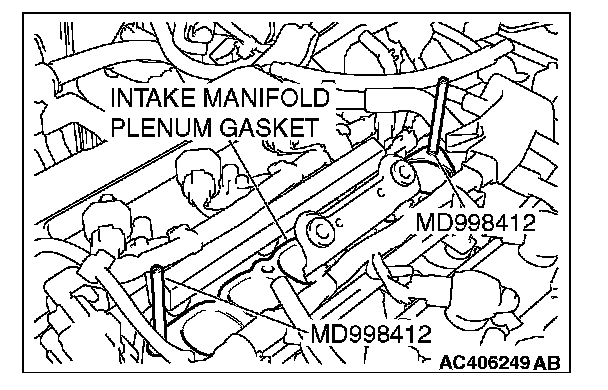

]]B[[ INTAKE MANIFOLD PLENUM INSTALLATION




Use special tool MD998412 to install the intake manifold plenum.
