Engine - Revised Rocker Arm/Shaft Service

No: TSB-07-11-002
DATE: March, 2007
MODEL: See Below

TSB Revision: TSB-07-11-002

PURPOSE
The identification notch on the intake rocker arm shaft for the 6B31 & 6G75 MIVEC engines has been eliminated. This bulletin contains modified service procedures related to this change.

AFFECTED VEHICLES
2006-07 Eclipse V6
2007 Eclipse Spyder V6
2007 Galant V6
2007 Outlander

AFFECTED SERVICE MANUAL
2006 Eclipse Service Manual

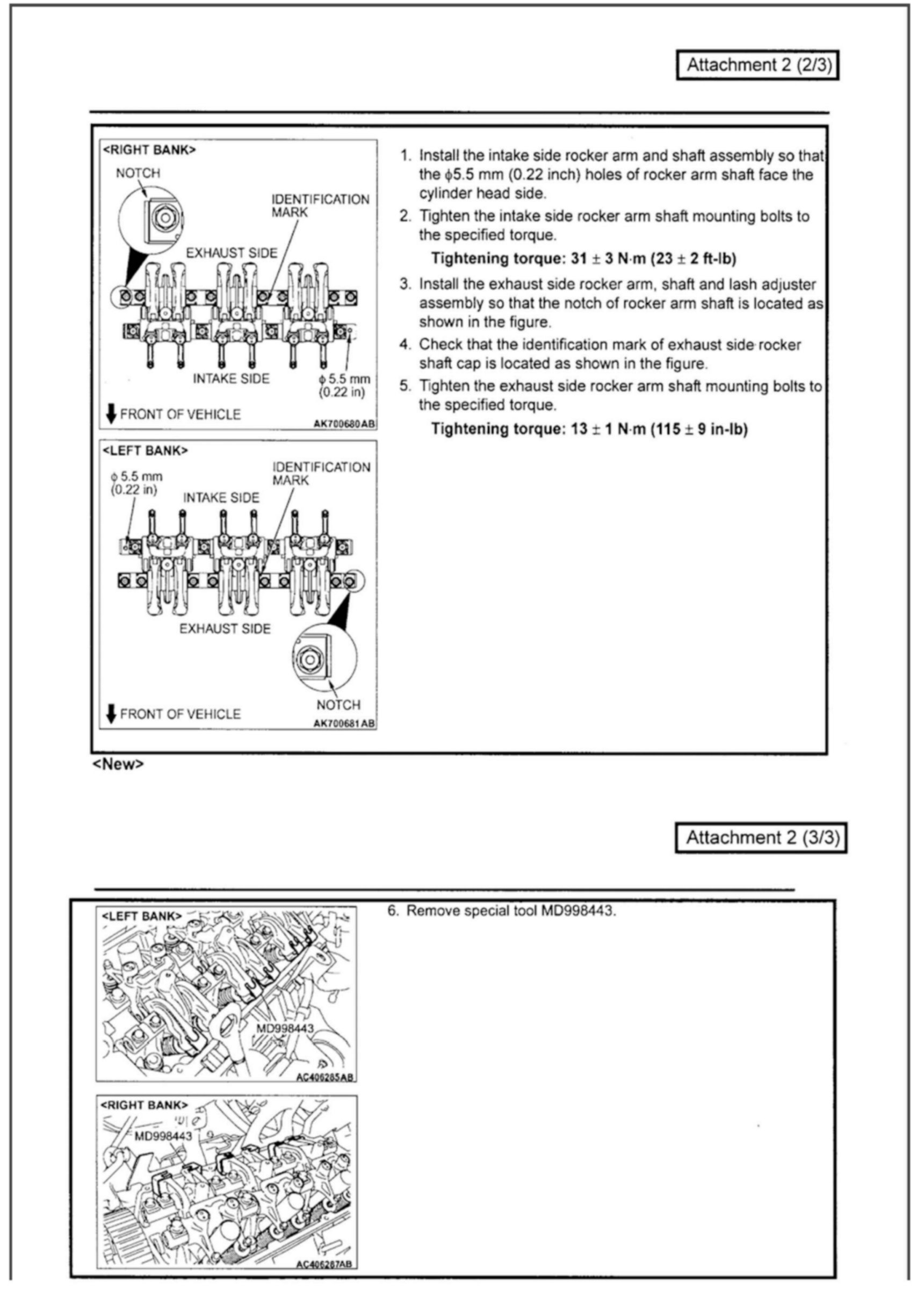

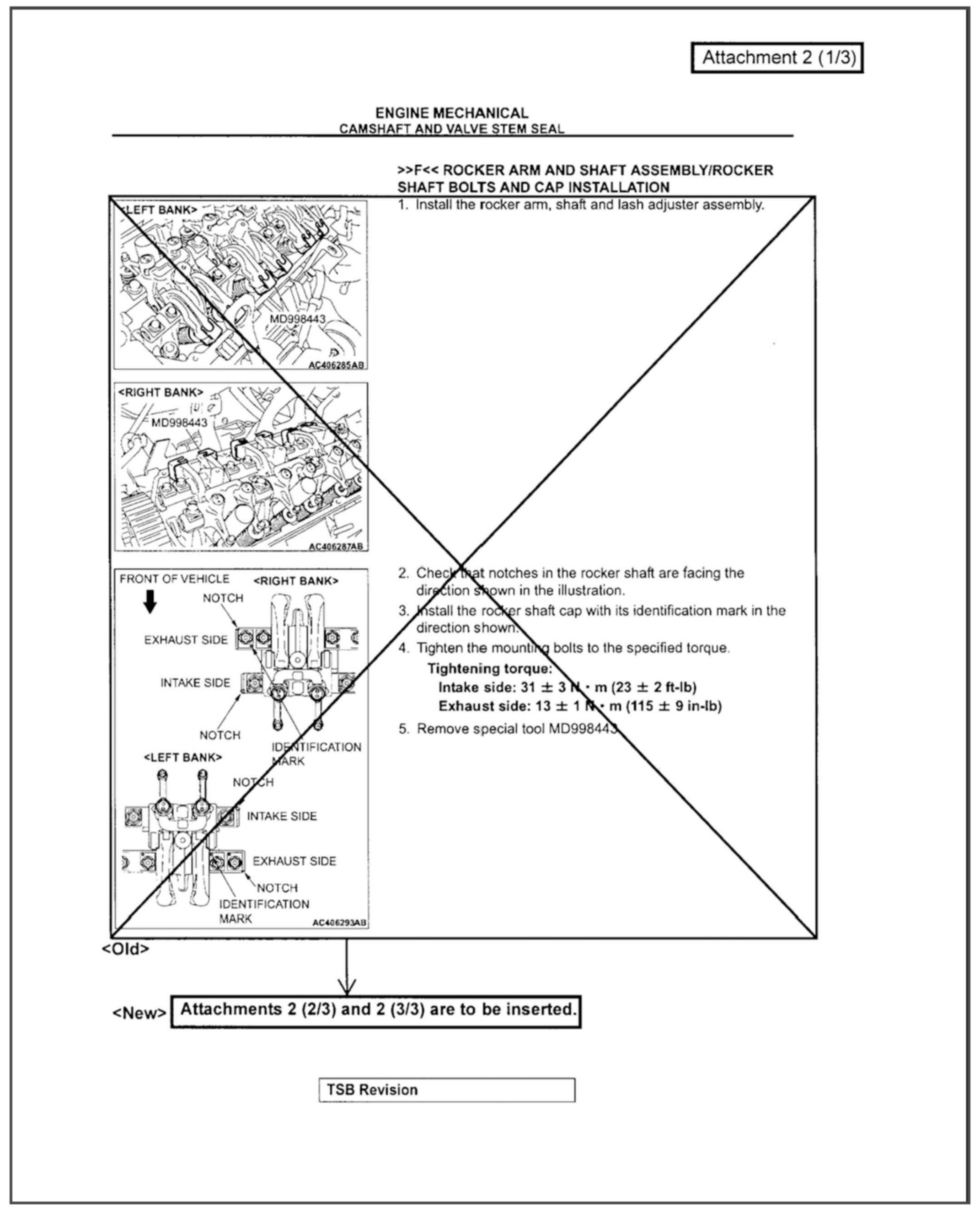

Pages 11C-41 & 42, See Attachment 2

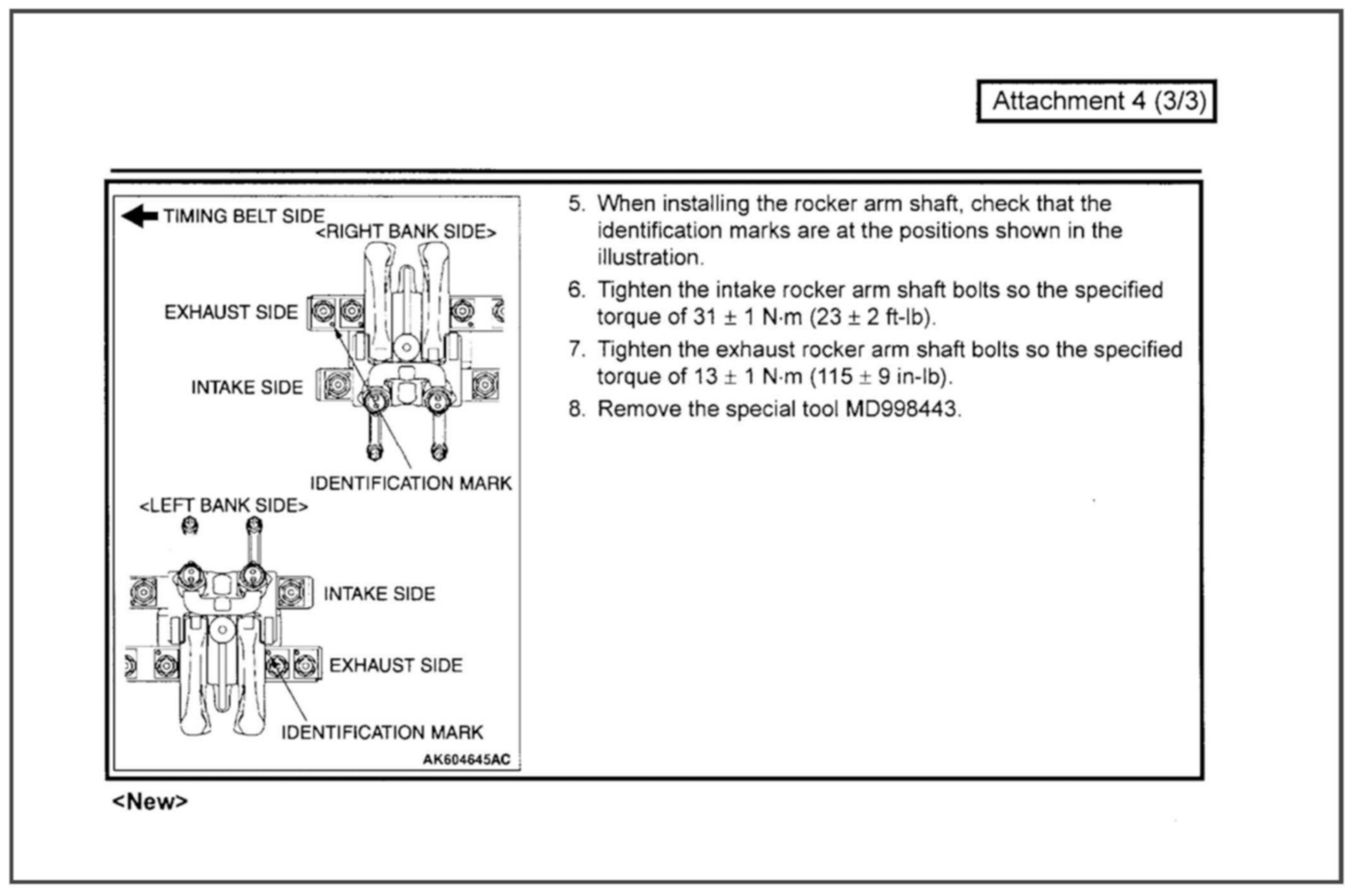

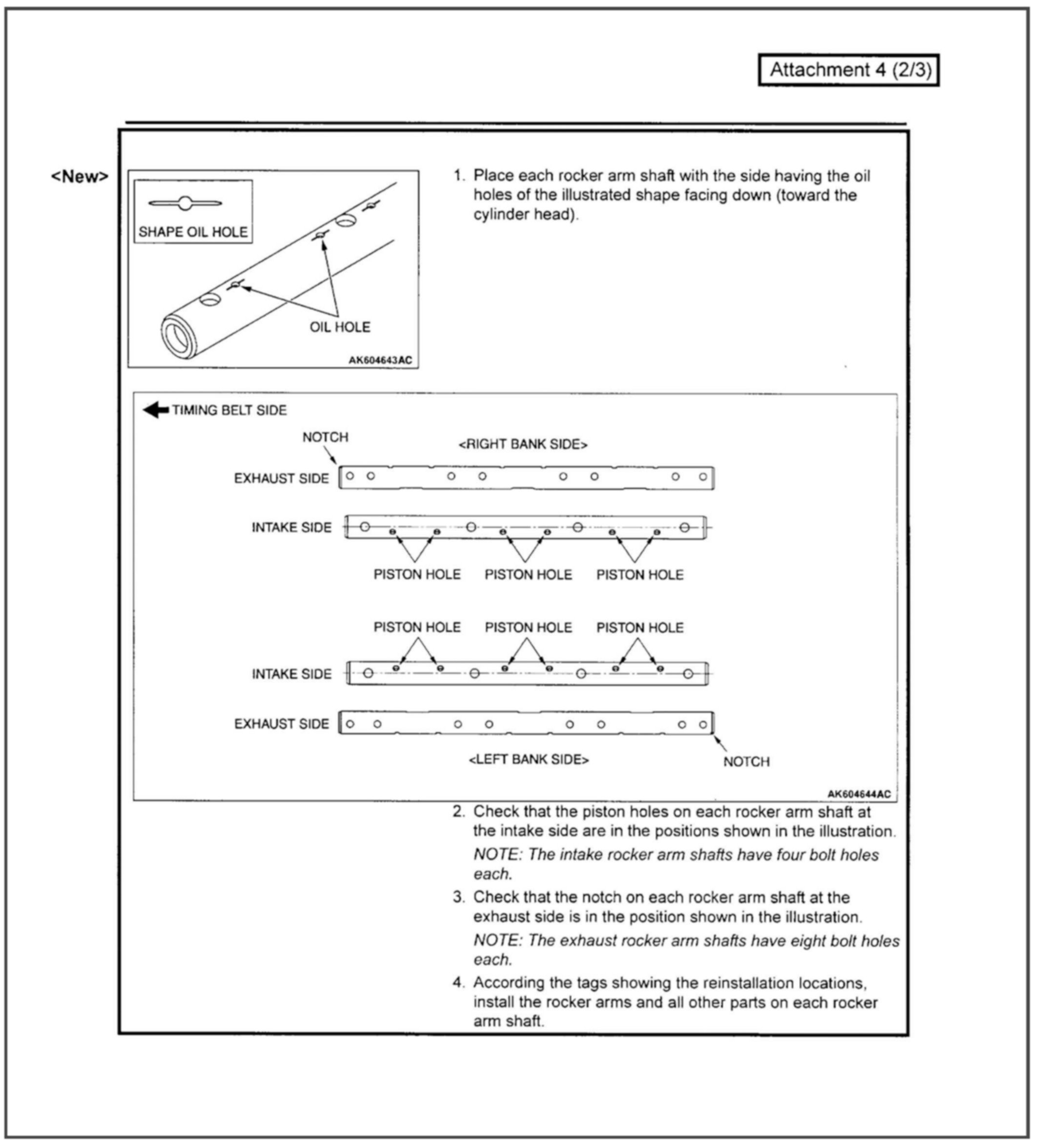

Page 11D-30, See Attachment 4
2007 Eclipse/Eclipse Spyder Service Manual
Pages 11C-41 & 42, See Attachment 2
Page 11D-32, See Attachment 4
2007 Galant Service Manual
Pages 11E-43 & 44, See Attachment 2
Page 11F-31, See Attachment 4
2007 Outlander Service Manual

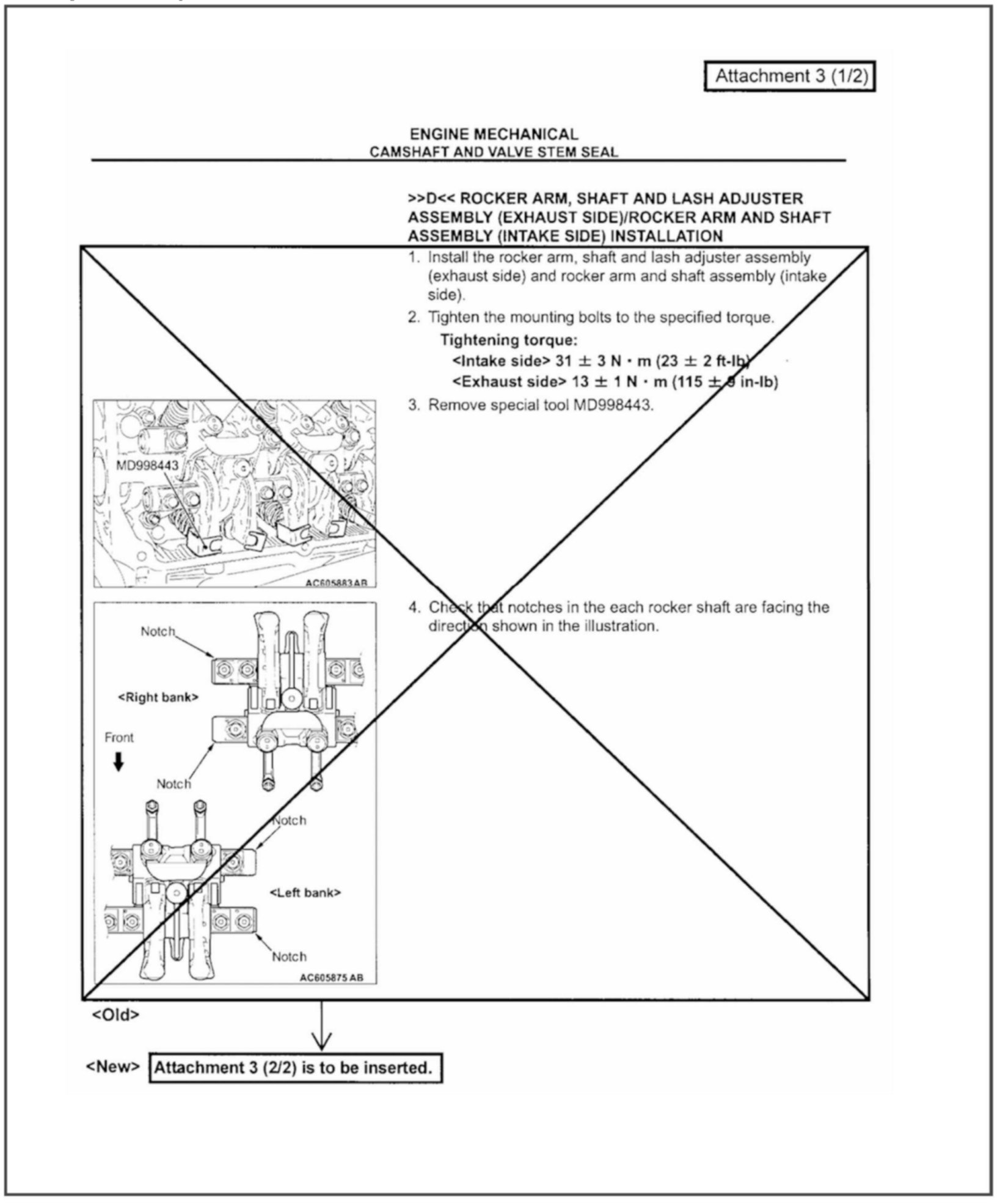

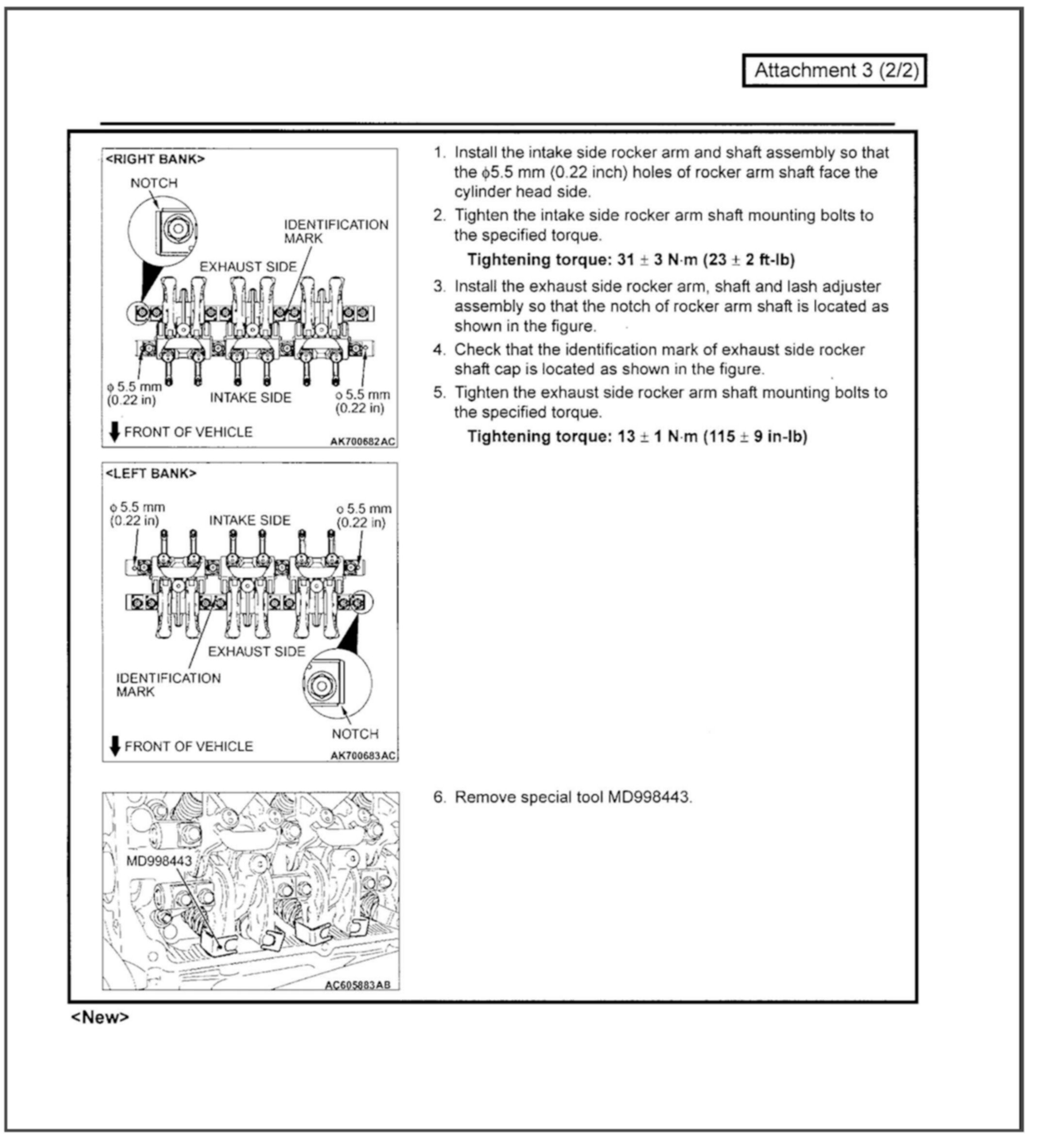

Page 11A-34, See Attachment 3

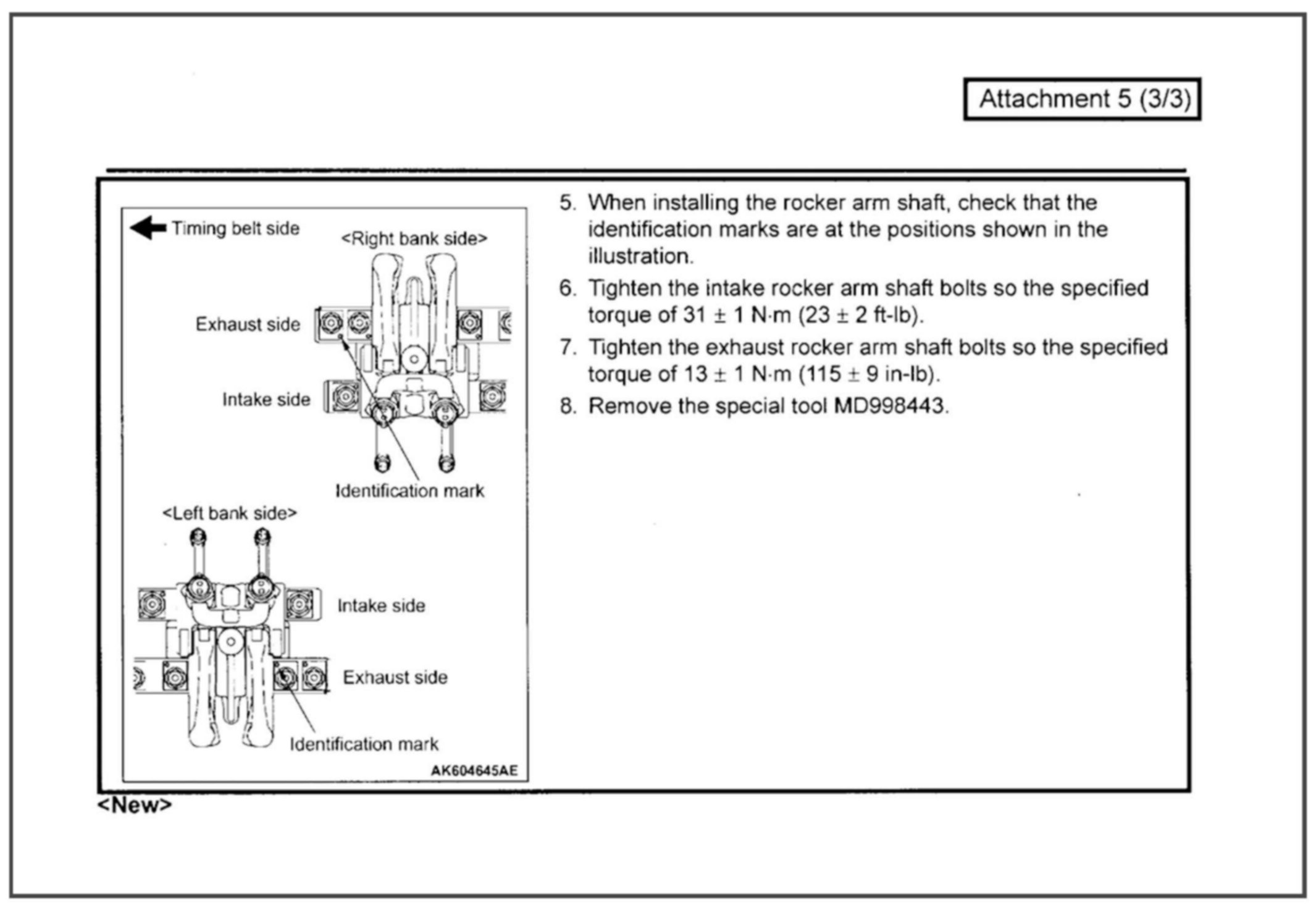

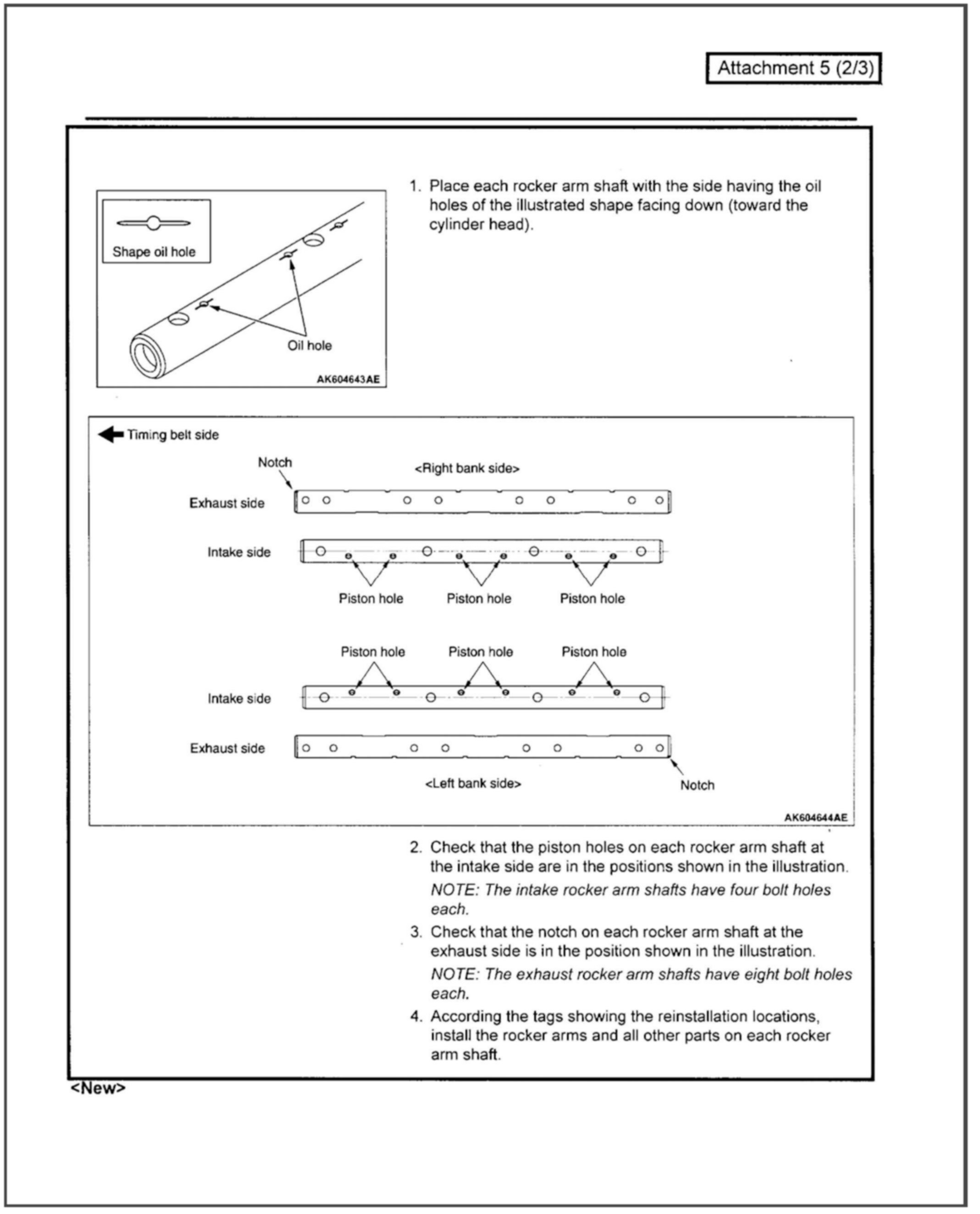

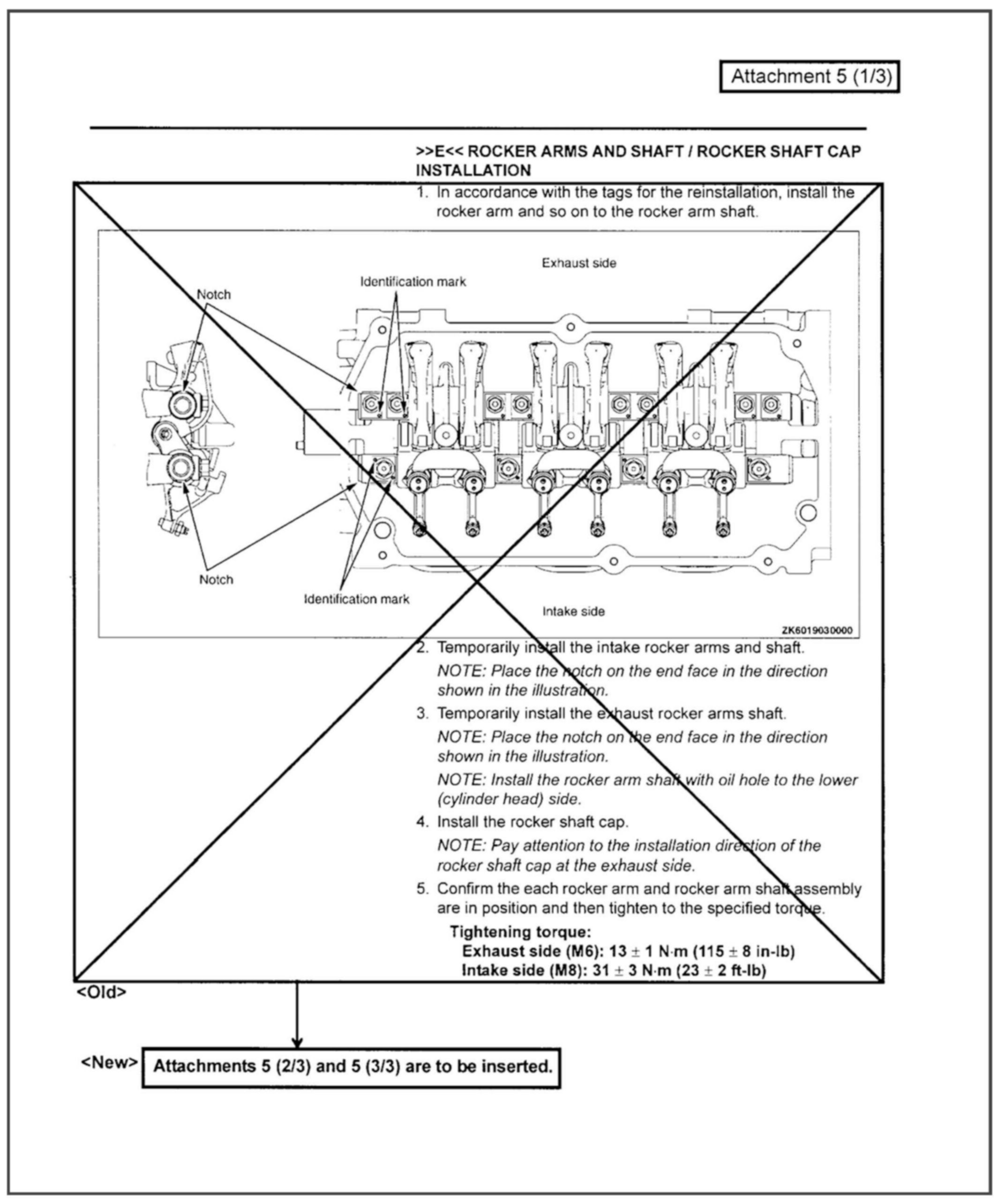

Pages 11B-40 & 41, See Attachment 5

SERVICE MANUAL REVISION
































2006 Eclipse, 2007 Eclipse/Eclipse Spyder, 2007 Galant Service Manuals
