Rear Wiper and Washer

INSPECTION

REAR WIPER MOTOR CHECK






Inspect the rear wiper motor by removing the harness connector with the motor attached to the vehicle.

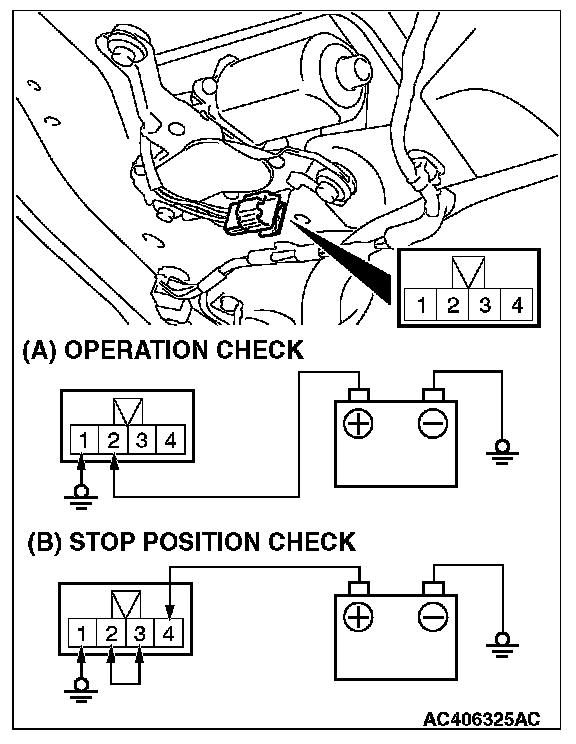

WIPER MOTOR OPERATION
Connect the battery to the rear wiper motor as shown in figure (A) and check the motor operation.

WIPER MOTOR AT STOP POSITION OPERATION
1. Connect the battery to the rear wiper motor as shown in figure (A).
2. Disconnect the battery cable from the rear wiper motor while it is turning and then check to see that the motor stops.
3. Re-connect the battery as shown in figure (B).
4. Check to see that the rear wiper motor runs and then stops at the automatic stop position.

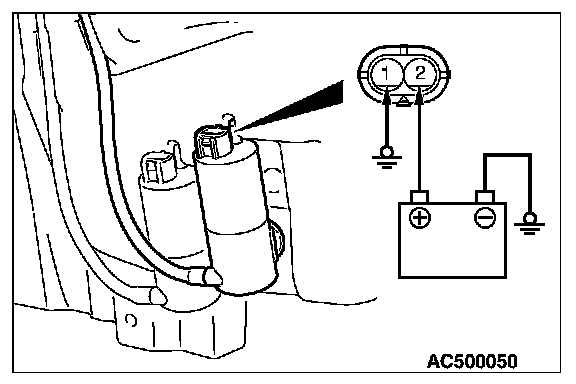

REAR WASHER MOTOR CHECK
1. Remove the rear washer tank assembly with the washer hose attached. Then fill the washer tank with water.






2. Check to see that the water is vigorously sprayed when connecting the positive battery terminal to terminal number 2 and terminal number 1 to ground.

REAR WASHER FLUID EJECTION CHECK

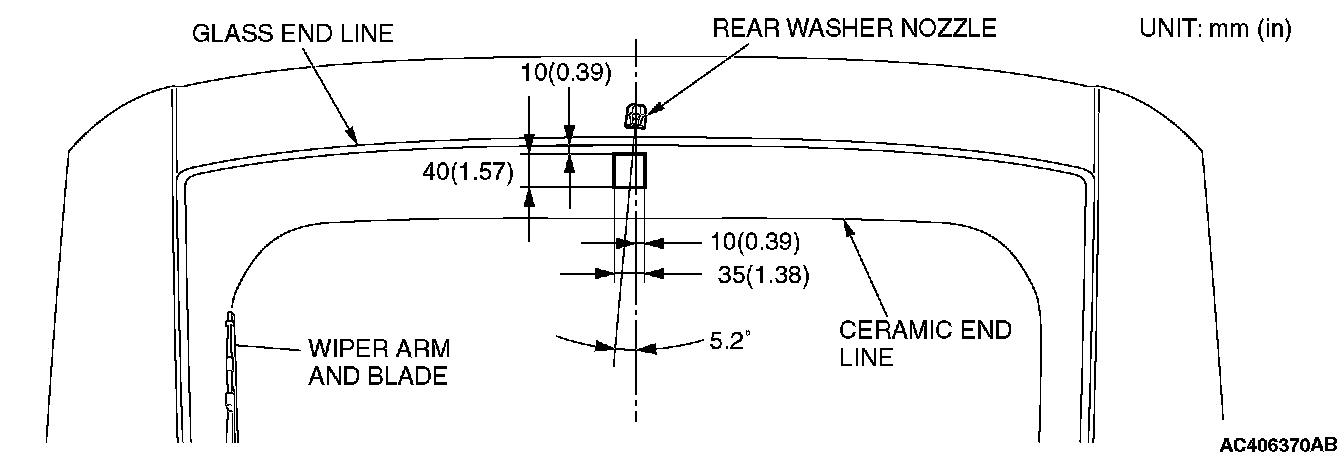

Move the nozzle to adjust the position so that washer fluid is sprayed in the area shown in the illustration.

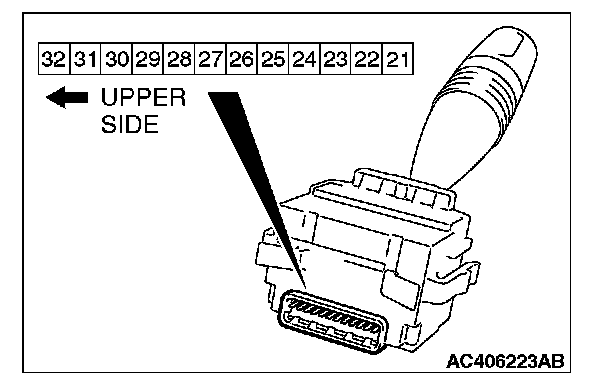

REAR WIPER AND WASHER SWITCH CHECK

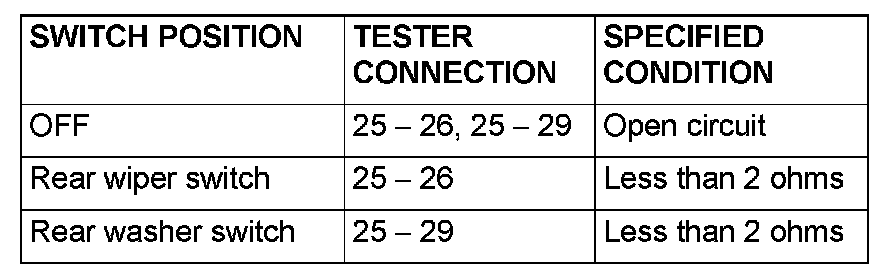

Check continuity between the switch terminals.
