Transmission Mode Switch
>>
Testing and Inspection
Transmission Mode Switch: Testing and Inspection

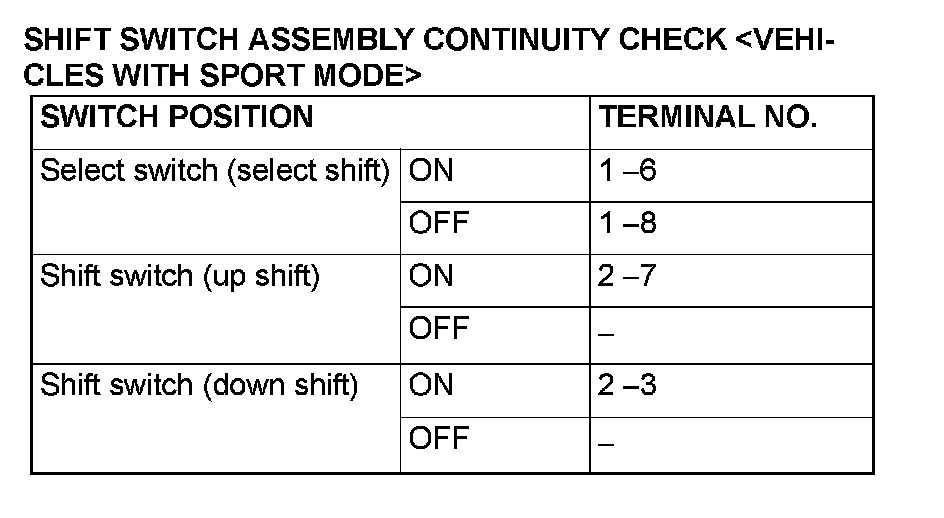

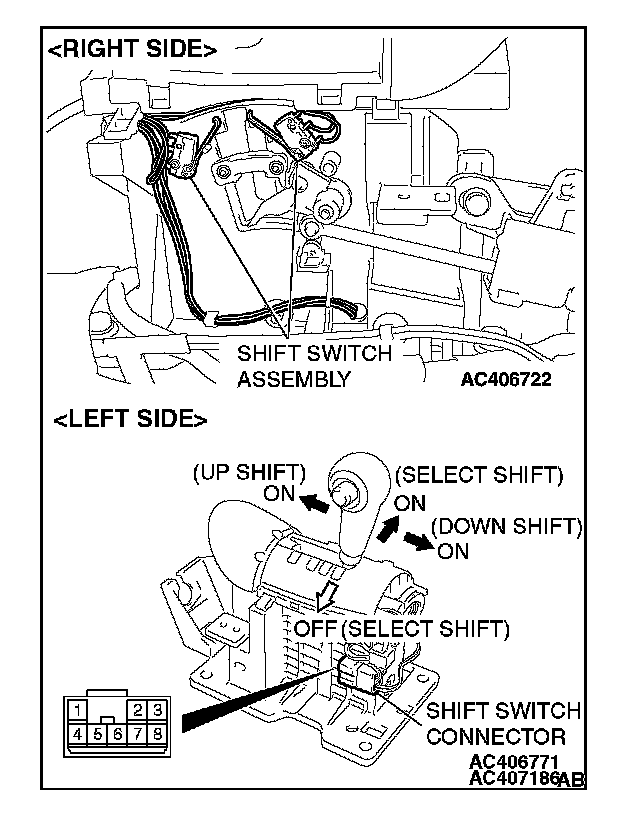

Shift Switch Assembly Continuity Check <Vehicles With Sport Mode> (Part 1):
Shift Switch Assembly Continuity Check <Vehicles With Sport Mode> (Part 2):
