Select Lever

SELECT LEVER

DISASSEMBLY AND ASSEMBLY

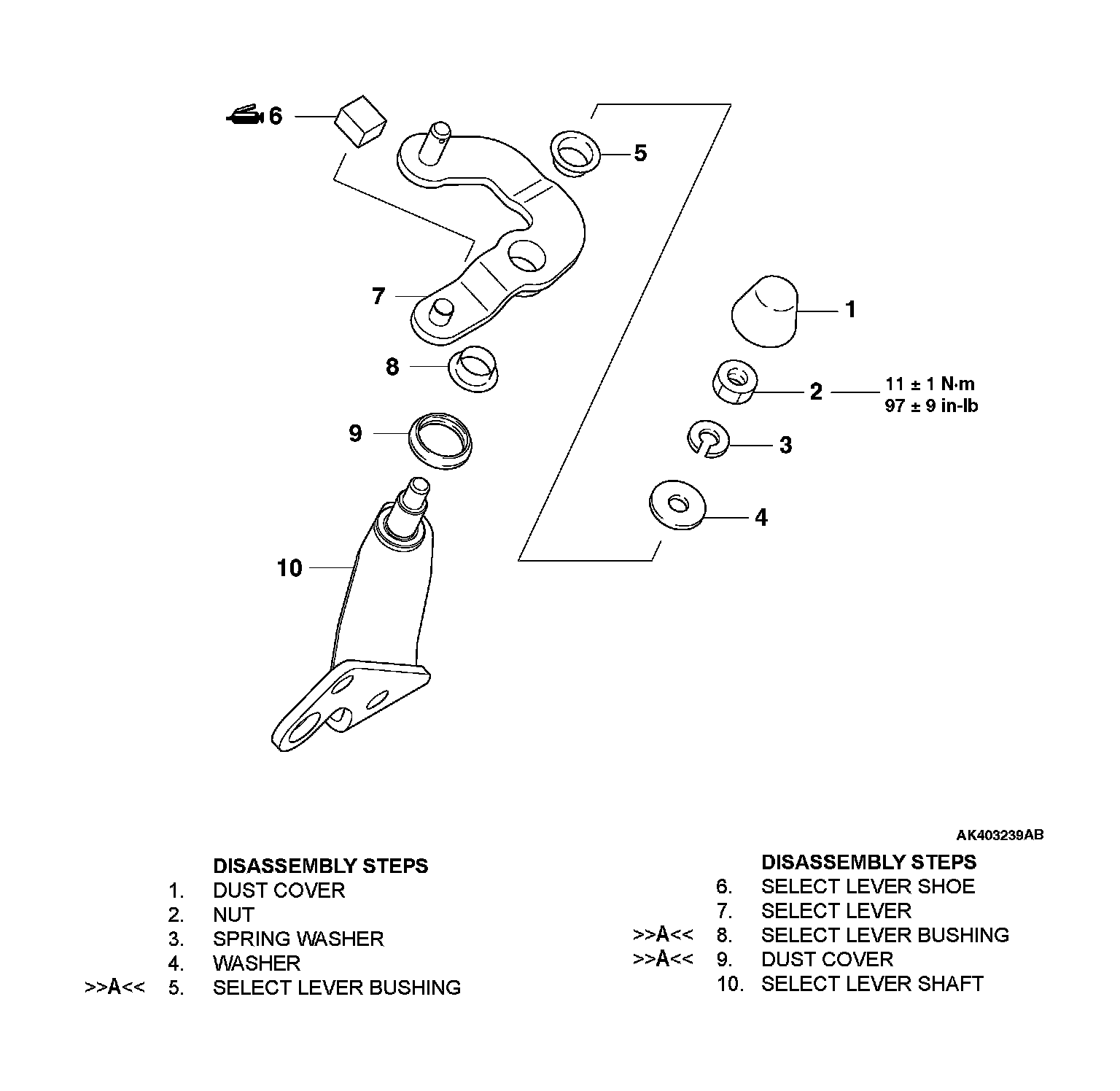

Disassembly Steps 1-10:





ASSEMBLY SERVICE POINT

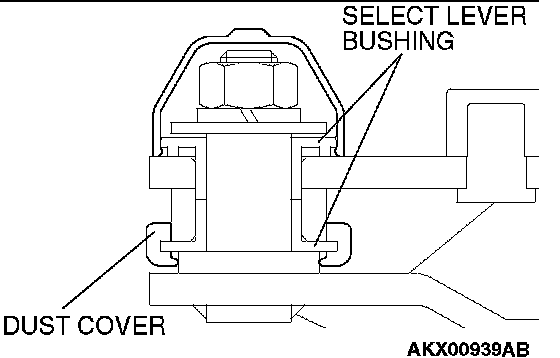

>>A<< DUST COVER AND SELECT LEVER BUSHING INSTALLATION





Make sure the dust cover and select lever bushing installation direction is correct, and the distinguished parts are correctly assembled as shown.
