Overhaul

CLUTCH MASTER CYLINDER

DISASSEMBLY AND ASSEMBLY

CAUTION
Do not disassemble the piston assembly.

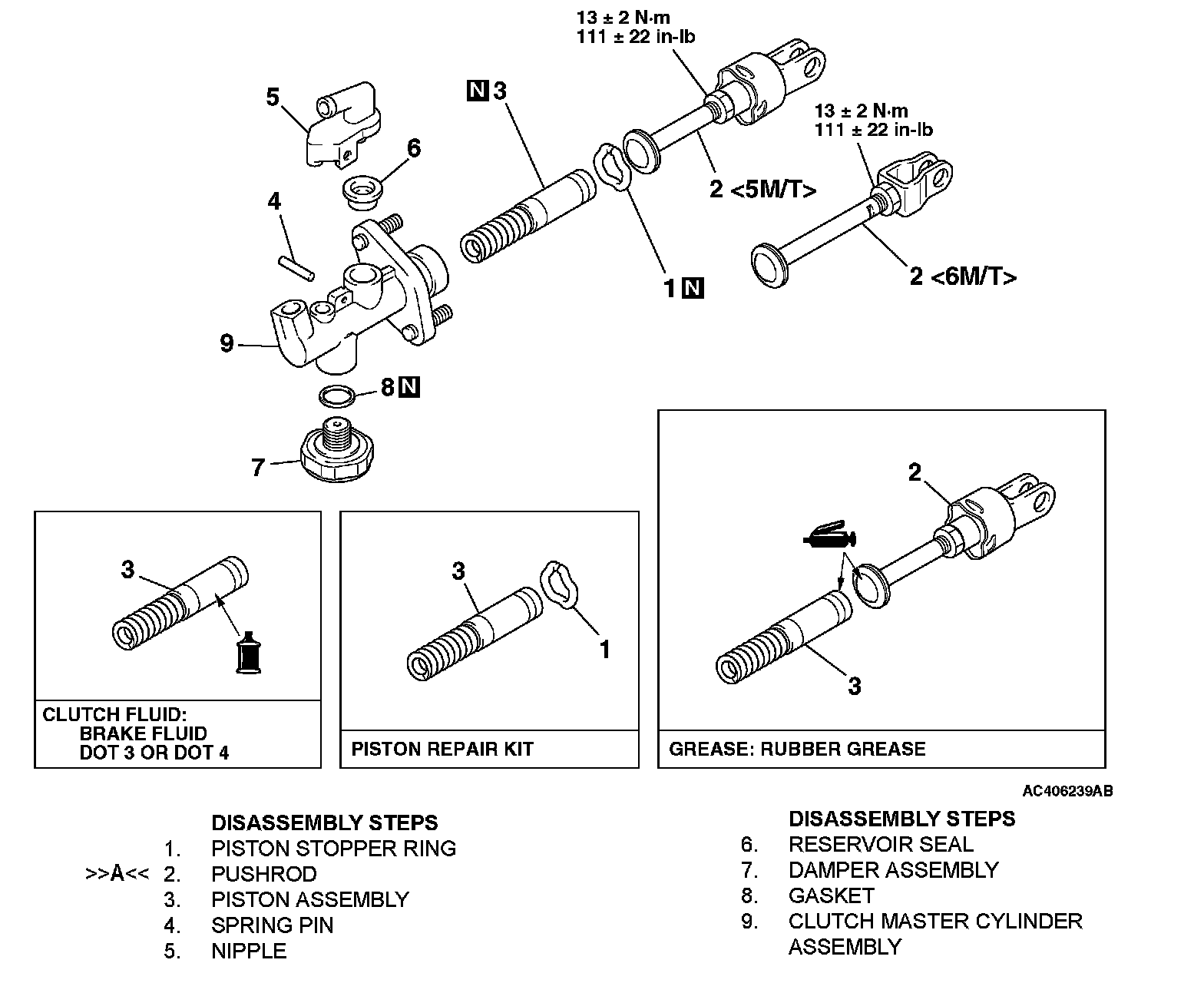

Disassembly Steps 1-9:

ASSEMBLY SERVICE POINT
>>A<< DAMPER AND PUSHROD INSTALLATION





Set the length of the push rod assembly to the dimension shown to make the adjustment of the clutch pedal easier.
