Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment >> F5A5A

F5A5A

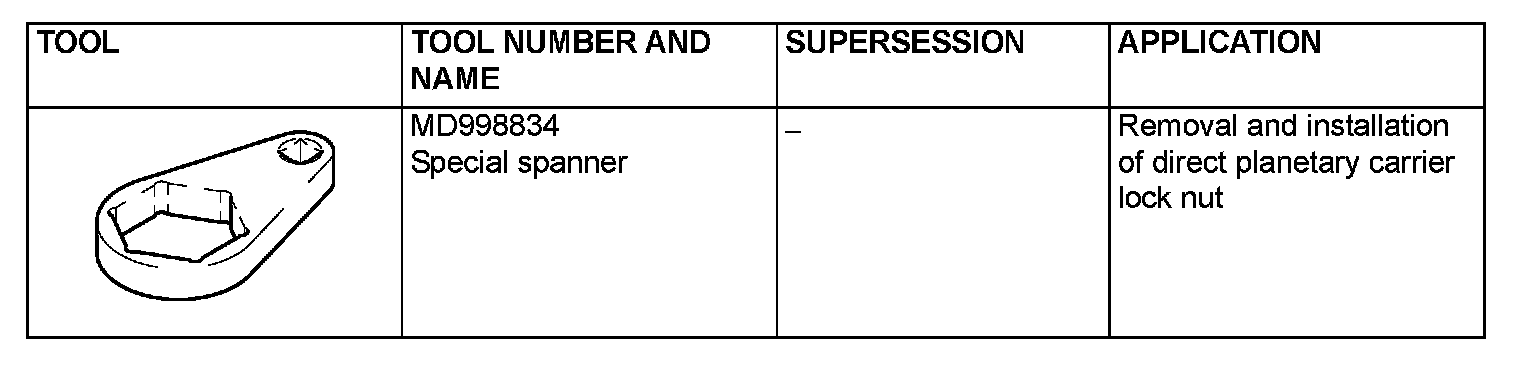

SPECIAL TOOLS (Part 1):

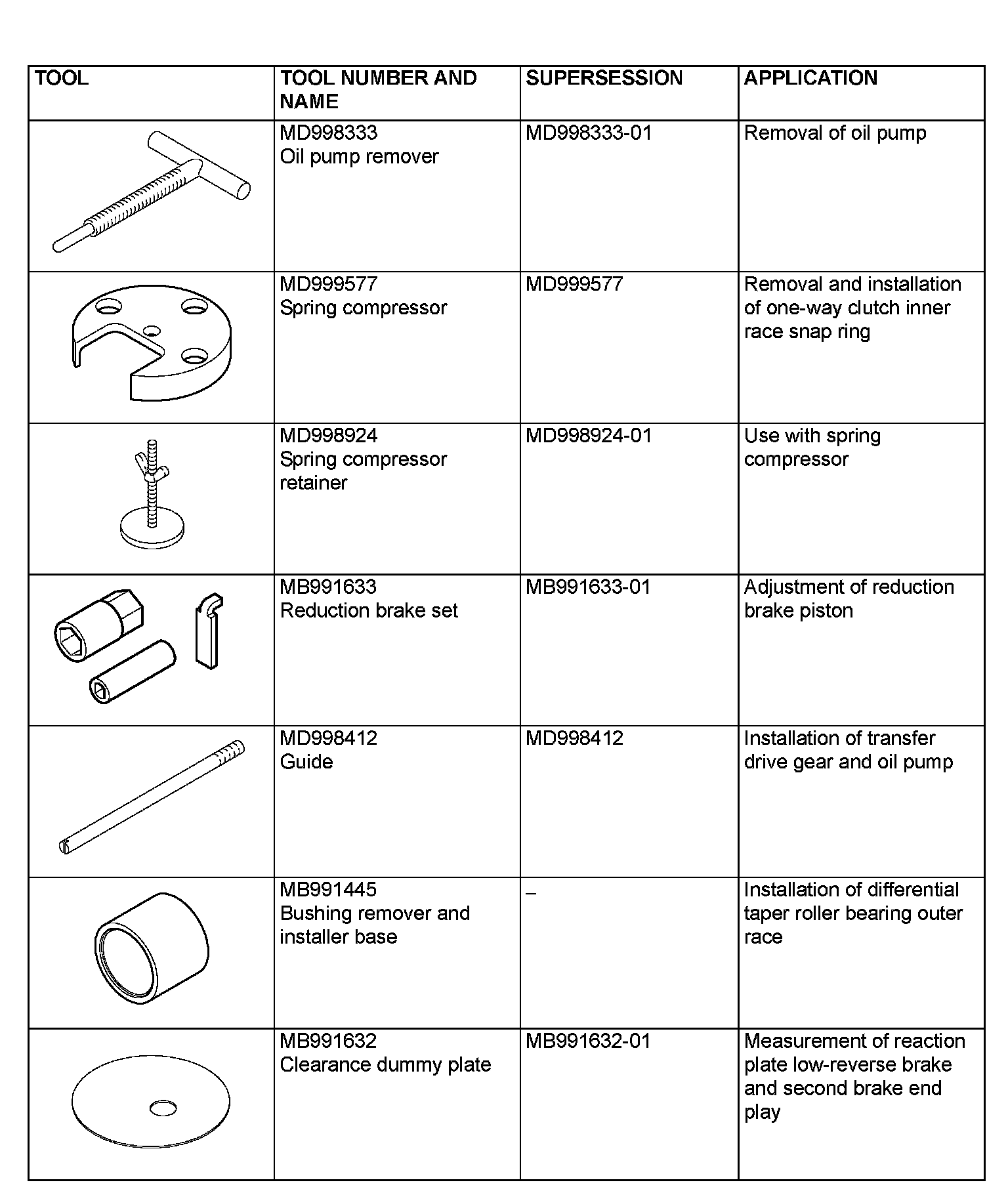

SPECIAL TOOLS (Part 2):

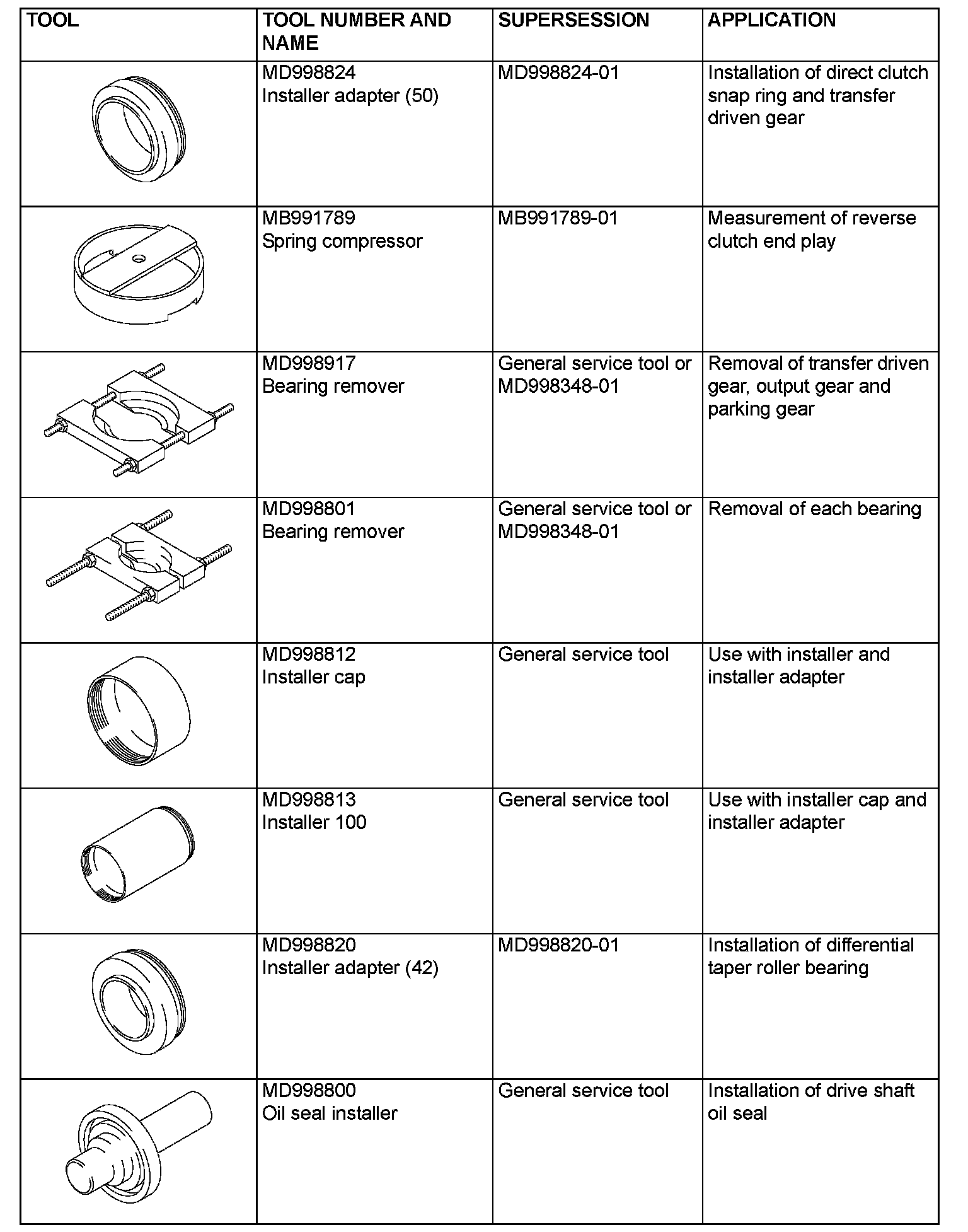

SPECIAL TOOLS (Part 3):

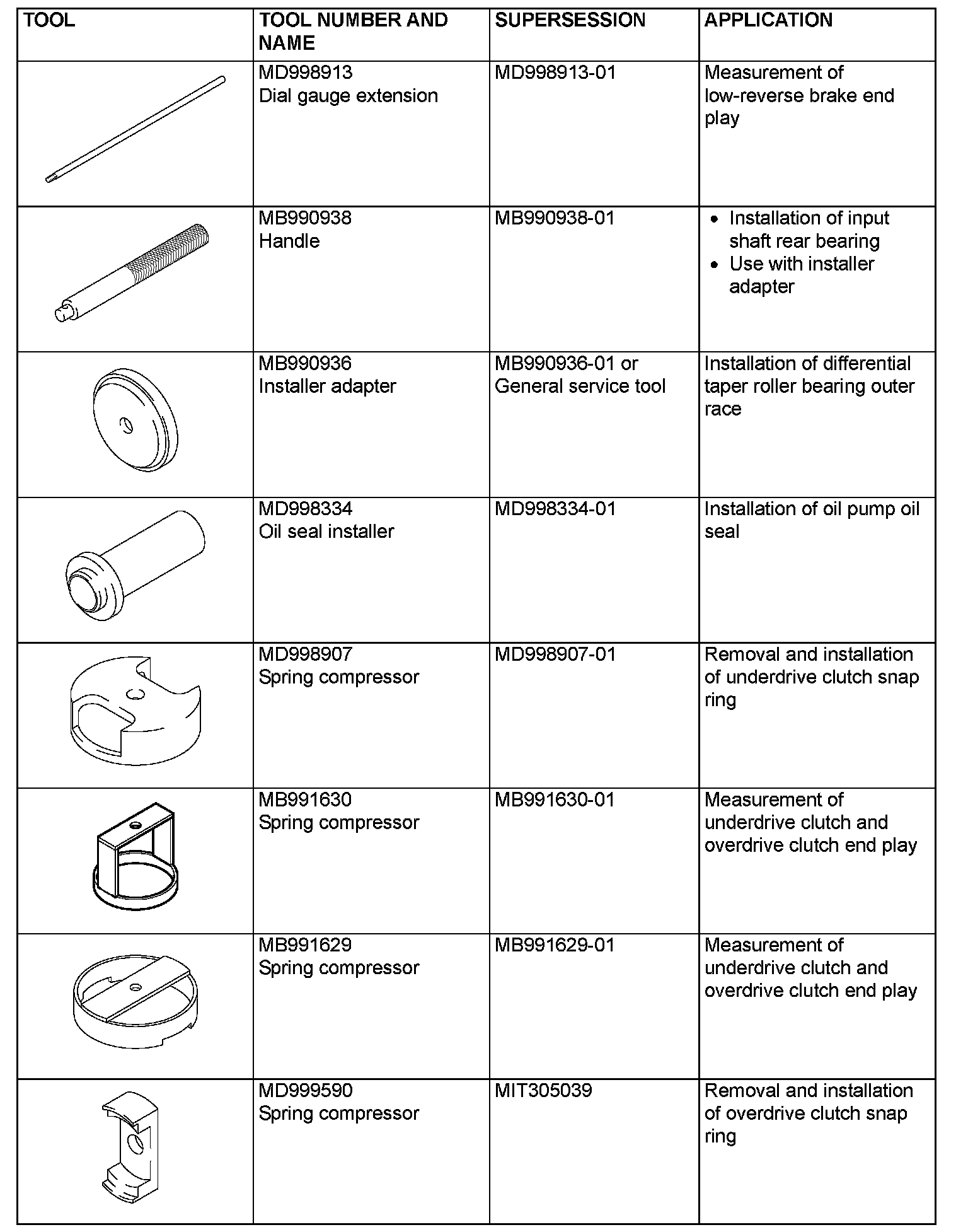

SPECIAL TOOLS (Part 4):
