Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

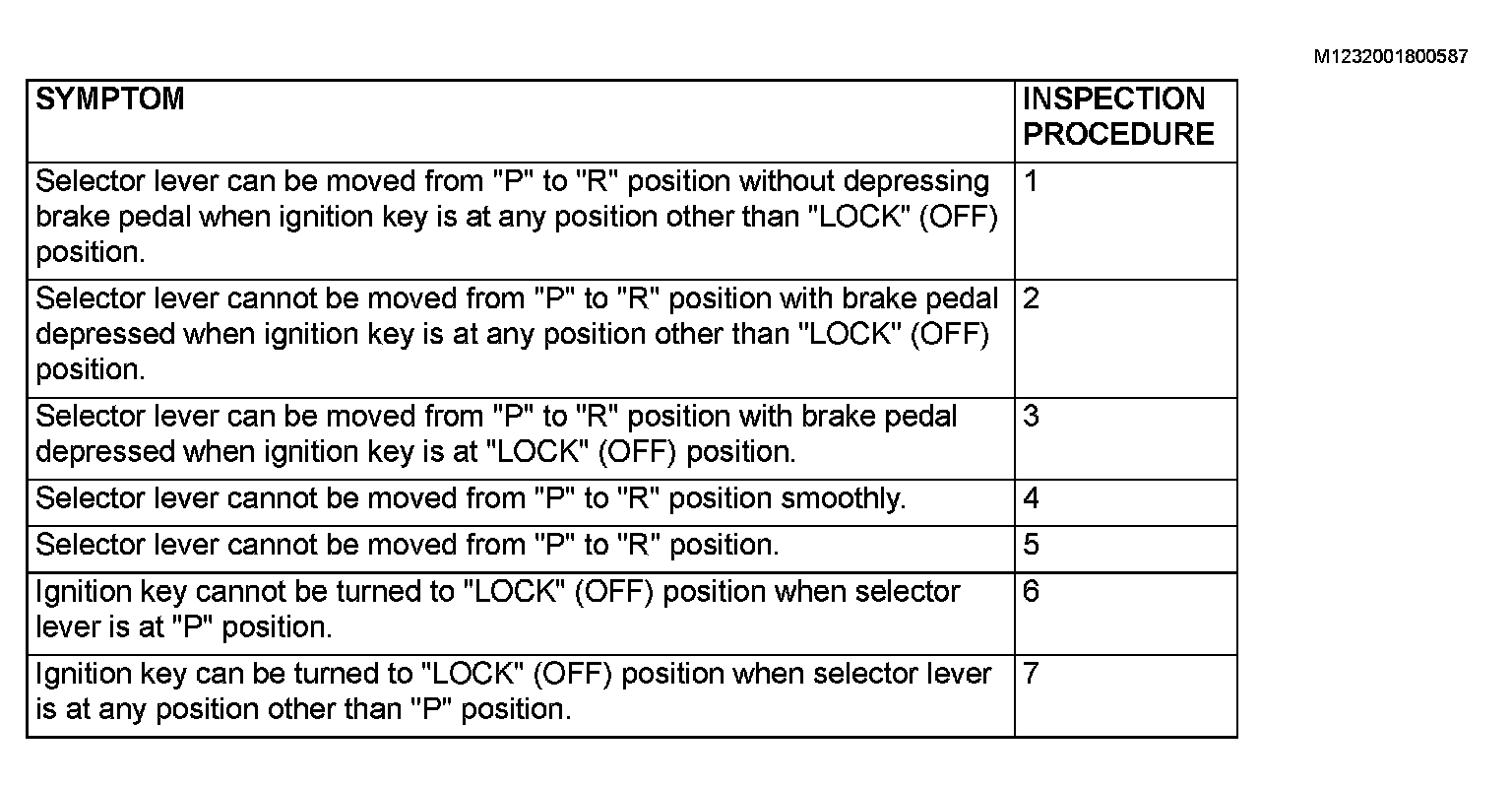

Symptom Reference Chart
Symptom Reference Chart
Inspection Procedures 1-7:
