Low-Reverse Brake

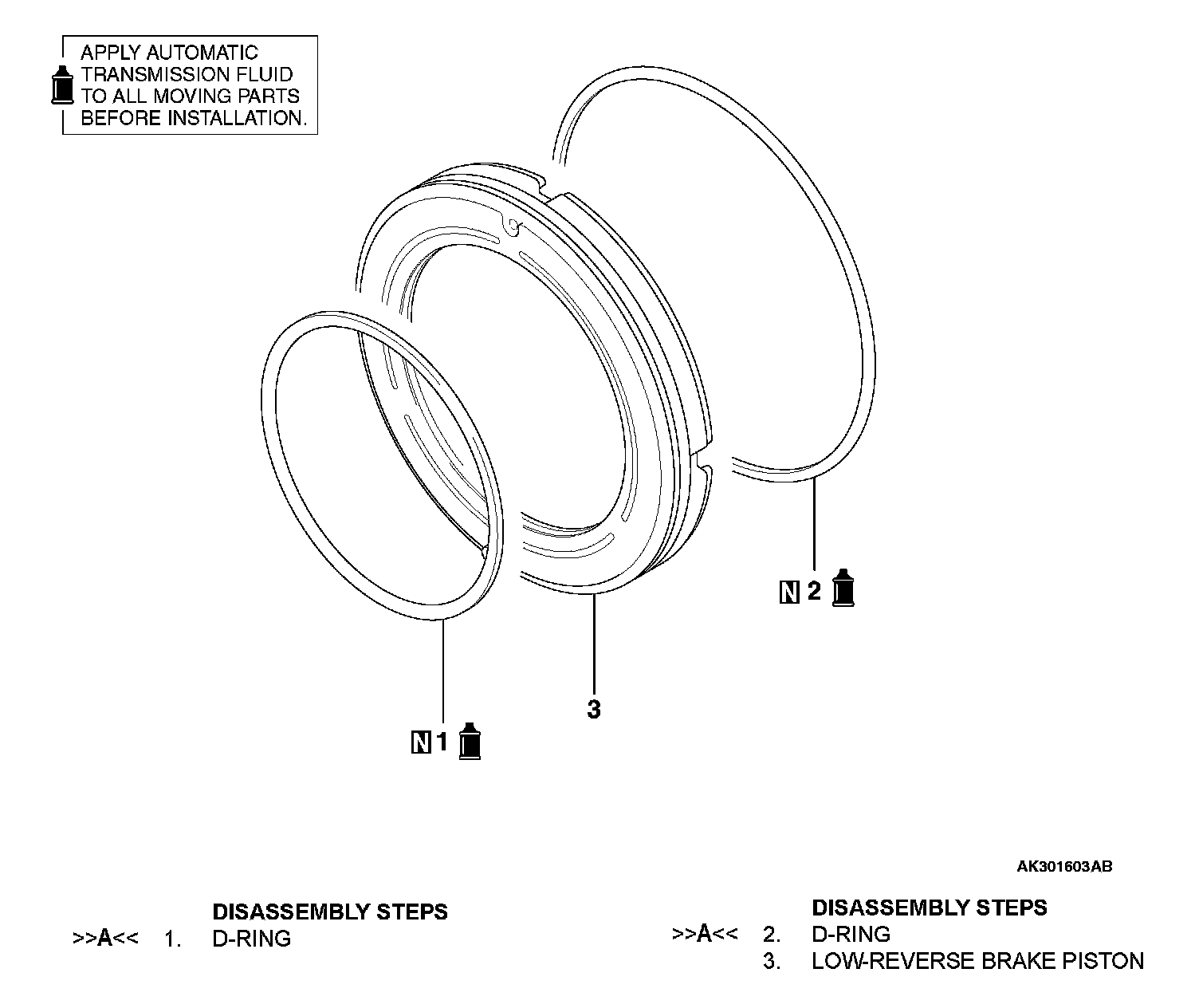

LOW-REVERSE BRAKEDISASSEMBLY AND ASSEMBLY
Disassembly Steps 1-3:
ASSEMBLY SERVICE POINT
]]A[[ D-RING INSTALLATION
Apply ATF or petroleum jelly (Vaseline) to the D-ring, and install carefully.
DISASSEMBLY AND ASSEMBLY
ASSEMBLY SERVICE POINT
]]A[[ D-RING INSTALLATION
Apply ATF or petroleum jelly (Vaseline) to the D-ring, and install carefully.
