Oil Pump

OIL PUMP

DISASSEMBLY AND ASSEMBLY

Disassembly Steps 1-4:

Required Special Tool:
* MD998334: Oil Seal Installer

ASSEMBLY SERVICE POINTS
]]A[[ OIL SEAL INSTALLATION





1. Apply a small amount of ATF to the oil seal lip.

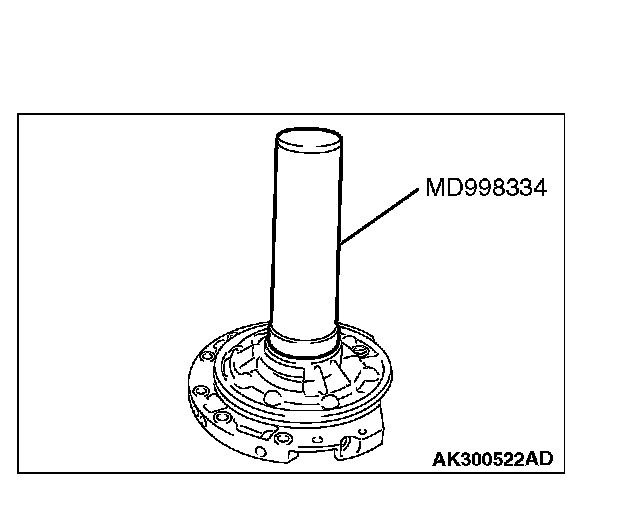

2. Use special tool MD998334 to tap the oil seal in the oil pump body.

]]B[[ O-ring INSTALLATION
Install a new O-ring to the outer groove of the oil pump, and apply ATF or petroleum jelly (Vaseline) to the O-ring.
