Pinout Values and Diagnostic Parameters

CHECK AT TPMS RECEIVER

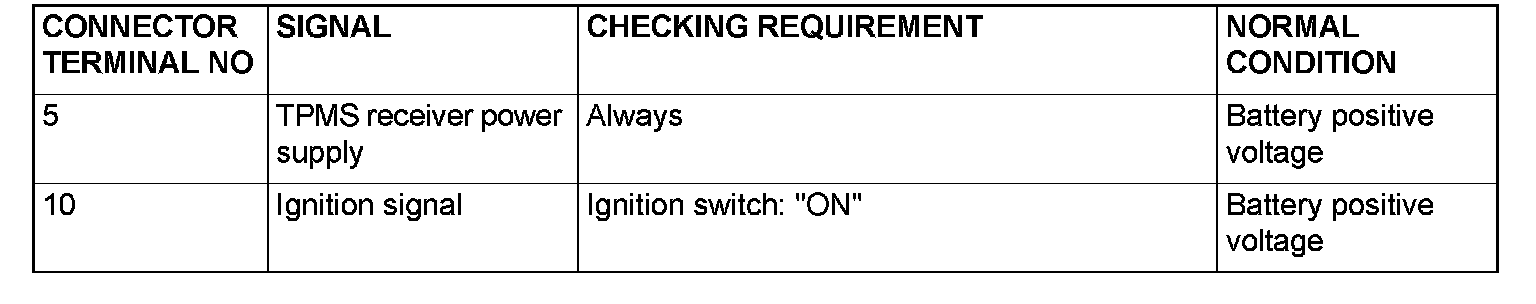

TERMINAL VOLTAGE CHECK CHART

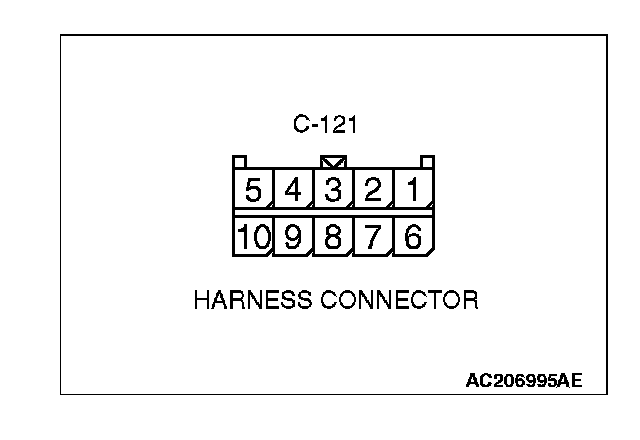

C-121:

Measure the voltages between terminal 6 (ground terminal) and each respective terminal.

TPMS RECEIVER GROUND CHECK
1. Turn the ignition switch to the "LOCK" (OFF) position and disconnect the TPMS receiver connector.

C-121:

2. Check the resistance and continuity between terminal 6 of the harness connector and body ground. The resistance should measure less than 2 ohms.
