Trailing Arm Bushing: Service and Repair

*This document updated per TSB #08-27-005

REAR SUSPENSION BUSHING REPLACEMENT

Required Special Tool:

- MB9921O7: Rear suspension bushing replacer




Removal:
1. Remove the shock absorber assembly stabilizer link connection nut and lower arm assembly.

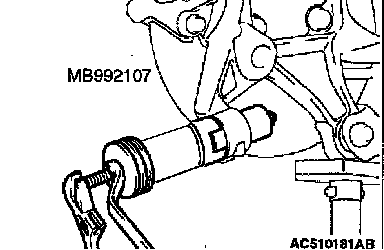

2. Use special tool MB9912107 to remove the bushing as shown in the illustration.




Installation:

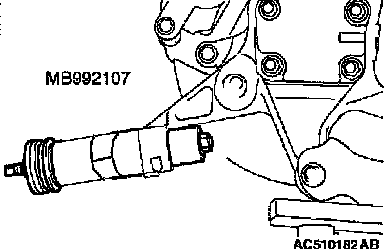

Press in the bushing until its end is flush with the knuckle by observing through the cut-off part of the special tool.
