Removal and Installation

TRAILING ARM

REMOVAL AND INSTALLATION

CAUTION
*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

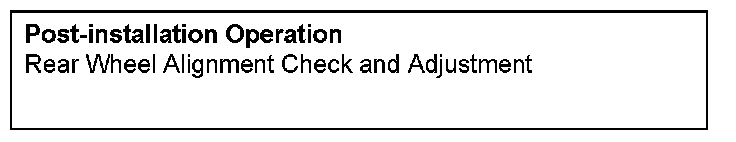

Post-installation Operation:

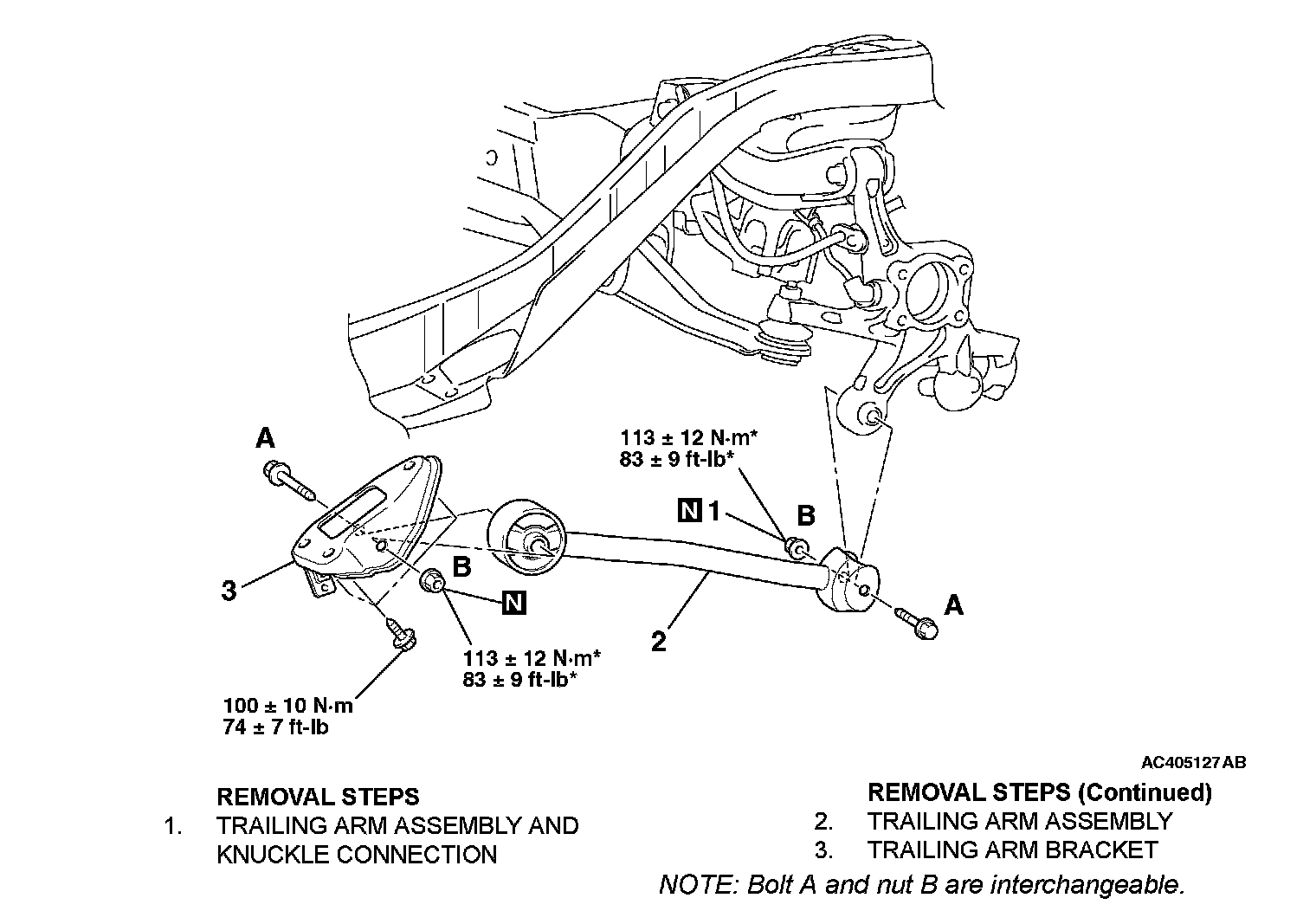

Removal Steps 1-3:





NOTE: Bolt A and nut B are interchangeable.
