Removal and Installation

LOWER ARM

REMOVAL AND INSTALLATION

CAUTION
*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground an unladen condition.

Post-installation Operation:

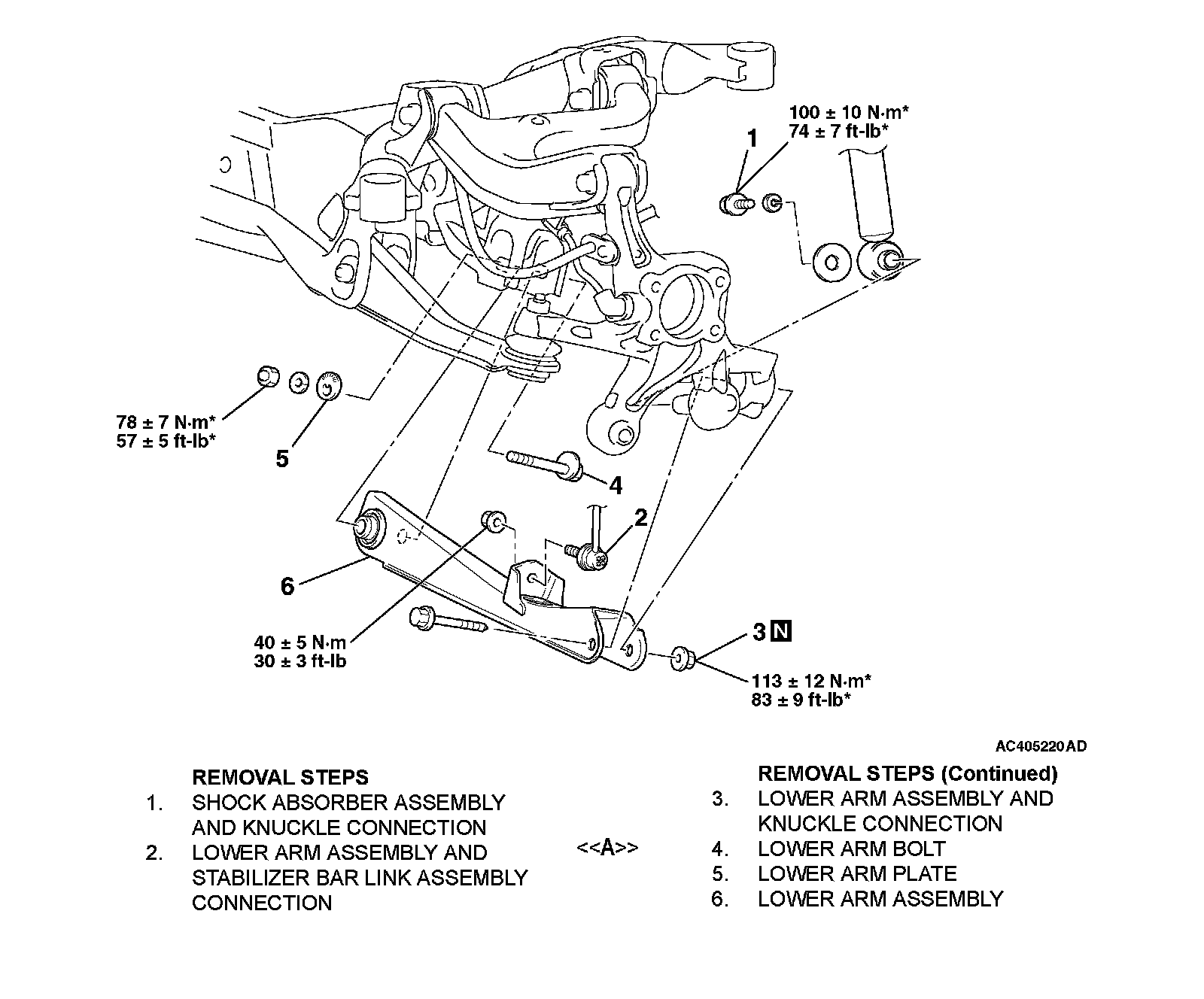

Removal Steps 1-6:

REMOVAL SERVICE POINT

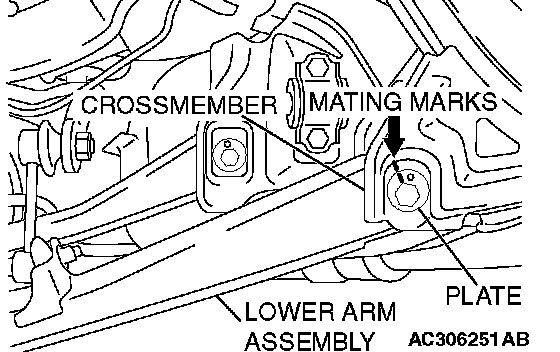

[[A]] LOWER ARM BOLT REMOVAL





Place mating marks on the crossmember and the plate before removing the lower arm bolt.
