Removal and Replacement

GENERATOR ASSEMBLY

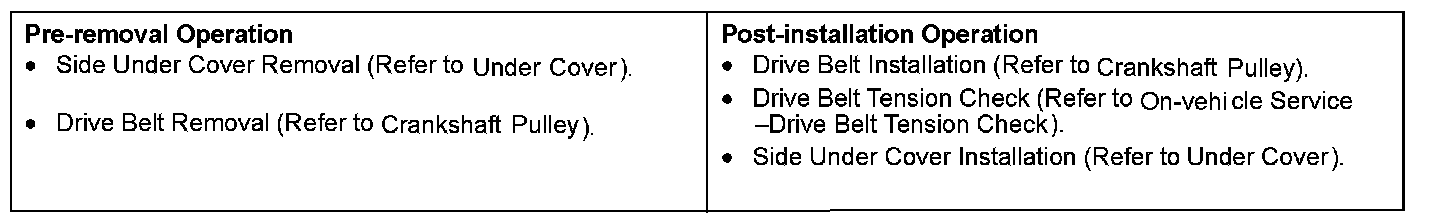

Pre-Removal & Post-Installation Operation:

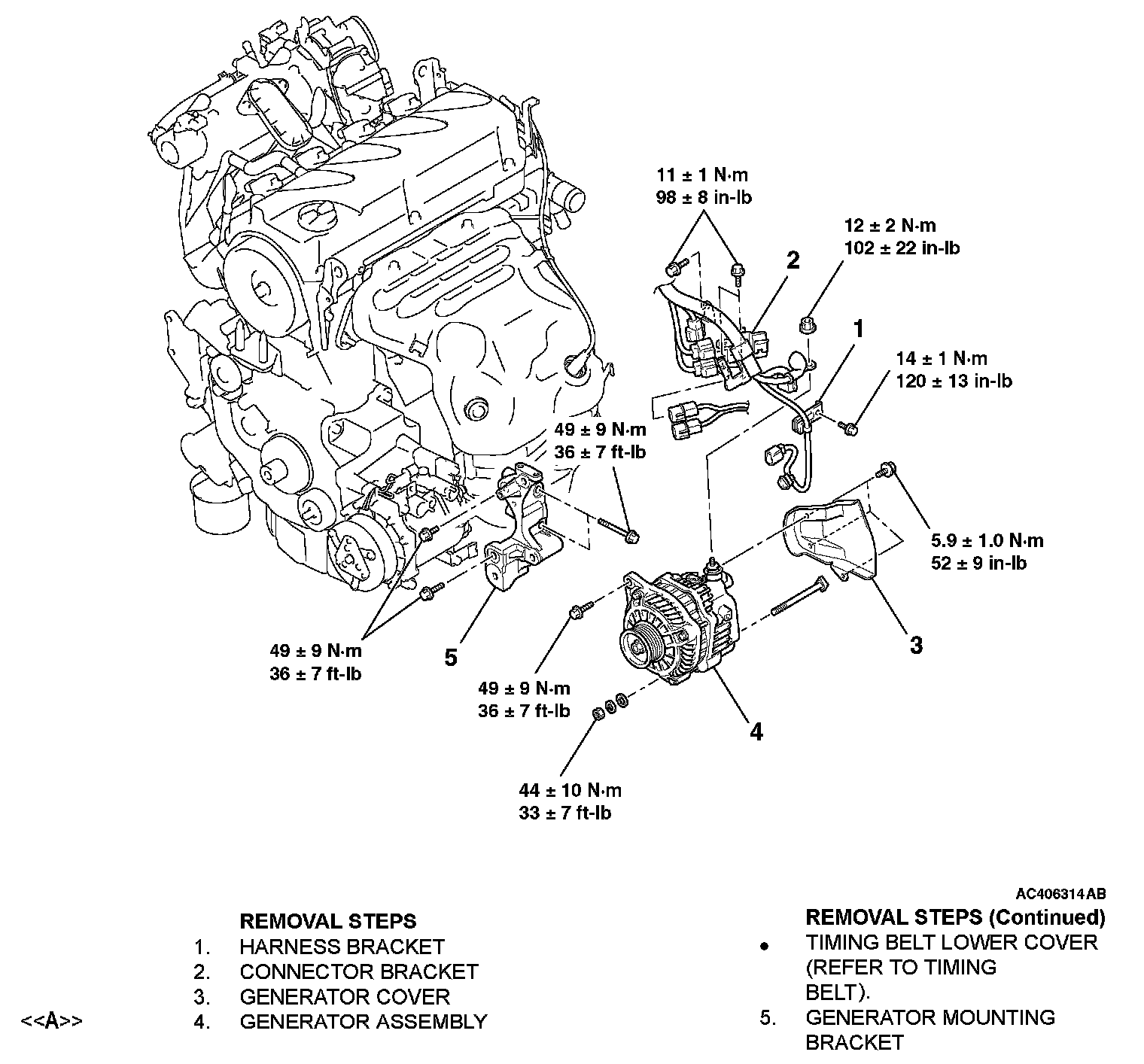

Removal Steps 1-5:




REMOVAL AND INSTALLATION <2.4L ENGINE>

REMOVAL SERVICE POINT

<> GENERATOR ASSEMBLY REMOVAL
Remove the generator assembly from above the vehicle.
