Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Overhaul >> Service Specifications

Service Specifications

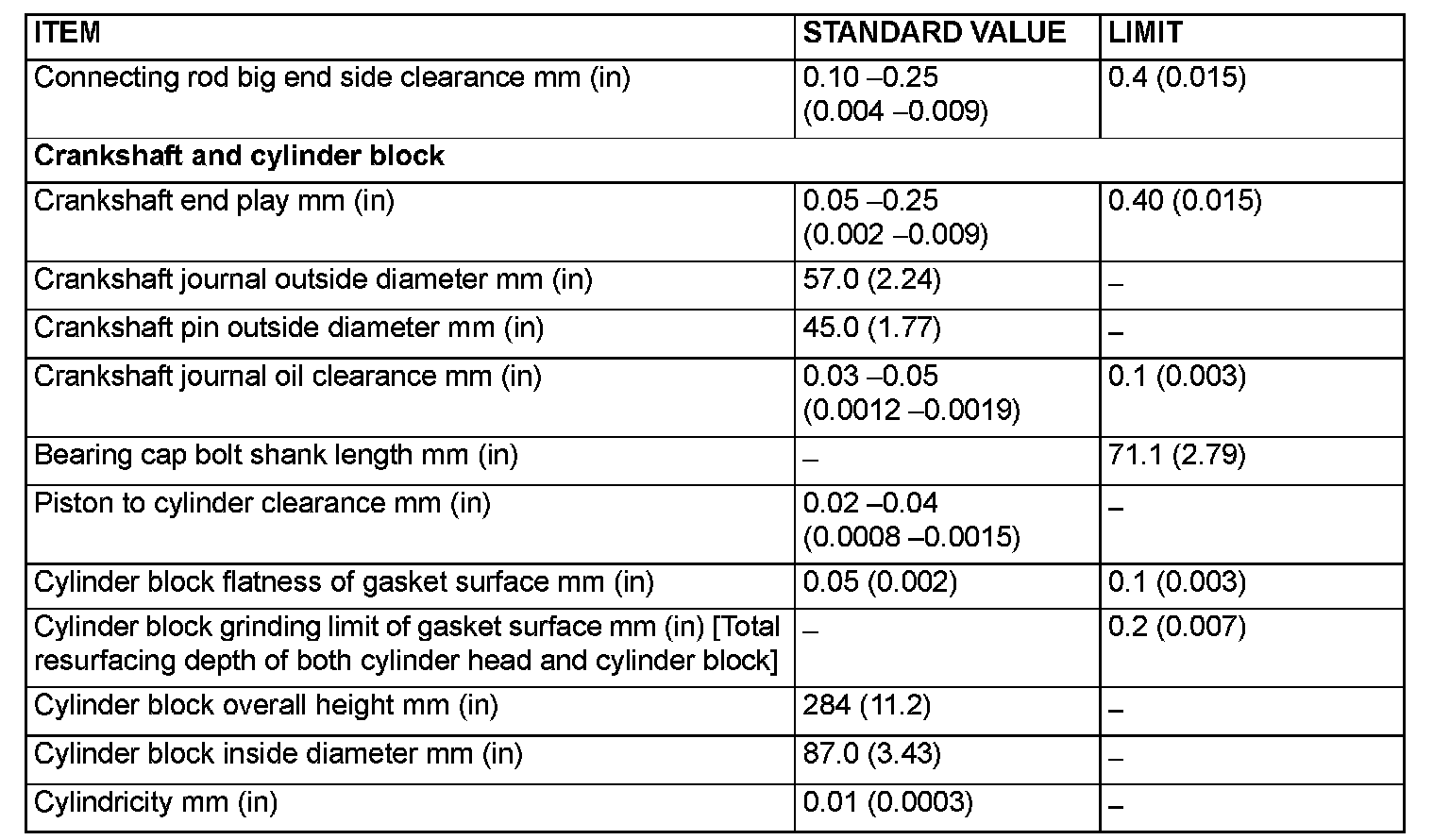

SERVICE SPECIFICATIONS (Part 1):

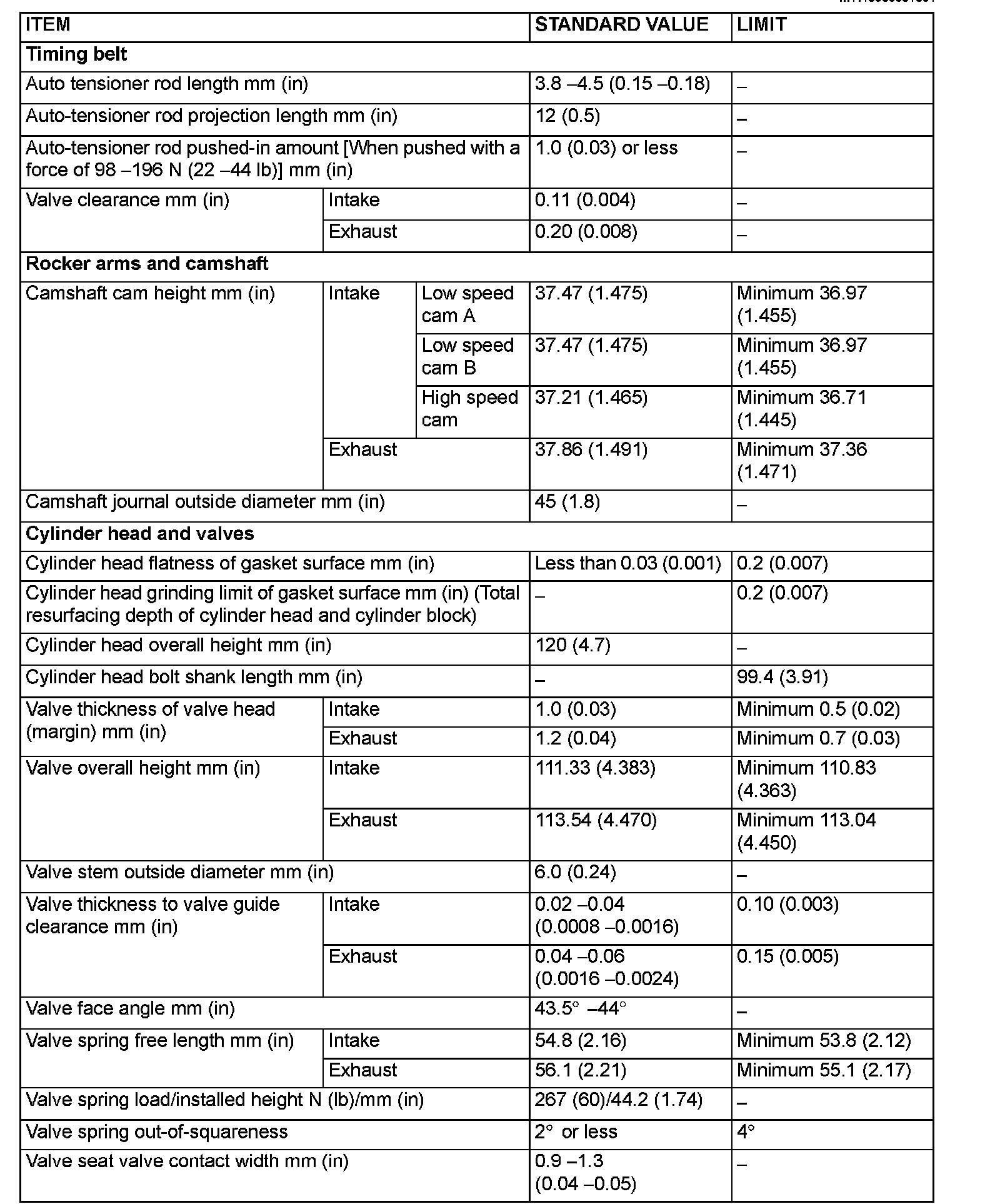

SERVICE SPECIFICATIONS (Part 2):

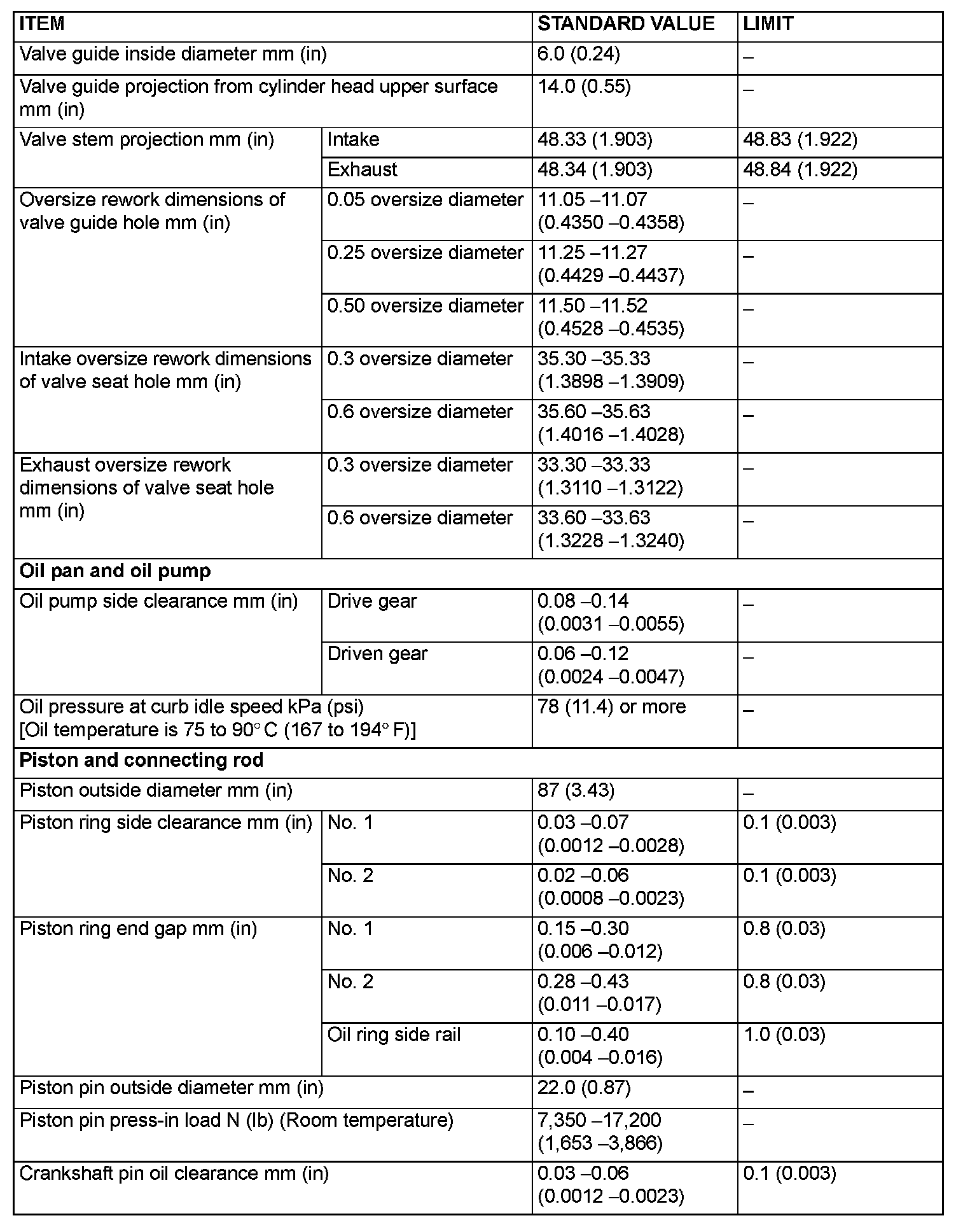

SERVICE SPECIFICATIONS (Part 3):
