Home >> Mitsubishi >> 2007 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Overhaul >> Fastener Tightening Specifications

Fastener Tightening Specifications

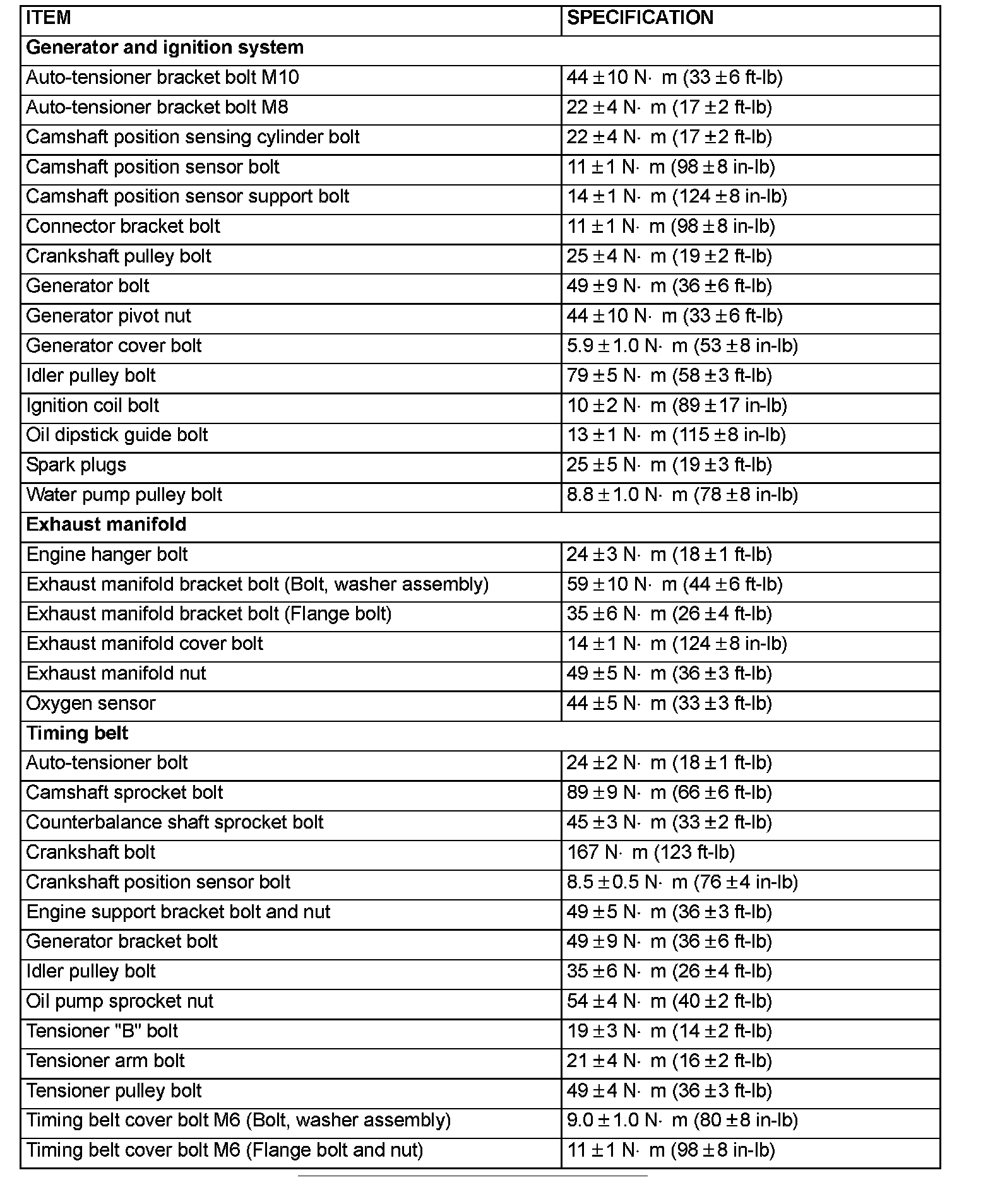

FASTENER TIGHTENING SPECIFICATIONS (PART 1):

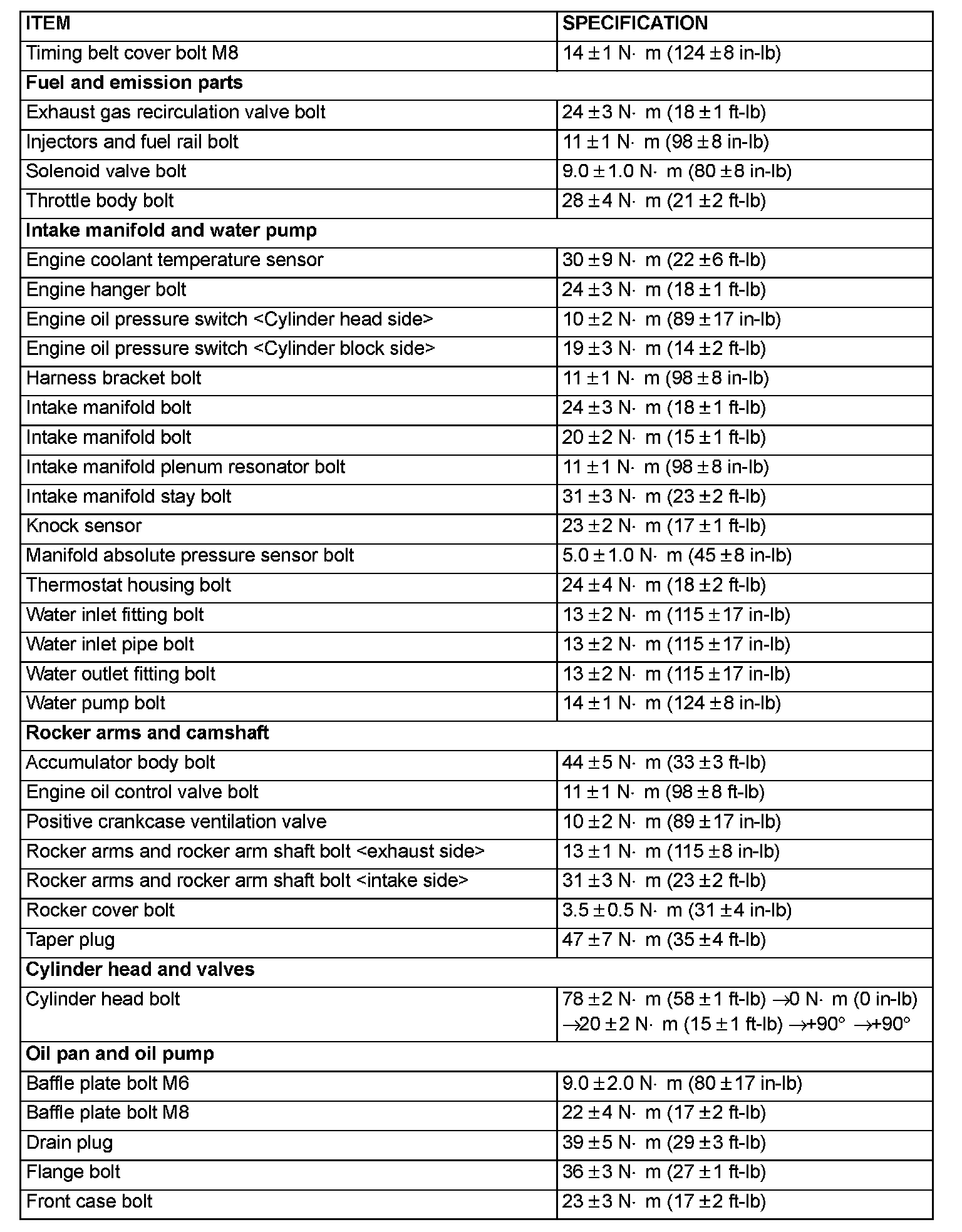

FASTENER TIGHTENING SPECIFICATIONS (PART 2):

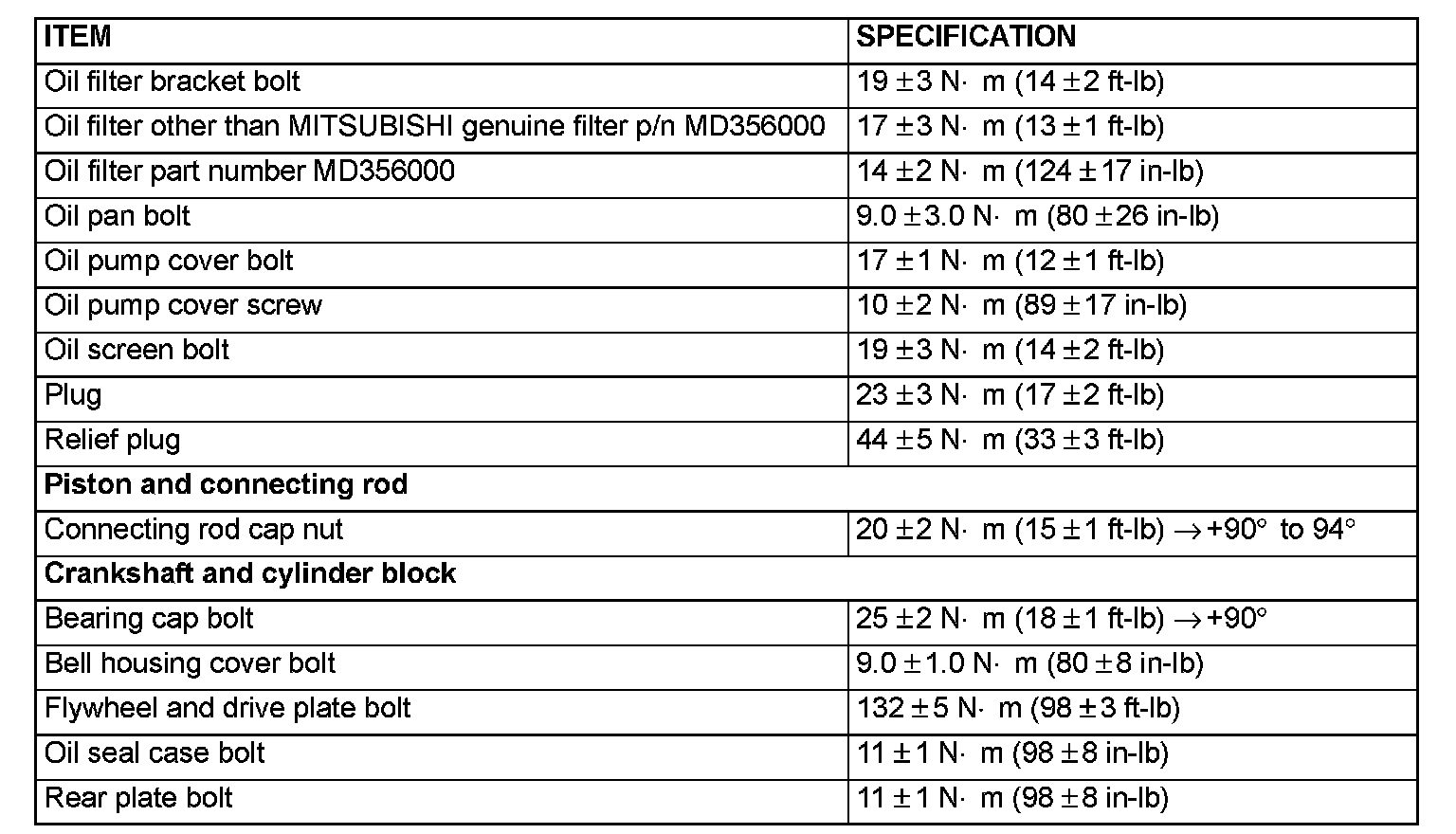

FASTENER TIGHTENING SPECIFICATIONS (PART 3):
