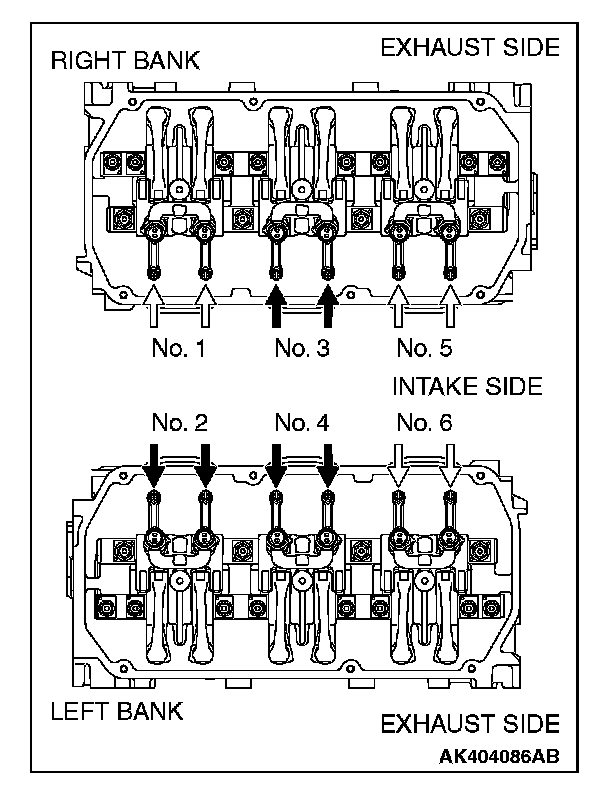

Valve Clearance





Valve Clearance (at hot) mm (in)
Intake valve 0.20 (0.008)
Exhaust valve 0.30 (0.012)
