Camshaft Gear/Sprocket

Camshaft Sprocket

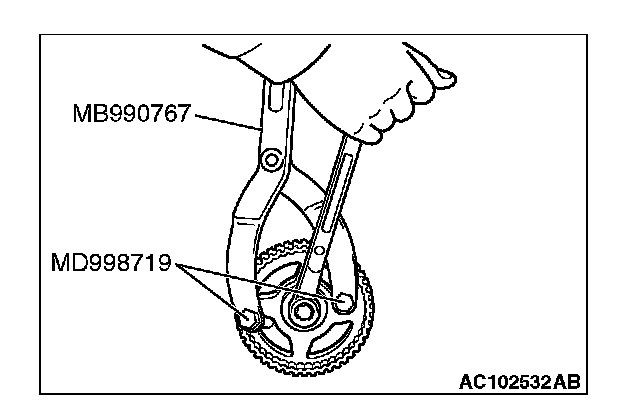

Tighten the camshaft sprocket mounting bolt to the specified torque.
Tightening torque: 89 ±9 Nm (65 ±7 ft-lb)
