Loose Panel

LOOSE PANEL

REMOVAL AND INSTALLATION

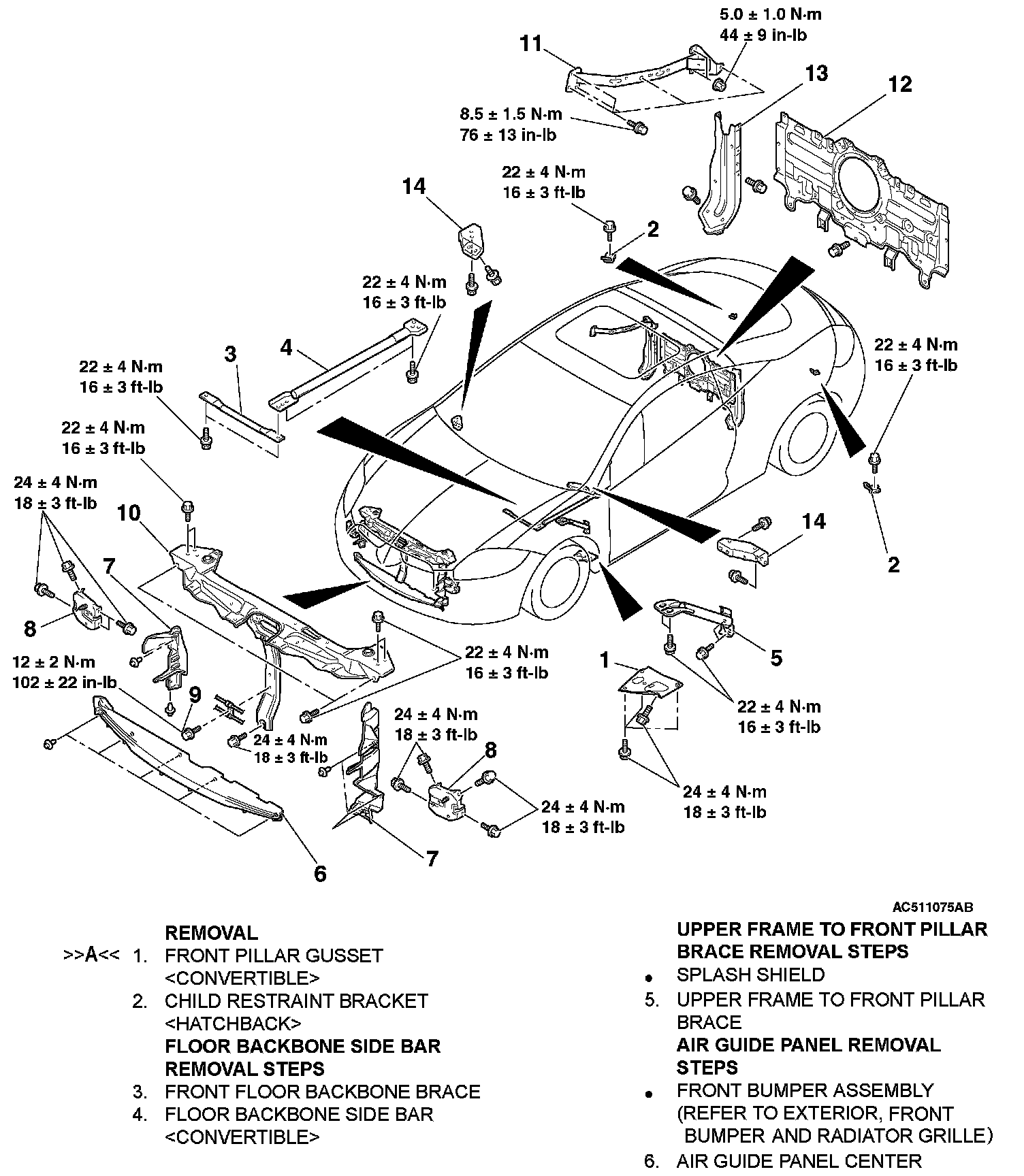

Removal Steps 1-14 (Part 1):

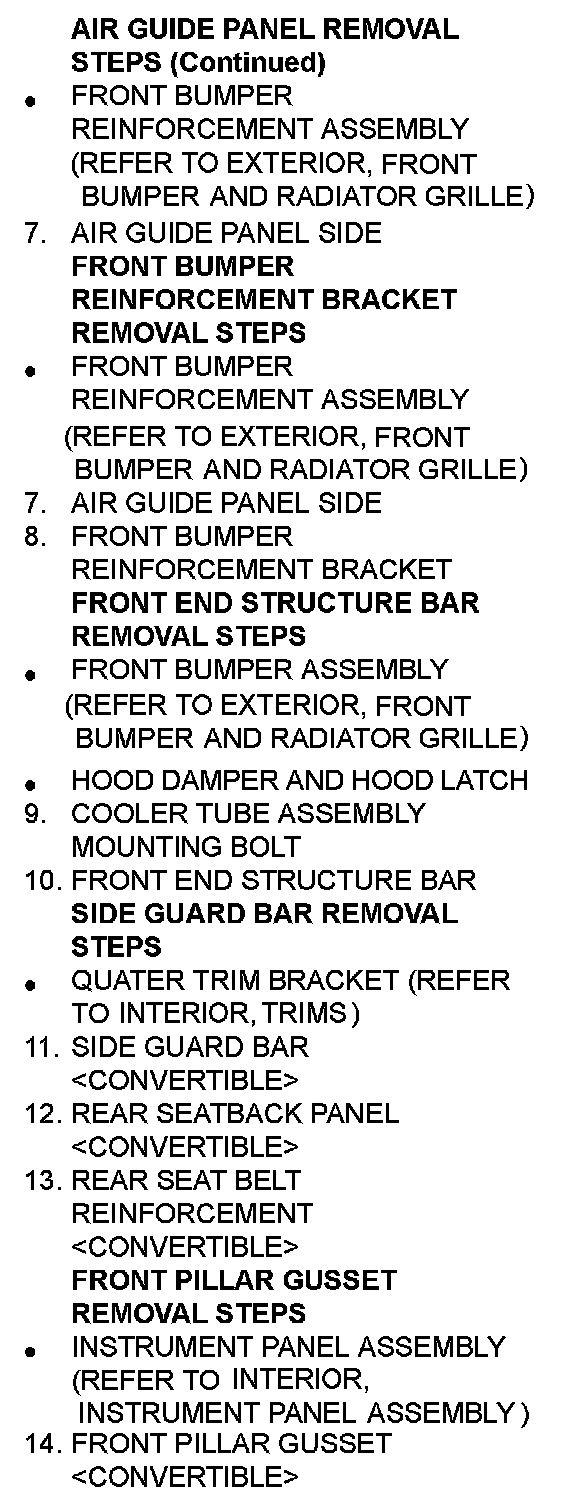

Removal Steps 1-14 (Part 2):
